• Pixel Pitch : 0.78 mm
• Screen Size: 136” (Ultra HD)
• Max. Brightness (After Calibration) : 500 nit
• Achieving Deep Black
• Intelligent Processor
• Embedded System Controller and Built-in Speaker

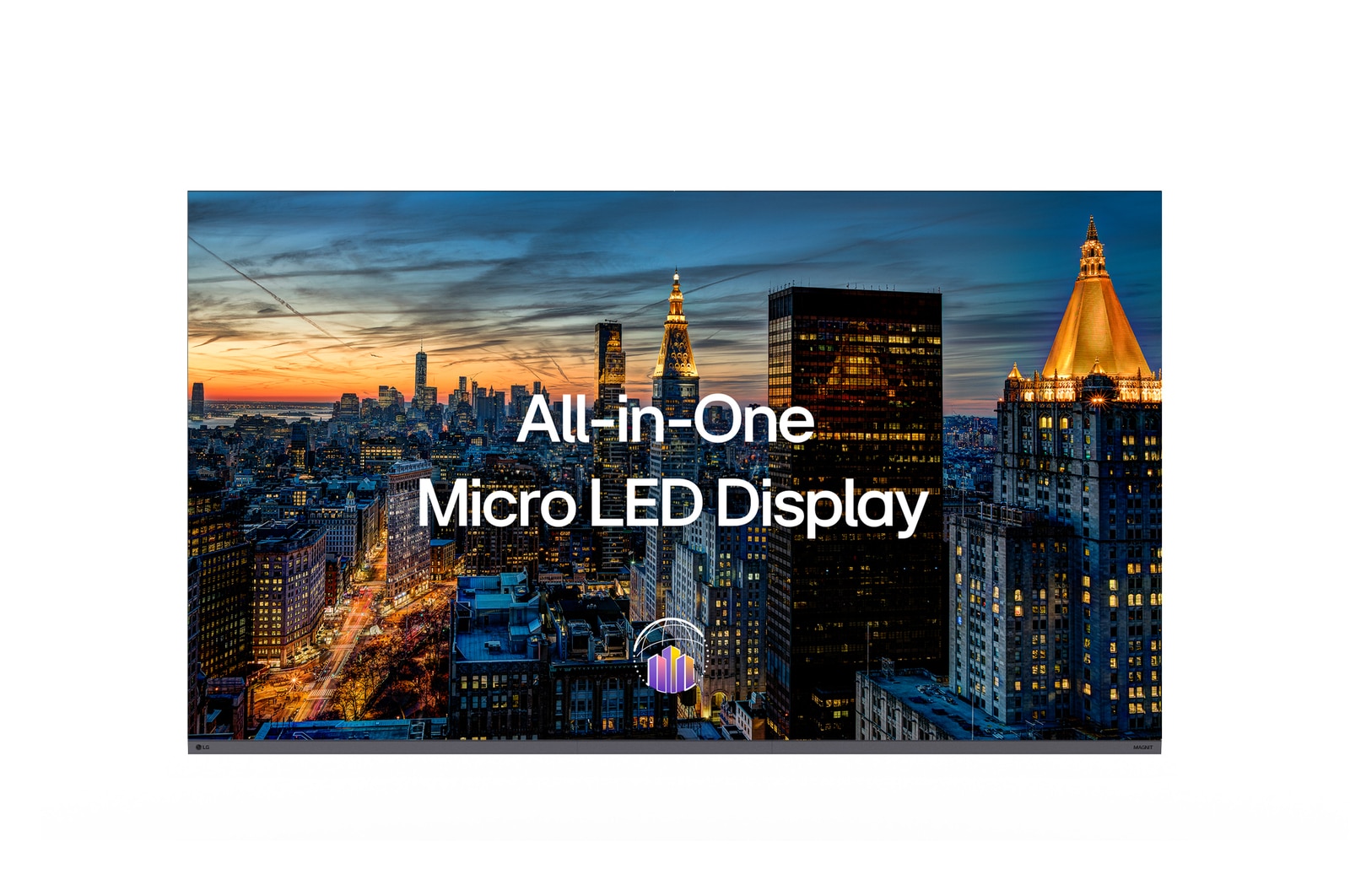

LG MAGNIT All-in-One has gained global acclaim for both its cutting-edge technology and stunning design.
In a luxurious meeting room with a wide conference table and a view of the scenery outside, there is a LG MAGNIT All-in-One, LAAA series, installed on the wall. The 136-inch LAAA screen vividly displays presentation materials for the meeting.
*All images in this page are for illustrative purposes only.
LG MAGNIT’s Micro Pixel Pitch Technology offers remarkable visual precision. Our advanced LED chips provide impressive detail accuracy and precise light control, delivering crystal-clear images on the display. With accurate colour expression, every hue is rendered with stunning clarity and depth, providing a true-to-life visual experience. Enjoy the fineness of display technology with LG MAGNIT.
LG MAGNIT All-in-One, LAAA series's modules come together to form a large screen that showcases precise colors and clear night views.
LG MAGNIT's innovative Chip Transfer and Surface Treatment Technology enhances white uniformity and reduces colour distortion across a wide viewing angle, delivering true and accurate viewing experiences. This technology ensures remarkable colour uniformity, resulting in superb image quality.
While conventional LED screens distort colors (appearing red) at different wide angles, LG MAGNIT displays accurate results across the wide viewing angle.
*Based on LG's conventional LED signage without LG's chip transfer and surface treatment technology.
LG MAGNIT's advanced and precise method for direct bonding micro-sized chips onto circuit boards, combined with the black coating technology and reduced spacing between the chips and the board, creates a stunning black expression that stands out compared to SMD-type LED displays. This makes it the ideal choice for displaying content that requires deep black colour, ensuring that every image is rich, vibrant, and true to life.
Traditional SMD-type LEDs have larger chips, and the casing color used for the LED chips gives the screen an overall gray appearance. In contrast, Micro LEDs directly embed micro-sized chips on the substrate, with the non-chip areas being black, resulting in deep representation of black color.
LG MAGNIT features an advanced AI-powered Alpha 7 Intelligent Processor that provides clarity and sharpness to deliver an immersive viewing experience. Its advanced AI technology enables the processor to recognize and analyze content, tailoring the display settings for each individual scene to create a highly realistic and vivid image possible.
Through optimization by the Alpha 7 Intelligent Processor, nebulae in the night sky appear more vibrant and exhibit enhanced sharpness.
Create a full screen of LG MAGNIT AIO with 5 units of assembled LDM(LED Display Module)s. A unit consisting of 30 modules is preconfigured with reduced gaps thanks to LG MAGNIT's professional module alignment process. Tightly hold the screen with its refined bezels and back cover, and connect AC cables (One for LAAA015, Two for LAAA007). Then, it allows for neat installation without the complicated power connection.
This consists of a total of 4 images showing the steps to mount the frame on the wall using the wall mount, attach the 5 units of an assembled LDM to the frame, assemble bezels, and connect AC power.
*Fixing screws or installing wall mount/accessories is need additionally.
With the LG Magic Remote, you can select and run the menu of the signage just like using a mouse and its cursor can be used as a laser pointer. In addition, through the newly added 'FREEZE' button on the remote control, users can temporarily freeze the screen while switching contents on the PC, so that users are able to have uninterrupted meetings without exposing its switching process.
The functions of the LG Magic Remote are shown in two images. The left image shows the Magic Remote’s function which allows it to be used as a laser pointer on the LAAA screen. The right image is the Freeze Function, and when the Freeze button on the Magic Remote is pressed, the LAAA screen installed on the conference room wall is paused and the contents of the PC can be changed without exposing its changing process.
*The FREEZE function is only available when the LAAA is connected to an external input signal.
LG One:Quick Share is a wireless screen sharing solution available through the LAAA series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.

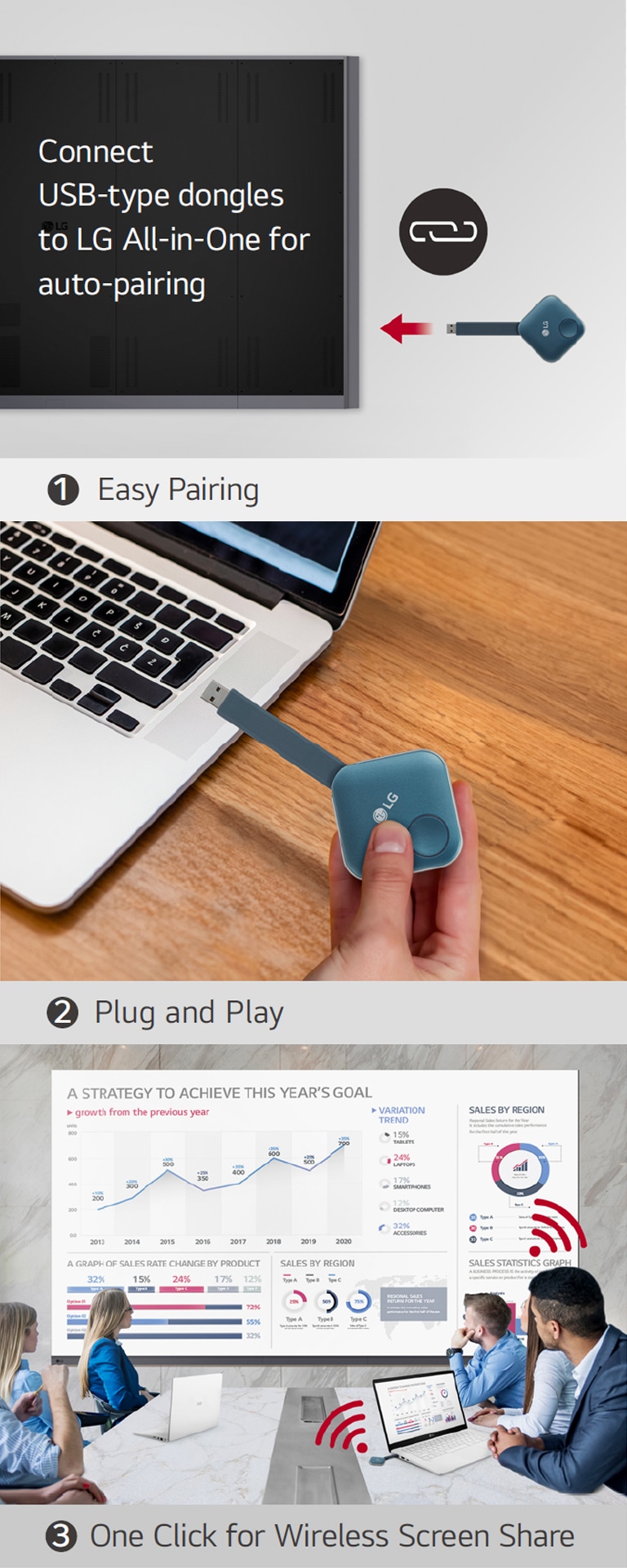

This consists of total 3 steps' images for installing One:Quick Share USB dongle and sharing the personal screen for wireless screen sharing. The first image is for pairing the USB dongle and the LG digital signage, the second describes a person is holding the USB dongle and trying to connect it to the PC, and the last image is for finally people having a meeting by connecting a USB dongle device to a laptop and sharing a screen wirelessly with the LAAA on the wall.
*Users need to set up SoftAP enabled at Network Menu of the Signage.
**Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
***LG One:Quick Share needs to be purchased separately and is compatible with PC with the operating system of ~Windows10, ~MacOS 10.15.
Pixel Configuration
Micro
Module Dimensions(WxH,mm)
300x112.5
Physical Pixel Density (pixels/㎡)
1,638,400
Flatness of Cabinet (mm)
±0.2
Cabinet material
Steel
Service access
Front
Screen Resolution (WxH)
3,840x2,160
No. of Modules per Screen (WxH)
10x15 (Total 150)
Screen Dimensions (W x H x D, mm, including bezel)
3,005x1,742x54.9 (Thickest 57.4)
Screen Surface Area (㎡)
5.06
Weight of the screen
190
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity(%)
95%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
25,000:1 @10lux
Processing Depth (bit)
20 (HDR10, HDR10 Pro)
Color Temperature
3,200~9,300
Max. Brightness (After Calibration)
500 / Peak 1,000
Power Consumption (W/㎡, Max.)
277
Heat Dissipation (BTU/h/㎡, Max.)
950
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Power Consumption (W/Screen, Max.)
1,450
Power Consumption (W/Screen, Avg.)
850
Heat Dissipation (BTU/h/Screen, Max.)
4,950
Heat Dissipation (BTU/h/Screen, Avg.)
2,900
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
0℃ to +40℃
Operating Humidity
10~80%RH
IP rating Front
IP50
IP rating Rear
IP20
Certification
Safety 60950-1, EMC Class A
Environment
RoHS
Controller
Embedded(webOS)
Speaker
Built-in(10W+10W)

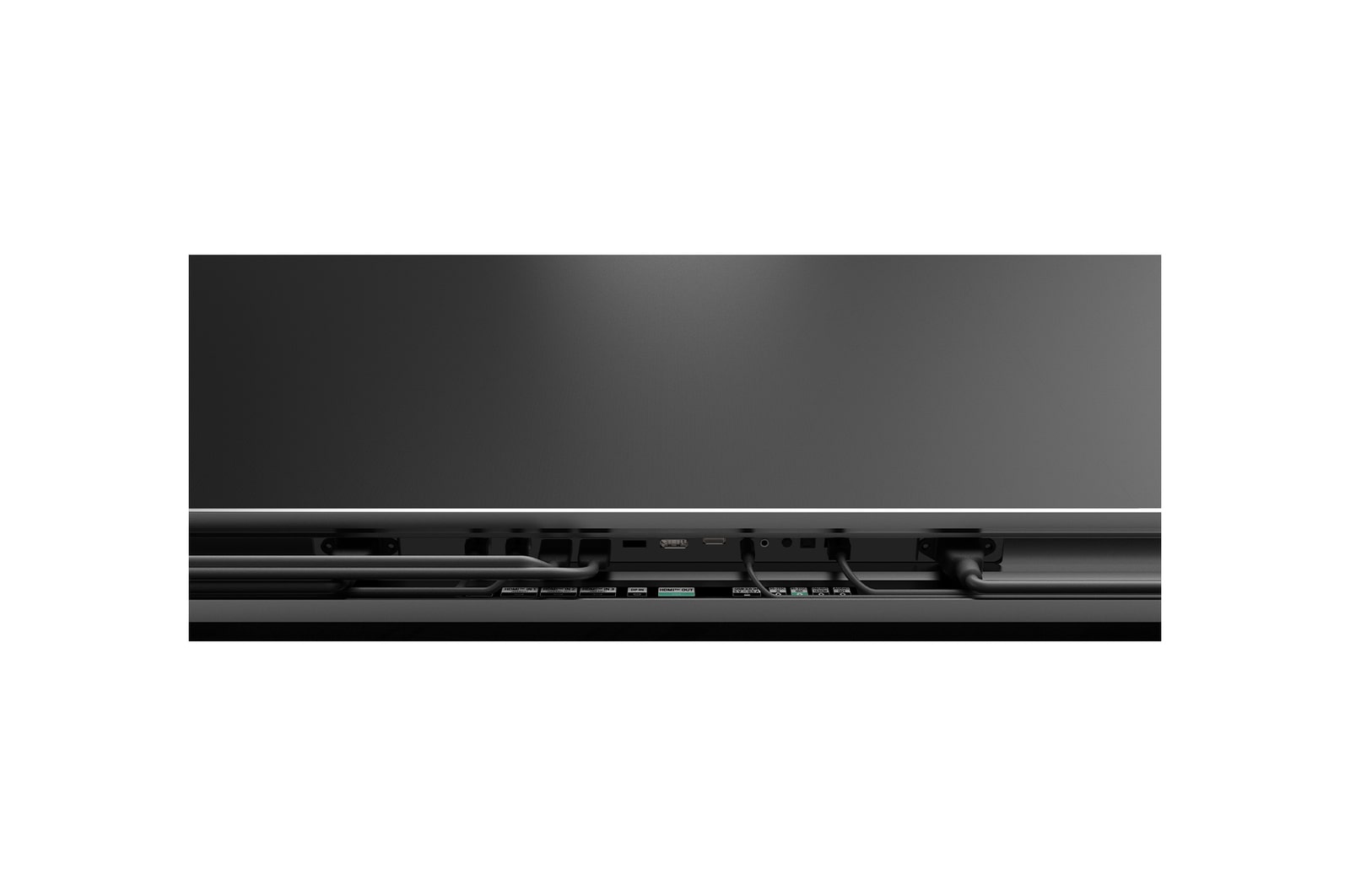

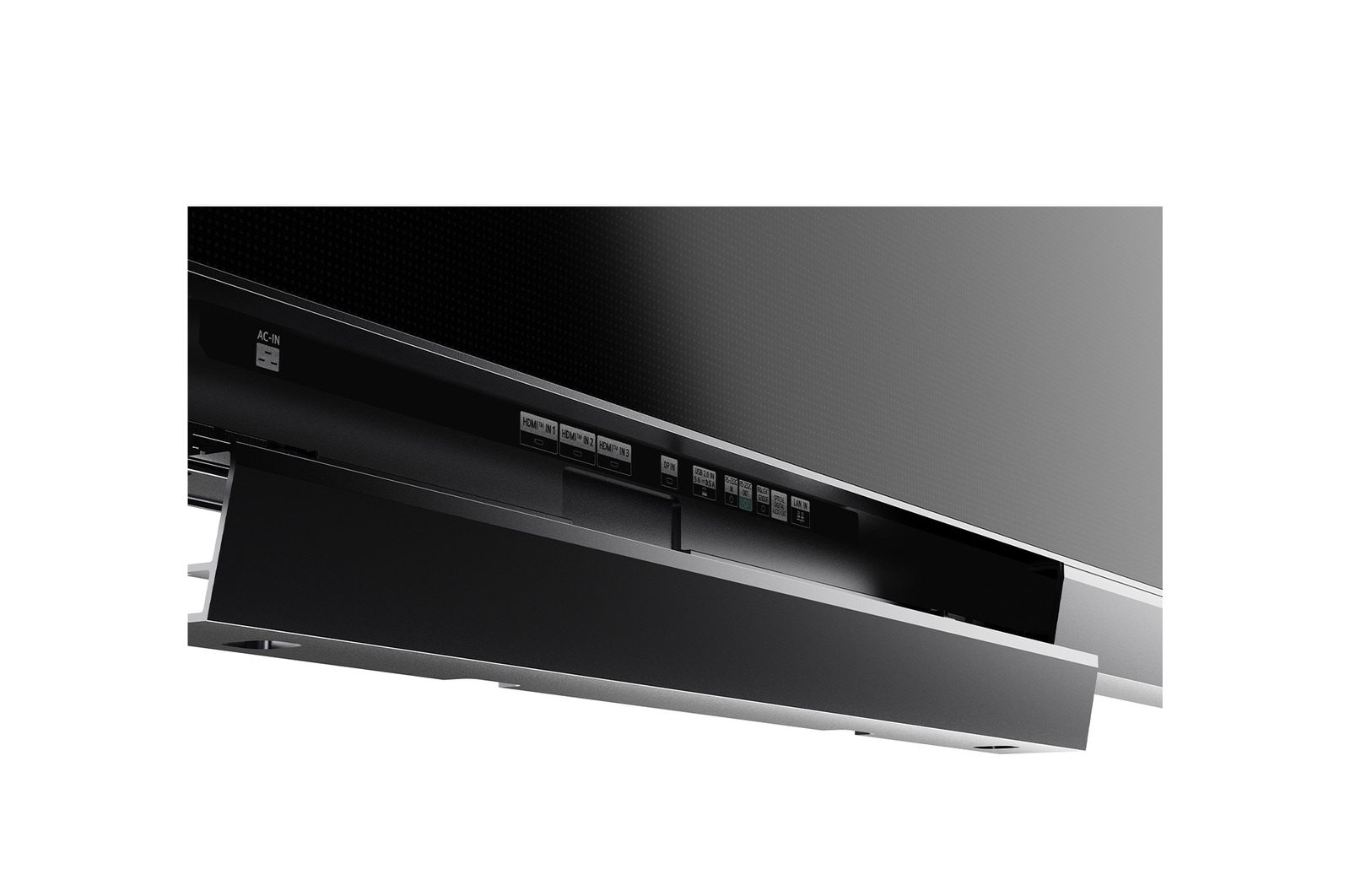

I/O Port
HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, Optical Digital Audio Out
