LSAA Optimum Cable-less LED Series

True Innovation Behind Simplicity
True Innovation Behind Simplicity
Why “Optimum Cable-less” LED
Why “Optimum Cable-less” LED

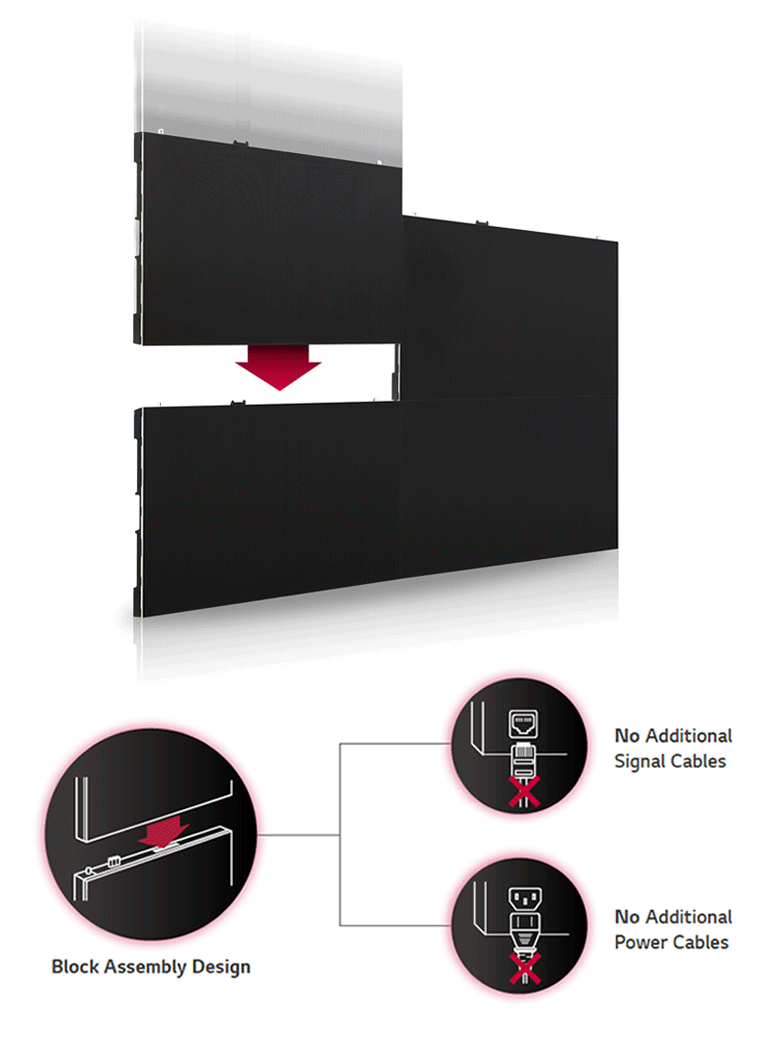

Optimum cable-less design for simple installation
*Based on P1.2, 16:9, UHD Resolution (8 x 8 Cabinets)
04-Wireless-Data-Transfer-Cable-less-Power-Docking-Indoor-LED-Signage-ID-D
Vivid Colour Expression Powered by HDR
Vivid Colour Expression Powered by HDR
*HDR10 Pro is LG's own HDR solution for processing HDR signal by using enhanced dynamic tone mapping.
EMC Class B Certified
EMC Class B Certified
4-in-1 LED Package
4-in-1 LED Package
Standby Mode
Standby Mode
Real-time 365 Care Service
Real-time 365 Care Service
*The availability of the "Signage365Care" service differs by region, so please contact the LG sales representative in your region for more details.
Power / Signal Redundancy Support
Power_/ Signal Redundancy Support
*The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.
**The power/signal redundancy features are available from the third quarter of 2020.
***The embedded back-up PSU model is optional.

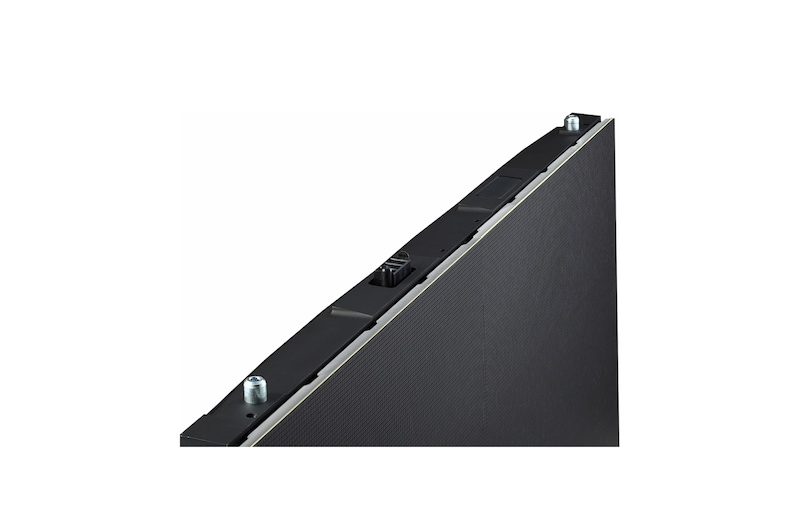

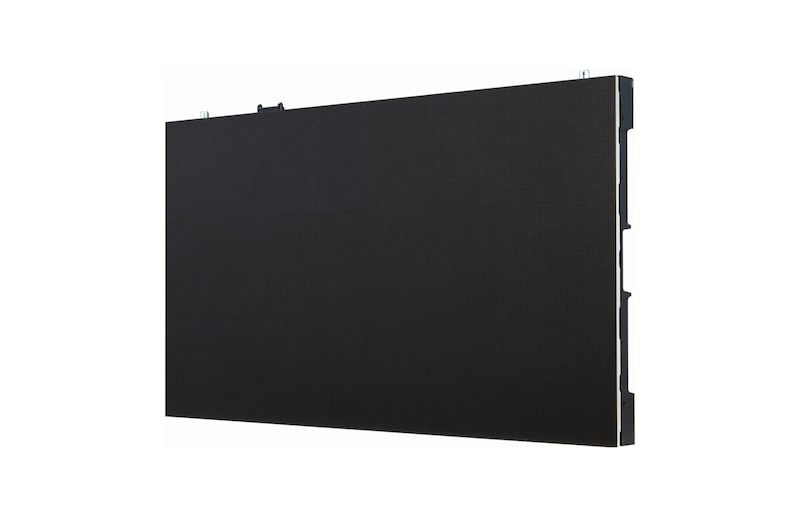

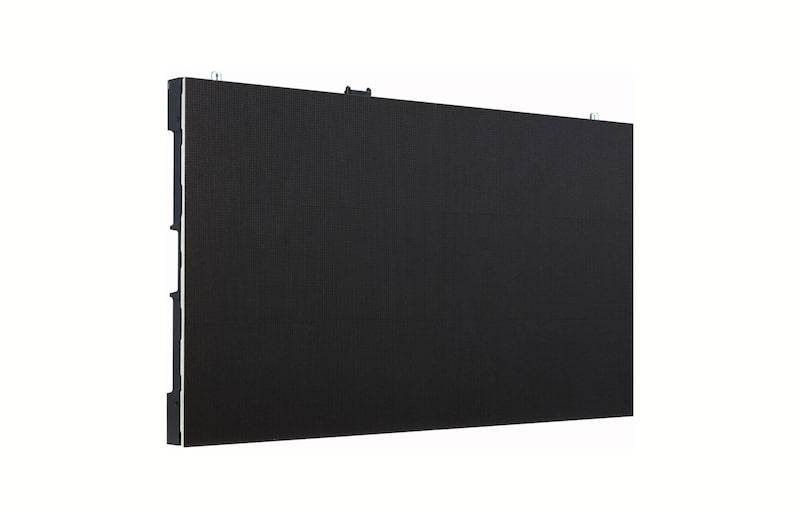

Gallery
All Spec
-
Pixel Pitch(mm)
-
1.25
-
Module Resolution (WxH)
-
240 x 90
-
Weight per Module (kg)
-
0.20
-
Cabinet Resolution (WxH)
-
480 x 270
-
Cabinet Surface Area (m²)
-
0.259
-
Weight per Cabinet (kg/Cabinet)
-
6.9
-
Weight per Square Meter (kg/㎡)
-
34.1
-
Physical Pixel Density (pixels/㎡)
-
640,000
-
Flatness of Cabinet (mm)
-
±0.5
-
Brightness (After Calibration)
-
600nit (Typ.) 1,200nit (Peak)
-
Visual Viewing Angle (Horizontal)
-
160
-
Visual Viewing Angle (Vertical)
-
160
-
Brightness Uniformity
-
97%
-
Color Uniformity
-
±0.015Cx,Cy
-
Contrast Ratio
-
Peak. 9,000:1
Typ. 5,000:1
-
Power Consumption (W/Cabinet, Max.)
-
107
-
Power Consumption (W/Cabinet, Avg.)
-
64
-
Power Consumption (W/m², Max.)
-
527
-
Power Consumption (BTU/Cabinet, Max.)
-
364
-
Power Consumption (BTU/Cabinet, Avg.)
-
218
-
Power Consumption (BTU/㎡, Max.)
-
1,798
COMPLIANCE INFORMATION
-
