• Pixel Pitch : 1.25 mm
• Brightness : 1,500 nit (Peak), 600 nit (Max)
• Micro LED Display
• Chip on Board Technology
• Contrast Ratio (10 lux) : 40,000 : 1
• Cable-less Signal Transmission & Power Docking
2020 PIN UP Design Awards
2020 Good Design Award Korea
LG MAGNIT, Our First Micro LED Display
Micro LED

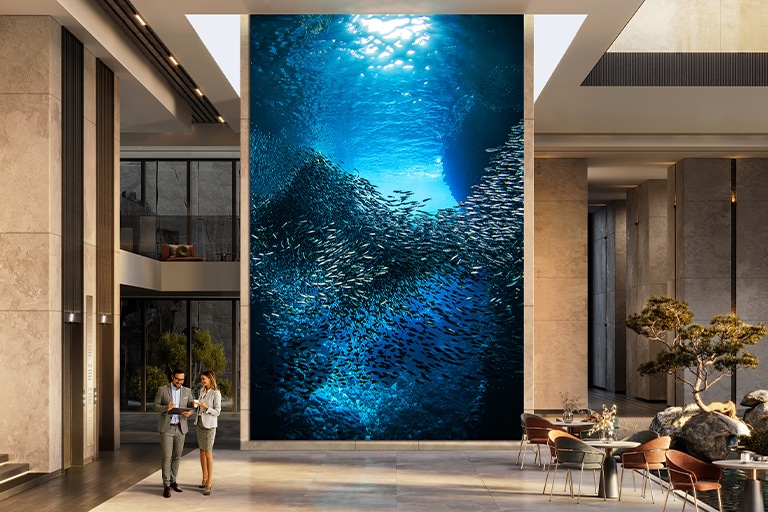

A large, majestic LG MAGNIT is installed in the company lobby, with vibrant underwater landscapes clearly visible on the screen.
* All images in this page are for illustrative purposes only.

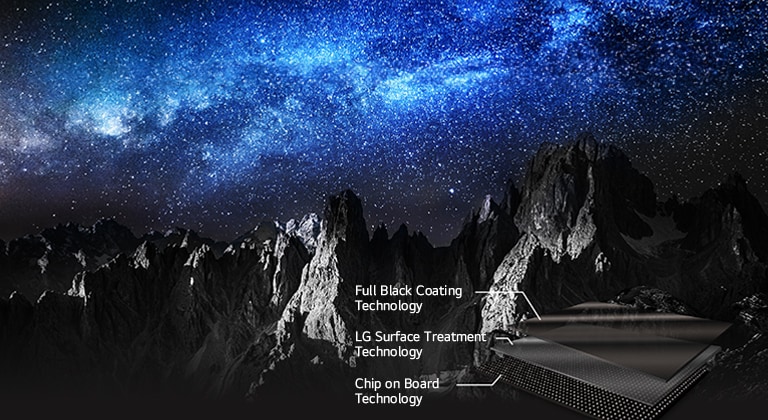

LG MAGNIT's revolutionary chip transfer, full black coating, and newly incorporated surface treatment technology unite to provide outstanding black expression, vibrant colours, heightened contrast, and an unparalleled immersive visual experience. Witness the pinnacle of visual excellence as even the most intricate shadow details hidden in darkness.
The starry night sky and dark mountain ranges are detailed and richly colored.
* Based on LG's conventional LED Signage
LG MAGNIT's careful selection of LED chips guarantees uniform and pure colours across the entire screen. Experience vibrant and precise colours that faithfully reflect the original source, thanks to the narrowed wavelength. The enhanced Gamut Transfer technology elevates colour representation to a new level, ideal for environments that require precise and lifelike colour reproduction.
The rippling water is reflecting colorful light, and each color is vividly displayed.
LG MAGNIT sets a new standard for colour uniformity, providing vibrant hues from various angles. Whether you're directly in front or off to the side, LG MAGNIT consistently displays precise colours. This reliable performance ensures that attendees in a large space sees consistent colour representation. LG MAGNIT’s colour consistency has also been recognized with TÜV certification for its wide viewing angle.
The same scene is being displayed on multiple screens set up at different angles, and each screen shows the same exact scene with accurate and consistent colors and no angle distortion.
* The LSAB007-*22 009-*23, U33, 012-*2, U22 LED module passed a TÜV Rheinland-approved test following "2 PfG Q2865 / 05.23 Evaluation of Colour consistency wide viewing angle". This covers aspects like Colour consistency(left/right), Colour consistency(top/bottom), Colour direction, Viewing angle segmentation(left/right), Colour consistency(Colour gamut). (Certificate No. Q50589187 0001)
The solid black LG MAGNIT delivers an exceptionally high contrast ratio, which is crucial for picture quality. The distinction between dark and light areas is clear, making every part of the content stand out. Additionally, LG MAGNIT has received TÜV certification for its outstanding image clarity in low grayscale images. Thanks to this great display quality of low grayscale images, even the darkest scenes are displayed with remarkable precision, letting viewers see every nuance and detail as intended.
Some sunlight is peeking through the dense trees in the dark forest, and even the details in the dark forest without much light are well defined.
* The LSAB007-*22, 009-*25, 009-*33, 012-*22 LED module passed a TÜV Rheinland-approved test following "2 PfG Q2893 / 05.24 Evaluation of Low Grayscale Image Clarity". This covers aspects like Pixel loss ratio, White Balance, Gamma Difference. (Certificate No. Q50632140 0001)
LG MAGNIT's module alignment technology minimizes gaps on the front surface of modules and reduces variations in black levels between modules, even before the product leaves the factory. Furthermore, during installation, if gaps occur between screens, our Z-axis adjustment feature enables easy alignment without the need to dismantle the product, ensuring a seamless viewing experience.

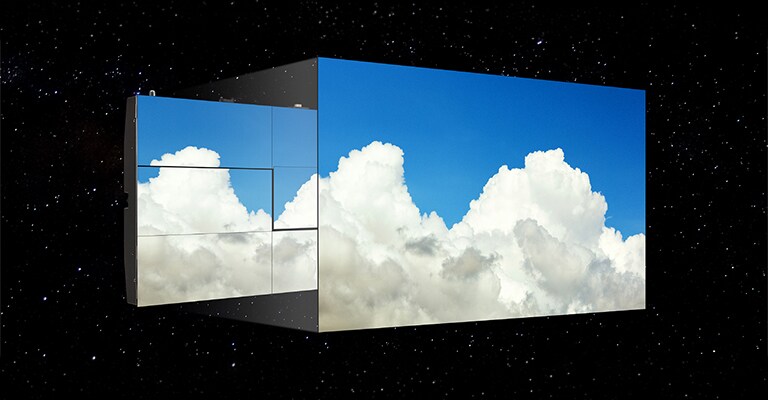

The LG MAGNIT screen, with minimal gaps between modules, shows the blue sky and puffy clouds without color deviation.
The Alpha 7 Intelligent Processor which is adopted from LG’s TV technology recognizes and analyzes the original content, optimizing the clarity and sharpness of the content for itself.
The night view image on the right, which was optimized with the Alpha 7 Intelligent Processor, is sharper and more detailed than the night view image on the left.
* The above functions are created by using deep learning AI technology to improve the picture quality.
With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider colour spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
The brilliant and colorful traditional Korean patterns are more vivid and delicate on the HDR On screen than on the HDR Off screen.
* HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
LG MAGNIT has improved durability to protect against various risks caused by factors such as dust, electro-magnetic interference, flame spread and physical impacts. This is particularly important for installation in public places, as it helps minimize unforeseen accidents.
LG MAGNIT features enhanced durability against dust, electromagnetic interference, flame spread, and physical impacts.
* Based on in-house testing in accordance with the certification criteria, or under actual operating conditions.

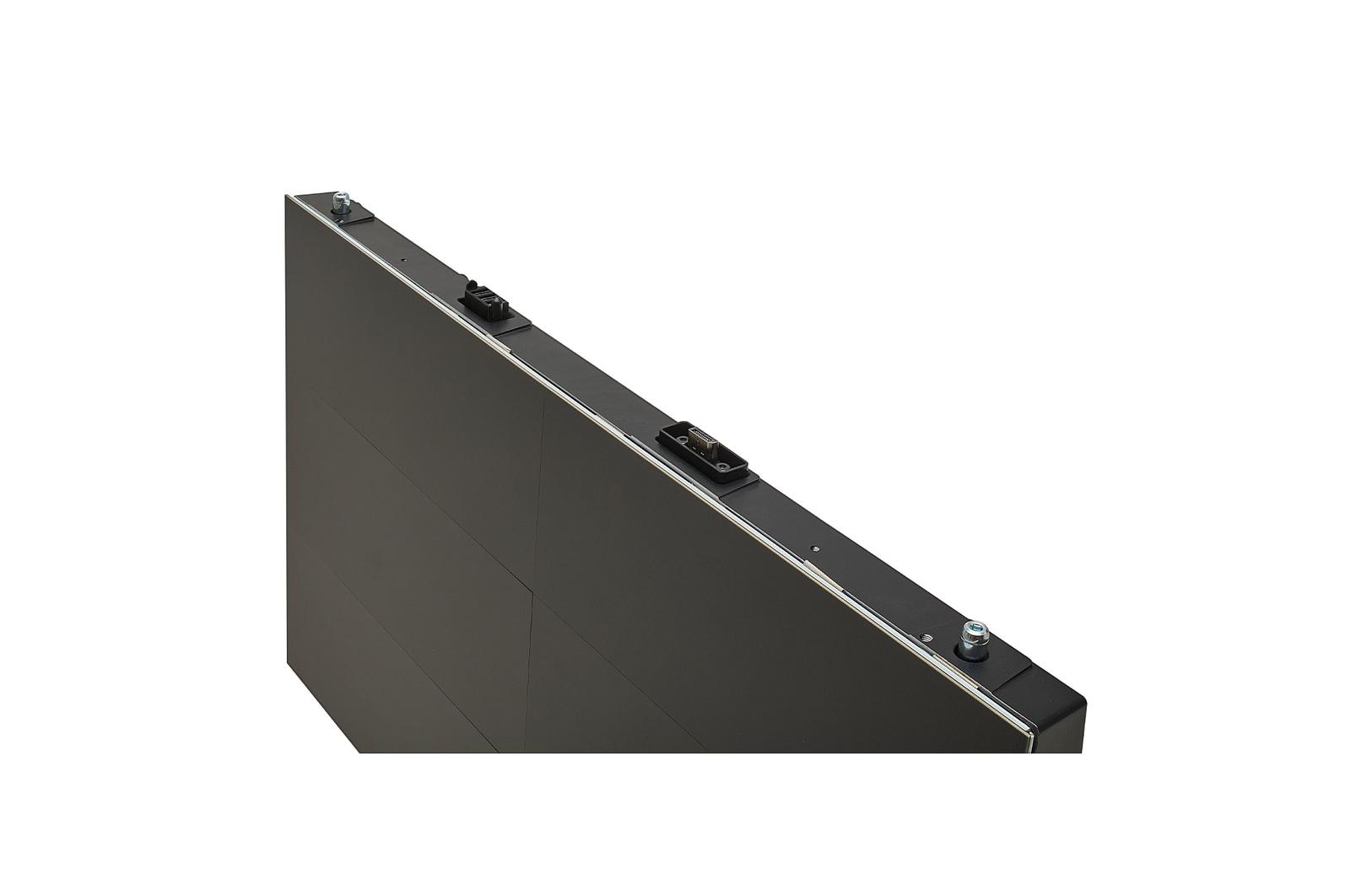

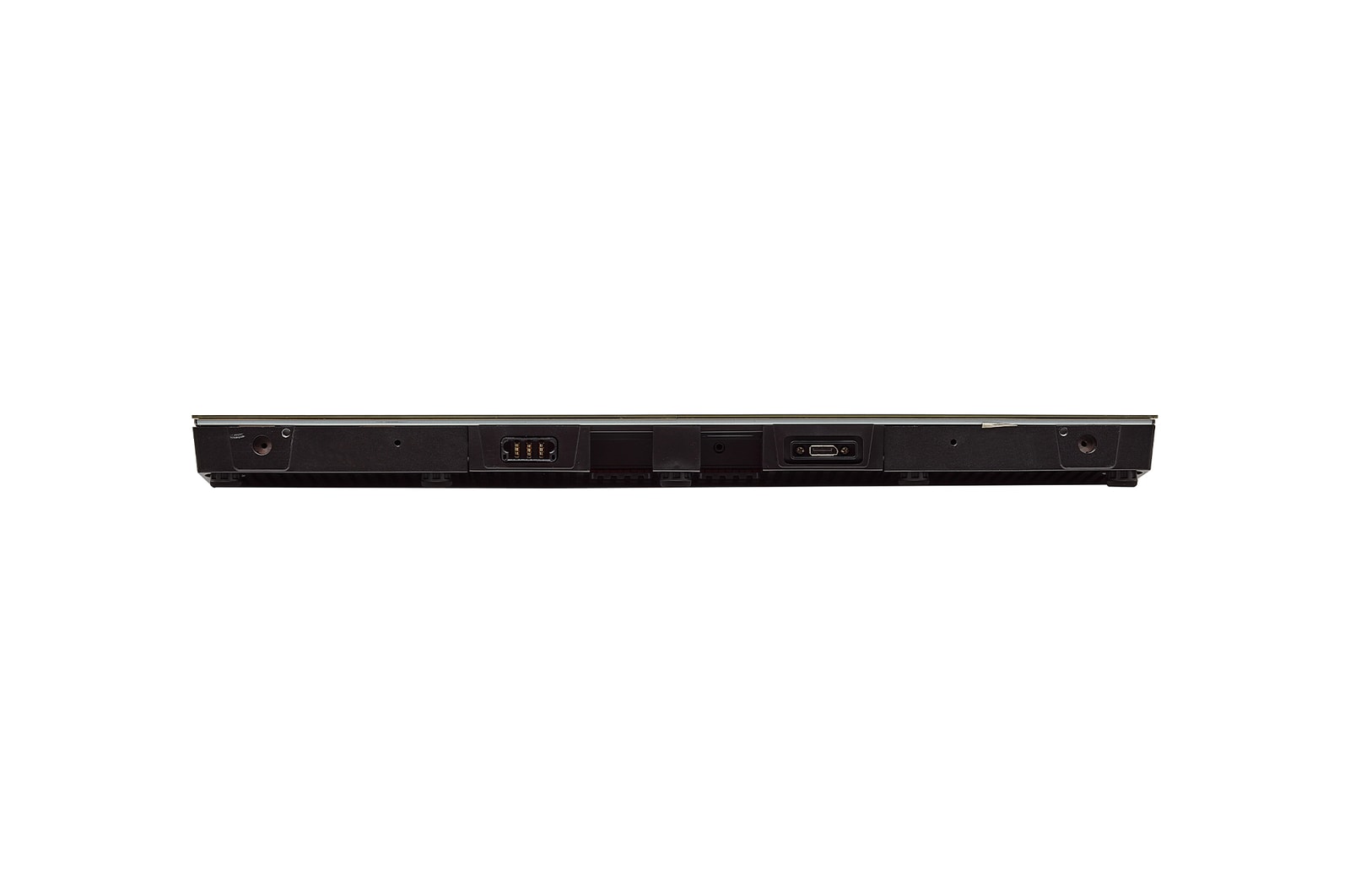

The Cable-less Signal Transmission technology has been adopted for innovative LG MAGNIT. Thanks to this, no signal and power cable connection is required between the cabinets and you don't need cables except for connecting the screen to its system controller and power. When configuring a UHD resolution screen of 16:9 ratio, only 6 signal cables and 6 power cables are needed. This way, its block assembly design facilitates hassle-free installation and simplifies rear structure of the screen.

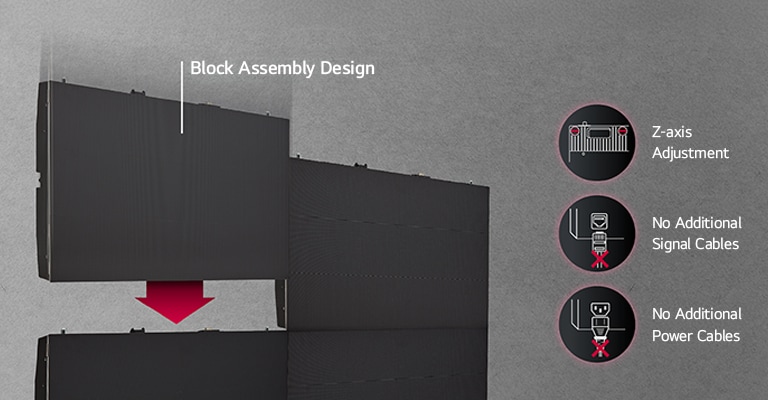

The Cable-less Signal Transmission technology enables cabinets to connect to each other, and its assembly design simplifies the rear structure of the screen.
LG MAGNIT realizes low power consumption with Common Cathode Drive-IC technology while running and switches to Standby Mode when there is no input signal to further save energy. The LG MAGNIT provides a smart power management solution that increases energy efficiency both in use and when not in use.
The LG MAGNIT, which increases energy efficiency through Common Cathode technology and features such as Standby Mode, is prominently installed on a large wall in the center of the office, providing a spacious and eco-friendly atmosphere.
LG MAGNIT has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

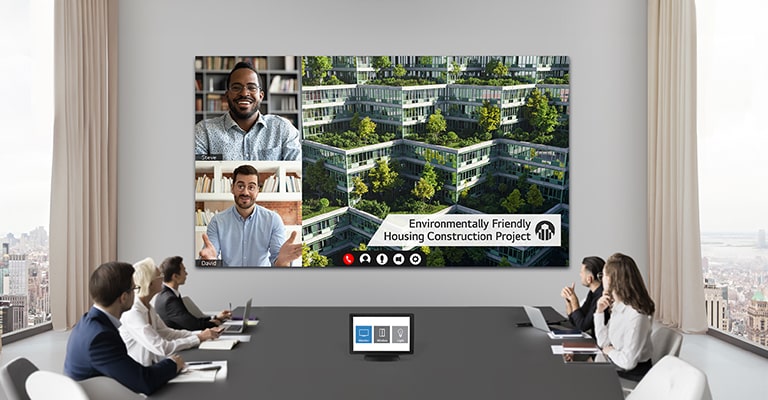

People are having a conference with the LG MAGNIT, and there is an AV controller on the desk.
* Network-based control
LG MAGNIT offers frame kits tailored to a variety of screen sizes—108", 136", and 163"—to create displays with smoother edges. Additionally, LG MAGNIT provide customizable wall mounts compatible with various sizes, ensuring the display integrates seamlessly into your space.

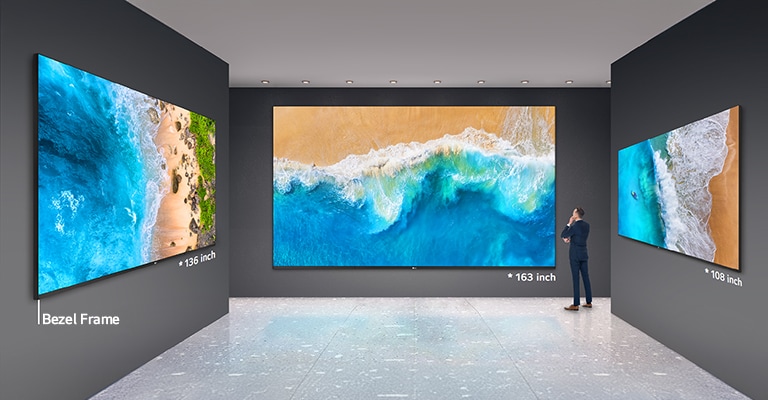

Utilizing frame kits and wall mounts, the 108-, 136-, and 163-inch MFs look like works of art hung on the wall.
Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

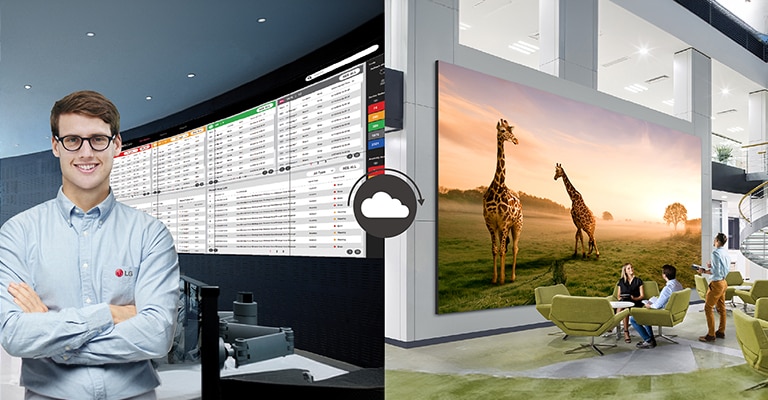

An LG engineer is monitoring the status of the LG MAGNIT installed in a company's lobby in real-time.
* ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
Pixel Configuration
Micro
Pixel Pitch (mm)
1.25
Module Resolution (WxH)
240x90
Module Dimensions(WxH,mm)
300x112.5
Weight per Module (kg)
0.18
No. of Modules per Cabinet (WxH)
2x3
Cabinet Resolution (WxH)
480x270
Cabinet Dimensions (W x H x D, mm)
600x337.5x44.9
Cabinet Surface Area (㎡)
0.2
Weight per Cabinet (kg/unit)
7.8
Weight per Square Meter (kg/㎡)
38.5
Physical Pixel Density (pixels/㎡)
640,000
Flatness of Cabinet (mm)
±0.5
Cabinet material
Die-casting Aluminum
Service access
Front
Max Brightness (After Calibration, nit)
600 / Peak 1,500
Color Temperature (K)
3,200~9,300 / Default 7,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity(%)
95
Color Uniformity
±0.02Cx,Cy
Contrast Ratio
40,000:1 @10lux
Processing Depth (bit)
20 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
60
Power Consumption (W/Cabinet, Avg.)
35
Power Consumption (W/㎡, Max.)
296
Heat Dissipation (BTU/h/Cabinet, Max.)
205
Heat Dissipation (BTU/h/Cabinet, Avg.)
120
Heat Dissipation (BTU/h/㎡, Max.)
1,013
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
0℃ to +40℃
Operating Humidity
10~80%RH
IP rating Front
IP50
IP rating Rear
IP20
Certification
Safety 60950-1, EMC Class B
Environment
RoHs
Controller
CSAD
