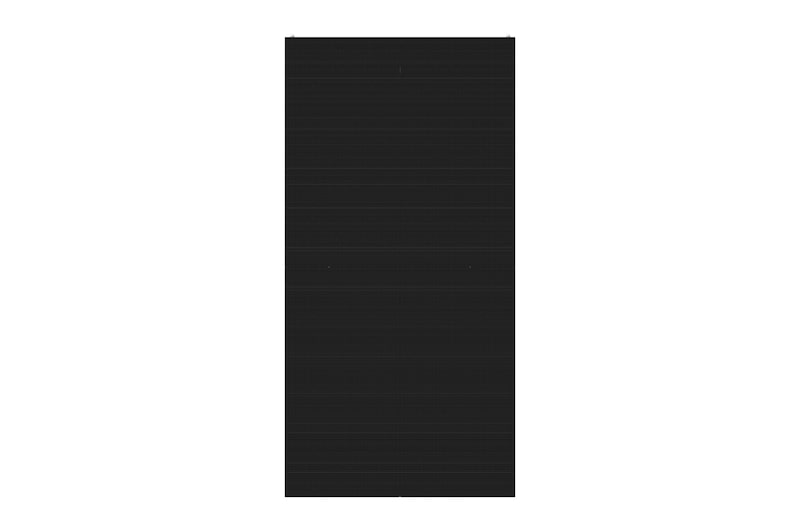

LSCA Versatile Series

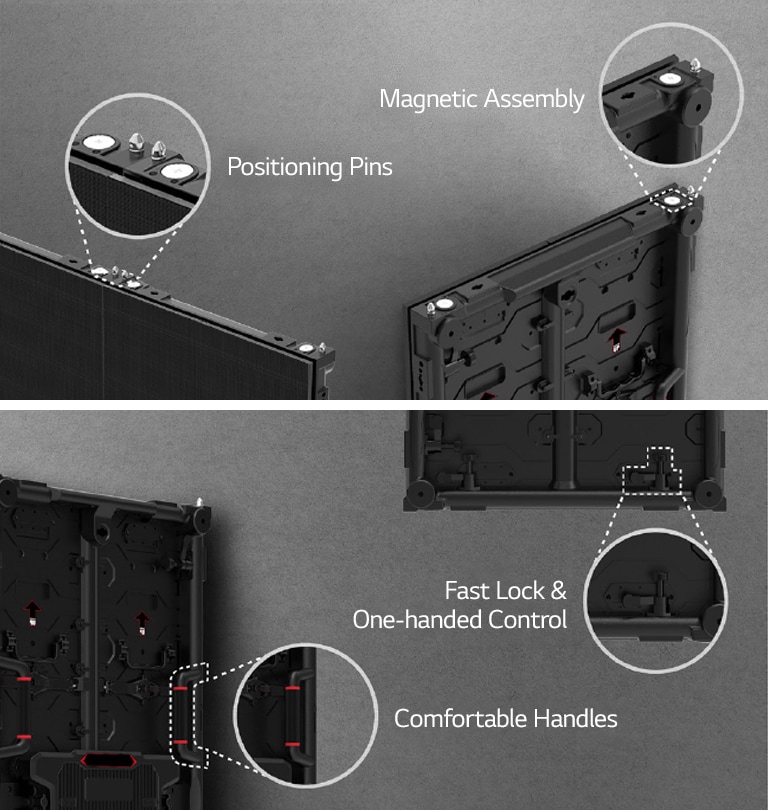

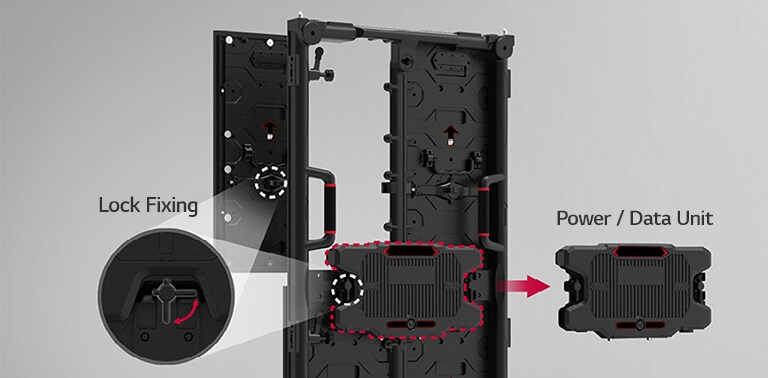

Fast Installation

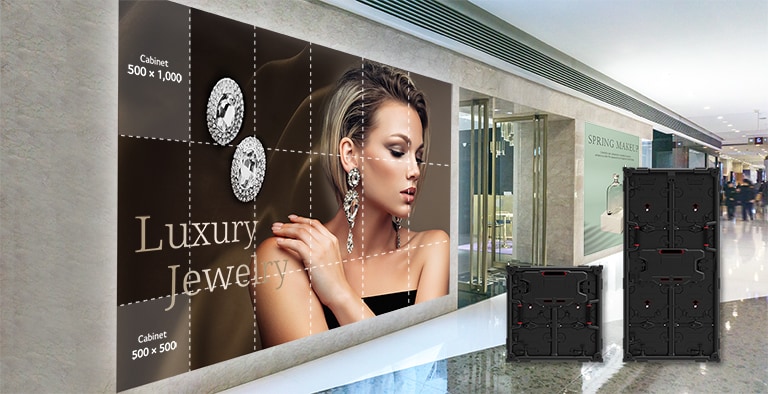

Two Cabinet Options

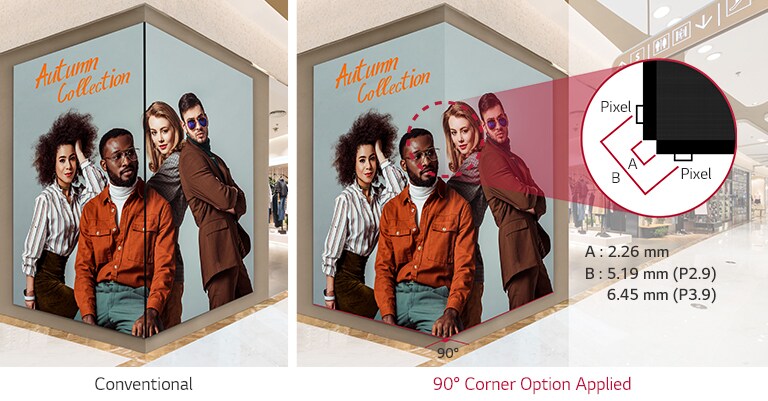

90° Corner Design Available
Model name
LSCA039-RK
Pixel Configuration
Single SMD
Pixel Pitch (mm)
3.91
Module Resolution (WxH)
64x128
Module Dimensions(WxH,mm)
250x500
Weight per Module (kg)
1.3
No. of Modules per Cabinet (WxH)
2x2
Cabinet Resolution (WxH)
128x256
Cabinet Dimensions (W x H x D, mm)
500x1,000x74.88
Cabinet Surface Area (㎡)
0.5
Weight per Cabinet (kg/unit)
12.5
Weight per Square Meter (kg/㎡)
25
Physical Pixel Density (pixels/㎡)
65,536
Flatness of Cabinet (mm)
±0.3
Cabinet material
Die-casting Magnesium

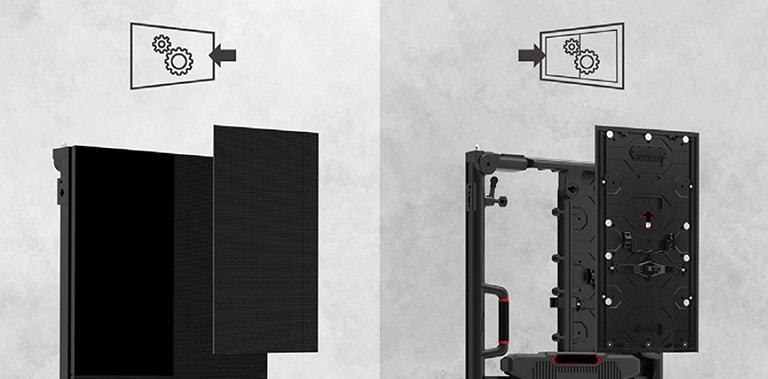

Service access
Front or Rear (select one only)
Max Brightness (After Calibration, nit)
1,000
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity(%)
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
7,000:1
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
270
Power Consumption (W/Cabinet, Avg.)
90
Power Consumption (W/㎡, Max.)
540
Heat Dissipation (BTU/h/Cabinet, Max.)
921.24
Heat Dissipation (BTU/h/Cabinet, Avg.)
307.08
Heat Dissipation (BTU/h/㎡, Max.)
1,842.48
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-10℃ to +45℃
Operating Humidity
0~80%RH
IP rating Front
IP30
IP rating Rear
IP30
Certification
CE, FCC, ETL
Environment
RoHS
Controller
CVCA
90 degree corner cut
O
