If you add 90°corner option, the LSCB series fits naturally into the space and delivers smooth content to customers.
90° Corner Design Available

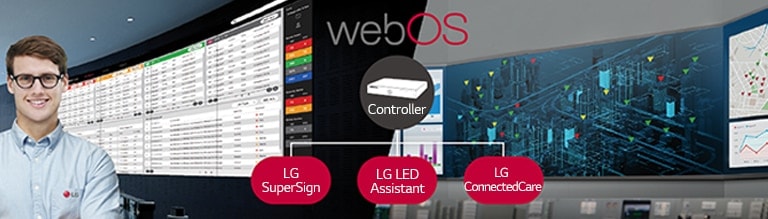

When connected with LG's CVCA system controller, the LSCB series is compatible with LG software solutions including SuperSignCMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.
An LG service man is monitoring the status of the LED screen through the LG webOS controller and software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare: Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

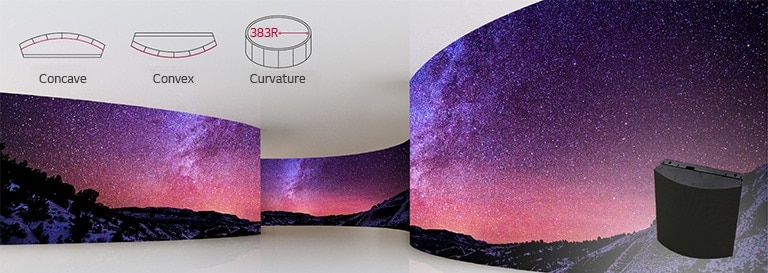

The LSCB-CKF, a specially-designed flexible curved LED display, supports true concave and convex curvatures up to 383 mm*. This greatly enhances the design’s flexibility, which allows users to freely create the curved screen as they want.
Both walls of the indoor hallway are curved, and LEDs are installed along the entire wall.
* Applied to the LSCB15-CKF, LSCB18-CKF, and LSCB25-CKF models only. The LSCB12-CKF supports curvatures of up to 1,720 mm.
Power Consumption (W/㎡, Max.)
493.83
Refresh Rate (Hz)
3,840
Frame Rate (Hz)
50 / 60
Heat Dissipation (BTU/h/Cabinet, Avg.)
116.01
Heat Dissipation (BTU/h/Cabinet, Max.)
341.21
Heat Dissipation (BTU/h/㎡, Max.)
1,685.01
Power Consumption (W/Cabinet, Avg.)
34
Power Consumption (W/Cabinet, Max.)
100
Power Supply (V)
100 to 240
LED Lifetime (Half brightness)
100,000
Operating Humidity
0~80%RHv
Operating Temperature(℃)
-10℃ to +45℃
IP rating Rear
IP30
IP rating Front
IP30
Brightness Uniformity(%)
0.97
Visual Viewing Angle (Horizontal)
160
Max Brightness (After Calibration, nit)
800
Color Temperature (K)
3,200~9,300
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000:1
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Visual Viewing Angle (Vertical)
160
Cabinet material
Die-casting Aluminum
Pixel Configuration
Single SMD
Cabinet Dimensions (W x H x D, mm)
600x337.5x34
Cabinet Resolution (WxH)
240x135
Cabinet Surface Area (㎡)
0.2
Flatness of Cabinet (mm)
±0.1
Module Dimensions(WxH,mm)
300x337.5
Module Resolution (WxH)
120x135
No. of Modules per Cabinet (WxH)
2x1
Physical Pixel Density (pixels/㎡)
160,000
Pixel Pitch (mm)
2.5
Service access
Front
Weight per Cabinet (kg/unit)
5.3
Weight per Module (kg)
0.64
Weight per Square Meter (kg/㎡)
26.17
90 degree corner cut
O
Controller
CVCA
Environment
RoHS, REACH
Model name
LSCB025-RK
Certification
CE, FCC, ETL, EMC Class-B, Fire Protection
