A large LED is installed on the corner wall of the mall near the display window. Although it’s positioned on a wall with an angle, it displays vivid images that look smooth and continuous, without any awkward breaks.
* All images in this page are for illustrative purposes only.

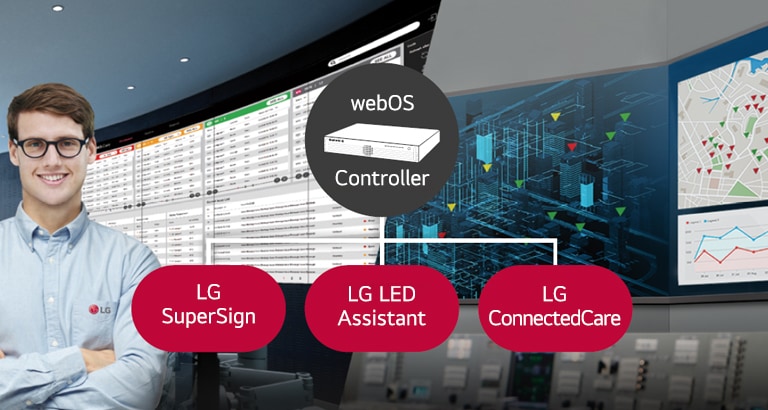

When connected with LG's CVCA system controller, the LSCC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.
The LG employee is remotely monitoring the LSCC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables the LSCC series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : LG webOS System Controller (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
CLOSE
Pixel Configuration
Single SMD
Pixel Pitch (mm)
1.25
Module Resolution (WxH)
240x135
Module Dimensions(WxH,mm)
300x168.75
Weight per Module (kg)
0.31
No. of Modules per Cabinet (WxH)
2x2
Cabinet Resolution (WxH)
480x270
Cabinet Dimensions (W x H x D, mm)
600x337.5x33.6
Cabinet Surface Area (㎡)
0.2
Weight per Cabinet (kg/unit)
5.0
Weight per Square Meter (kg/㎡)
24.69
Physical Pixel Density (pixels/㎡)
640,000
Flatness of Cabinet (mm)
±0.1
Cabinet material
Die-casting Aluminum
Service access
Front
Max Brightness (After Calibration, nit)
Max. 800
Color Temperature (K)
3500-9000K(default:6500K)
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity(%)
97%
Color Uniformity
±0.003CxCy
Contrast Ratio
5,000:1
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
112
Power Consumption (W/Cabinet, Avg.)
37
Power Consumption (W/㎡, Max.)
553
Heat Dissipation (BTU/h/Cabinet, Max.)
382
Heat Dissipation (BTU/h/Cabinet, Avg.)
127
Heat Dissipation (BTU/h/㎡, Max.)
1,887
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-10℃ to +45℃
Operating Humidity
0-80%RH
IP rating Front
IP30
IP rating Rear
IP30
Certification
CE, FCC, ETL, EMC Class-A
Environment
RoHS, REACH
Controller
CVCA
90 degree corner cut
O
