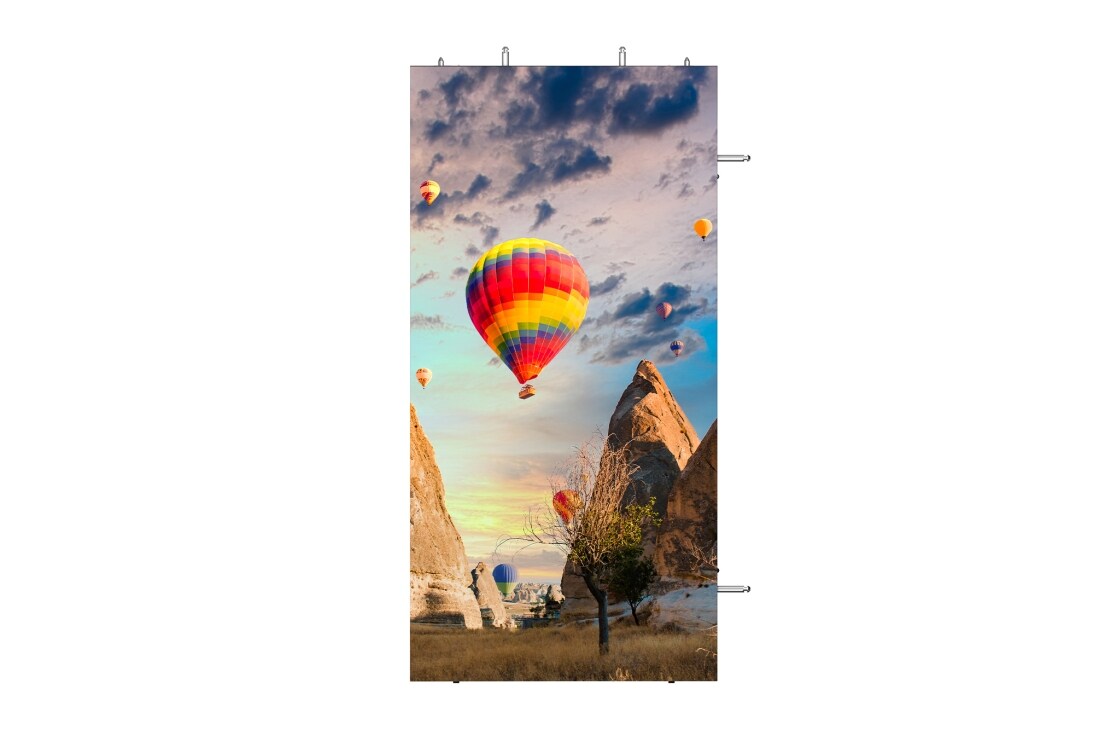

Indoor Window Facing Display LED Signage | LWBC026-GD
LWBC026-GD
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Delivery fees vary by postcode and may include additional charges for Highland or remote areas. Final shipping costs will be confirmed at checkout.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
Are you sure you want to remove the coupon?
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
2.604
Module Resolution (WxH)
96 × 96
Module Dimensions(WxH,mm)
250 × 250
Weight per Module (kg)
0.70
No. of Modules per Cabinet (WxH)
2 × 4
Cabinet Resolution (WxH)
192 × 384
Cabinet Dimensions (W x H x D, mm)
500 × 1,000 × 68
Cabinet Surface Area (㎡)
0.500
Weight per Cabinet (kg/unit)
12.0
Weight per Square Meter (kg/㎡)
24.0
Physical Pixel Density (pixels/㎡)
147,456
Flatness of Cabinet (mm)
0.5
Cabinet material
Die Casting Aluminum
Service access
Front or Rear
Max Brightness (After Calibration, nit)
3,500
Color Temperature (K)
3,200-9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity(%)
97%
Color Uniformity
±0.003 Cx,Cy
Contrast Ratio
5,000
Processing Depth (bit)
16
(HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
300
Power Consumption (W/Cabinet, Avg.)
100
Power Consumption (W/㎡, Max.)
600
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-20 to +40
Operating Humidity
10-90% RH
IP rating Front
IP5X
IP rating Rear
IP5X
