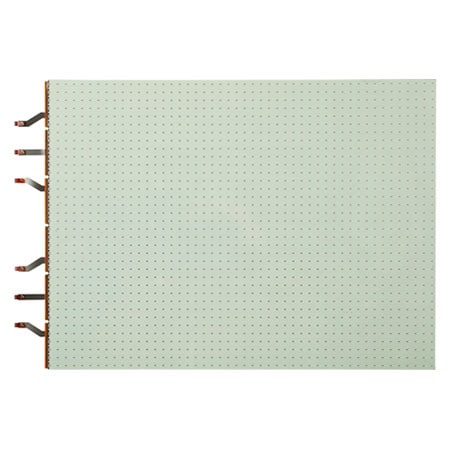

Transparent LED Film

LAT140

Key Features

Pitch : 14mm
LED Type: R,G,B 3in1 SMD
Transmittance: 53%
Curvature(concave and convex): 1,100R
Self-adhesive Film

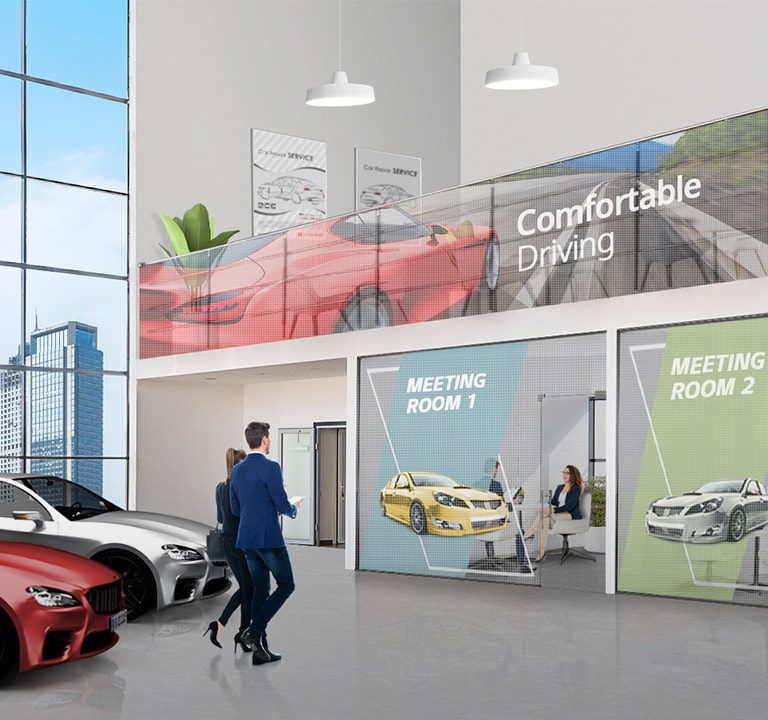

D01_LAT140-01-Bring-New-Life-to-Transparent-Space-Transparent-LED-Film-D

* All images in this page are for illustrative purposes only and may differ from the actual product.

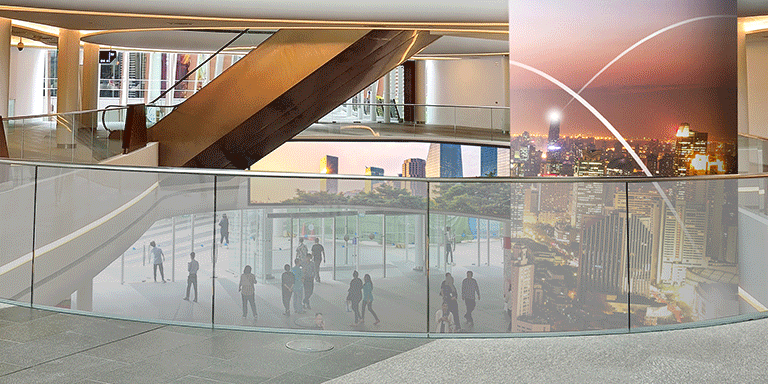

Superb Transparency

The LG Transparent LED film, which is a metal mesh type connecting each pixel with a thin metal mesh line, reflects the object behind the product even after the product is attached and turned off. This offers a wide-open view while blending into existing interior design smoothly and delivers various information effectively by attracting the attention of passersby.

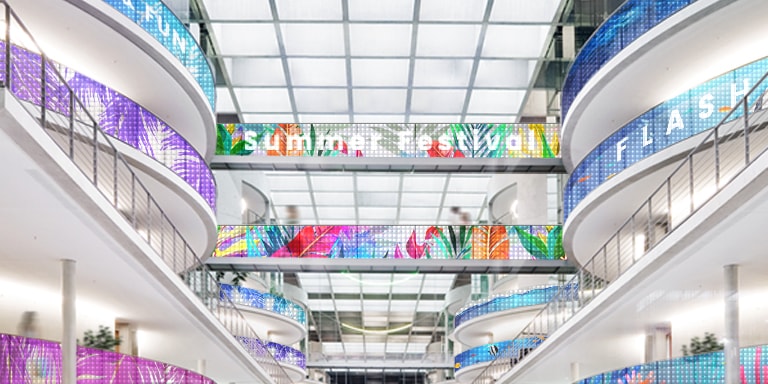

Fitting in with Flats and Curves

The LG Transparent LED film supports curvatures up to 1,100R convex and concave for curved glass or window applications, and offers even surface by applying the OCR (Optically Clear Resin) bonding method. This allows a wide range of venues to be redesigned with the LAT series as a landmark.

Self-adhesive Film

The LG Transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.

Outstanding Expandability and Flexibility

The size and layout of the film can be customized to fit into the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

OCR (Optically Clear Resin) Direct Bonding

The LG Transparent LED film, which applied the OCR bonding method, protects LED pixels stably by fully filling the gap between transparent layers. Compared to OCA (Optically Clear Adhesive) method, which usually perforates the upper layer above each LED pixel to prevent uneven surface and scattered reflection, the LED film fully embraces and protects the pixels resulting in improved durability and flat surface*.

* This is based on the internal comparison test between OCR and OCA with perforations of the upper transparent layer under the condition of -10˚~ 45˚ temperature and 0 ~ 30% humidity.

Enhanced Brightness and Control

The LED film with smaller pixel pitch, 14mm, and advanced brightness of up to 2,100cd/m²* attracts the attention of passersby while displaying a wide range of colors. Also, by using Control Manager solution, you can adjust and set brightness by timeline to deliver messages with optimal brightness.

* The examined brightness may differ from testing environments including a photometer.

webOS Smart Platform with Open API

LG webOS is a web-centric platform, making it easier for SIs and developers to build web-based solutions according to various environments. By supporting open API and compatibility with HTML, CSS, and JavaScript, you can save time and labor costs.

Control Manager

Through the Control Manager, available on internet-connected devices, you can set, control contents and monitor the status of multiple displays in different locations in real time. Especially for Transparent LED film installed on large area, the Control Manager helps you to play and check contents in easier way.

Real-time 365 Care Service

The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in clients' workplaces for fault diagnosis and remote-control services, enabling the stable operation of a client’s business.

* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.

Pitch : 14mm
LED Type: R,G,B 3in1 SMD
Transmittance: 53%
Curvature(concave and convex): 1,100R
Self-adhesive Film

All Spec

INFORMATION

Model name
LAT140GT81

PHYSICAL PARAMETERS

Physical Pixel Density (pixels/㎡)
5,102
LED Type
R, G, B 3in1 Color Package (SMD2020)
Resolution
48 x 36
Pixels per Film
1,728
Pixel Pitch
13.7±0.2mm (14)
Dimension (W x H x D)
655 x 492 x 2.9mm (with front & back protection film)
Weight
1kg

OPTICAL SPECIFICATIONS

Contrast Ratio
≥ 100,000:1
Chromaticity Uniformity
Δu’v’≤0.015
Viewing Angle (H x V)
120 x 120
Brightness
Typ.2,100nit
Luminance Uniformity
≥ 70%
Color Processing
(9bit) 500/500/500 Level ( R, G, B)
Colors
125,000,000 Colors
Color Chromaticity
Cx: 0.25±0.03, Cy : 0.34±0.03

ELECTRICAL SPECIFICATIONS

Power Consumption
37W per film

OPERATION SPECIFICATIONS

Operating Temperature(℃)
0℃ ~ 45℃ (Instaliling at indoor glass)
Curved Installation
2,000 R (Concave and Convex available on Glass)
Film Trimming
Yes (horizontal direction according to Bezel only)
Life Time (Brightness 50%)
50,000 Hrs
Daily Usage
24h / 7days
Warranty
2 year
Transparency
Typ 53%

1ST BEZEL

Interface
Input : RGMII Output : Differential Serial
Power Consumption
37W per Film
Dimension (W x H x D)
69.4 x 492 x 25mm
Weight
0.4Kg

COMMON BEZEL

Interface
Input : Differential Serial Output : Differential Serial
Power Consumption
37W per Film
Dimension (W x H x D)
51.4 x 492 x 25mm
Weight
0.3Kg

UNIT CONTROLLER

Interface
Input : LVDS Output : RJ45 x4EA
Maximum Transmission Length
100m (Cable type: CAT5E, CAT6)
Temperature Sensor
Yes
Power Consumption
20 W
Resolution
960x540 (1/4 FHD)
Dimension (W x H x D)
293 x 188.7 x 37mm
Weight
1.5Kg

SYSTEM CONTROLLER

Max. Input Resolution
DP : 1920x1080@60Hz, HDMI : 1920x1080@60Hz, DVI-D : 1920x1080@60Hz
HDMI
Input : 1EA
DP
Input : 1EA, Output : 1EA
DVI-D
Input : 1EA
RS-232C
Input : 1EA (Phone Jack Type), Output : 1EA (Phone Jack Type)
RJ-45
Input : 1EA (without LED indicator), Output : 1EA (without LED indicator)
Temperature Sensor
O
IR Receiver (w/ Light Sensor)
1EA (Phone Jack Type) : Used for installation
USB3.0
1EA
LVDS
Output : 1EA
Dimension (W x H x D mm)
293 x193.3 x 40.1mm
Weight (Head, Kg)
1.6kg
Light Sensor
O
Power Consumption
17W
Source Selection
HDMI, DVI-D, DP
TPC (Temporal Peak luminance Control)
Yes
Motion Eye Care
Yes
CMS S/W
Yes (2.9)
Signage365care
Yes (2.7)
