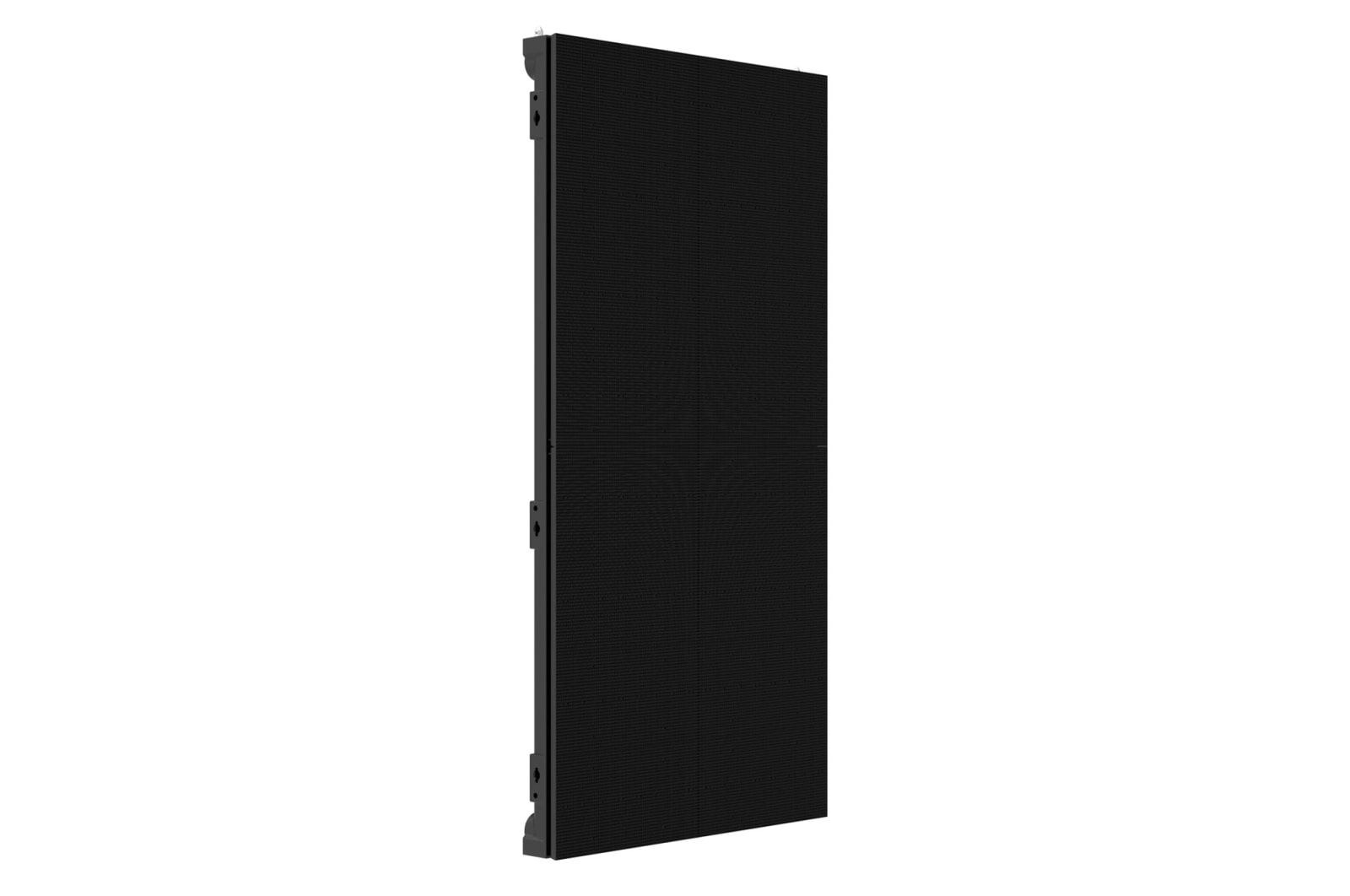

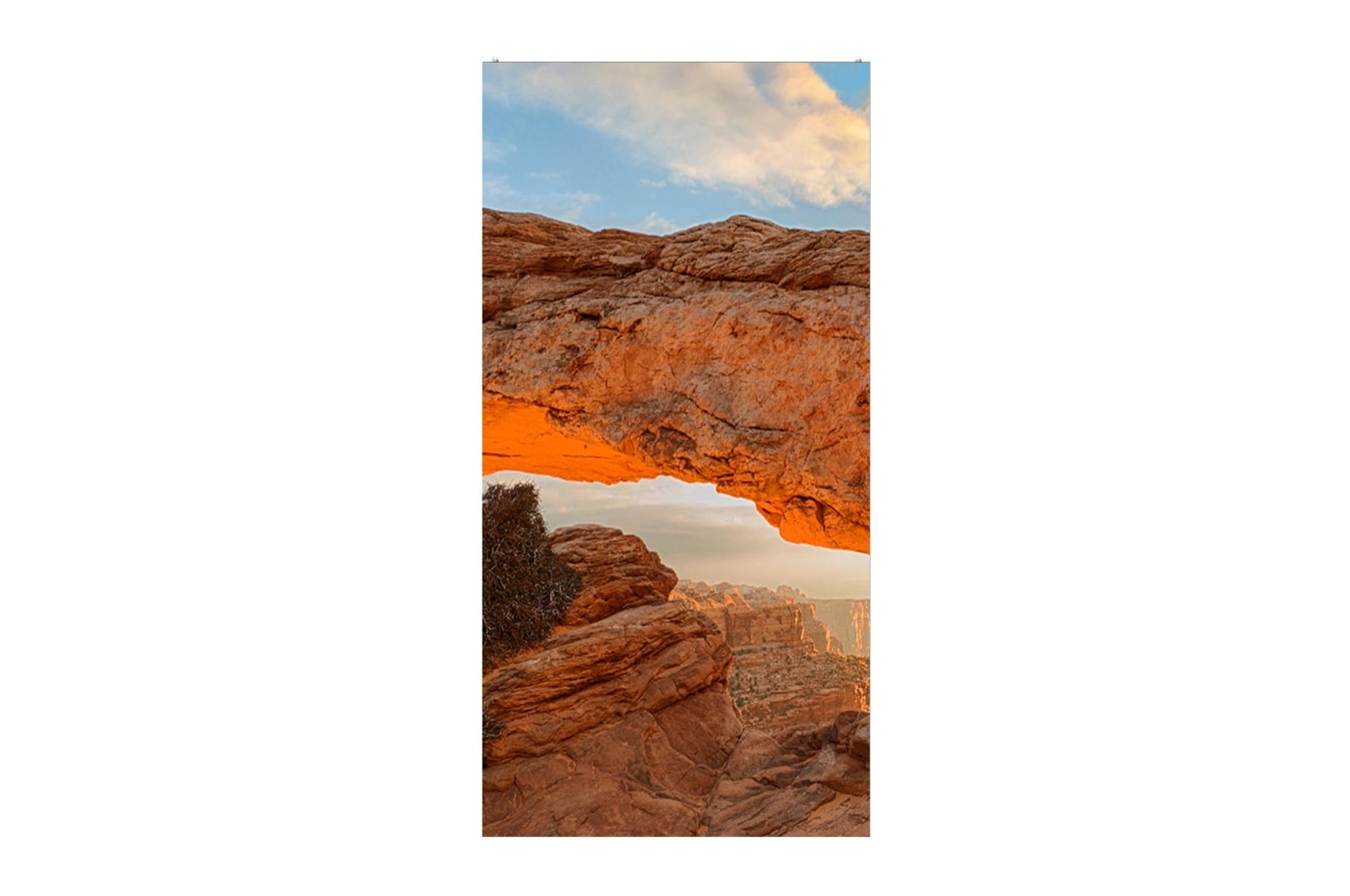

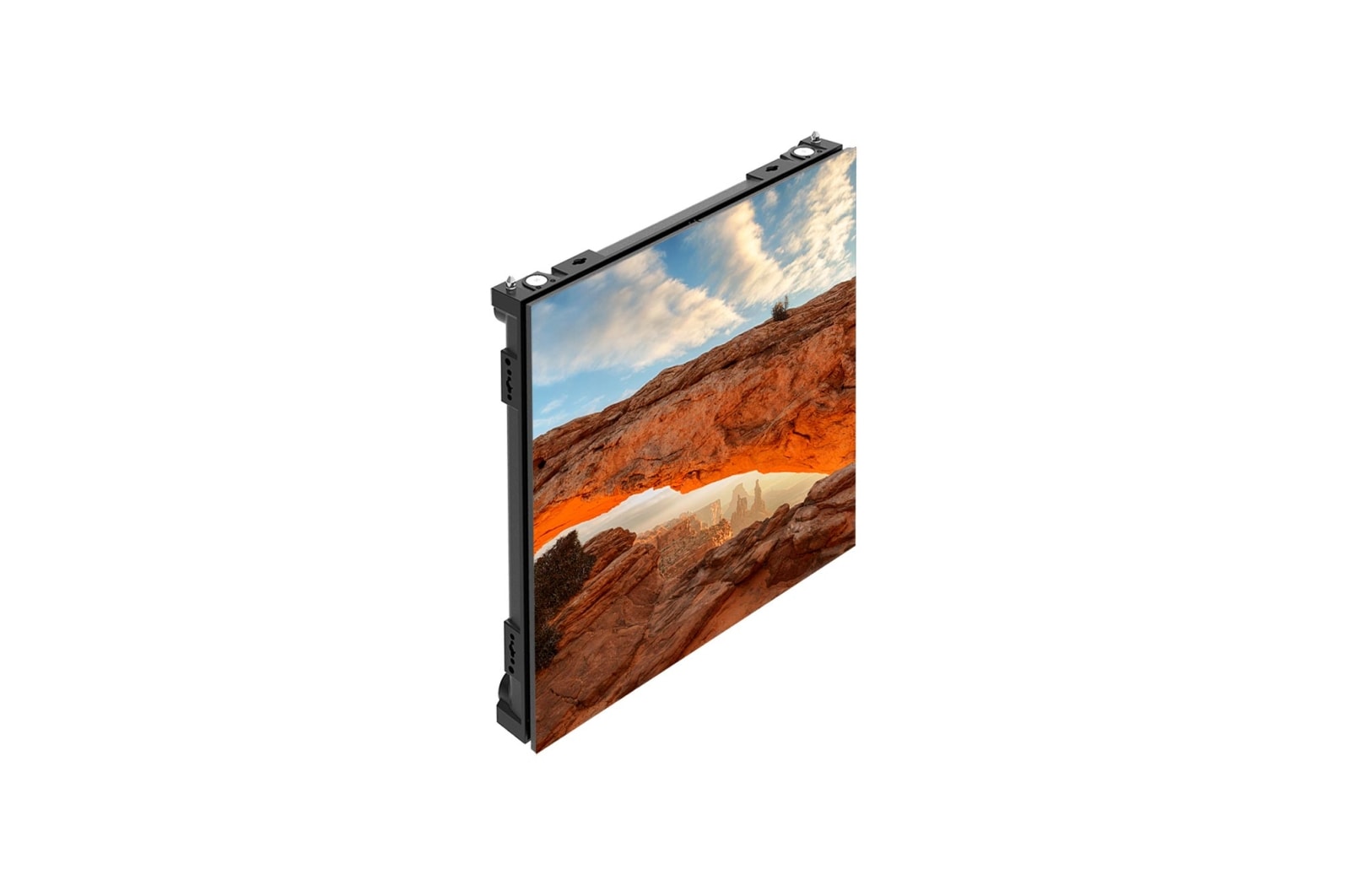

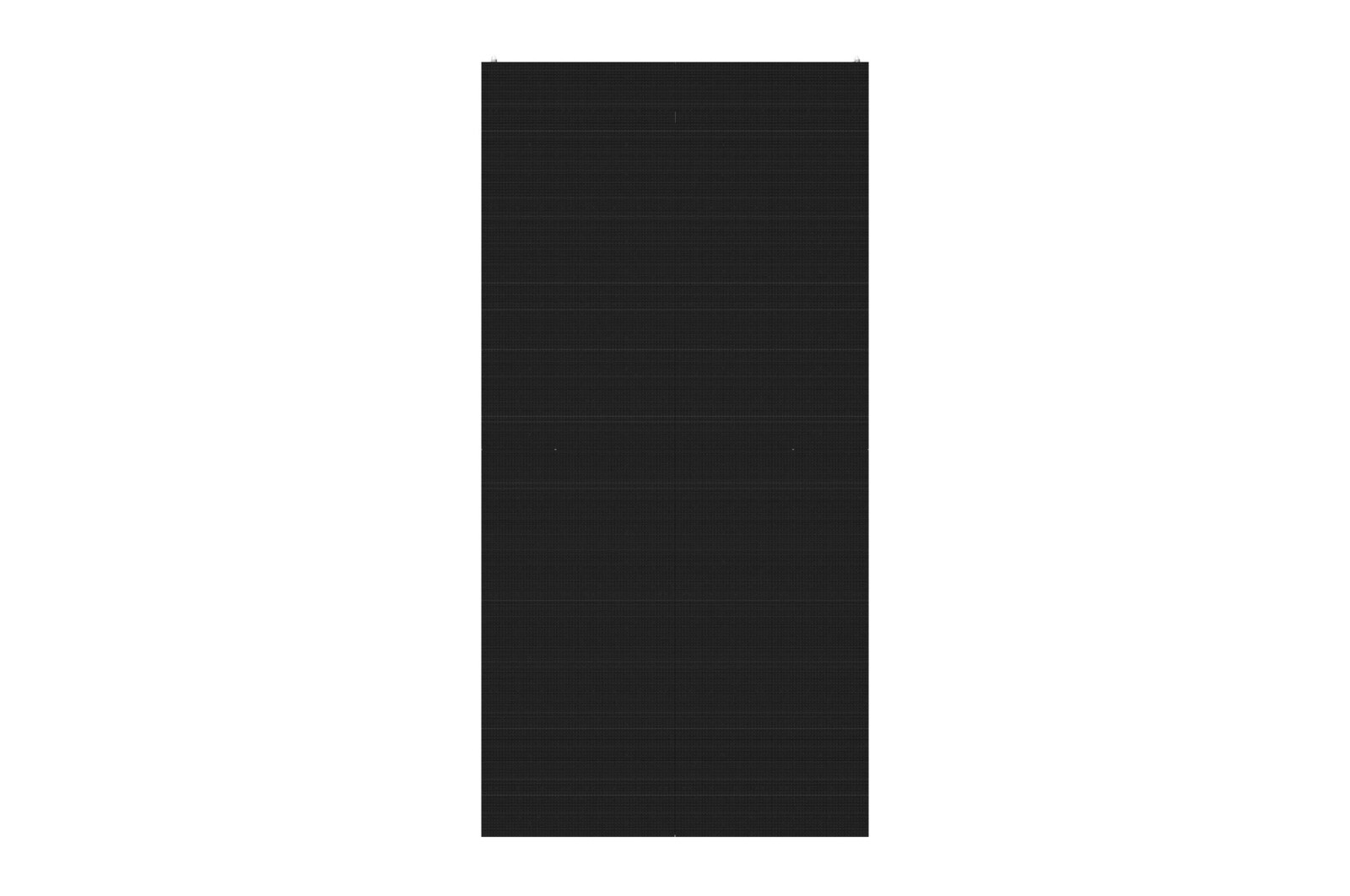

GSCA039-GN2

GSCA Versatile Series

GSCA Versatile Series

Fast Installation

Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.

Fast Installation

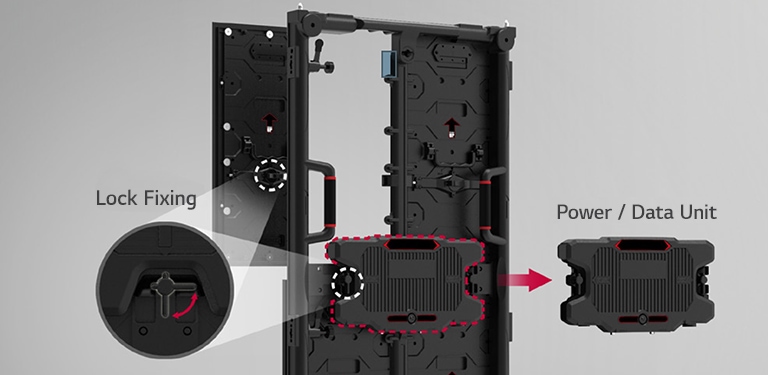

Easy Maintenance

Easy Maintenance

The GSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.

Two Cabinet Options

The GSCA series offers two sizes of cabinets enabling a screen size configuration that fits perfectly with customer's demands.

Two Cabinet Options

IP Rated Weatherproof & 90° Corner Design

The cabinet is IP65 certified, allowing stable operation unaffected by weather and harsh outdoor environments. Also, if you add a 90° corner option, the GSCA series can deliver flawless content even when installed on the corners.

IP Rated Weatherproof<br>& 90° Corner Design

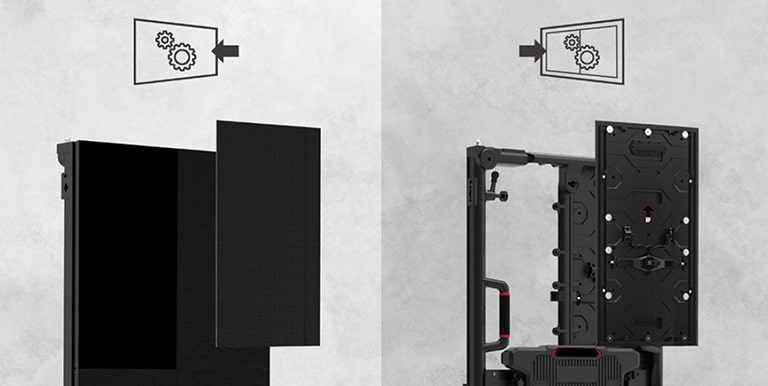

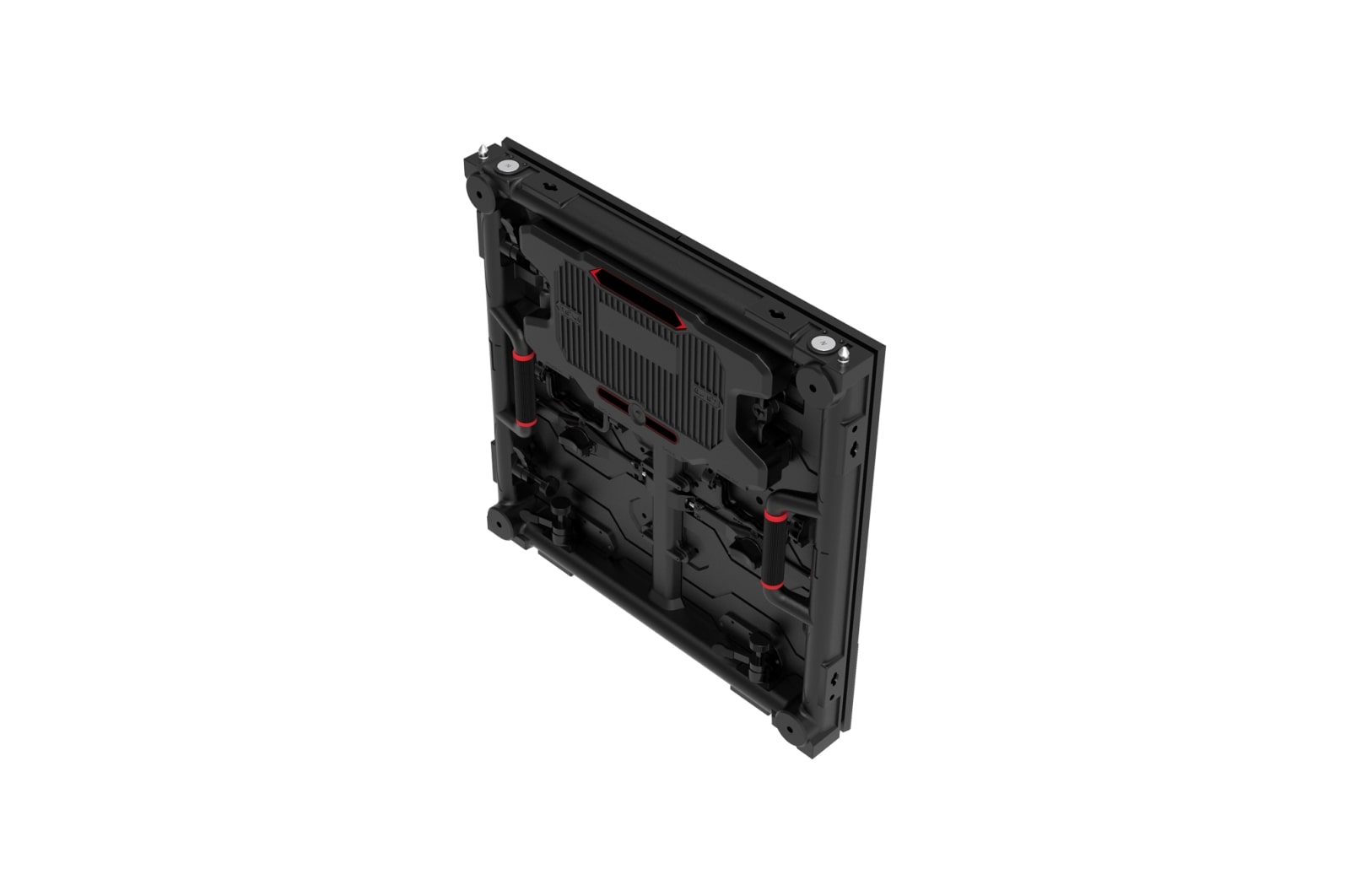

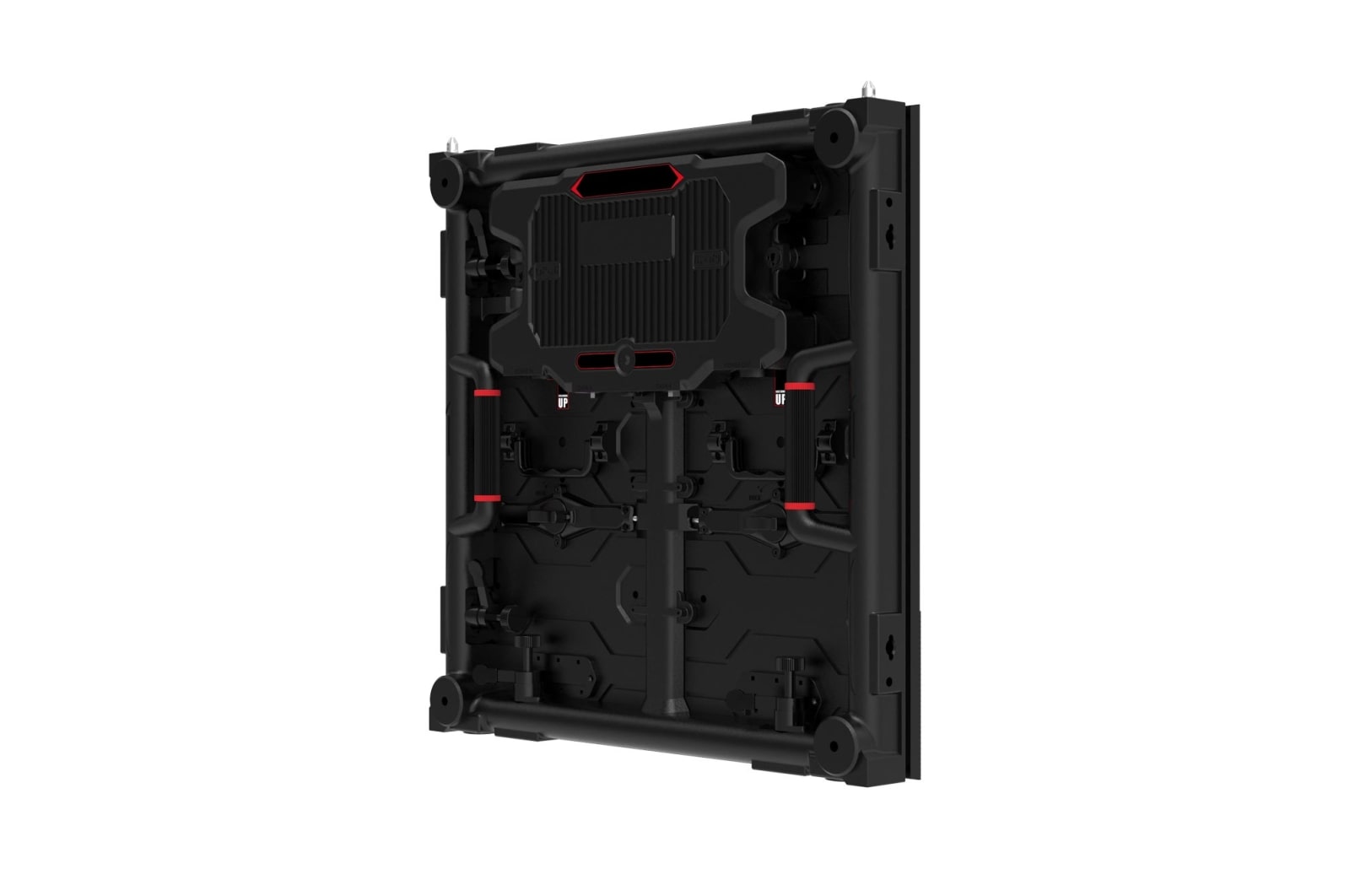

Front or Rear Serviceability

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimises limitations in installation and maintenance.

All Spec

INFORMATION

Model name

GSCA039-GN2

PHYSICAL PARAMETERS

Pixel Configuration

Single SMD

Pixel Pitch (mm)

3.91

Module Resolution (WxH)

64x128

Module Dimensions(WxH,mm)

250x500

Weight per Module (kg)

1.4

No. of Modules per Cabinet (WxH)

2x1

Cabinet Resolution (WxH)

128x128

Cabinet Dimensions (W x H x D, mm)

500x500x66.05

Cabinet Surface Area (㎡)

0.25

Weight per Cabinet (kg/unit)

7.93

Weight per Square Meter (kg/㎡)

31.72

Physical Pixel Density (pixels/㎡)

65,536

Flatness of Cabinet (mm)

±0.3

Cabinet material

Die-casting Magnesium

Service access

Front or Rear (select one only)

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)

5,000

Color Temperature (K)

3,200~9,300

Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

155

Brightness Uniformity(%)

0.97

Color Uniformity

±0.003Cx,Cy

Contrast Ratio

6,000:1

Processing Depth (bit)

14 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)

150

Power Consumption (W/Cabinet, Avg.)

50

Power Consumption (W/㎡, Max.)

600

Heat Dissipation (BTU/h/Cabinet, Max.)

511.8

Heat Dissipation (BTU/h/Cabinet, Avg.)

170.6

Heat Dissipation (BTU/h/㎡, Max.)

2,047.2

Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60

Refresh Rate (Hz)

3,840

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)

100,000

Operating Temperature(℃)

-30℃ to +45℃

Operating Humidity

10~99%RH

IP rating Front

IP65

IP rating Rear

IP65

STANDARD

Certification

CE, FCC, ETL

ENVIRONMENT

Environment

RoHS

CONTROLLER

Controller

CVCA

90 DEGREE CORNER CUT

90 degree corner cut

O
