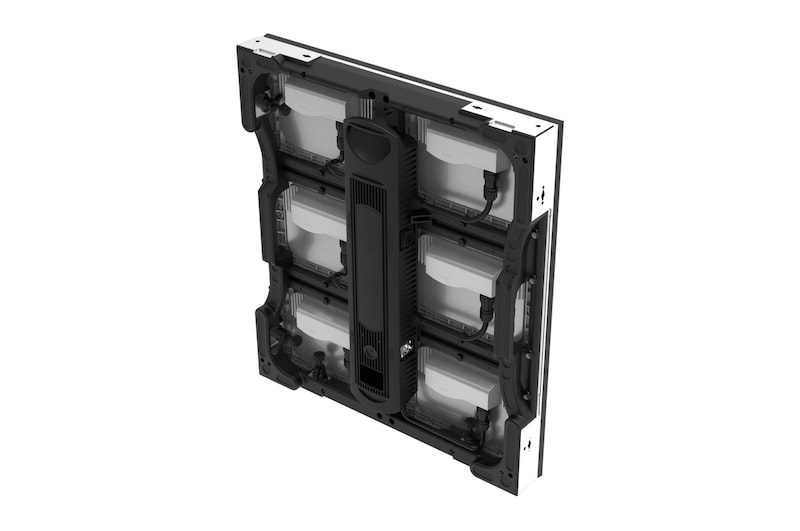

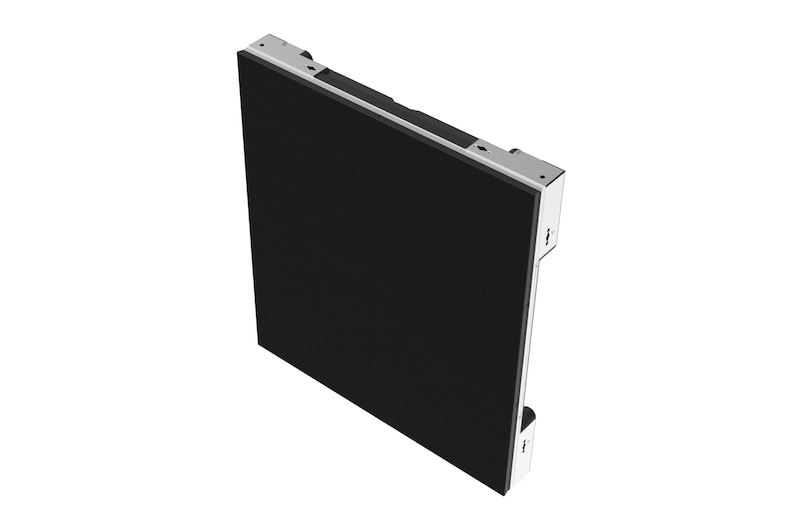

GSCC Essential Series
Customizable Screen Ratio
90° Corner Design Available
IP Rated Weatherproof Design
Model name
GSCC080-GN
Pixel Configuration
Single SMD
Pixel Pitch (mm)
8
Module Resolution (WxH)
40x30
Module Dimensions(WxH,mm)
320x240
Weight per Module (kg)
1.3
No. of Modules per Cabinet (WxH)
2x3
Cabinet Resolution (WxH)
80x90
Cabinet Dimensions (W x H x D, mm)
640x720x114.9
Cabinet Surface Area (㎡)
0.46
Weight per Cabinet (kg/unit)
17
Weight per Square Meter (kg/㎡)
36.9
Physical Pixel Density (pixels/㎡)
15,625
Flatness of Cabinet (mm)
±0.5
Cabinet material
Die-casting Aluminum

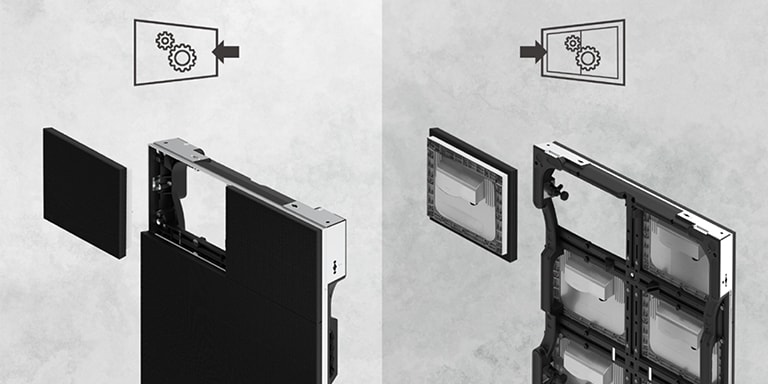

Service access
Front or Rear (select one only)
Max Brightness (After Calibration, nit)
5,000
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
115
Brightness Uniformity(%)
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
6,700:1
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
330
Power Consumption (W/Cabinet, Avg.)
110
Power Consumption (W/㎡, Max.)
720
Heat Dissipation (BTU/h/Cabinet, Max.)
1,125.96
Heat Dissipation (BTU/h/Cabinet, Avg.)
375.32
Heat Dissipation (BTU/h/㎡, Max.)
2,456.64
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-30℃ to +50℃
Operating Humidity
10-99%RH
IP rating Front
IP65
IP rating Rear
IP65
Certification
CE, FCC, ETL
Environment
RoHS
Controller
CVCA
90 degree corner cut
X
