* The "Conventional" shown above refers to an LED screen composed of flat LED unit cases.
* The number of units required may vary depending on the installation environment.
The above description is an example of UHD screen configurantion with a 2.0 mm pitch in 'redundancy off'mode.
* The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.
* The "Conventional" shown above refers to LED displays that don't have an all-in-one system controller
* The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.

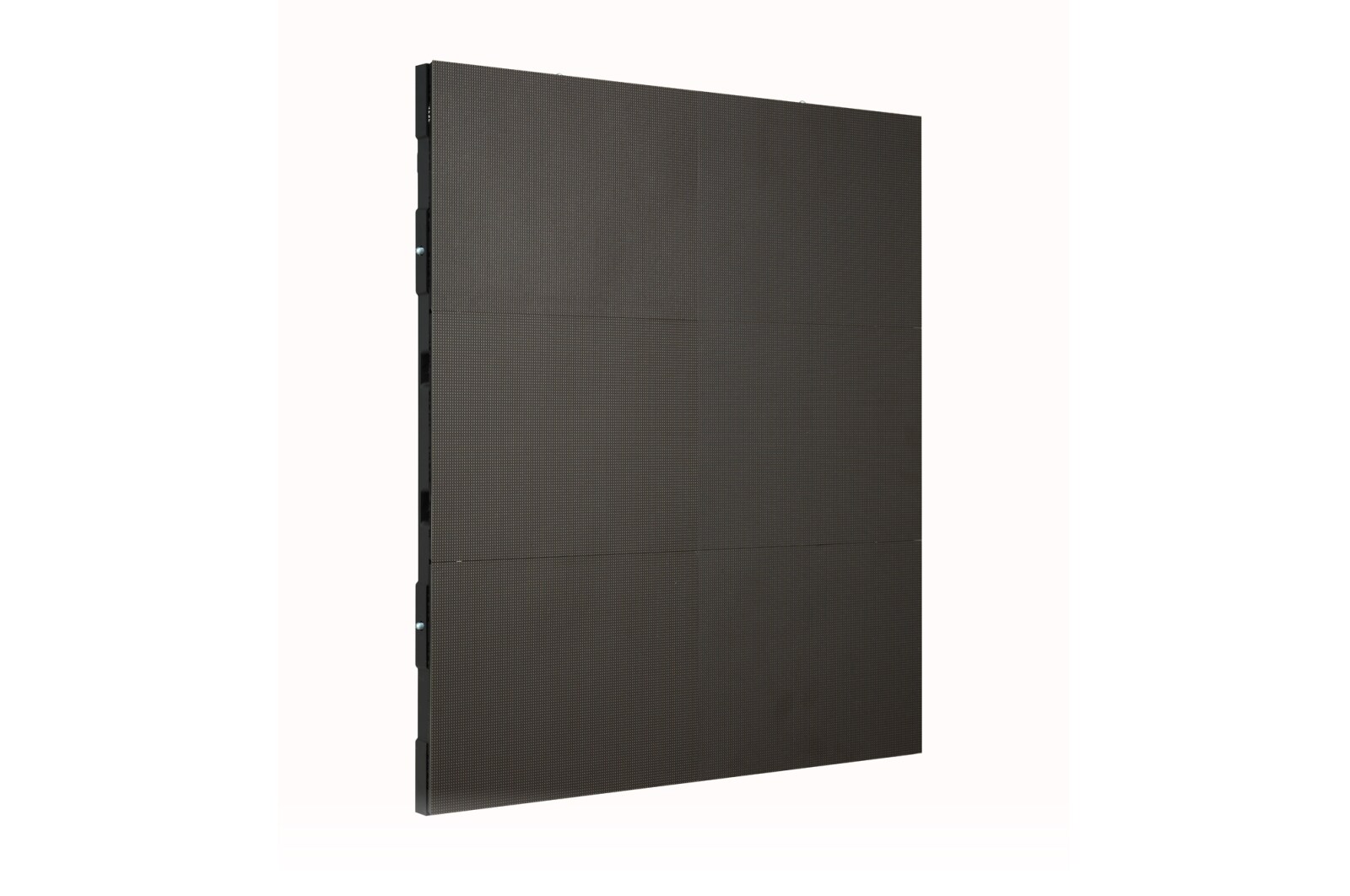

Pitch Name
P1.5
Pixel Pitch
1.5mm
LED Type
SMD 3-in-1
Resolution(WxH, per Unit Frame)
160 x 120

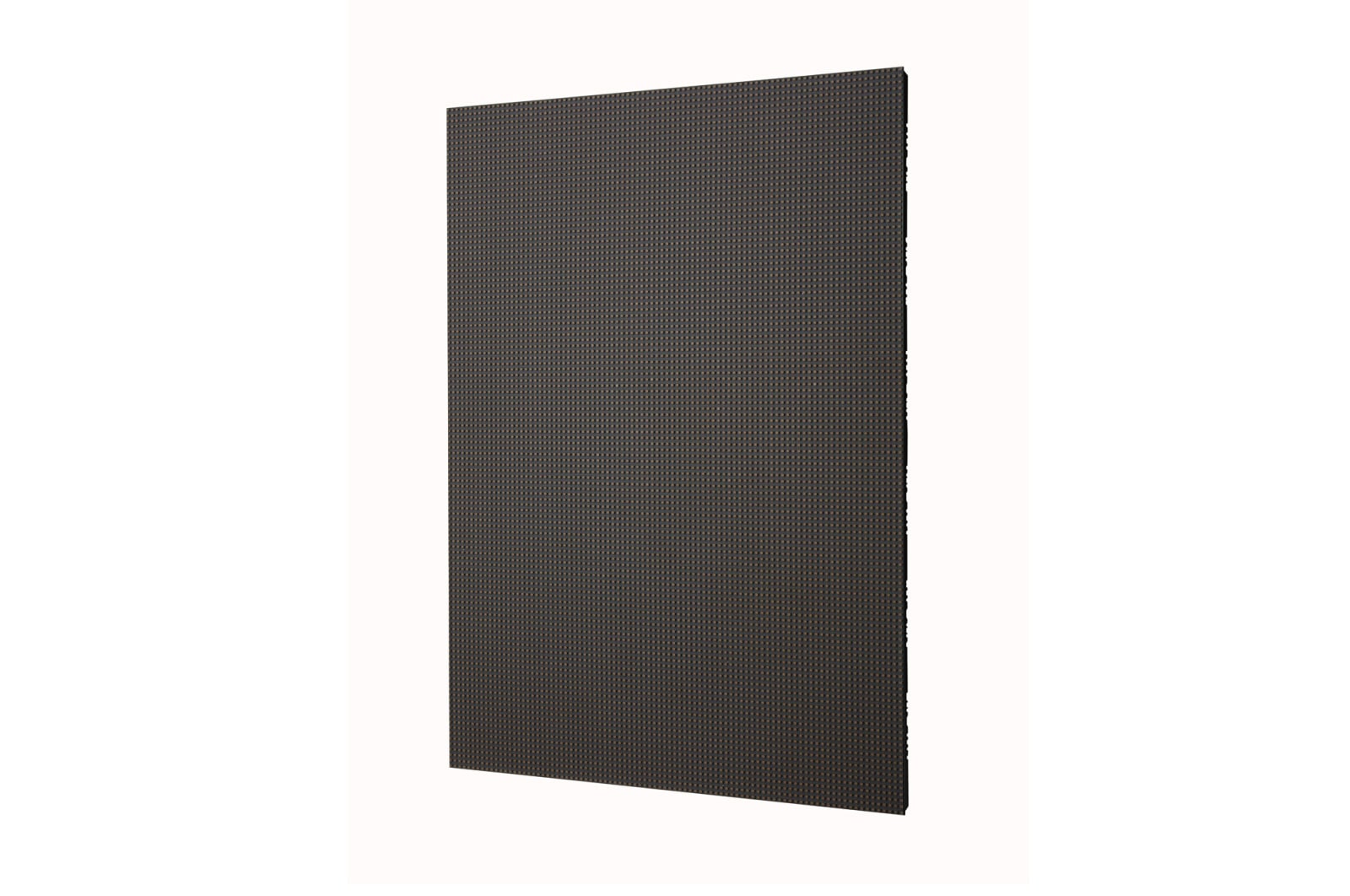

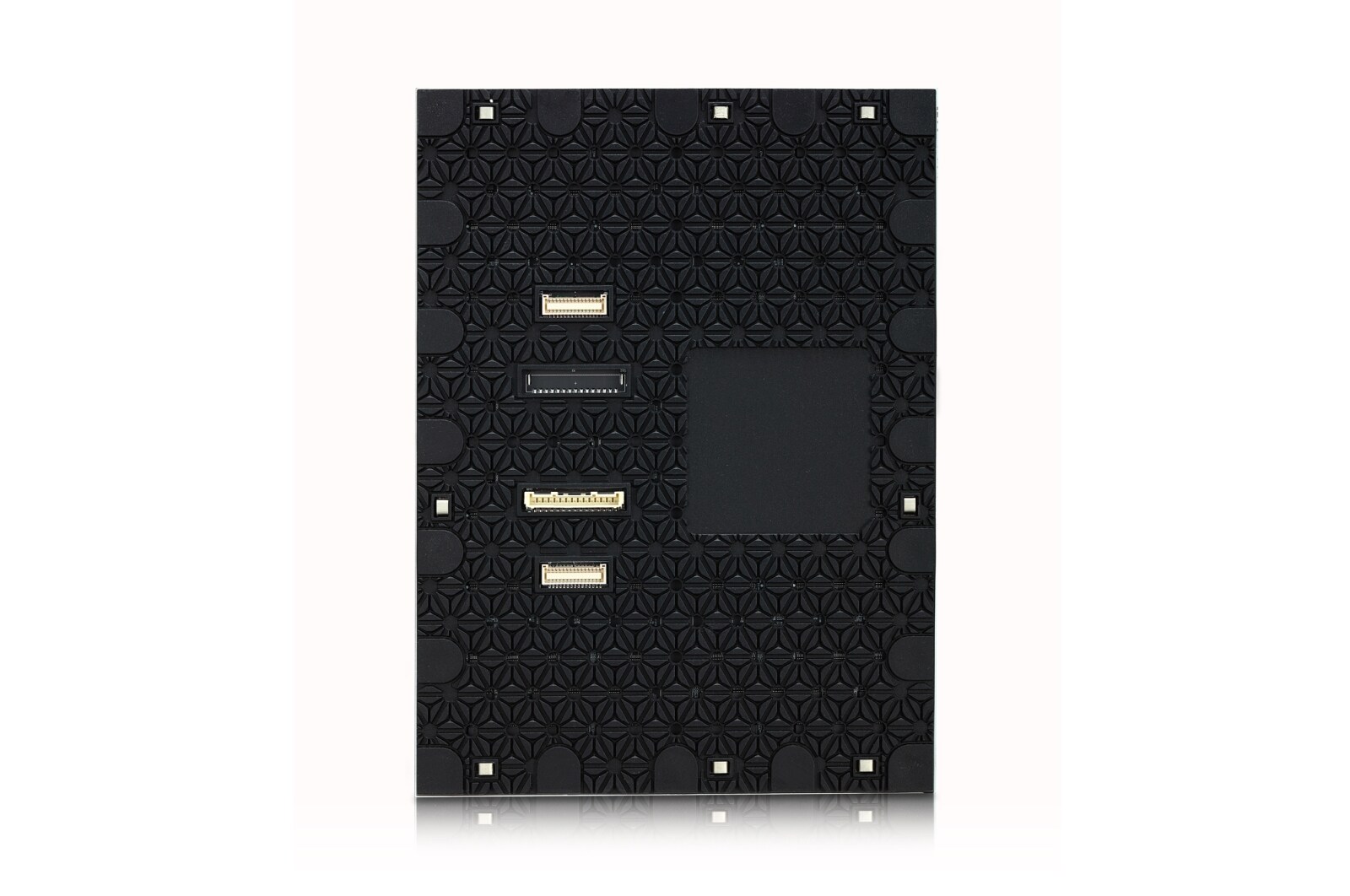

Dimensions(WxHxD, per LDM)
240 x 180 x 10.5 mm
Dimensions(WxHxD, per Unit Frame)
480 x 540 x 105mm2)
Weight(per Unit Frame)sup1)/sup
9.3 kg2)
Weight(per SQM)sup2)/sup
35.9 kg2)
IP Rating
N/A
Unit Frame Material
Die Casting Aluminum
Unit Frame Color
Black
Curvature
H : Concave/Convex ±1,000R
V : Concave/Convex ±6,000R
Access
Front and Rear
Brightness(Max)
700nit
Contrast Ratio
6,000:1
Viewing Angle(H x V)
160 x 140
Bit Depth(Bit Processing per Color)
16bit
Brightness Uniformity
≥ 95%
Color Uniformity
±0.015Cx, Cy
Color Gamut
NTSC 100%, BT2020 94%
Color temperature - Default
6,500K
Color temperature - Adjustable
3,200 - 9,300K
Video Frame Rate
50/60Hz
Input Power Range
100-240V~, 50/60Hz
Power consumption - Max/Typ(per Unit Frame)
250/125W
Power consumption - Max/Typ(per SQM)
965/485W
Refresh rate
3,840Hz(Max)
Redundancy
Signal
Video Inputs
HDMI In(1), DP In(1), OPS In(1), USB(1)
Control
RJ45 In(1), RS232C In(1)/Out(1)
Special Features
Temperature Sensor, Power Detection,
ADA Compliant4), PSU Hot Swappable4)
Working Temperature/Huminity
0 °C to 40 °C at 10 % to 80 %
Storage Temperature/Huminity
-20° to +60°C at 5 to 85%
LED Lifetime
100,000hrs
Safety
N/A
EMC
FCC Class "A" / CE / KC
Environment
RoHS
Optional Accessory
N/A
