30" Transparent OLED Touch Signage Display

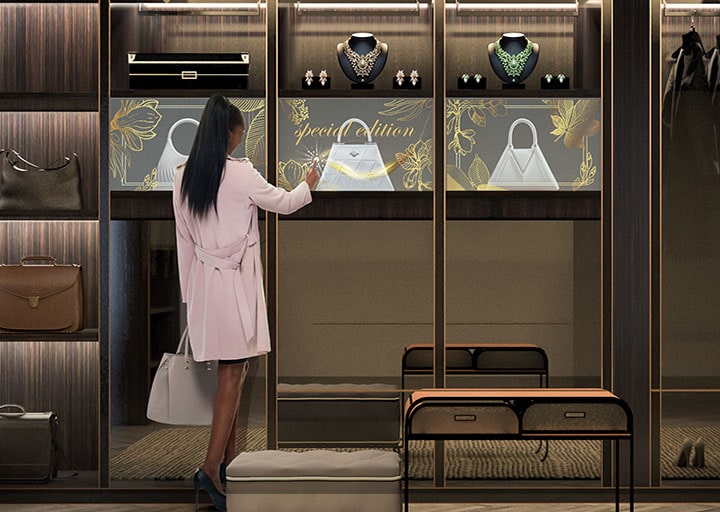

At an upscale store display, Transparent OLED Signage is installed as a woman interacts with the transparent screen, revealing patterns that seamlessly blend with the bags displayed behind the screen on the shelf.
*All images in this page are for illustrative purposes only.
Featuring self-lighting pixels, the display maintains vivid colours and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
A man is getting information through the Transparent OLED Signage screen showing photos of the dessert menu.
Image has been simulated to enhance feature understanding, and may differ from actual use
By adding P-Cap touch sensor film to the display, the utilisation possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips.
At a café, a woman is selecting from the menu by touching the Transparent OLED Signage screen.
*Installation accessories are not supplied by LG.
Experience the extraordinary with the state-of-the-art LG Transparent OLED Signage, which breaks down the barriers between the screen and surrounding environment, seamlessly connecting different spaces and people.
A man and a woman are selecting a room by touching the Transparent OLED Signage installed on the hotel lobby's front table. There are two Transparent OLED Signage displays installed at the bank counter, showing advertisements for bank products on the screens. Transparent OLED Signage is installed in front of a table upon which cell phones are displayed in a cell phone store, and the Transparent OLED Signage screen is showing a cell phone’s functions. A café has Transparent OLED Signage installed, and a woman is checking the menu by touching the Transparent OLED Signage screen.
*Installation accessories are not supplied by LG.
Screen Size (Inch)
30"
Panel Technology
OLED
Aspect Ratio
16:9
Native Resolution
1366x768 (HD)
Refresh Rate
120Hz
Brightness
200/600nit (APL 100%/25%, Without Glass)
Contrast Ratio
200,000:1
Dynamic CR
NO
Color Gamut
BT709 110%
Viewing Angle (H x V)
178 x178
Color Depth (Number of Colors)
10bit(R), 1.07Bilion colors
Response Time
0.1ms (G to G), 8ms (MPRT)
Surface Treatment (Haze)
Hard coating 5H, Haze 3% (Set)
Life time
30,000 Hrs (Typ.)
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
Portait / Landscape
YES / YES
Transparency
37% (Set)
QWP (Quarter Wave Plate)
NO
HDMI In
YES(1), HDCP2.2/1.4
DP In
YES(1), HDCP1.3
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES(1)
RJ45(LAN) In
YES(1)
IR In
YES(1), External IR Receiver
USB In
USB2.0 Type A(2ea, 1ea Controller )
HDMI Out
NO
DP Out
YES(1)
Audio Out
YES(1)
Touch USB
USB2.0 Type B(1)
External Speaker Out
NO
RS232C Out
YES(1)
RJ45(LAN) Out
YES(1)
IR Out
Sharing RS232C Out
Daisy Chain
NO
Bezel Color
Matt Silver (TBD)
Bezel Width
T/R/L/B : 7.9/7.9/7.9/114.7 mm
Weight (Head)
4.2kg (Head), 2.4Kg (Signage Box)
Packed Weight
10.1 kg
Monitor Dimensions (W x H x D)
680.2 x 496.2 x 15.3 mm (Head)
449.2 x 288.6 x 42.8 mm (Signage Box)
Monitor Dimension with Stand (W x H x D)
NO
Handle
NO
VESA Standard Mount Interface
NO
Carton Dimensions (W x H x D)
826 x 593 x 195 mm
Weight (Head+Stand)
NO
Thickness
3.0mm
Degree of Protection
N/A
Tempered / Chemical strengthening
Chemical strengthening
Anti-Reflective
YES (AR+AF Coating)
Infrared - Resistance (IR)
N/A
Shatter-Proof
YES
Internal Memory (eMMC)
16GB
Temperature Sensor
YES
Auto Brightness Sensor
NO
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
NO
Local Key Operation
NO
FAN (Built-in)
NO
OS Ver. (webOS)
webOS23
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
NO
No Signal Image
NO
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
NO
Video Tag
YES(4)
Play via URL
NO
Screen Rotation
YES
External Input Rotation
NO
Gapless Playback
YES
Tile Mode Setting
NO
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
NO
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Smart Energy Saving
NO
PM mode
YES
Wake on LAN
YES
Network Ready
NO
Beacon
NO
HDMI-CEC
YES
SI Server Setting
YES
webRTC
NO
Pro:Idiom
NO
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
45W (IEC 62087)
Max.
86W
BTU (British Thermal Unit)
154 BTU/Hr(Typ.), 294 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W
Smart Energy Saving (70%)
NO
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
YES / NO
ePEAT(US only)
NO
OPS Type compatible
NO
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
NO
SuperSign Cloud
YES
Promota
NO
Mobile CMS
YES
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Polski, Türkçe, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3Mx4ea/3Mx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M, for connection between Touch and Signage box), A to B type USB cable(Touch out), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5(Silver),M3xL5.5(Black) 8EA / Shield Cover Assy', Rubber Damper 4EA, Touch Cable Holder 2EA, MCX Cable Holder 2EA
Optional
NO
Overlay Touch Compatibility
NO
Smart Calibration
NO
Tilt (Face up)
NO
Tilt (Face down)
NO
IP Rating
NO
Conformal Coating (Power Board)
YES
Power Protection
NO
Direct Sunlight
NO
Available Object Size for Touch
Ø8 mm ↑
Accuracy (Typ.)
2mm
Interface
USB2.0
Protection Glass Thickness
3.0T (Anti-Refllection / Anti-Finger print)
Protection Glass Transmission
85% (Typ.)
Operating System Support
Windows 10/11
Multi Touch Point
Max 10 Points
