Aspect Ratio
4:3
Backlight Dimming Technology
Global Dimming
Backlight Technology
LED
Backlight Type
Edge
Brightness (Min.)
800cd/m²
Brightness (Typ.)
1000cd/m²
Brightness (Stabilization)
500cd/m²
Colour Bit
10bit
Colour Depth (Number of Colours)
1.07B
Colour Gamut (Typ.)
NTSC 72%(Coverage)
Contrast Ratio (Typ.)
1400:1
Panel Type
IPS
Pixel Pitch (H x V)
0.2115mm x 0.2115mm
Resolution
2048 x 1536
Response Time (GTG)
On/Off 30ms (Typ.)
Size (Inch)
21.3
Size (cm)
54.1
Surface Treatment
Anti-glare
Viewing Angle (CR≥10)
178°(Right/Left), 178°(Up/Down)
Brightness stabilization
Yes
Auto Luminance Sensor
Yes
Presence Sensor
Yes
Front Sensor
Yes
Factory Calibration
Yes (Delta E<10, Gamma 1.8~2.2/DICOM curve)
HW Calibration
Yes (PerfectLum)
DICOM Compliant
Yes
Colour Temperature
6500K/7500K/9300K
OSD Language
17 Language
Uniformity
Yes
Qubyx
Yes
DisplayPort
Yes (1ea)
DP (HDCP Version)
2.2
DP (Max. Resolution at Hz)
2048 x 1536 @60HZ
DP (H-Frequency)
63~69kHz
DP (V Frequency)
50~75Hz
DP Version
1.1
DVI
Yes (1ea)
DVI (Max Resolution at Hz)
2048 x 1536 @60HZ
DVI (H Frequency)
60
DVI (V Frequency)
2048 x 1536 @60HZ
USB Downstream Port
Yes (2ea/ver2.0)
USB Upstream Port
Yes (1ea/ver2.0)
[Location]
Bottom
AC Input
100-240Vac, 50/60Hz
DC Output
24V, 4.17A
Power Consumption (DC Off)
Less than 6.5W
Power Consumption (Max.)
85W
Power Consumption (Sleep Mode)
Less than 6.5W
Power Consumption (Typ.)
85W
Type
Internal Power (PSU)
Base Detchable
Yes
Borderless Design
Normal
Colour (Back Cover)
Black
Colour (Front Cabinet)
Black
Colour (Stand Base)
Black
Colour (Stand Body)
Black

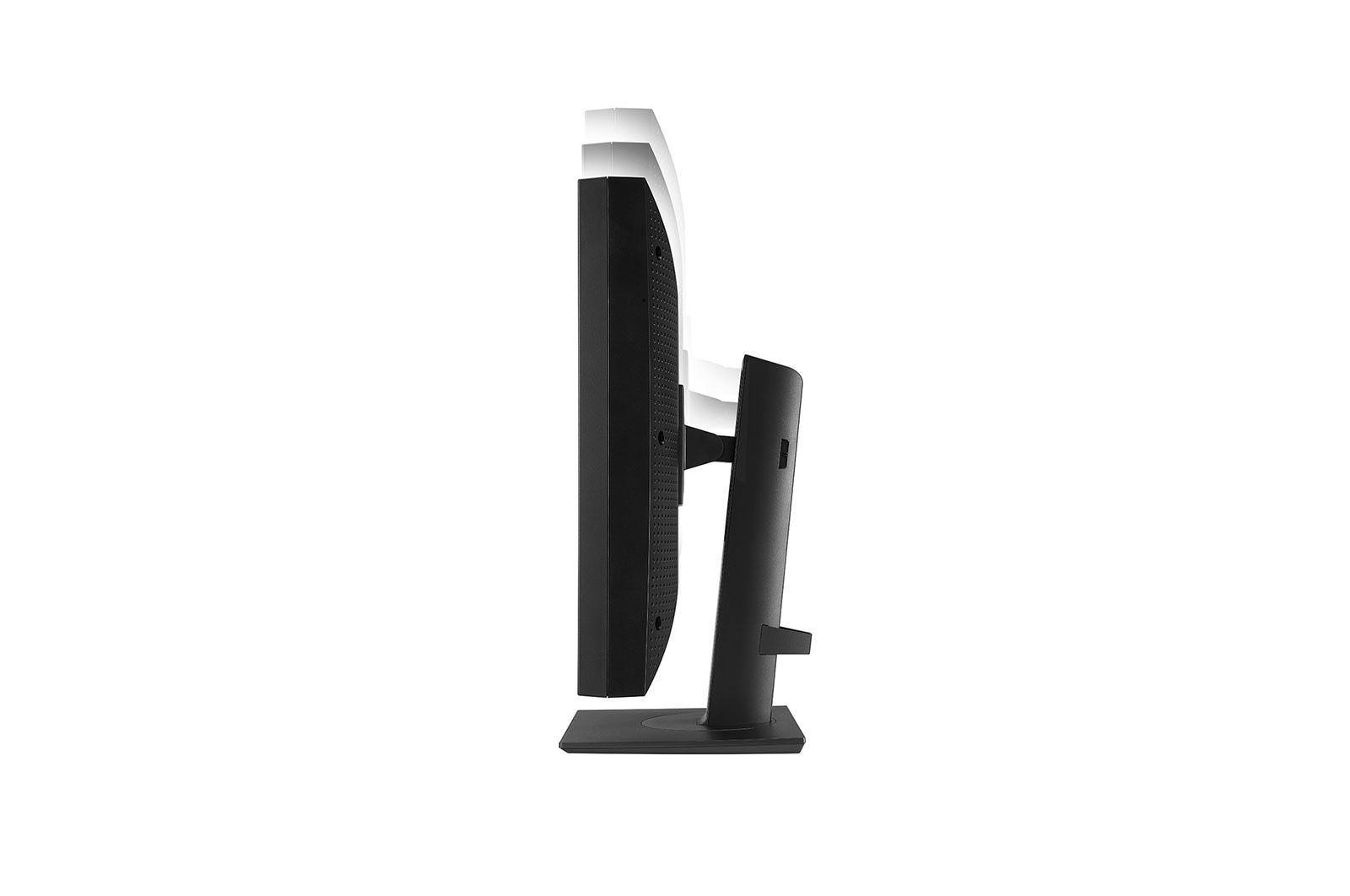

Display Position Adjustments
Tilt/Height/Pivot/swivel
Height Range
150mm
Machanical Power Switch
Yes
OneClick Stand
Yes
Pivot
Yes (±90°)
Swivel
Yes (±45°)
Tilt
Yes (-5°~20˚)
Wall Mount Size
100 x 100 mm
Dimension in Shiping (W x H x D)
502 x 701 x 348 mm
Dimension with Stand (W x H x D)
377 x 606 x 248.2 mm
Dimension without Stand (W x H x D)
377 x 473 x 89.6 mm
Pallet Stuffing (20ft/40ft/40ft HC)
180/396/396 Air 12set/Pallet
Weight in Shipping
12.8kg (28.2lb)
Weight with Stand
9.8kg (21.6lb)
Weight without Stand
7kg (15.4lb)
IEC (IEC 60601-1 / IEC 60601-1-2)
Yes
EN (EN 60601-1 / EN 60601-1-2)
Yes
IEC (IEC 60950-1 / IEC 55032, 55024)
Yes
EN (EN 60950-1 / EN 55032, 55024)
Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
Yes
FCC (FCC part 15 Class A)
Yes
FDA
510 (k) (Class II)
ISO13485
Yes
GMP
Yes
KGMP
Yes
RoHS
Yes
REACH
Yes
WEEE
Yes
MFDS
Yes
Calibration Report (Paper)
Yes
DVI-D
Yes
DVI-D (Colour/Length)
Black/3m
Display Port
Yes
Display Port (Colour/Length)
Black/3m
Power Cord
Yes
Power Cord (Colour/Length)
Black/3m
