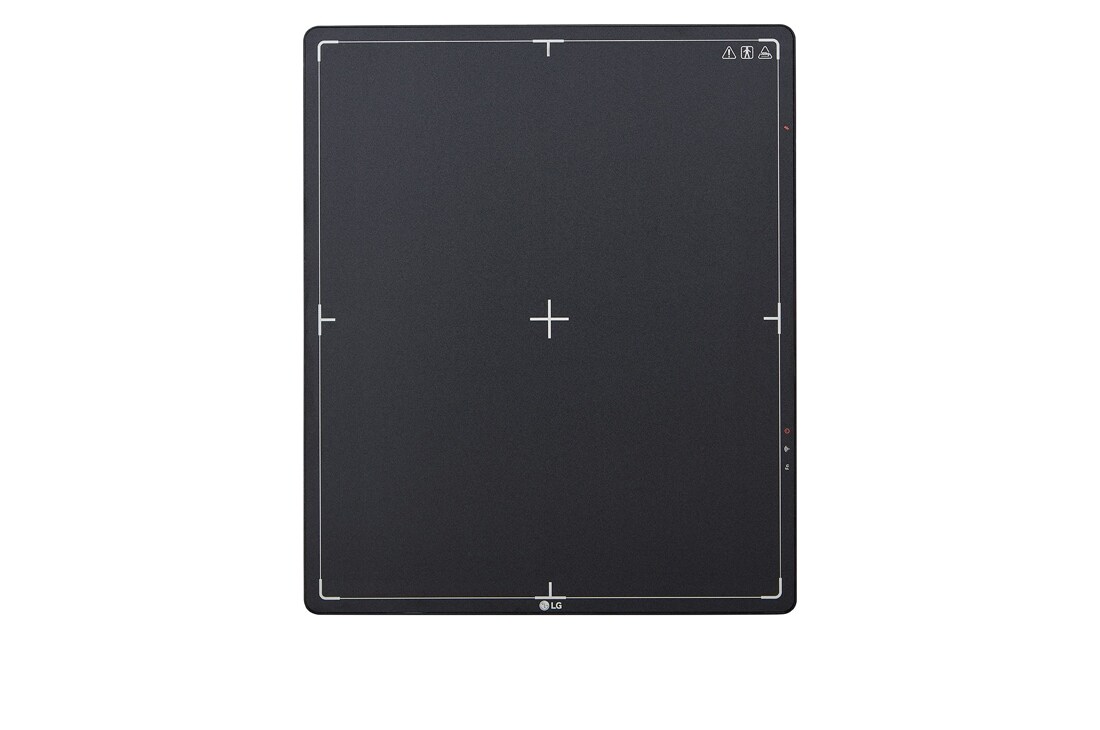

Detector Digital de Rayos-X LG (DXD) con tecnología a-Si TFT
14HQ701G-BP
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Shipping options may vary by region.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
Are you sure you want to remove the coupon?
Dimension / Weight (Including battery)
384 mm x 460 mm x 15.6 mm
3.2 kg (7.1 lbs)
Intended Use
General Radiography
TFT Type
a-Si
Scintillator
CsI
Pixel Pitch
140 ㎛
Number of Pixels
2500 x 3052 pixels
TFT Active Area
350.0 x 427.28 mm
MTF @ 0.5lp/mm (Typ.)
84%
A/D Conversion
16 bit
Data Output
16 bit
Type
Wired / Wireless
WLAN
IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
Auto Exposure Detection
Yes
Cycle Time
4.5 sec (Wired) / 5 sec (Wireless)
Full Image Transfer (Typ.) *Without window time
1.5 sec (Wired) / 2 sec (Wireless)
Maximum Load Weight
Full (Uniform Load) : 400 kg (881.8 lbs)
Local (Point Load) : 200 kg (440.9 lbs)
Watertightness
IP68
Sensor Protection Plate
Carbon Fiber Plate
Operation Time
300 shots / 7.5 hrs (Typ.) (Condition : Cycle Time 90 sec)
Charging Time
3 hrs (Typ.)
Hot Swap
Yes (1 Min)
Cable
Power Cord, Main Cable 7 m (LAN Cable, Sync Cable Option)
Other
Battery Charger
2 x Battery Packs
Control Box
