600cd/m² Brightness (Typ.)
Internal Front Calibration Sensor
Management with LCS Medical
Daisy Chain
Variety of interfaces including HDMI
Ergonomic Design
*According to ACR(American College of Radiology), maximum luminance of diagnostic displays used for interpretation should be at least 350cd/m².
*This display is not intended for mammography.
Internal front calibration sensor
The front-sensor, supported by the calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

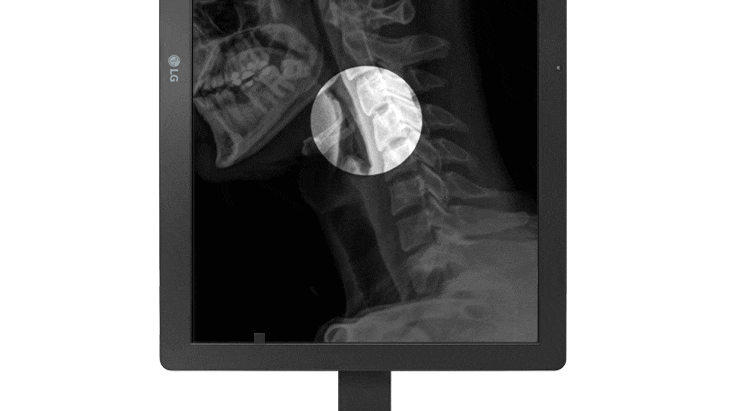

Focus view mode
24HR513C features the Focus view mode which highlights specific parts of the medical image. Users can easily select and focus on areas of concern while darkening the rest of the screen.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Pathology mode
With Pathology Mode, 24HR513C provides image clarity and accuracy as if you were looking at a microscope.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Conveniently manage 24HR513C with LCS Medical. With calibration complying with DICOM Part 14, this software enables precise and consistent display of medical images. It also supports Quality Assurance Tests conforming to international QC Standards*.
Calibration

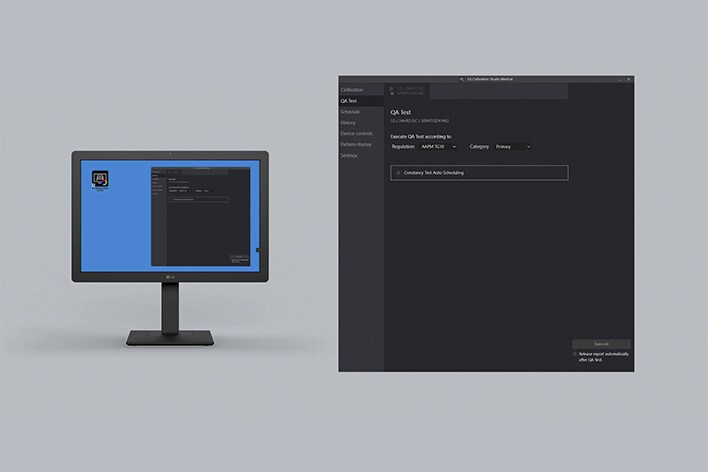

QA Test
*LCS Medical : LG Calibration Studio Medical
*LCS Medical supports Quality Assurance Tests that comply with international QC Standards including AAPM TG18, ACR, DIN-6868-157, IEC 62563-1, NYC PDM, JESRA X-0093, and RANZCR.
Daisy Chain
Make your workspace productive with Daisy Chain Setup. You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.
You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.
*According to ACR(American College of Radiology), maximum luminance of diagnostic displays used for interpretation should be at least 350cd/m².
*This display is not intended for mammography.
Versatile connectivity
With HDMI, DisplayPort, and DVI-D input terminals, 24HR513C guarantees compatibility with a wide range of interfaces, enhancing user convenience.
DVI IN, HDMI™, DisplayPort x 2, USB 3.0 Downstream x 2, USB 3.0 Upstream x 2.
1. DVI IN / 2. HDMI™ / 3. DisplayPort x 2 / 4. USB 3.0 Downstream x 2 / 5. USB 3.0 Upstream x 2
Ergonomic design
24HR513C is designed to be adjustable for the posture of users' image review. The One-Click Stand makes the installation process simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*Auto Pivot refers to the automatic screen rotation function based on the pivot direction.
Auto luminance sensor
24HR513C features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Size [Inch]
24
Size [cm]
61.13
Resolution
1920 x 1200
Aspect Ratio
16:10
Pixel Pitch [mm]
0.27X0.27
Color Gamut (Typ.)
NTSC 70% (CIE1931)
Contrast Ratio (Typ.)
1000:1
Response Time
5ms (GtG at Faster)
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Brightness (Typ.) [cd/m²]
600
HDR 10
No
VESA DisplayHDR™
No
HDR Effect
No
Nano IPS™ Technology
No
Color Calibrated in Factory
Yes(Delta E<5, Gamma 1.8~2.6/DICOM curve)
HW Calibration
Yes(LG Calibration Studio Medical)
Auto Brightness
Yes
Flicker Safe
Yes
Reader Mode
Yes(Text Mode)
Super Resolution+
Yes
NVIDIA G-Sync™
No
Black Stabilizer
Yes
RGB LED Lighting
No
PBP
No
PIP
No
Smart Energy Saving
Yes
Camera
No
Mic
No
LG Calibration Studio (True Color Pro)
No
Dual Controller
Yes
OnScreen Control (LG Screen Manager)
Yes
D-Sub
No
DVI-D
Yes(1ea)
HDMI
Yes(1ea)
DisplayPort
Yes(in 1ea/out 1ea)
DP Version
1.2
Thunderbolt (Power Delivery)
No
Daisy Chain
Yes
USB Upstream Port
Yes(2ea/ver3.0)
USB Downstream Port
Yes(2ea/ver3.0)
Audio In
No
Headphone out
No
Line out
No
Speaker
No
Type
External Power(Adapter)
AC Input
100-240Vac, 50/60Hz
Power Consumption (Typ.)
38W
Power Consumption (Max.)
65W
Power Consumption (Energy Star)
No
Power Consumption (Sleep Mode)
Less than 0.5W
Power Consumption (DC Off)
Less than 0.3W
DC Output
19V, 3.42A
Display Position Adjustments
Tilt/Height/Swivel/Pivot
Wall Mountable [mm]
100 x 100
Dimension with Stand (W x H x D) [mm]
574.2X559.4X248.2
Dimension without Stand (W x H x D) [mm]
574.2X382.4X59.3
Dimension in Shiping (W x H x D) [mm]
705X480X200
Weight with Stand [kg]
7.1
Weight without Stand [kg]
4.35
Weight in Shipping [kg]
9.7
D-Sub
No
DVI-D
Yes
HDMI
Yes
Thunderbolt
No
Display Port
Yes
USB A to B
Yes
Remote Controller
No
Others (Accessory)
Cable holder
Adapter
Yes
Calibration Report (Paper)
Yes
HDMI (Color/Length)
Black / 1.8m
Power Cord
Yes
