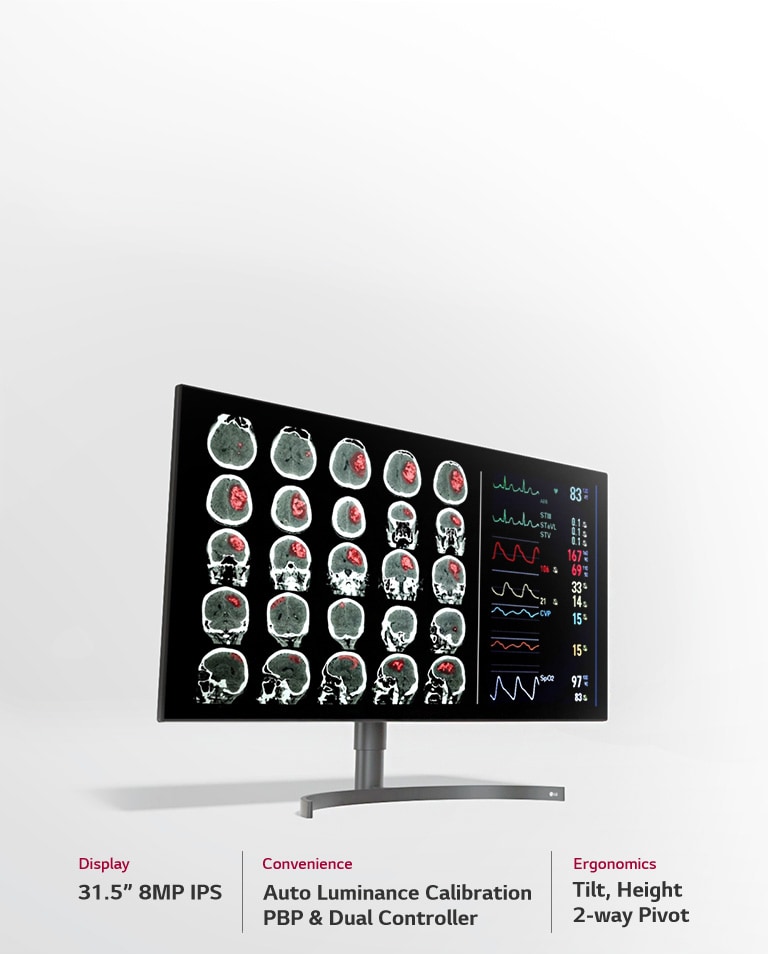

Optimized Image Quality for Diagnostic Review
To Increase Efficiency & Convenience
Key Feature

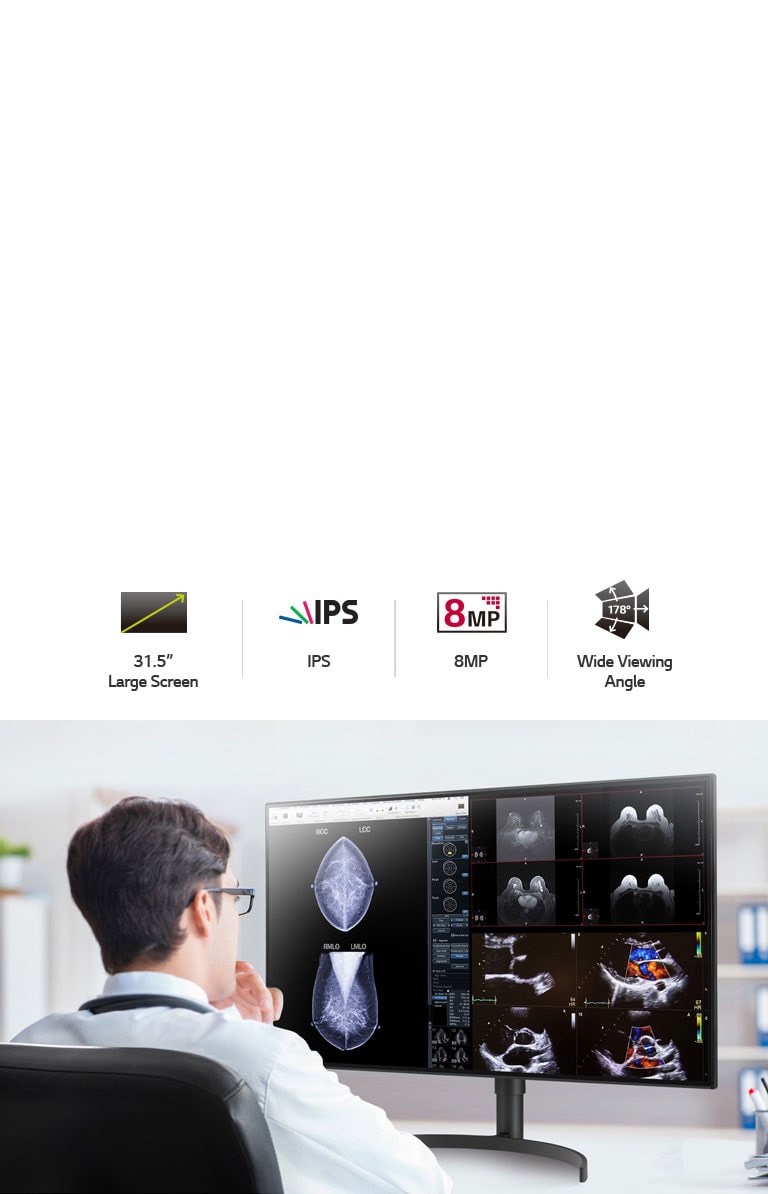

- 31.5" 8MP IPS Display

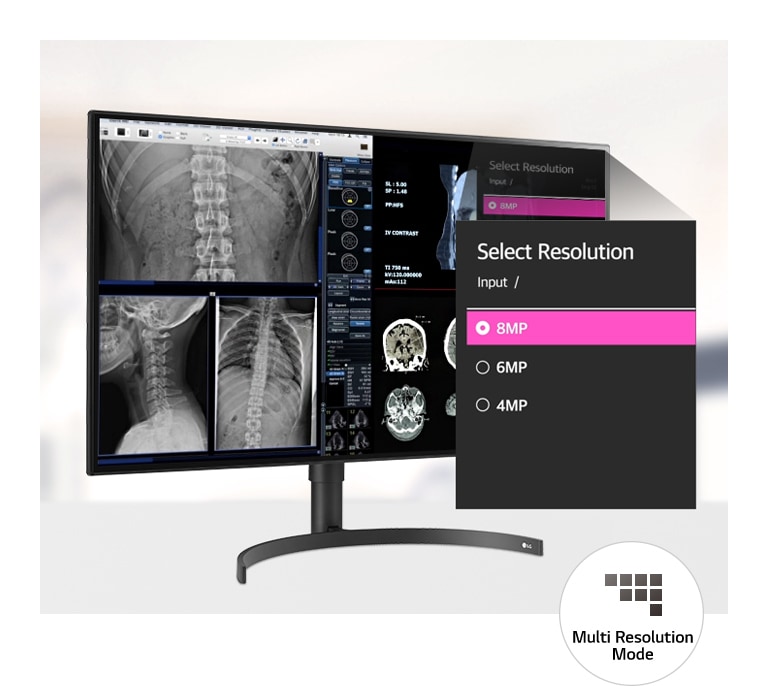

- Multi Resolution Mode

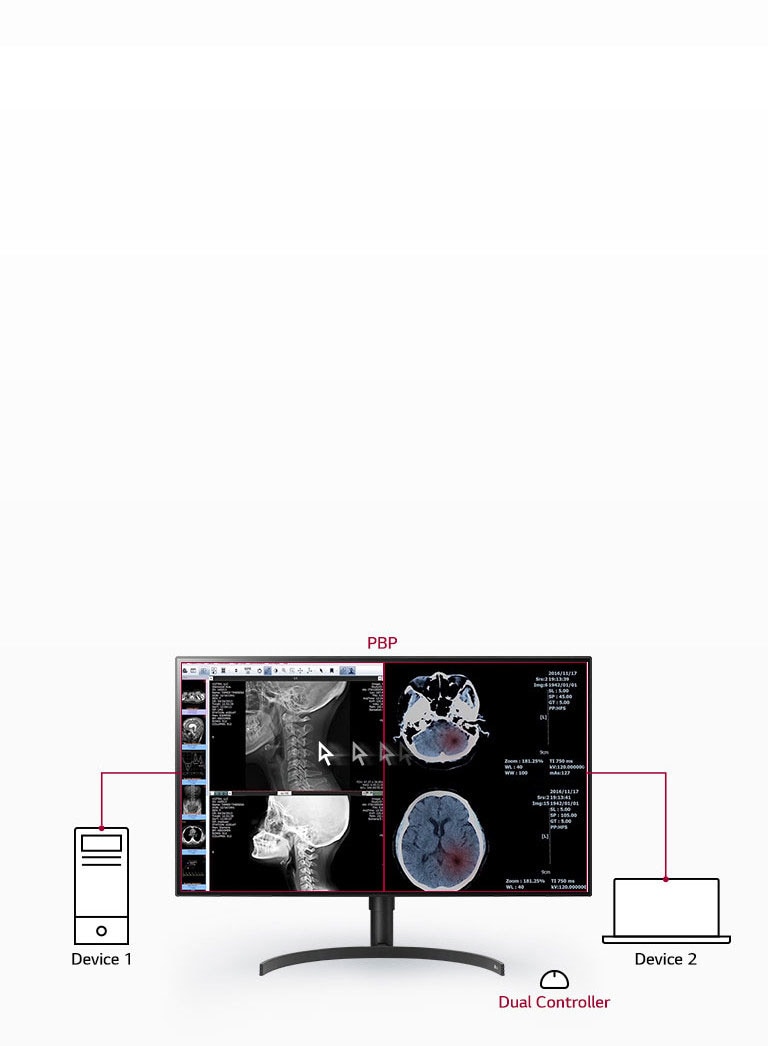

- PBP / Dual Controller

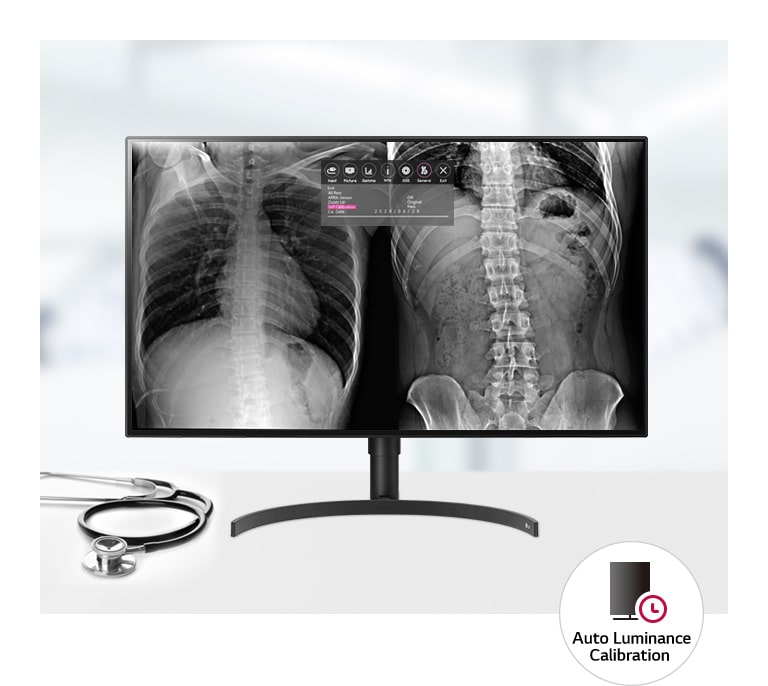

- Auto Luminance Calibration

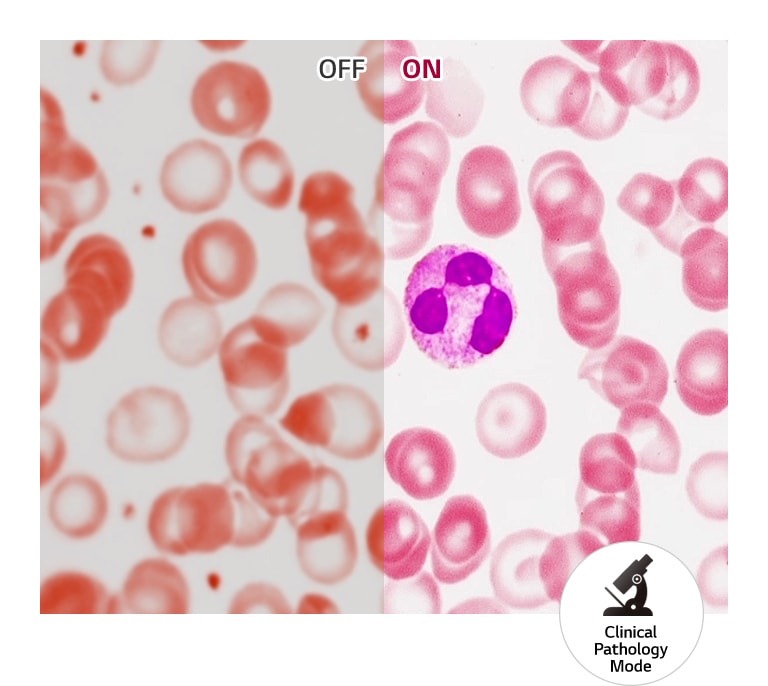

- Clinical Pathology Mode

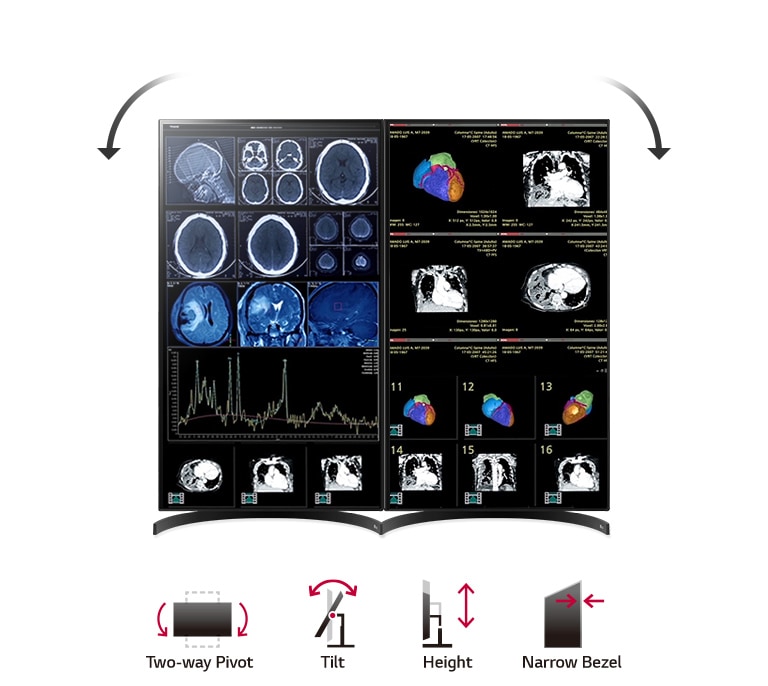

- Ergonomic Design
All Spec
PANEL
Panel Type
IPS Black
Inch (Aspect Ratio)
31.5-inch (16:9)
Active Screen Size
698.9 x 393.8 (mm)
Resolution
8MP (3840 x 2160)
Surface Treatment
Anti-glare, 3H
Colour Gamut (Typ.)
sRGB (CIE 1931) 100 %
Viewing Angles (CR≥10)
178° (Right / Left), 178° (Up / Down)
Brightness (Typ.)
1000cd/m²
Brightness (Stabilization)
500cd/m²
Colour Bit
10bit (8bit+A-FRC)
Contrast Ratio (Typ.)
2000:1
Response Time (GTG*)
14ms (GtG, Not Support OD)
FEATURE
DICOM Compliant
Yes
HW Calibration
Yes (SW Application: LG PerfectLum)
Display Mode
Multi-resolution Mode (8/6/4MP), Focus View Mode, Light Box Mode, Pathology Mode
Super Resolution+
Yes
VIDEO SIGNALS
Input Terminals
DisplayPort x2
CONNECTIVITY
USB
USB 3.0 2 Upstream, 2 Downstream
POWER
AC Input
100-240Vac, 50/60Hz
Power Consumption (Max.)
120W
Power Consumption (DC Off)
Less than 0.3W
USER CONVENIENCE
PBP / Dual Controller
Yes (2 PBP) / Yes
Reader Mode / Flicker Safe
Yes / Yes
Lighting
Yes
Hot Key
Yes (6 keys)
Presence Sensor
Yes
Auto Luminance Sensor
Yes
PHYSICAL SPECIFICATION
Weight (with Stand)
13.0kg (28.6lb)
Weight (without Stand)
9.7kg (21.3lb)
Adjustable Stand

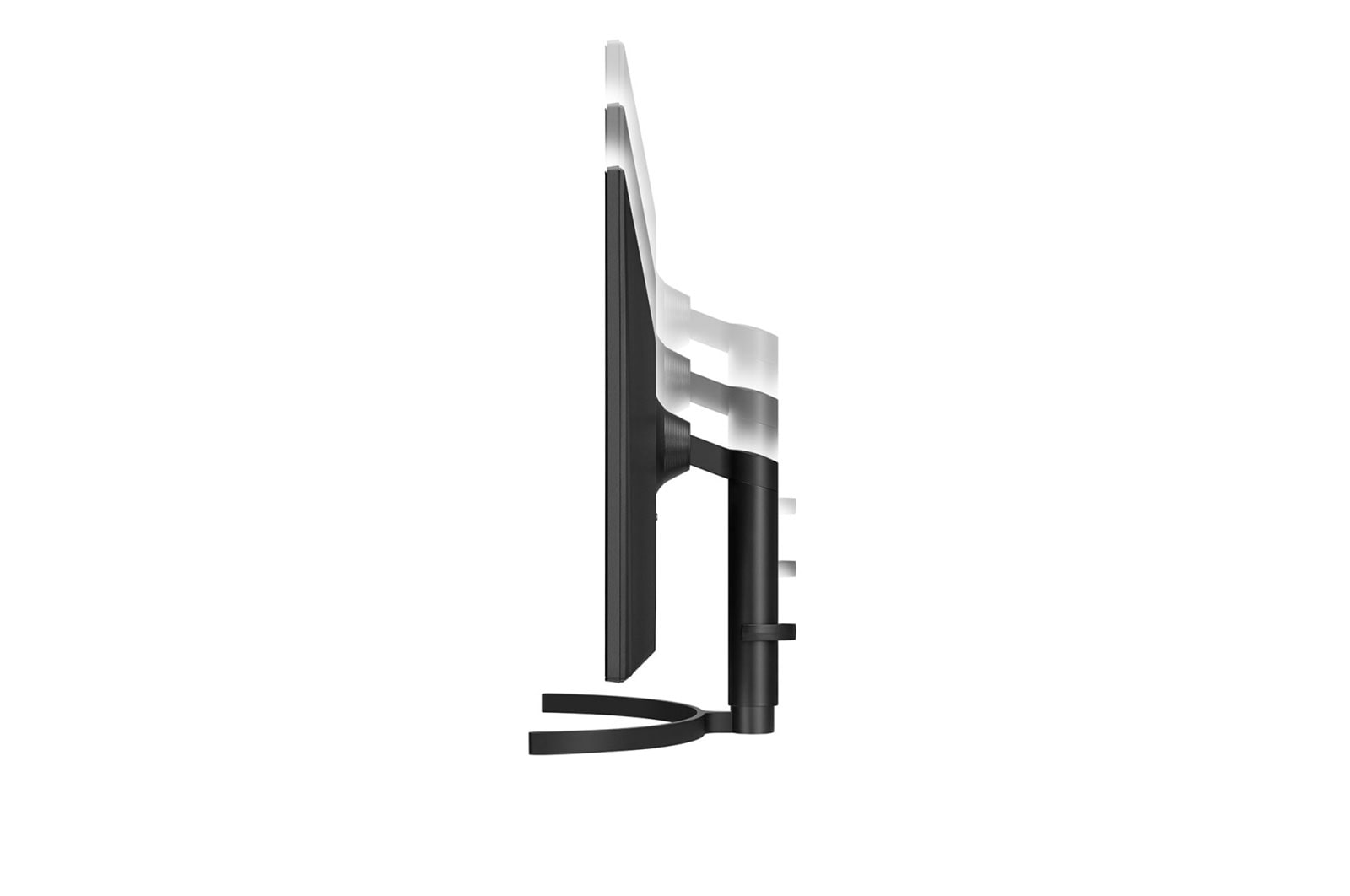

Swivel: ±15° / Tilt.: -5°~15° / Height Range: 110mm
Wall Mount Size
100 x 100 (mm)
