*All images are shown for illustrative purposes only and may vary from the actual product/usage.
1)Compared to products with a-Si TFT.
2)According to the Ingress Protection (IP) Rating System, an IP68 means protection against solid foreign objects Level 6 (Dust-tight: no ingress of dust), and protection against liquids Level 8 (Immersion beyond 1m: Protected against immersion in water with a depth of more than 1 meter.) This product has been tested under controlled laboratory conditions and received an IP68 rating. Under these conditions, product is water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet. Level of water resistance may change over time or with exposure to excessive amounts of liquid.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*The images that appear in the video used the 17HQ901G model.
1)According to the Ingress Protection (IP) Rating System, an IP68 means protection against solid foreign objects Level 6 (Dust-tight: no ingress of dust), and protection against liquids Level 8 (Immersion beyond 1m: Protected against immersion in water with a depth of more than 1 meter.) This product has been tested under controlled laboratory conditions and received an IP68 rating. Under these conditions, product is water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet. Level of water resistance may change over time or with exposure to excessive amounts of liquid.
2)Maximum uniform load and maximum point load when tested under laboratory conditions for 60 seconds. Results may differ during actual usage.
3)Drop test in a controlled laboratory environment. Can differ from actual usage.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
1)Typical 7.5 hours, Typical 300 shots under conditions of cycle time 90 sec. Measured by irradiating image at a 90-second cycle (consisting of stand by mode, X-ray exposure, and image acquisition), obtaining approximately 300 shots. Actual battery usage time and performance may vary depending on network connectivity and application use.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

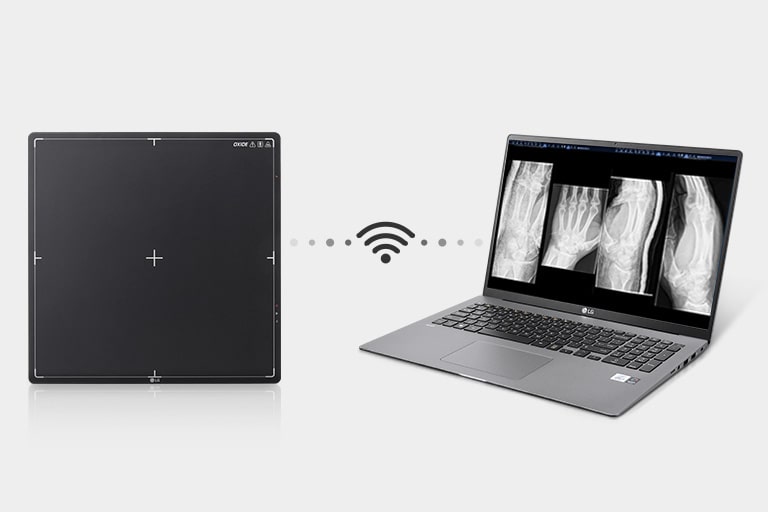

Access Point Mode enables point-of-care imaging via direct data transfer to your screen wirelessly. So, X-ray images can be referred in virtually anywhere, anytime by carrying your laptop, or other mobile devices.

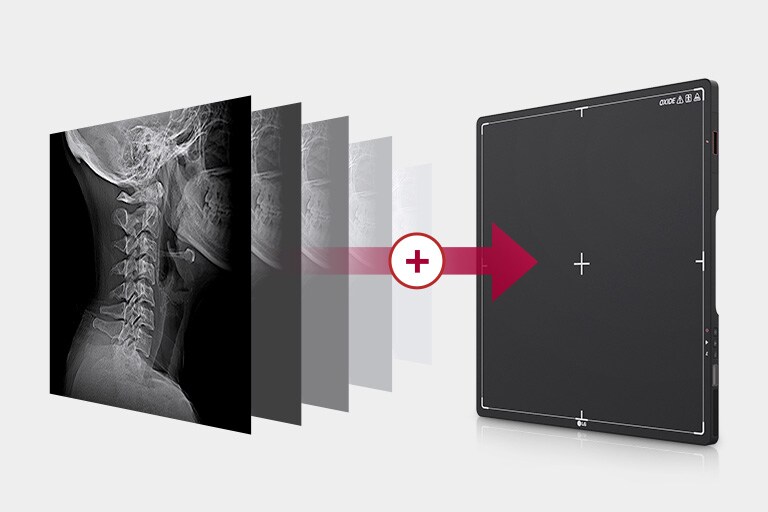

A built-in memory storage allows you to take multiple images without a computer connection, providing a seamless workflow even offline.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
1)The oldest image (first in) is removed first (first out) from the internal memory storage once the storage space fills up with 200 images.
Dimension / Weight (Including battery)
460 mm x 460 mm x 15.6 mm
3.6 kg (8 lbs)
Intended Use
General Radiography
TFT Type
Oxide
Scintillator
CsI
Pixel Pitch
140 ㎛
Number of Pixels
3072 x 3072 pixels
TFT Active Area
430.08 × 430.08 mm
MTF @ 0.5lp/mm (Typ.)
84%
A/D Conversion
16 bit
Data Output
16 bit
Type
Wired / Wireless
WLAN
IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
Auto Exposure Detection
Yes
Cycle Time
4.5 sec (Wired) / 5 sec (Wireless)

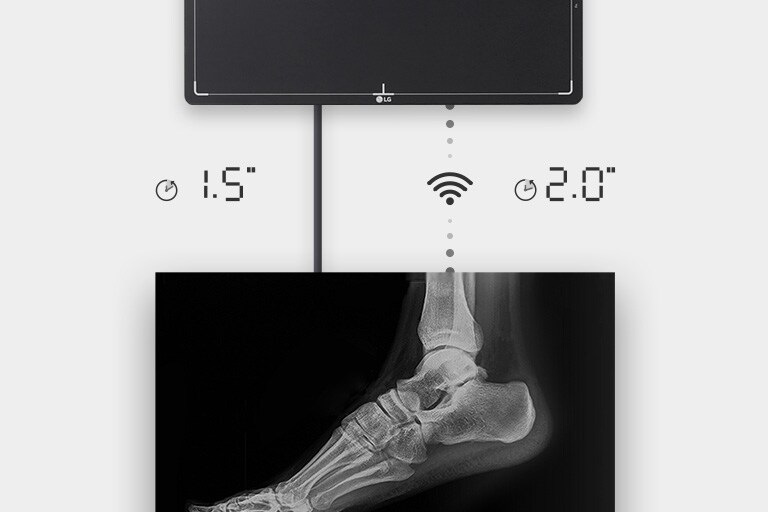

Full Image Transfer (Typ.) *Without window time
1.5 sec (Wired) / 2 sec (Wireless)
Maximum Load Weight
Full (Uniform Load) : 400 kg (881.8 lbs)
Local (Point Load) : 200 kg (440.9 lbs)
Watertightness
IP68
Sensor Protection Plate
Carbon Fiber Plate
Operation Time
300 shots / 7.5 hrs (Typ.) (Condition : Cycle Time 90 sec)
Charging Time
3 hrs (Typ.)

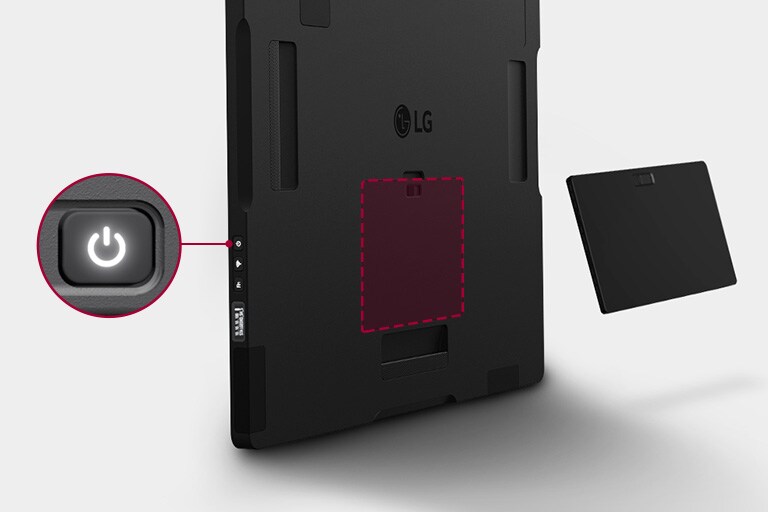

Hot Swap
Yes (1 Min)
Cable
Power Cord, Main Cable 7 m (LAN Cable, Sync Cable Option)
Other
Battery Charger
2 x Battery Packs
Control Box
