22" Full HD Monitor
*To download latest OnScreen Control, visit LG.com. The picture shown for illustration purpose only.
Key Feature
- Full HD Display
- Radeon FreeSync™

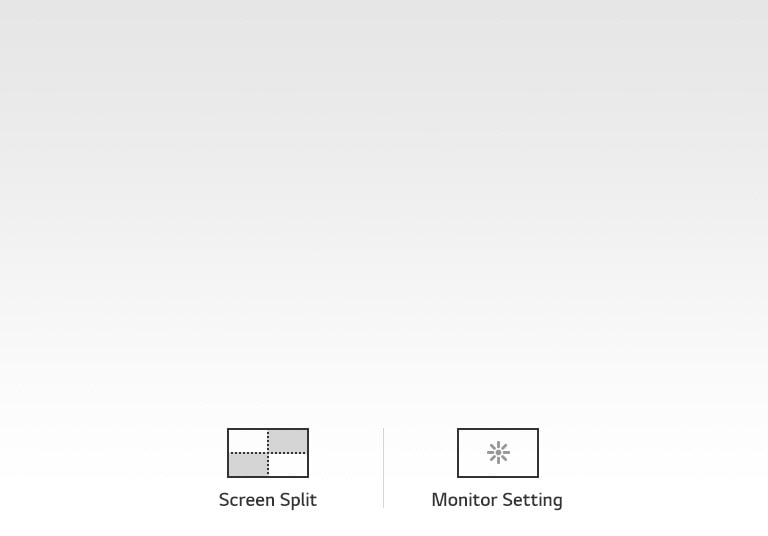

- OnScreen Control
- Dynamic Action Sync
- Black Stabilizer
- Wall Mountable
Key Spec
Display - Size [Inch]
21.5
Display - Resolution
1920 x 1080
Display - Panel Type
TN
Display - Aspect Ratio
16:9
Display - Color Gamut (Typ.)
NTSC 72% (CIE1931)
Display - Curvature
NO
Display - Refresh Rate (Max.) [Hz]
75
Display - Response Time
1ms (GtG at Faster)
Mechanical - Display Position Adjustments
Tilt
All Spec
ACCESSORY
DVI-D
NO
Display Port
NO
D-Sub
Depend on Country
HDMI
Depend on Country
Remote Controller
NO
Thunderbolt
NO
USB A to B
NO
USB-C
NO
DISPLAY
Brightness (Typ.) [cd/m²]
200
Size [Inch]
21.5
Aspect Ratio
16:9
Brightness (Min.) [cd/m²]
150
Color Depth (Number of Colors)
16.7M
Color Gamut (Min.)
N/A
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Contrast Ratio (Min.)
450:1
Contrast Ratio (Typ.)
600:1
Curvature
NO
Panel Type
TN
Pixel Pitch [mm]
0.2480 x 0.2480
Refresh Rate (Max.) [Hz]
75
Resolution
1920 x 1080
Response Time
1ms (GtG at Faster)
Size [cm]
54.6
Viewing Angle (CR≥10)
90º(R/L), 65º(U/D)
MECHANICAL
Wall Mountable [mm]
75 x 75
Display Position Adjustments
Tilt
SW APPLICATION
LG Calibration Studio (True Color Pro)
NO
Dual Controller
NO
LG UltraGear™ Control Center
NO
LG UltraGear™ Studio
NO
OnScreen Control (LG Screen Manager)
YES
CONNECTIVITY
DVI (Max Resolution at Hz)
N/A
Thunderbolt (Max. Resolution at Hz)
N/A
Audio In
NO
Built-in KVM
NO
Daisy Chain
NO
DisplayPort
NO
DP Version
N/A
DVI-D
NO
D-Sub
YES(1ea)
D-Sub (Max. Resolution at Hz)
1920 x 1080 at 60Hz
HDMI
YES(1ea)
Headphone out
3-pole (Sound Only)
LAN (RJ-45)
NO
Line out
NO
Mic In
NO
SPDIF out (Optical Digital Audio Out)
NO
Thunderbolt
NO
Thunderbolt (Data Transsmission)
NO
Thunderbolt (Power Delivery)
N/A
USB-C
NO
USB-C (Data Transsmission)
NO
USB-C (Max. Resolution at Hz)
N/A
USB-C (Power Delivery)
N/A
USB Downstream Port
NO
USB Upstream Port
NO
FEATURES
Crosshair
YES
Nano IPS™ Technology
NO
Advanced True Wide Pol.
NO
AMD FreeSync™
FreeSync
Auto Brightness
NO
Auto Input Switch
NO
Black Stabilizer
YES
Camera
NO
Color Calibrated in Factory
NO
Color Weakness
YES
Dolby Vision™
NO
Dynamic Action Sync
YES
Flicker Safe
YES
FPS Counter
NO
HDR 10
NO
HDR Effect
NO
HW Calibration
NO
Mic
NO
Mini-LED Technology
NO
Motion Blur Reduction Tech.
NO
NVIDIA G-Sync™
NO
OverClocking
NO
PBP
NO
PIP
NO
Reader Mode
YES
RGB LED Lighting
NO
Smart Energy Saving
YES
Super Resolution+
YES
User Defined Key
NO
VESA DisplayHDR™
NO
VRR
NO
DIMENSIONS/WEIGHTS
Dimension in Shiping (W x H x D) [mm]
640 x 365 x 124
Dimension without Stand (W x H x D) [mm]
509.8 x 305.7 x 38.5
Dimension with Stand (W x H x D) [mm]
509.8 x 359.8 x 181.9
Weight in Shipping [kg]
3.5
Weight without Stand [kg]
2.1
Weight with Stand [kg]
2.4
INFO
Product name
PC Monitor
Year
2018
POWER
AC Input
100~240V (50/60Hz)
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Energy Star)
N/A
Power Consumption (Max.)
29.0W
Power Consumption (Sleep Mode)
Less than 0.3W
Power Consumption (Typ.)
19.7W
Type
External Power(Adapter)
SOUND
DTS HP:X
NO
Maxx Audio
NO
Rich Bass
NO
Speaker
NO
