Flexible Curved Open Frame

Flexible Curved Open Frame

Flexible Curved Open Frame

55EF5F-L

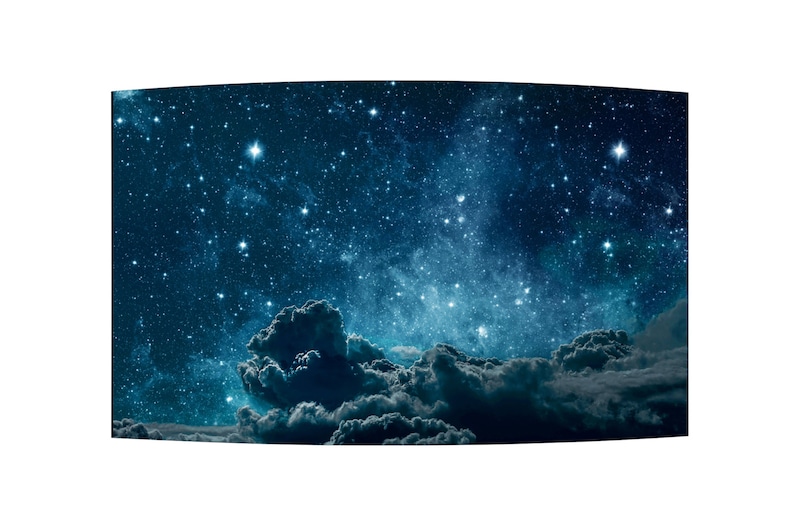

Front view of Flexible Curved Open Frame 55EF5F-L

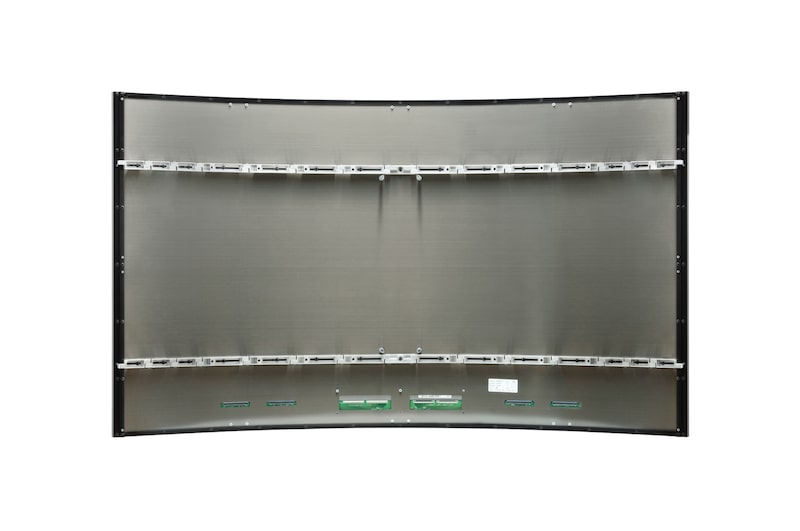

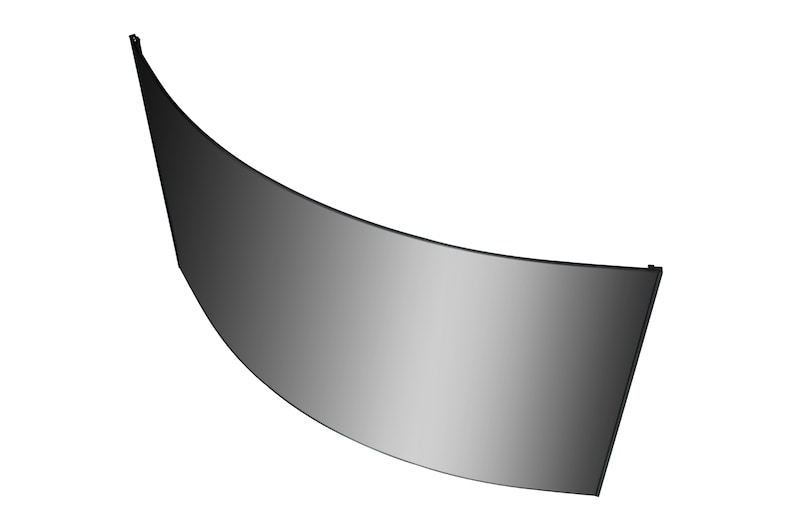

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

Front view of Flexible Curved Open Frame 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

LG Flexible Curved Open Frame, 55EF5F-L

Key Features

Brightness(Typ.): 400 cd/m² (Average Picture Level 25%)
Depth: 12.4 mm (Head Only)
Curvature: ~1,000R(Concave/convex)
Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR

All Spec

PANEL

Screen Size
55"
Panel Technology
OLED
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Brightness (APL25%, Typ., cd/m²)
400
Brightness (APL100%, Typ., cd/m²)
150
Contrast Ratio
150,000 : 1
Viewing Angle (H x V)
178 x 178
Life Time (Typ.)
30,000 Hrs
Operation Hours
18 Hrs / 7 Days (Moving Video Only)
Orientation
Landscape & Portrait

ACCESSORIES

Basic
Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (220mm x 4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)
Optional
Curvature Calibrator (ACC-CC-EF5E)

ENVIRONMENT CONDITIONS

Operation Temperature
0°C to 40°C
Operation Humidity
10 % to 80 %

POWER

Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption (Typ. / Max.)
309 W / 318 W (Based on 8 color bar)

MEDIA PLAYER COMPATIBILITY

OPS type compatible
No

SOFTWARE COMPATIBILITY

Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control+ / Control
Signage365Care
Yes

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class “A” / CE / KC
ErP / Energy Star
Yes (EU Only) / No

CONNECTIVITY

Input
HDMI, DP, USB 2.0 (2)
Output
DP, Audio (Fixed/Off/Variable)
External Control
RS232C In/out, RJ45 In/out, IR In

PHYSICAL SPECIFICATION

Bezel Width (T/B/L/R)
0.6 / 0.6 / 6.7 / 6.7 mm (Flat, Off Bezel)5.0 / 10.6 / 7.6 / 7.6 mm (Flat, On Bezel)
Monitor Dimension (W x H x D)
1,224.9 x 696.2 x 38.0 mm (Head, w/Pem-nut)1,224.9 x 696.2 x 12.4 mm (Head Only)Signage Box: 413 x 353 x 57.3 mm
Weight
6.6 kg (Head)Signage Box: 3.5 kg
Carton Dimensions (W x H x D)
1,350 x 837 x 250 mm
Packed Weight
17 kg (Head)

COMPLIANCE INFORMATION

extension:pdf
ENERGY LABEL(55EF5F-L)
extension:pdf
EU Energy label 2019(55EF5F-L)
extension:pdf
UK Energy label 2019(55EF5F-L)
extension:pdf
U.K Energy Label(55EF5F-L)
extension:pdf
PRODUCT FICHE(55EF5F-L)
extension:pdf
Product information sheet (55EF5F-L)
extension:pdf
GPSR Safety Information(55EF5F-L)
extension:pdf
WEB INFO(55EF5F-L)
