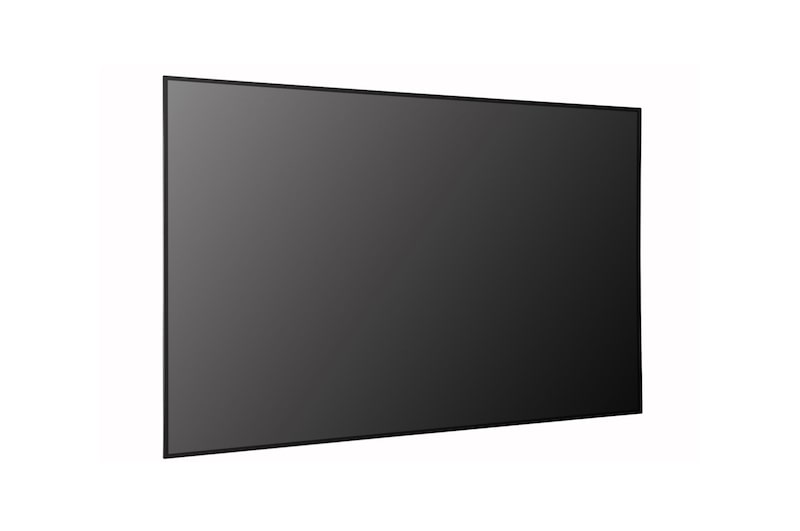

55EJ5D-B
Artistic Space Beyond Display
Product Sheet
Inquiry to Buy Find a Dealer
CompareAdd to CompareRemove Compare
  • Brightness(Typ.): 400 cd/m² (APL 25%)
  • Bezel: 1.2 mm (Off bezel)
  • Depth: 3.65 mm (Module)
  • Interface: HDMI, DP, RS232C, RJ45, IR In, USB 3.0, USB 2.0
  • SuperSign CMS / Link
Artistic Space Beyond Display
MSRP £
Inquiry to Buy
Perfect Black1 Perfect Black2

Perfect Black

Limitless contrast and deepest black
Self-lighting pixels switch off completely to reproduce black. No light bleeding. Absolute black offers infinite contrast.
Perfect Color1 Perfect Color2

Perfect Color

Accurate & stable color reproduction
Self-lighting pixels bring colors to life with superb accuracy.
Perfect Viewing Screen1 Perfect Viewing Screen2

Perfect Viewing Screen

Wide viewing angle
LG OLED Signage delivers awe-inspiring
picture quality across the entire screen,
even from wide viewing angles.
Crisp, Clear Motion1 Crisp, Clear Motion2

Crisp, Clear Motion

Faster response time
LG OLED Signage provides a 5,000-times faster motion-picture response time, for perfectly clear images without blurring.
Perfect Design1 Perfect Design2

Perfect Design

Slim and light
With just two layers, the LG OLED Signage display is unbelievably lightweight and thin.

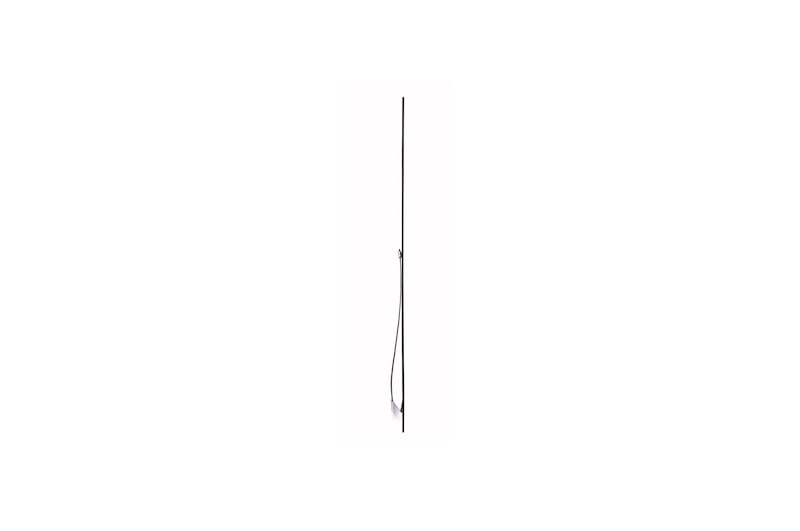

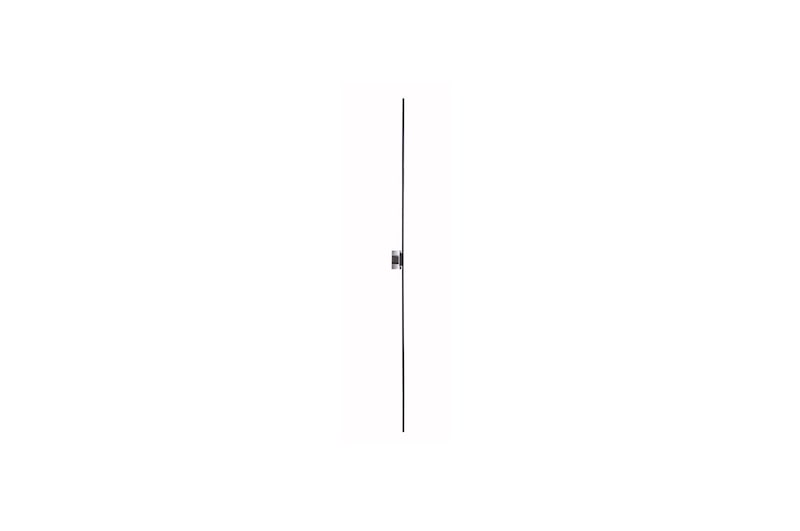

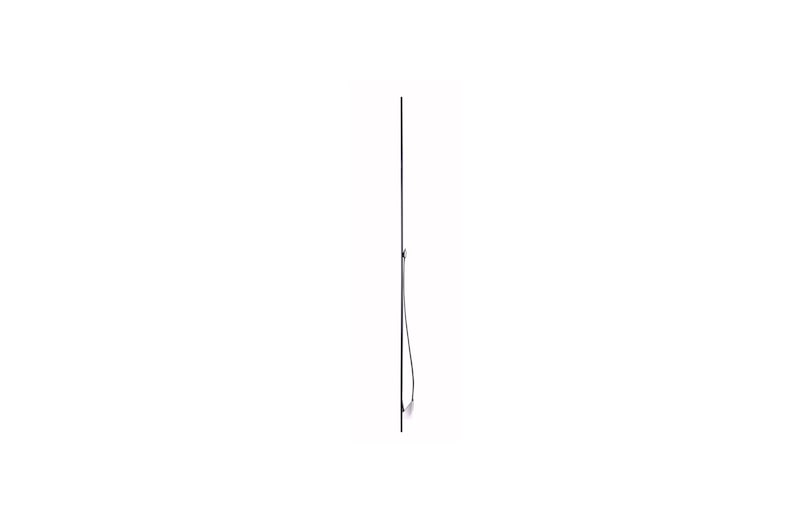

*Edge depth
Hide in Plain Sight1 Hide in Plain Sight2

Hide in Plain Sight

Its paper-thin depth gives the space an integrated look.
Easy Installation & Video-Wall Tiling1 Easy Installation & Video-Wall Tiling2

Easy Installation & Video-Wall Tiling

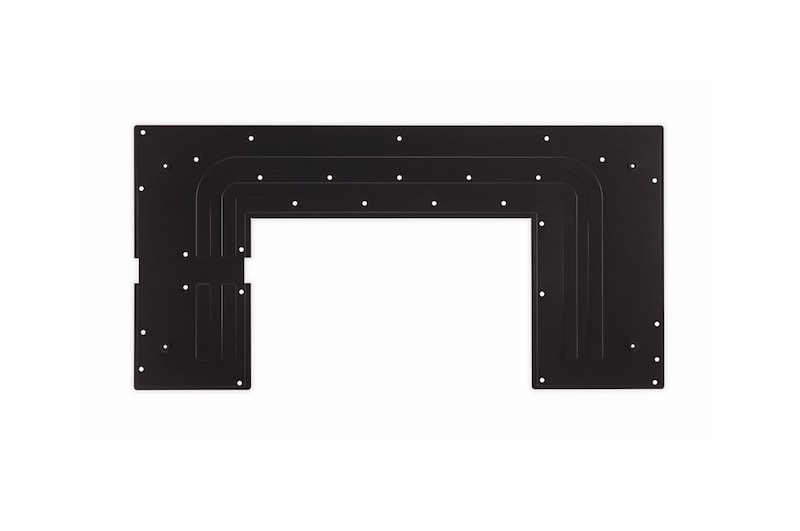

As LG wallpaper OLED signage is extremely slim and light, it can be hung on the wall with dedicated slim brackets for video-wall usage.
Close

Panel

  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)

Connectivity

  • Input
    HDMI, DP, USB 2.0, USB 3.0
    Output
    DP, Audio (Off/Fixed/Variable)
  • External Control
    RS232C in/out, RJ in/out, IR (Shared w/ RS232C Out Port)

Physical Specification

  • Bezel Width
    1.2/1.2/1.2/1.2 mm (T/B/L/R, Off-bezel)
    9.3/12.4/8.7/8.7 mm (T/B/L/R, On-bezel)
    Dimension (W x H x D)
    Head: 1,227 x 702.1 x 3.65 mm, Signage Box: 420 x 230 x 75 mm
  • Weight
    Head: 5.5kg, Signage Box: 5.3kg, Wall Bracket: 1.8kg
    Carton Dimensions (W x H x D)
    1,383 x 834 x 252 mm

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

Power

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

Power Consumption

  • Typ.
    190W
    DPM
    Less than 3W
  • Power off
    Less than 0.5W

Standard(Certification)

  • Safety
    UL/cUL/CB/TUV/KC
    EMC
    FCC Class "A"/CE/KCC
  • ErP / Energy Star
    Yes/NA

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Link

Accessory

  • Basic
    Remote controller (includes 2 batteries), FPC Extension cable (connection between screen and signage box), Power cord, DP cable, RS-232C cable, RS-232C gender, LAN cable, IR receiver, Manual (ESG, EIG), Wall-mount plate (includes screws), Harness locking cover, Set install guide, Signage box bracket (U-Leg), FPC cable cover
    Optional
    OPS Kit (KT-OPSA)
