49UH7F-H
Non-Glare Ultra HD Series
  • Brightness(Typ.) : 700 cd/m²
  • Surface Treatment (Haze) : 28%

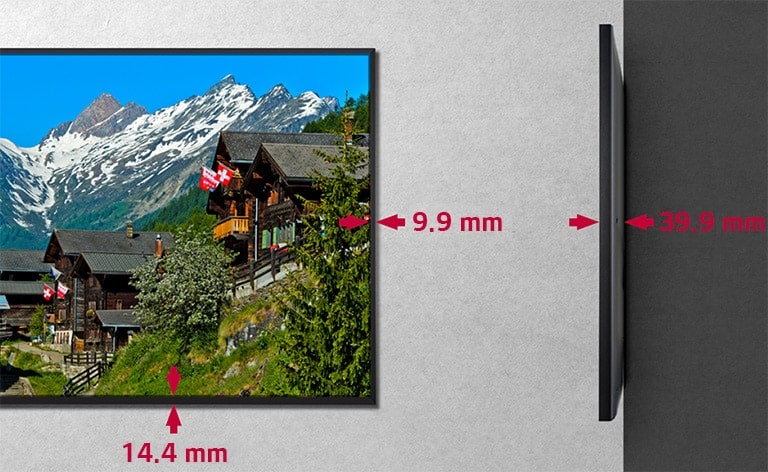

  • Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
  • Depth : 39.9 mm
  • Interface : HDMI(3)/ DP/ DVI-D/ USB2.0/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker

component-OBScountrySelectDesc

Non-Glare Ultra HD Series

LG UHD Signage

A man and a woman are checking the departure time of the flight through the signage installed at the airport. And the screen with anti-glare coating has small reflection of the light from the sun. A man and a woman are checking the departure time of the flight through the signage installed at the airport. And the screen with anti-glare coating has small reflection of the light from the sun.
*All images in this web page are for illustrative purposes only and may differ from the actual product.
*The images listed are for reference only and the actual reflection can be different.

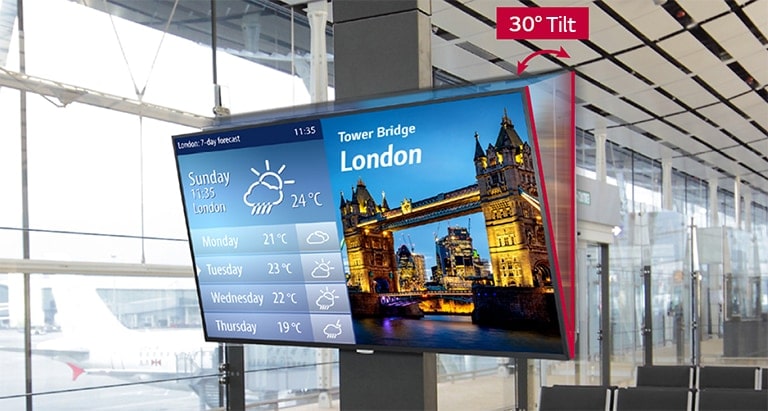

*Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)

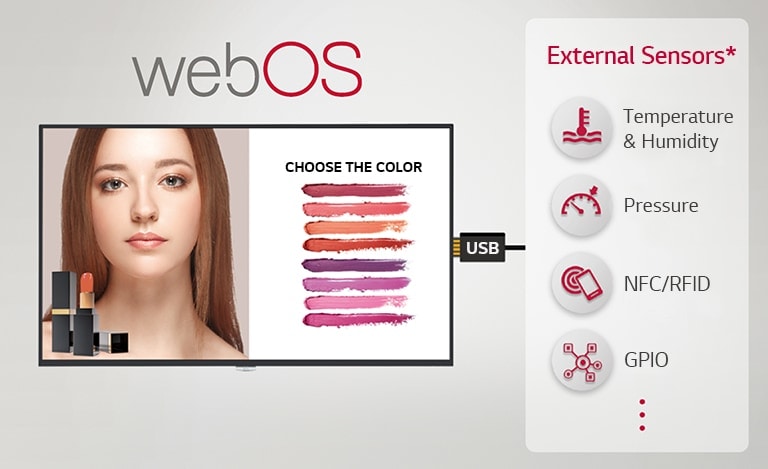

*LG does not provide any external sensors but webOS platform. External sensors needs to be purchased separately and tested for compatibility with webOS platform.
*Network based control
*Using an HDMI cable connection

Panel

  • Screen Size
    49"
    Panel Technology
    IPS
  • Native Resolution
    3840 x 2160 (UHD)
    Brightness
    700nit (Typ.)
  • Contrast Ratio
    1,100:1
    Dynamic CR
    500,000:1
  • Colour gamut
    BT709 95%
    Viewing Angle(H x V)
    178x178
  • Color Depth
    10bit, 1.07Billion colors
    Response Time
    8ms (G to G)
  • Surface Treatment(Haze)
    28%
    Operation Hours (Hours/Day)
    24/7

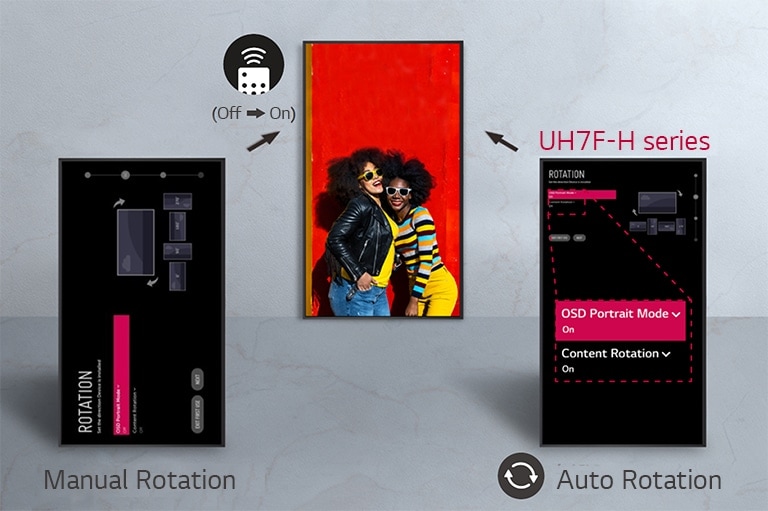

  • Portrait / Landscape
    Yes / Yes

Connectivity

  • Input
    HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A
    Output
    DP, Audio
  • External Control
    RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In

Mechanical Specification

  • Bezel Color
    Black
    Bezel Width
    T/R/L: 9.9mm, B: 14.4mm
  • Weight(Head)
    15.4Kg
    Monitor Dimension(W x H x D)
    1098.6 x 644.5 x 39.9mm
  • Monitor Dimensions with Stand(W x H x D)
    1098.6 x 694.3 x 290.0mm
    Handle
    No
  • VESA™ Standard Mount Interface
    300 x 300

Key Feature

  • Key features
    Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor, Local Key Operation, webOS 4.1,Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image),Sync Mode (RS232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected®2), Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power

Power Consumption

  • Typ.
    100W
    Max.
    145W
  • BTU (British Thermal Unit)
    341.21 BTU/Hr(Typ.), 494.76 BTU/Hr(Max)

Sound

  • Speaker
    Yes

Certification

  • Safety
    CB / NRTL
    EMC
    FCC Class “A” / CE / KC
  • ErP / Energy Star
    Yes / Energy Star 8.0

OPS Compatibility

  • OPS type compatible
    Yes
    OPS Power Built In
    No

SOFTWARE COMPATIBILITY

  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • LG ConnectedCare
    Yes

Accessory

  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand(ST-653T), Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)

Special Feature

  • Tilt (Facedown)
    Yes (Max. 30º)
    *In conditions within 30ºC temperature, 50% humidity
    IP Rating
    IP5x
