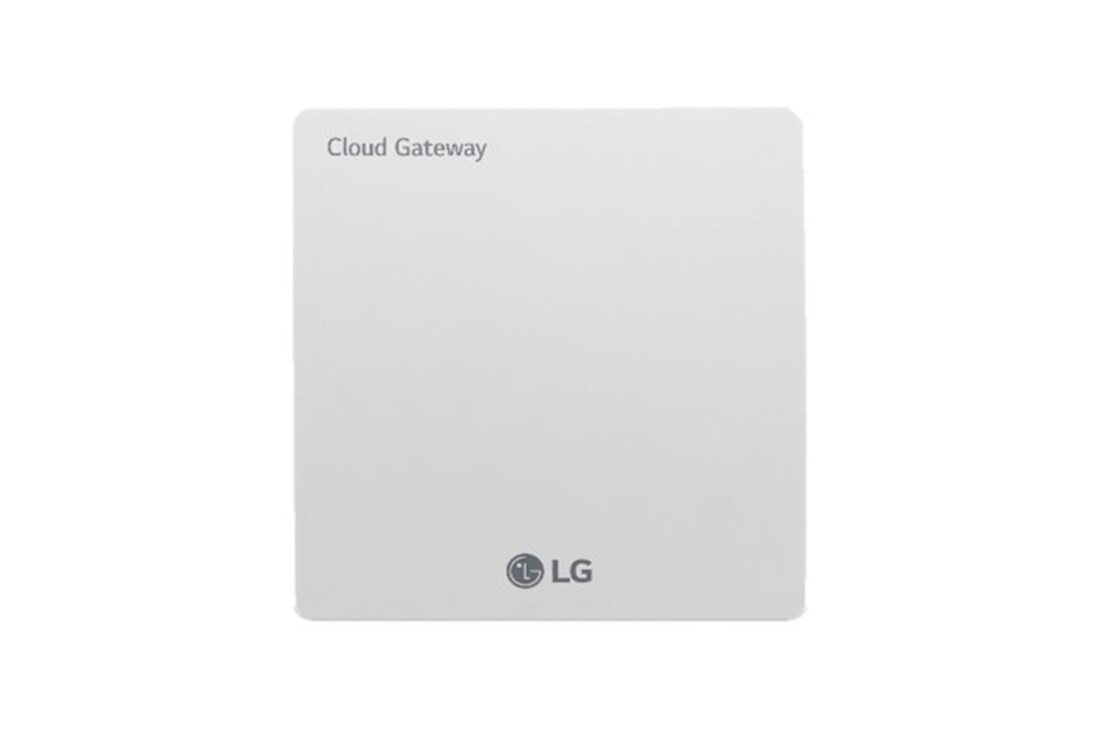

Individual Controller, Cloud Gateway
PWFMDB200
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Delivery fees vary by postcode and may include additional charges for Highland or remote areas. Final shipping costs will be confirmed at checkout.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
- Section 1
- Section 2
Are you sure you want to remove the coupon?

- Providing Modbus RTU connection between LG Air conditioners and BMS
- Modbus RTU communication with Modbus master controller
- Modbus RTU slave (RS485) / 9,600 bps
- Applicable for MULTI V 5, ERV, Heating
All Spec
TMS (LG BECON CLOUD)
Air Purify
O
Cycle monitoring
O
Electricity Monitoring
O
Fan speed
O
History
O
Operation Mode
O
Operation Start/Stop
O
Schedule
X
Smart Diagnosis
X
Swing
O
Target Temperature
O
PRODUCT SPECIFICATIONS
Communication - Ethernet
Max. 50 m (10/100 Mbps)
Communication - RS485
Max. 1 km (LGAP)
Communication - Wi-Fi
802.11b/g/n, 2.4 GHz
Compatibility with Product
Air conditioner, ERV, ERV DX, Thermal V
Digital Input(The number of ports)
1
Operating temperature
0~40℃
Power consumption
5W
Power Supply
12 V(Max. 50 m (Use of the output power of the outdoor unit.))
Size (W x H x D, mm)
120 x 120 x 29
Storage temperature
-20~60℃
