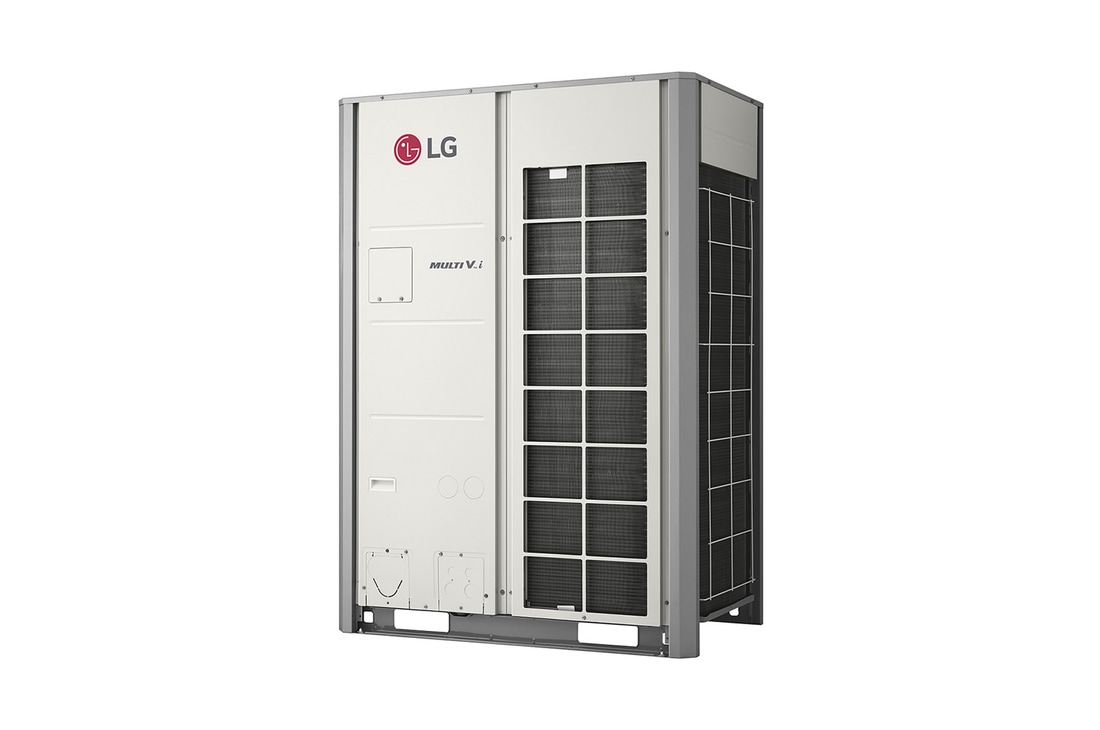

Heat Pump-Heat Recovery Unit, Outdoor Unit, MULTI V, 16HP, R32
ZRUM160LTE6
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Delivery fees vary by postcode and may include additional charges for Highland or remote areas. Final shipping costs will be confirmed at checkout.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
Are you sure you want to remove the coupon?
Chassis
UXB
Combination Unit (1)
ZRUM160LTE6
Case 1 (V, Phase, Hz)
380-400-415, 3, 50
Limit Range of Voltage(Case 1) (V)
342 ~ 456
Case 2 (V, Phase, Hz)
380, 3, 60
Limit Range of Voltage(Case 2) (V)
342 ~ 418
Running Current by Voltage (Cooling,Rated) (A)
25.24 - 23.98 - 23.11
Running Current by Voltage (Heating,Rated) (A)
16.48 - 15.65 - 15.09
Rated (kW)
44.8
Rated (Btu/h)
152900
Rated (kW)
44.8
Rated (Btu/h)
152900
Max (kW)
50.4
Max (Btu/h)
172000
Rated (kW)
15.45
Rated (kW)
10.09
EER(Rated) (W/W)
2.9
COP(Rated) (W/W)
4.44
SEER (Wh/Wh)
7.97
SCOP (Wh/Wh)
5.46
Rated
0.93 / 0.93
Type
Propeller fan
Air Flow Rate(High) (m³/min x No.)
320
Max. External Static Pressure (Pa)
80
Discharge direction(Side / Top)
Top
Type
BLDC
Drive
Direct
Output (W x No.)
900 x 2
Type (kg)
Hermetically Sealed Scroll
Piston Displacement (cm³/rev)
62.1
Number of Revolution (rev./min)
3600
Motor Output (W x No.)
5,300 x 1
Starting Method
Inverter
Oil Type
FW68L(PVE)
Type
Fin & Tube
No.
1
Fin Type
Wide Louver Plus
Net(W x H x D) (mm)
1,240 x 1,745 x 760
Shipping(W x H x D) (mm)
1,282 x 1,919 x 802
Net (kg)
255
Shipping (kg)
265
Color
Morning Gray / Dawn Gray
RAL (Classic)
RAL 7038 / RAL 7037
High Pressure Prevention
High pressure sensor / High pressure switch
Frost Prevention
O (Logical)
Discharge Temperature Control
O (Logical)
Compressor/Fan Protection
Over-heat protection / Fan driver overload protector
Inverter Protection
Over-heat protection / Over-current protection
Type
R32
Precharged Amount (kg)
11.4
GWP(Global Warming Potential)
675
t-CO₂ eq.
7.695
Control Type
EEV
Liquid (mm(inch))
Φ12.7 (1/2)
Gas (mm(inch))
Φ22.2 (7/8)
Low Pressure Gas (Heat Recovery) (mm(inch))
Φ22.2 (7/8)
High Pressure Gas (Heat Recovery) (mm(inch))
Φ19.05 (3/4)
Liquid
Brazing
Gas
Brazing
Low Pressure Gas (Heat Recovery)
Brazing
High Pressure Gas (Heat Recovery)
Brazing
Cooling / Heating (dB(A))
60.5 / 61.5
Measurement Standard (Pressure Level)
ISO 3745
Cooling / Heating (dB(A))
85.0 / 85.0
Measurement Standard (Power Level)
ISO 9614
Communication Cable(VCTF-SB) (mm² × cores)
1.0 x 2C
Minimium Circuit Amperes (MCA) (A)
27.3
Maximum Fuse Amperes (MFA) (A)
32
Total Over Current Amperes (TOCA) (A)
30
Comp_Maximum Starting Current (MSC) (A)
5.9
Comp_Rated Load Amperes (Cooling) (A)
22.7
Comp_Rated Load Amperes (Heating) (A)
14
Outdoor Fan Motor_Full Load Amperes (FLA) (A)
2.5
Max. (Conditional) (EA)
26(40)
