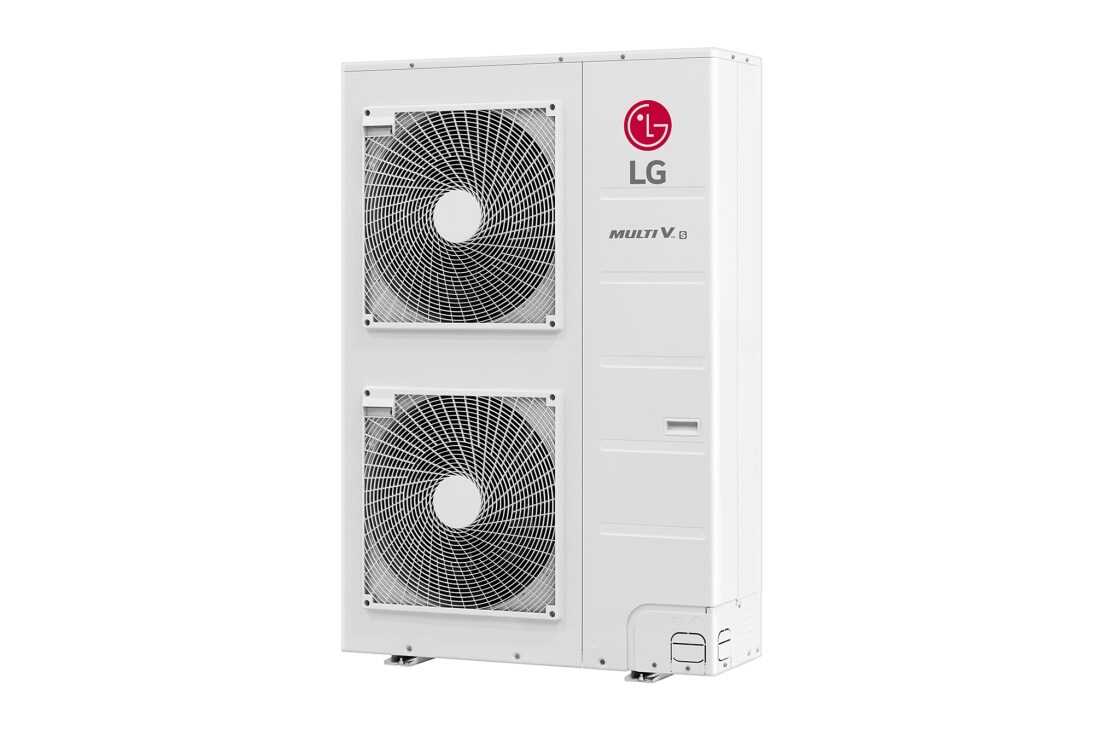

MULTI V S, Outdoor Unit, 12HP, R410A
ARUN120LSS0
-
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
-
Delivery fees vary by postcode and may include additional charges for Highland or remote areas. Final shipping costs will be confirmed at checkout.
-
Further information regarding delivery can be found in our Delivery Terms and Conditions.
-
1Section 1
-
2Section 2
Are you sure you want to remove the coupon?

- Energy Saving (Smart Load Control, Optimal Heat Exchanger)
- Reliable Refrigerant Components
- Corrosion Resistant Black Fin
- Compact size & Light weight
All Spec
OUTDOOR FAN MOTOR
-
Drive
-
DC INVERTER
-
Output (W x No.)
-
250 x 2
HEATING CAPACITY
-
Rated (kW)
-
36.7
OUTDOOR FAN
-
Air Flow Rate(High) (m³/min x No.)
-
190
-
Type
-
Propeller fan
-
Discharge direction(Side / Top)
-
Side
CONNECTABLE INDOOR UNITS NUMBER
-
Max. (Conditional) (EA)
-
20
EXTERIOR
-
Color
-
Warm Gray
-
RAL (Classic)
-
RAL 7044
POWER INPUT(COOLING)
-
Rated (kW)
-
15.27
EFFICIENCY
-
EER(Rated) (W/W)
-
2.20
-
COP(Rated) (W/W)
-
3.00
-
Pdesign(@-10℃, Heating) (kW)
-
23.5
-
SCOP (Wh/Wh)
-
4.32
-
SEER (Wh/Wh)
-
6.50
POWER INPUT(HEATING)
-
Rated (kW)
-
12.23
POWER SUPPLY
-
#1
-
50 Hz 380-415 V 3N~
-
#2
-
60 Hz 380 V 3N~
COMPRESSOR
-
Oil Type
-
FW68D(PVE)
-
Starting Method
-
Inverter
-
Motor Output (W x No.)
-
5,300 x 1
-
Piston Displacement (cm³/rev)
-
62.1
-
Type (kg)
-
Hermetically Sealed Scroll
REFRIGERANT
-
Control Type
-
Electronic Expansion Valve
-
GWP(Global Warming Potential)
-
2087.5
-
Precharged Amount (kg)
-
6.0
-
Type
-
R410A
-
t-CO₂ eq.
-
12.525
CONNECTING PIPE
-
Liquid (mm(inch))
-
Φ12.7 (1/2)
-
Gas (mm(inch))
-
Φ28.58 (1-1/8)
DIMENSION
-
Shipping(W x H x D) (mm)
-
1210 x 1790 x 500
-
Net(W x H x D) (mm)
-
1090 x 1625 x 380
SOUND POWER LEVEL (OUTDOOR UNIT)
-
Cooling / Heating (dB(A))
-
78/82
SOUND PRESSURE LEVEL (OUTDOOR UNIT)
-
Cooling / Heating (dB(A))
-
60/60
WEIGHT
-
Net (kg)
-
155
-
Shipping (kg)
-
171
HEAT EXCHANGER
-
Type
-
Fin & Tube
CONNECTING CABLE
-
Communication Cable(VCTF-SB) (mm² × cores)
-
1.0~1.5 x 2
COOLING CAPACITY
-
Rated (kW)
-
33.6
COMPLIANCE INFORMATION
