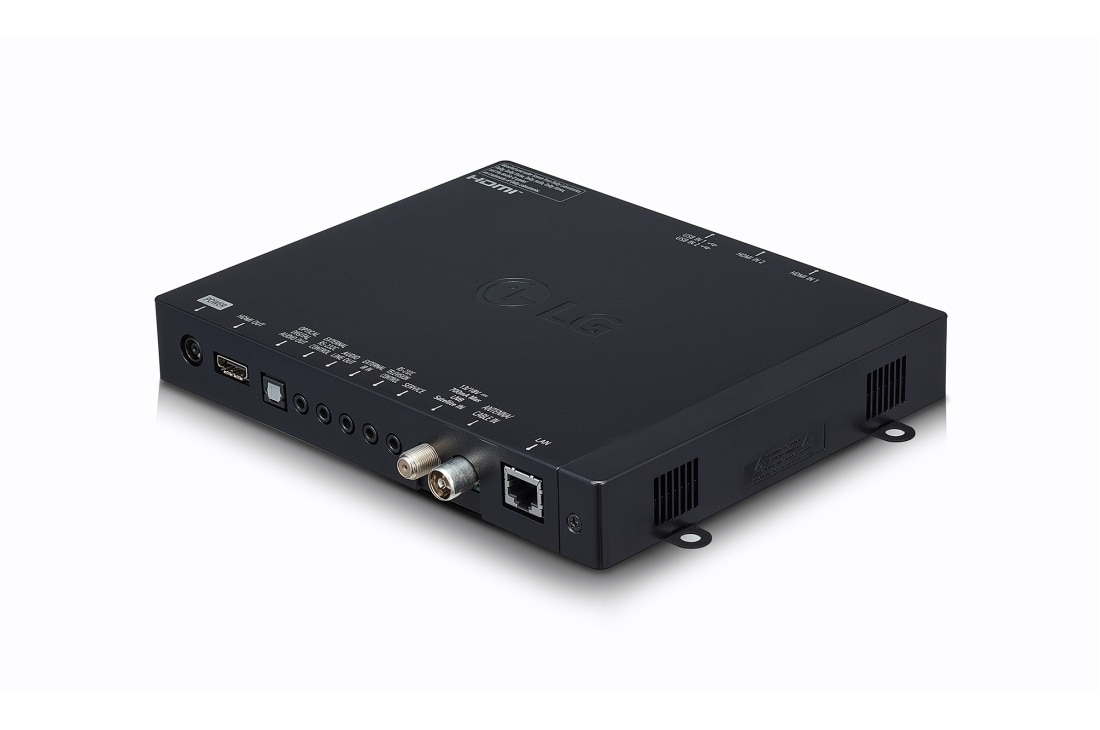

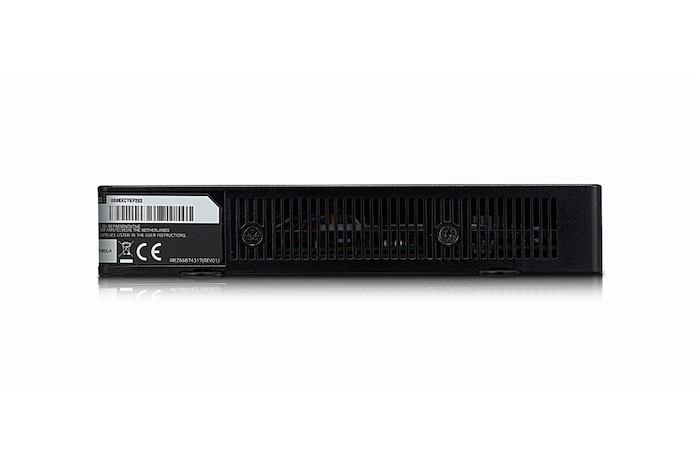

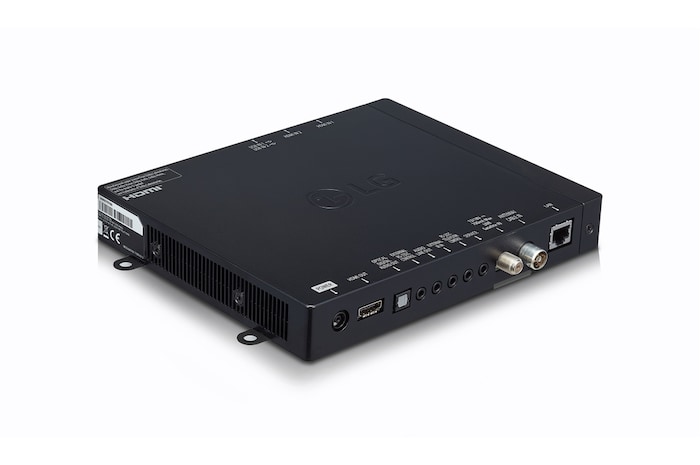

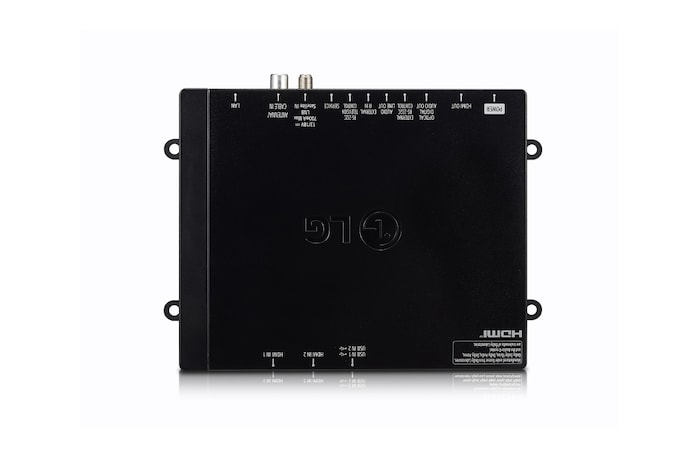

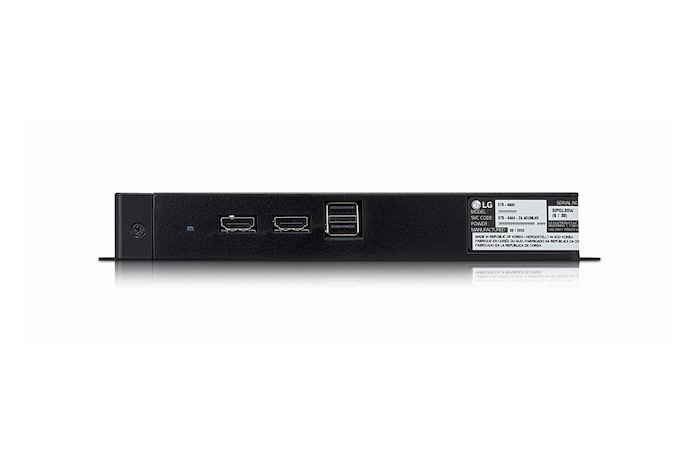

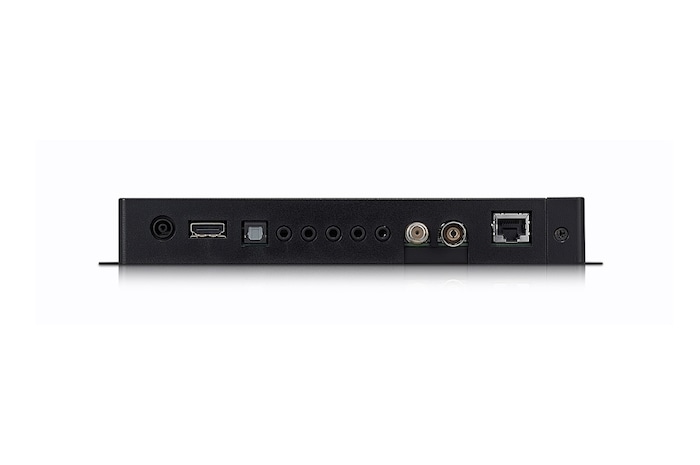

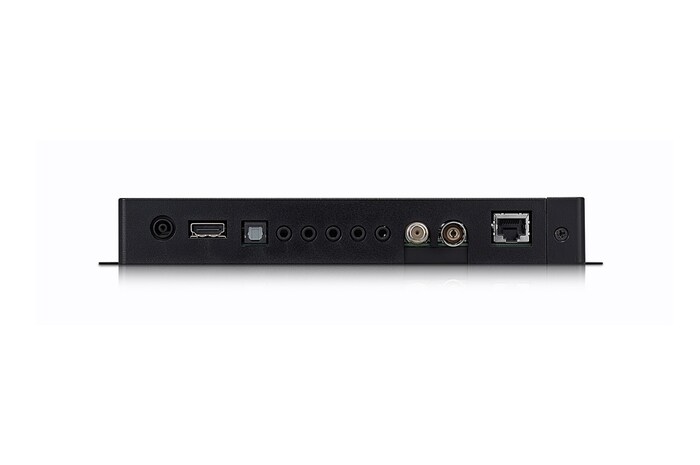

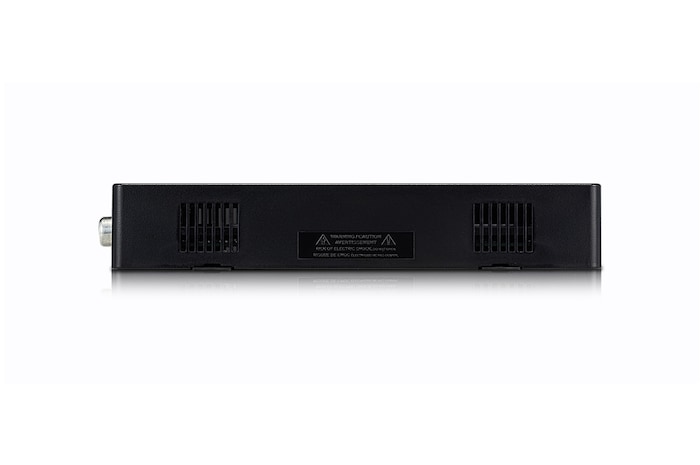

Pro:Centric SMART Set Top Box

STB-6500

Key Features

Pro:Centric Smart IPTV Platform
Embedded Pro:Idiom decryption for non-Pro:Idiom TV's
IP Streaming and RF Tuning
Supports 720p/ 1,366x768 /1,080p /2,160p output resolutions
Pro:Centric Application Support for non-Pro:Centric TVs
webOS 5.0 based

All Spec

INFO

Category: Settop Box

VIDEO

Output Resolution: 2160p / 1080p / 1366x768 / 720p

AUDIO (SOUND)

AI Sound: YES

AI Acoustic Tuning: YES (Ready, MMR Required)

LG Sound Sync: YES

BROADCASTING SYSTEM

Digital: DVB-T2/C/S2

Analog (NTSC / SECAM / PAL): PAL

Teletext (Auto Teletext): YES

HOSPITALITY SOLUTION

Pro:Centric Smart: YES

webRTC (Real Time Communication): YES

Pro:Centric Direct: YES

Pro:Centric V: YES

Pro:Centric Server: YES

Quick Menu (Customizable Portal): YES

Pro:Idiom (DRM): YES

Pro:Idiom Media (DRM): YES

SMART FUNCTION

webOS version: webOS 5.0

Web Browser: YES

Magic Remote Compatibility: YES (Ready)

Gallery Mode: YES

Wi-Fi: YES

Bluetooth: YES

Soft AP: YES

Screen Share: YES

DIAL: YES

Bluetooth Audio Playback: YES

Voice Recognition (Standalone/Solution): YES

IoT: YES

HOSPITALITY FEATURE

EzManager: YES

USB Cloning: YES

Wake on RF: YES

WOL: YES

SNMP: YES

Diagnostics: YES (IP Remote)

HTNG-CEC (Version): YES (1.4)

Simplink(HDMI-CEC) (Version): YES (1.4)

IR Out: YES (RS-232C)

Multi IR Code: YES

Hotel Mode / PDM / Installer Menu: YES

Insert Image: YES

One Channel Map: YES

External Speaker Out / Line Out: YES (Line Out)

Instant ON: YES

V-Lan Tag: YES

Port Block: YES

Lock mode: YES (Limited)

RJP (Remote Jack Pack) Compatibility: YES

Modular Interface: YES (60pin Interface)

VERTICAL FUNCTION (CORPORATE/RETAIL)

NTP sync timer: YES

BEACON: YES

CONNECTIVITIES

HDMI In: YES (x2)

HDMI Out: YES (x1)

USB (Ver.): YES (x2 / 2.0)

RF In: YES (x1)

Digital Audio Out (Optical): YES

Audio Line Out(3.5mm Phone jack): YES

RJ45 (Usage Purpose): 1 (Ethernet)

RS-232C (D-Sub 9pin / Phone jack): YES (Phone jack)

Expansion slot (60pin): YES

DC Adapter In: YES

EXT. IR In: YES

External RS-232C control (4pin Phone Jack): YES

Service Port (For Debugging): YES

DIMENSIONS/WEIGHT

Dimension (W x H x D): 233 x 180.5 x 29.8 mm

Dimension in Shipping (W x H x D): 366 x 143 x 218 mm

Weight: 0.72 kg

Weight in Shipping: 1.85 kg

POWER SPEC.

Power Supply (Voltage, Hz): AC 100~240V 50-60Hz

Power Consumption(Max): 60W

Power Consumption(Typ): STB only : 17.6W / STB + Exp. Module : 47.5W

Standby Power Consumption: Under 0.5W

STANDARD

Safety: YES

EMC: YES

ACCESSORIES

AC Adaptor: YES

Cables: HDMI, RS232 (Phone to RS232C)

COMPLIANCE INFORMATION

UK DoC(STB-6500-ZA)

GPSR Safety Information(STB-6500-ZA)

WEB INFO(STB-6500-ZA)
