4K UHD Signage
Energy-Efficient UHD Signage
Display with Enhanced Security
Signage is installed on the central wall of the store, and it shows advertisements clearly and vividly.
* All images in this page are for illustrative purposes only.

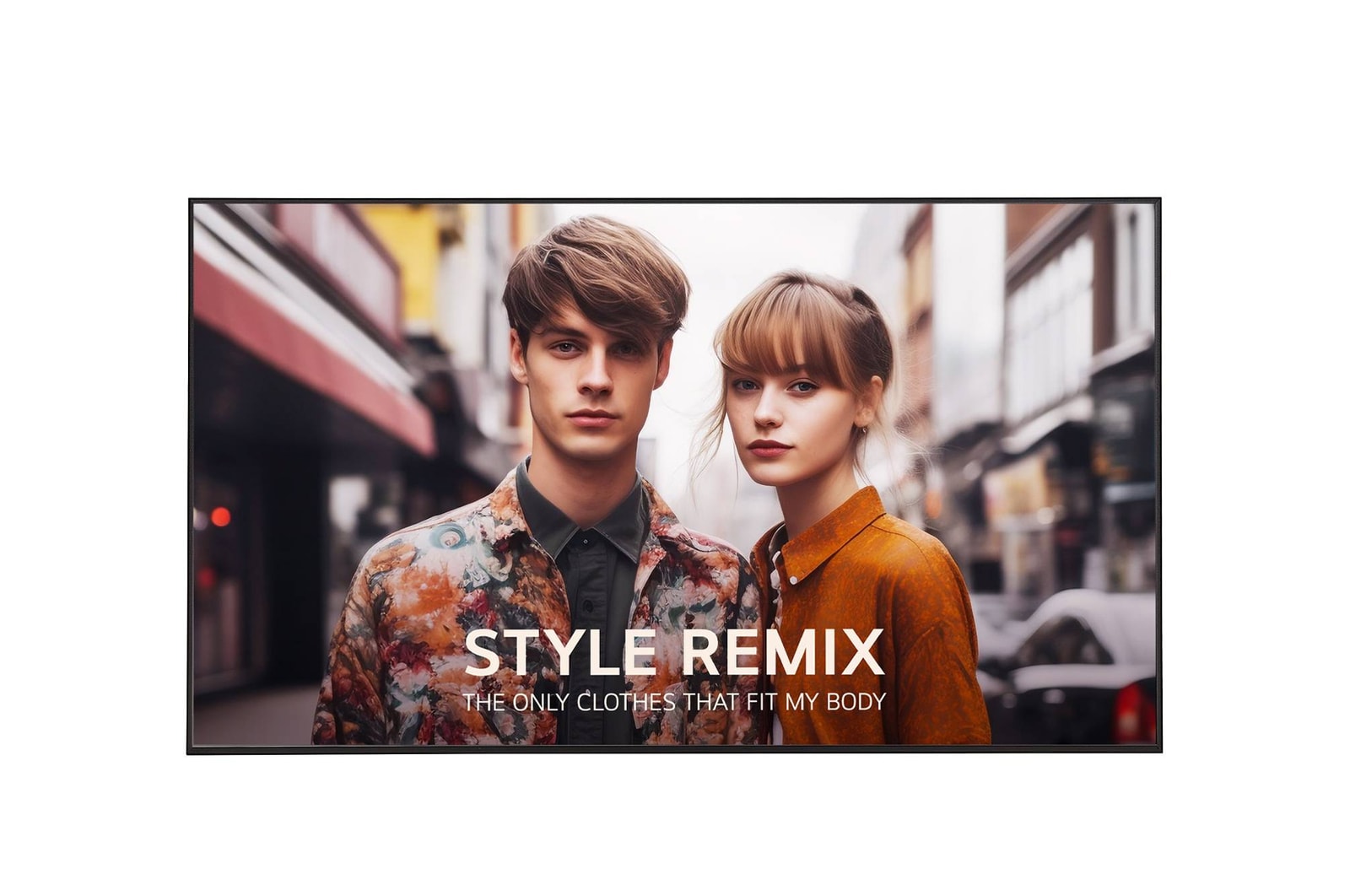

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS Platform
The 65US5P-E features a high-performance SoC that eliminates the need for a separate media player, enabling seamless multitasking. With the user-friendly webOS platform, developers can easily create apps and connect with external sensors and webOS partner apps, creating a convenient environment for SI.
High Energy Efficiency with ErP D Level
With leading technology and dedication to energy efficiency, the 65US5P-E achieved an ErP D level, three levels higher than the previous G level models. This means it has an outstanding cost-saving effect compared to conventional RGB panels, as it can reduce power consumption by more than 30% while maintaining the same brightness. Its premium energy-saving performance is certified by the renowned testing company SGS.
The 65US5P-E screen installed at the sports bar vividly showcases baseball games.
* ErP stands for Energy-related Products Directive.
Design for Space Utilization

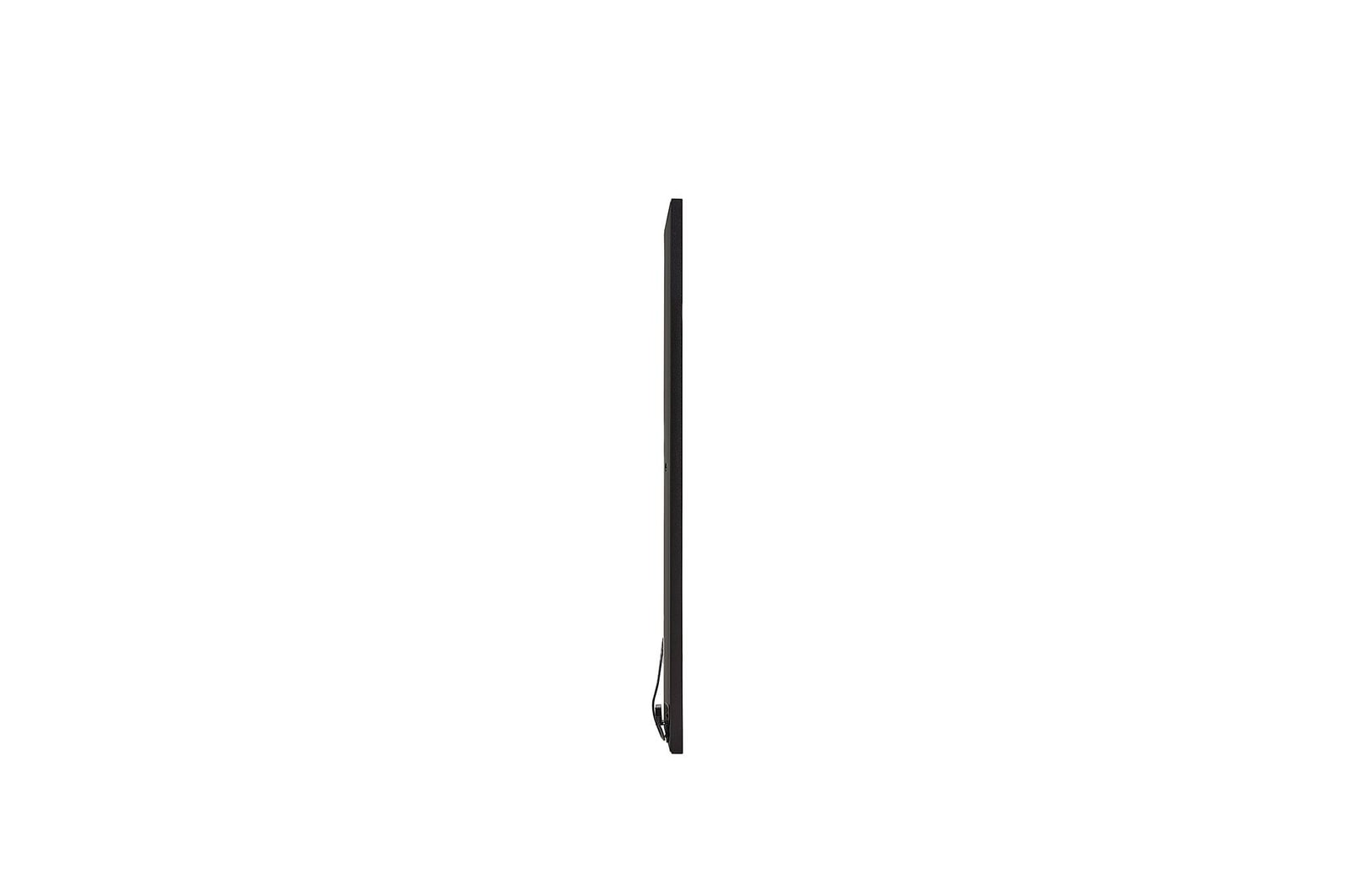

Designed with thin bezels and simple cable management, the 65US5P-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

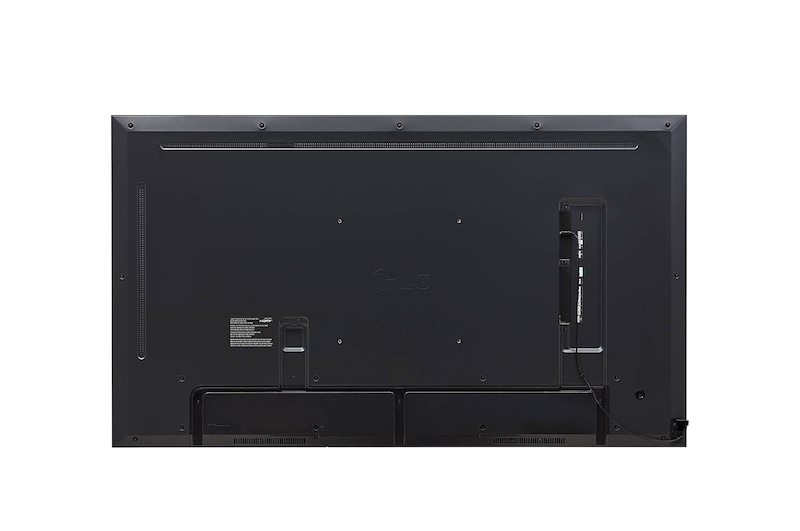

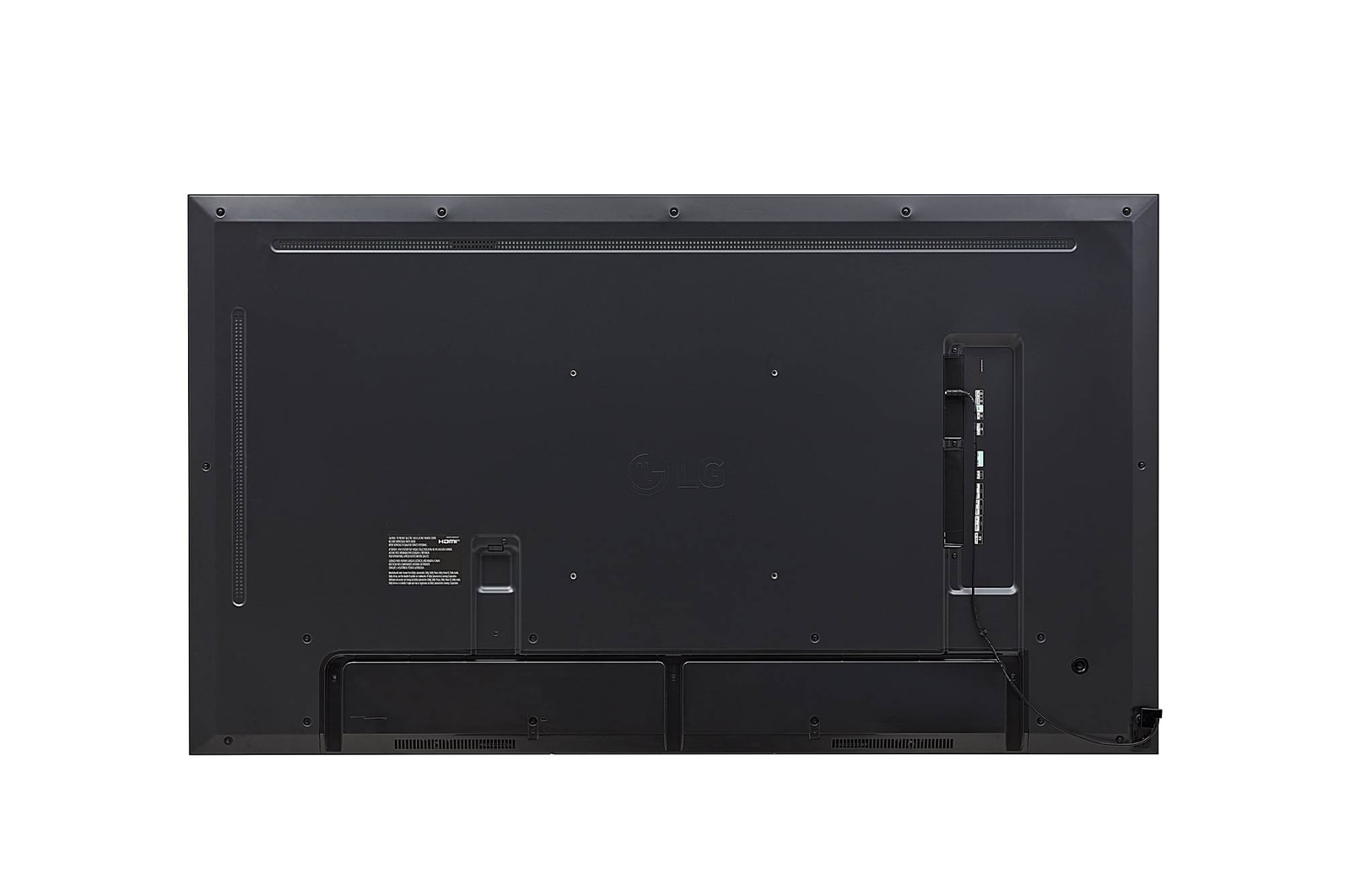

The 65US5P-E with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.
* All images are for illustrative purposes only.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
Durability that Provides Reliability
Optimized for business environments, the 65US5P-E offers strong resistance to challenging conditions. Its Conformal Coating on the power board helps protect against salt, dust, iron powder, and humidity, assisting stable operation. Additionally, customer-centric features like IP5x certification, a 30-degree tilting capability, and Shock Monitoring enhance both reliability and customer satisfaction.
The 65US5P-E has Conformal Coating on the power board to protect display even in a salty or humid environment.
Enhanced Security
In various business fields, both hardware and software security are crucial. LG`s Enhanced Kernel Protection (EKP) is specifically crafted to safeguard vital data from external threats. Additionally, certified with the high standards of ISO/IEC 15408 Common Criteria EAL2, the 65US5P-E instills confidence in its security measures.
LG Shield
While security threats are prevalent in various industries, LG has developed a dedicated security platform called LG Security Platform “LG Shield“. Integrated into webOS 6.0, LG Shield offers a safe environment for users. A 5-tiered defense system provides protection against a wide range of threats. Also, real-time monitoring capabilities enable the platform to detect and respond to security threats in real time, assisting the utmost security for users.
Securely operated through LG Shield's defense system, the 65US5P-E on the company lobby wall provides reliable service.
EMC Class B Certified
65US5P-E is safe from electromagnetic waves, which are harmful to the environment and human body, with EMC Class B certification.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
* Sold separately.
Key Feature
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 500 nit (Typ.)
- Surface Treatment (Haze) : 28%
- Energy Efficiency
- Enhanced Security
- webOS Platform
All Spec
PANEL
Screen Size (Inch)
65"
Panel Technology
IPS(M+)
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
1,000,000:1
Color Gamut
BT709 95%
Viewing Angle (H x V)
178 X 178
Color Depth (Number of Colors)
10bit(D), 1.07Billion colours
Response Time
9ms (G to G)
Surface Treatment (Haze)
28%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
Yes / Yes
CONNECTIVITY
HDMI In
Yes (3), 3840x2160@60Hz, HDCP 2.2/1.4
DP In
Yes (1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C In
Yes (1), 4pin Phone-jack
RJ45(LAN) In
Yes (1)
IR In
Yes (1)
USB In
USB2.0 Type A(1)
HDMI Out
Yes (1), 3840x2160@30Hz, Input : HDMI1/2/3/DP
Audio Out
Yes (1)
RS232C Out
Yes (1), 4pin Phone-jack
Daisy Chain
Yes (Input HDMI, DP / Output HDMI)
MECHANICAL SPECIFICATION
Bezel Color
Black
Bezel Width
T/R/L: 8.9mm, B: 12.9mm
Weight (Head)
24.2 kg
Packed Weight
30.4 kg
Monitor Dimensions (W x H x D)
1450.3 x 830.3 x 29.7mm (Without IR)
VESA Standard Mount Interface
300 x 300
Carton Dimensions (W x H x D)
1600.0 x 970.0 x 172.0mm
FEATURE - HARDWARE
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
Yes
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Acceleration(Gyro) Sensor
Yes
Local Key Operation
Yes
FEATURE - SOFTWARE
OS Ver. (webOS)
webOS6.0
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS232C Sync
Yes
Local Network Sync
Yes
PIP
Yes
PBP
Yes (4)
Screen Share
Yes
Video Tag
Yes (4)
Play via URL
Yes
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes (Max. 15x15)
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Cisco Certification
TBD
Crestron Connected
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes
Network Ready
Yes
Beacon
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
ENVIRONMENT CONDITIONS
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
POWER
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
POWER CONSUMPTION
Typ.
95W
Max.
130W
BTU (British Thermal Unit)
324 BTU/Hr(Typ.), 444 BTU/Hr(Max)
DPM
0.5W
Power off
0.5W
Smart Enegy Saving(~70%)
66.5
SOUND
Speaker (Built-in)
Yes (10W X 2)
CERTIFICATION
Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ERP / Energy Star
Yes (NewErP "D")/X
SOFTWARE COMPATIBILITY
SuperSign CMS
Yes
SuperSign Control+
Yes / Yes
SuperSign WB
Yes
SuperSign Cloud
Yes
Mobile CMS
Yes
Connected Care
Yes
LANGUAGE
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish→Türkiye, Arabic
ACCESSORY
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA)
Optional
Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B), Wall Mount Adapter (AM-B330S)
SPECIAL FEATURE
Tilt (Face down)
Yes (TBD, Max 30º degree, 40ºC temperature)
IP Rating
IP5X
Conformal Coating (Power Board)
Yes
