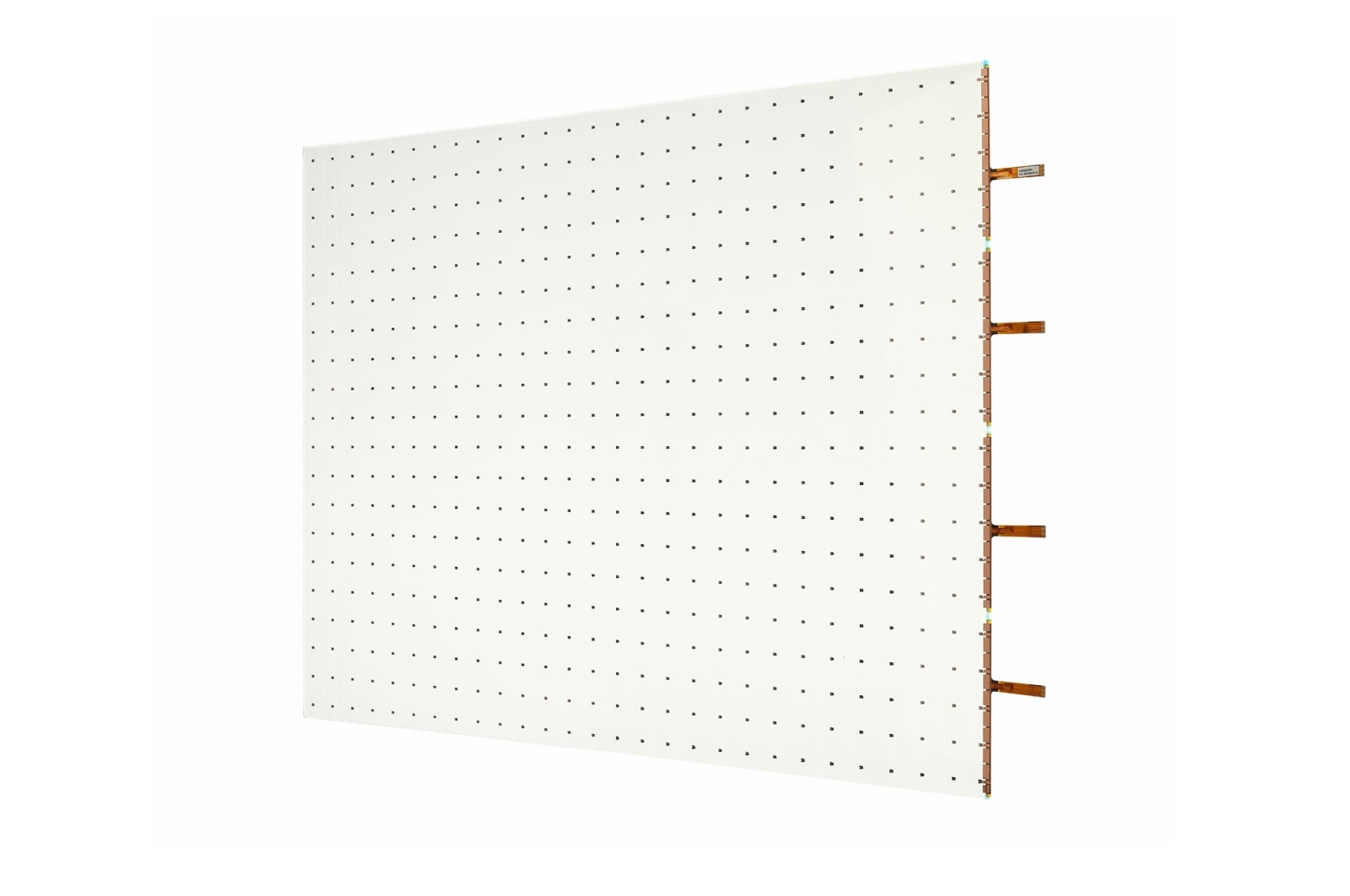

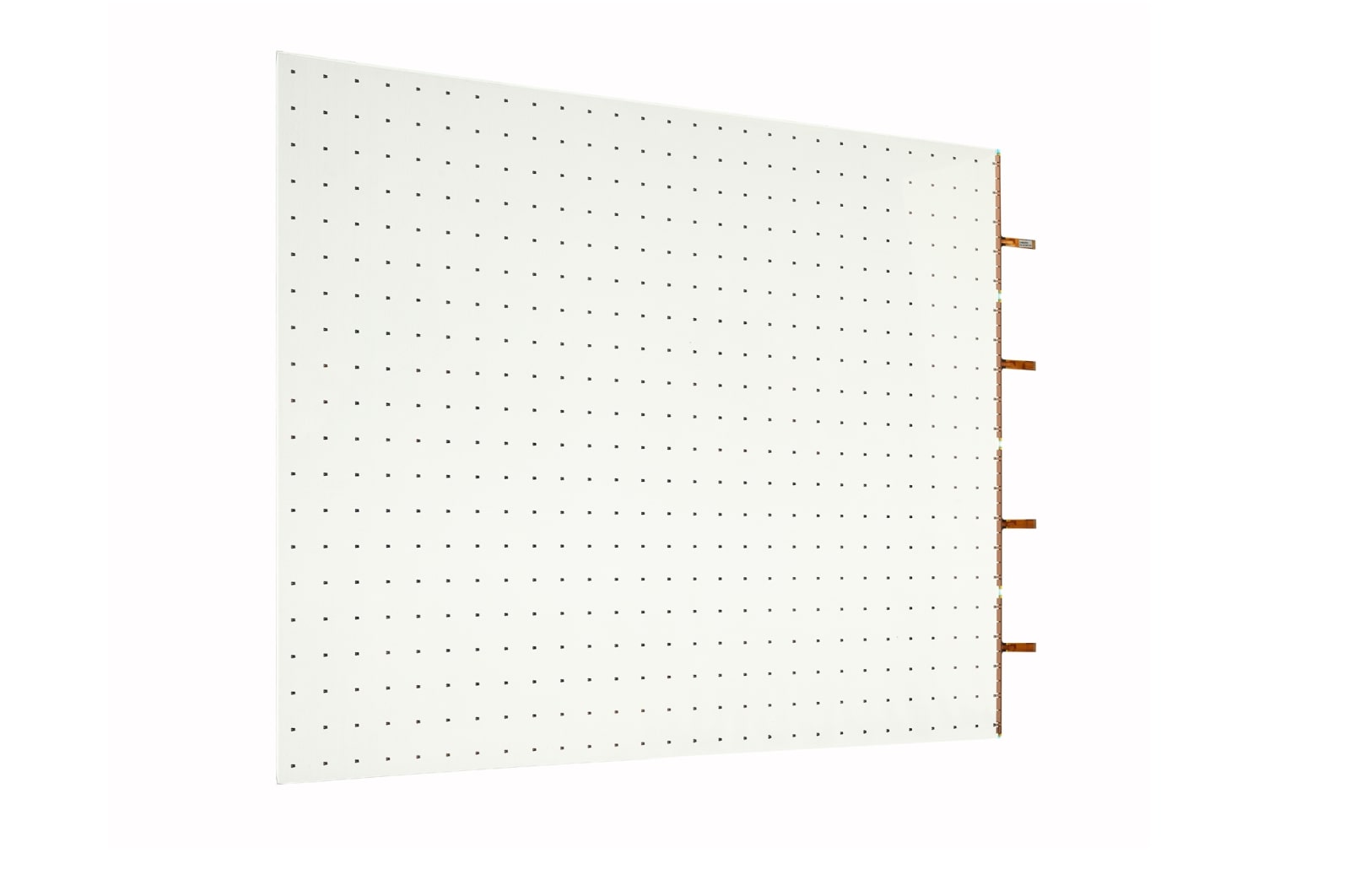

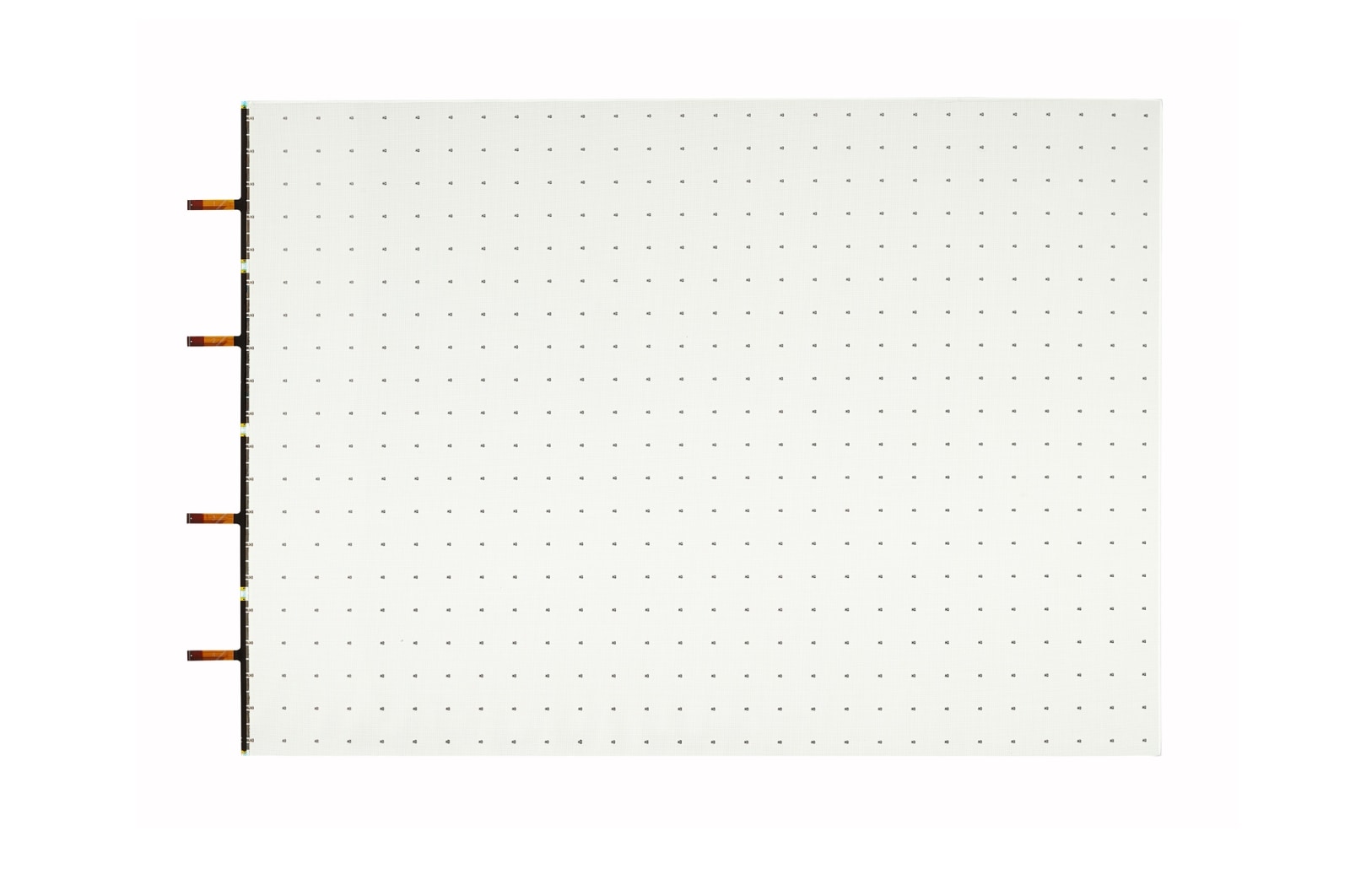

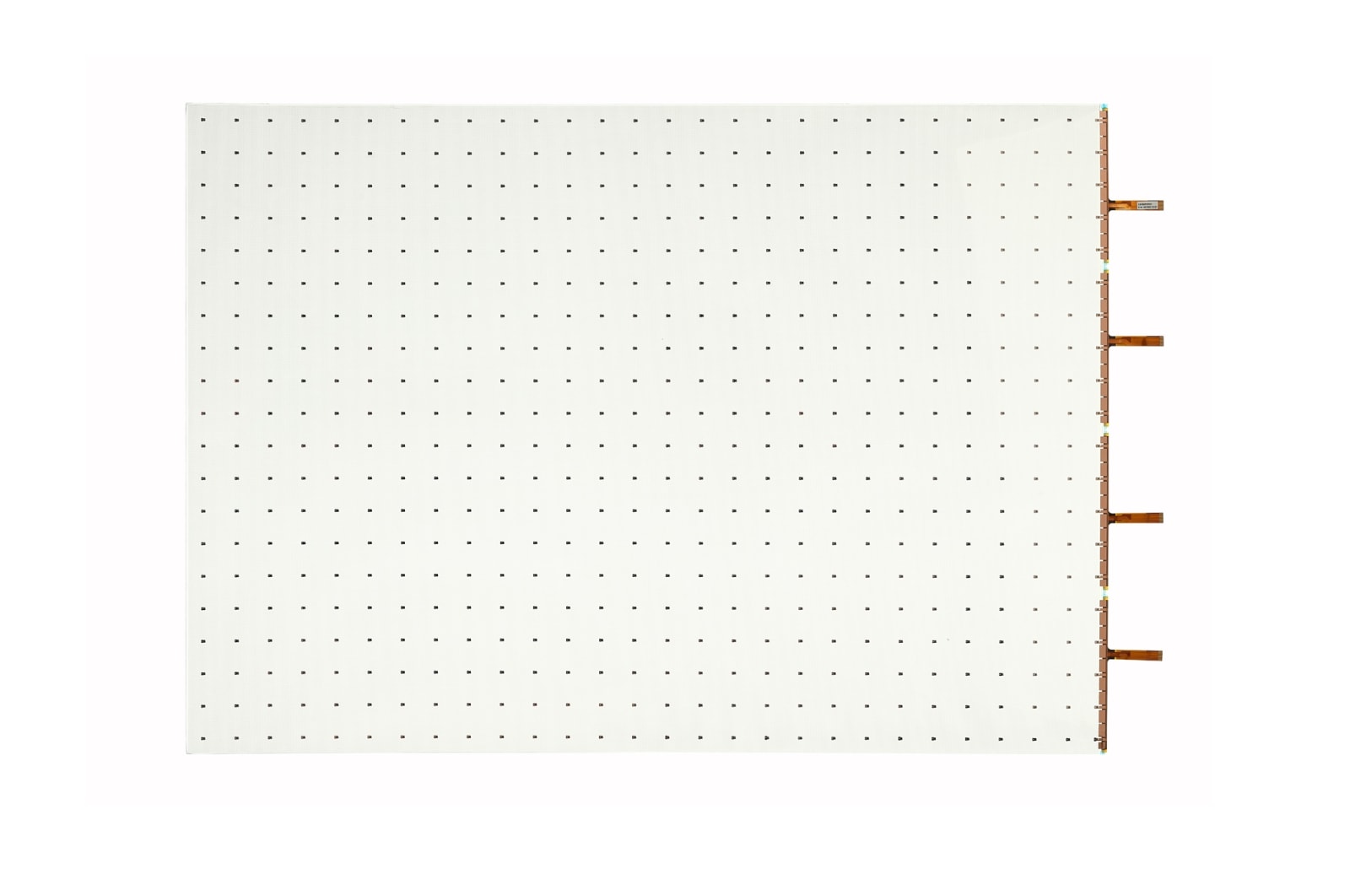

LAT240DT1

Colour Transparent LED Film

High Transparency1

High Transparency



High transparency*(73%) allows glass to remain visible even after attaching the
film, with no adverse effects on the original design. When the LED is OFF, the film
is unnoticeable, blending into the glass completely.

Full Color Expression 1

Full Color Expression



LG Color Transparent LED film delivers a surprisingly wide range of colors using a 24 mm pitch. Applications can be extended to display an entire video or pictures in which various colors combinations are possible.

Self-adhesive Film1

Easy Space Innovation



Self-adhesive Film



The transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass wihout the need for any complicated construction.

Superb Expandability and Flexibility1

Easy Space Innovation



Superb Expandability and Flexibility



The size and layout of the film can be customized to fit in to the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

* The flim must be cut in parallel with the the bezel by 1 pixel.

Curved Format Supported1

Easy Space Innovation



Curved Format Supported



The transparent LED film supports curvatures up to 1,100R Convex and Concave for curved glass or window applications. This allows a wider range of venues to be redesigned as a landmark.

System Connection1

System Connection

※ The actual system structure may be subject to change from the above example

All Spec

LAT240DT1

Pitch

24±0.2mm

LED Type

R, G, B 3in1 Color Package (SMD1818)

Resolution

28 x 20

Pixels per Panel

560

Pixel Density [point/m²]

1,736

Brightness (After Calibration)

>1,000nit

Contrast Ratio

≥ 100,000:1

Luminance Uniformity

≥ 70%

Chromaticity Uniformity

Δu’v’≤0.015

Viewing Angle (H x V)

120 x 120

Life Time (Brightness 50%)

50,000 Hrs

Daily Usage

24 Hrs / 7 Days

Warranty

2 Years

Transmittance

73%

Operating Temperature

0℃ ~ 45℃ (Indoor Glass Installation Only)

Curved Installation

1,100R (Convex and Concave)

Film Trimming

Yes (Parallel to the Bezel Side Only)

Film Surface Color Distortion

No

Color Processing

130/120/110 Level (R, G, B)

Colors

1,716,000 Colors

Color Chromaticity

Cx: 0.28±0.03, Cy: 0.28±0.03

Dimension (W x H x D)

668 x 480 x 2.0 mm (with Front & Back Protection Film)

Weight

0.73 kg

Power Consumption

37W (Transparent panel 1EA + Bezel kit 1EA)

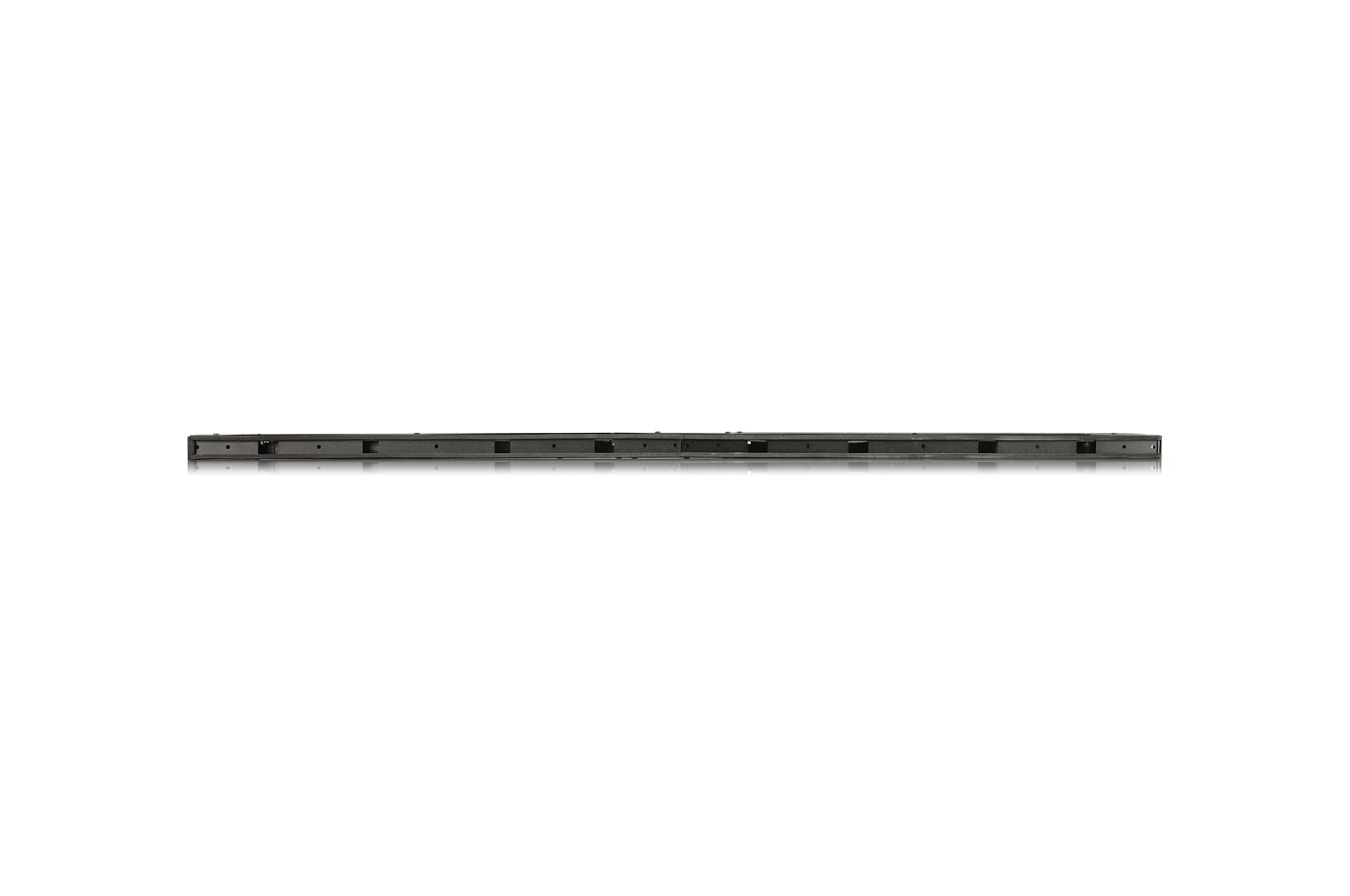

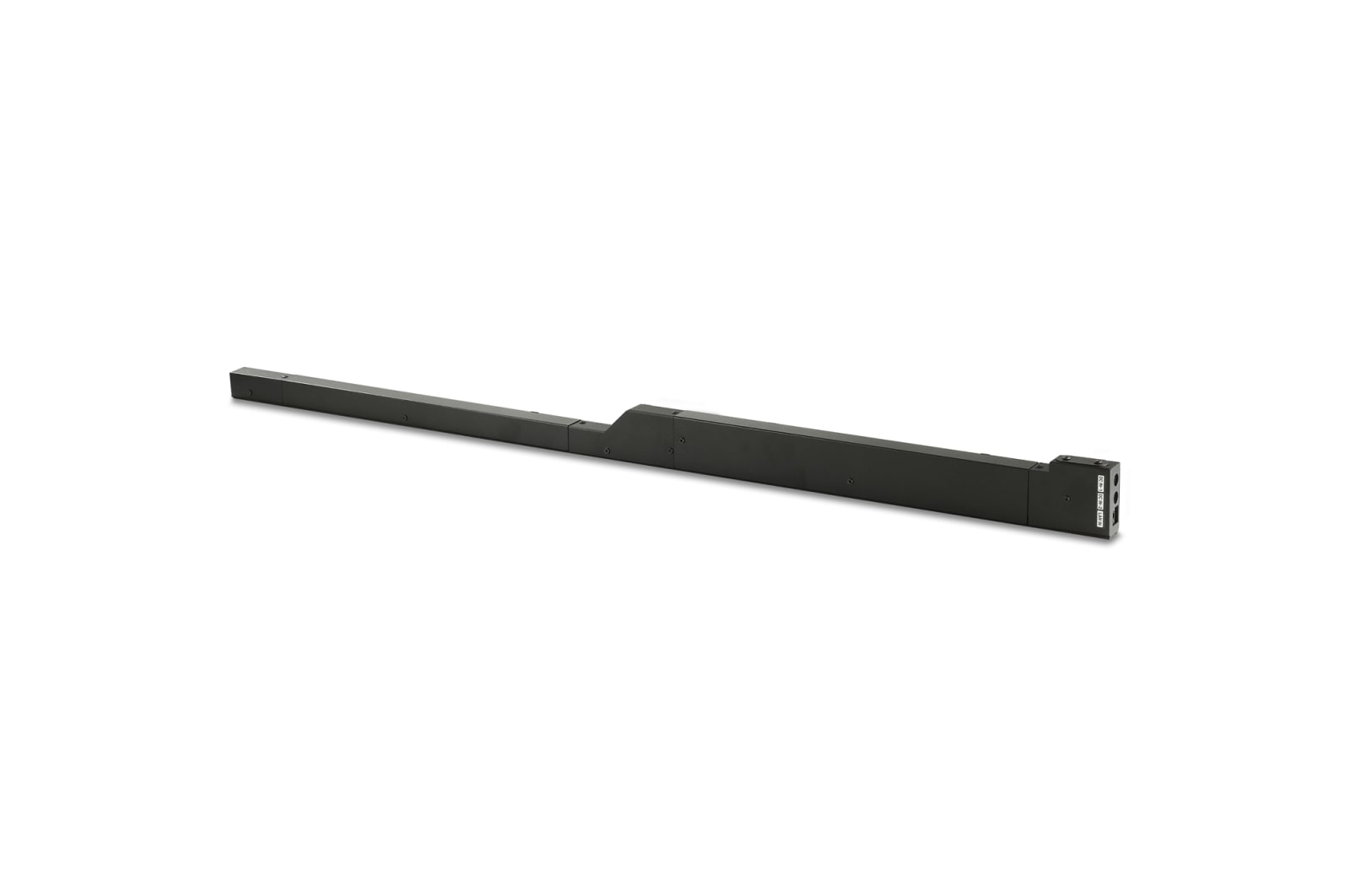

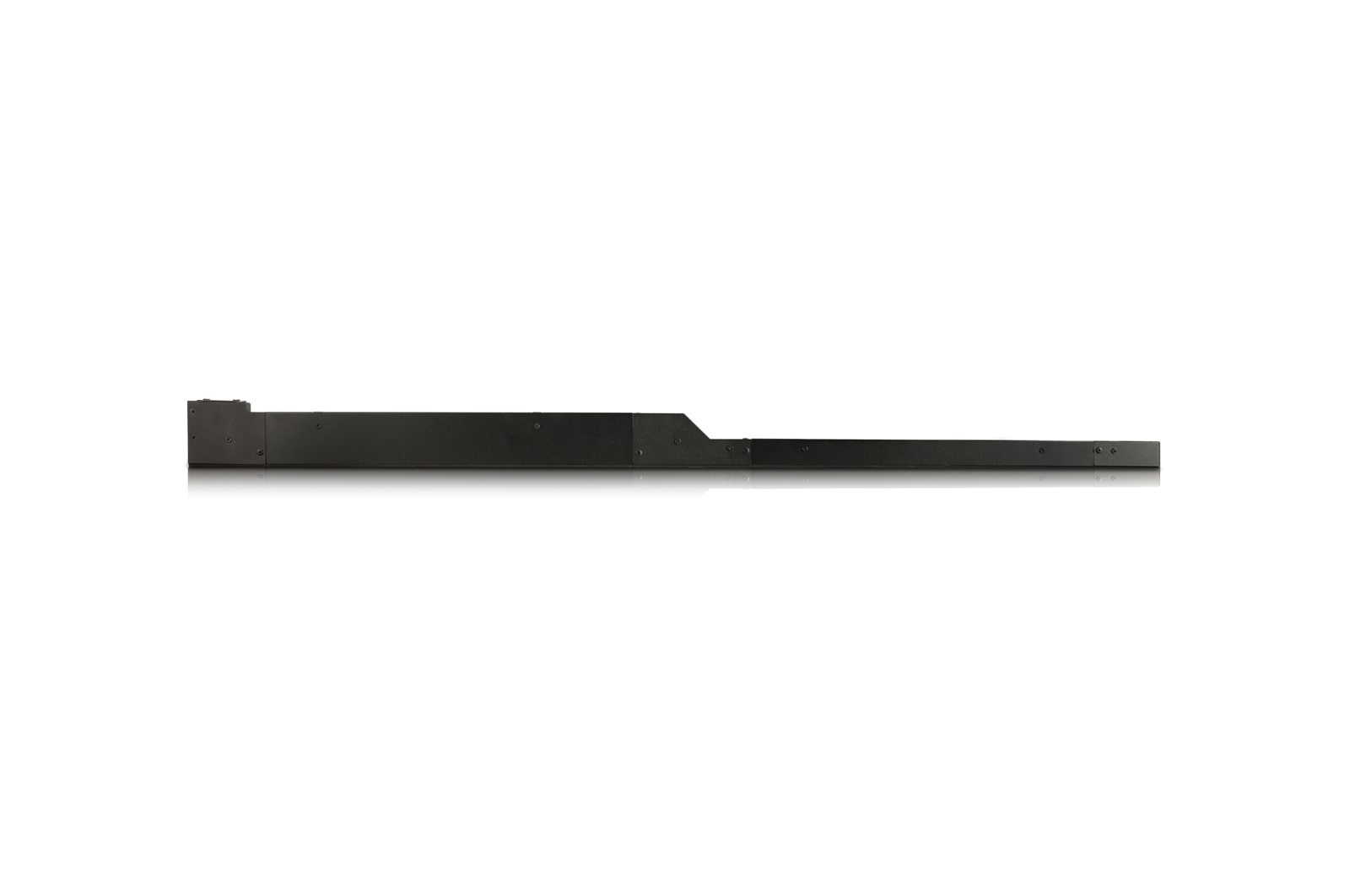

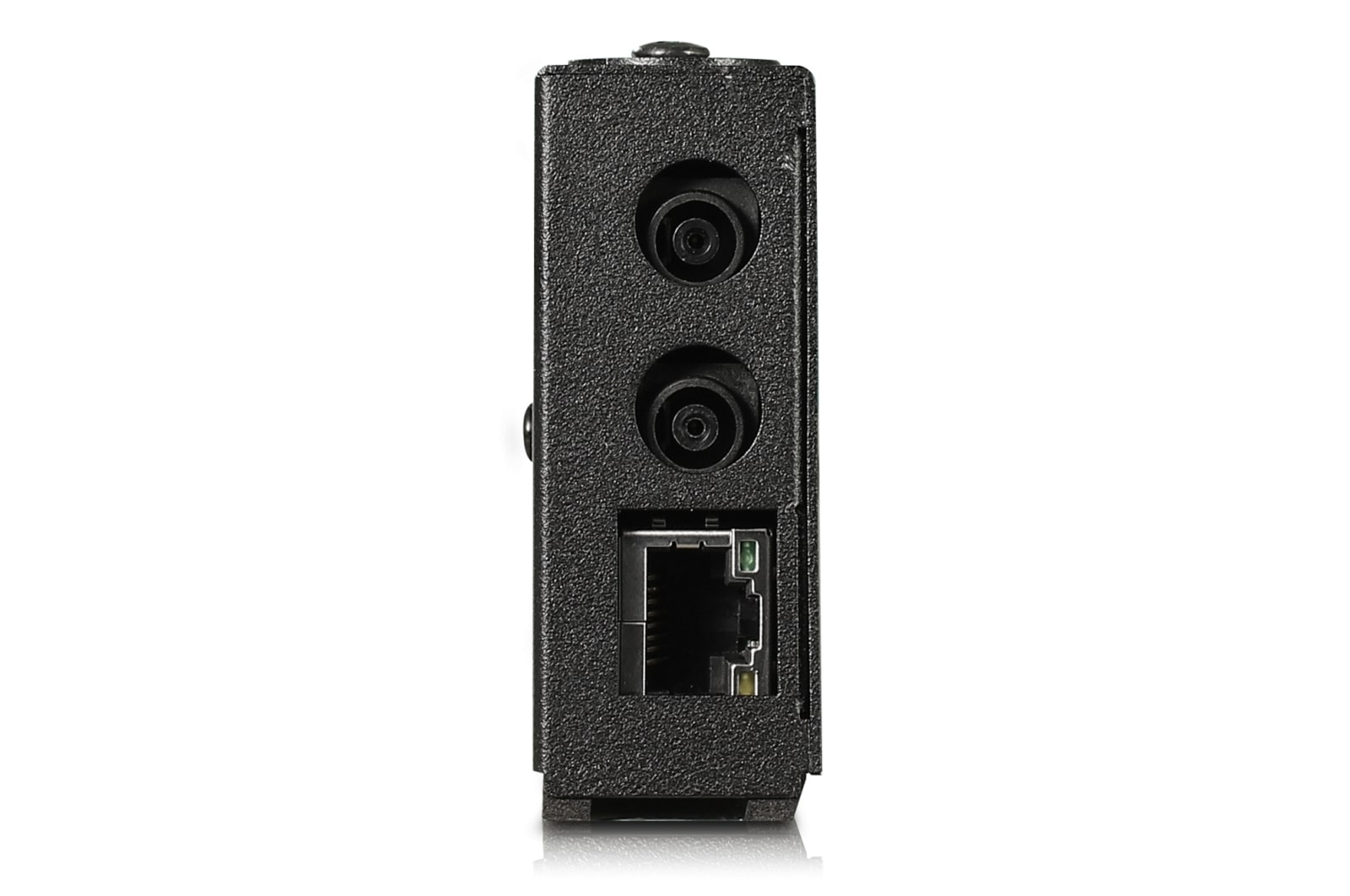

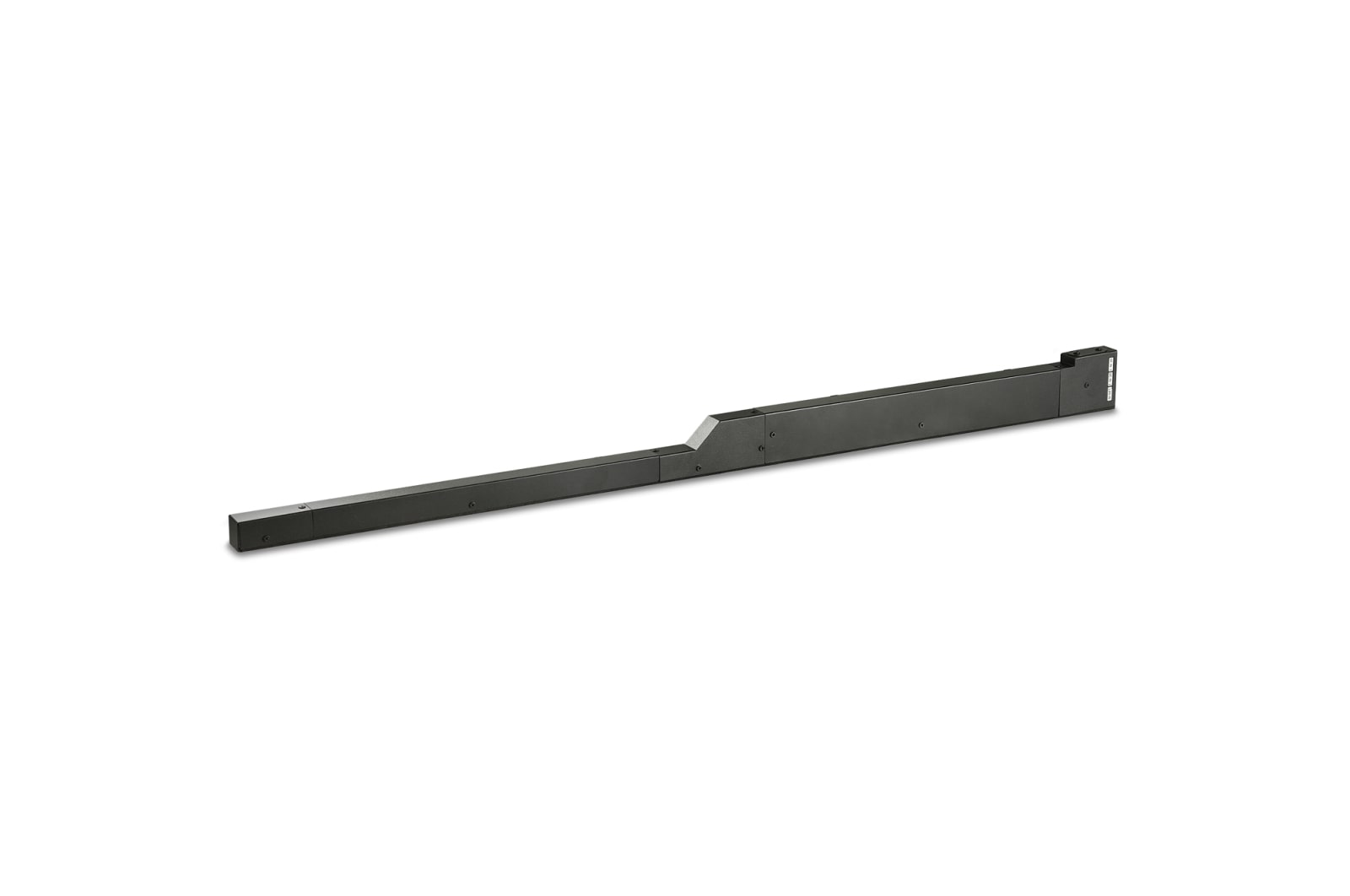

1ST BEZEL KIT

Dimension (W x H x D)

547.3 x 63 x 24 mm

Weight

0.45 kg

COMMON BEZEL KIT

Dimension (W x H x D)

479.5 x 28.1 x 24 mm

Weight

0.26 kg

UNIT CONTROLLER

Resolution

960 x 540 (4 Unit Controllers Needed for FHD)

Interface

Input : LVDSOutput : RJ45 x4EA

Maximum Transmission Length

100 m

Dimension (W x H x D)

293 x 37 x 188.7mm

Weight

1.5 kg

Temperature Sensor

Yes

Power Consumption

20 W

SYSTEM CONTROLLER

Video (Max. Input Resolution)

DP: 3,840 x 2,160 @30HzHDMI: 3,840 x 2,160 @30HzDVI-D: 1,920 x 1,080 @60Hz

Input

HDMI, DP, DVI-D, RS232C, RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB 3.0

Output

LVDS, DP, RS232C, RJ45 (w/o LED Indicator)

Dimension (W x H x D)

293 x 40.1 x 193.3 mm

Weight (Head)

1.6 kg

Temperature Sensor

Yes

Light Sensor

Yes

Source Selection

HDMI, DVI-D, DP

TPC (Temporal Peak luminance Control)

Yes

Power Consumption

17W

CMS S/W

Yes

Accessories

Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card

POWER

Dimension (W x H x D)

183 × 86 × 28 mm

Weight

0.769 kg

Input

100~240V, 50~60Hz

Output

19.5V/10.8A (210W)

Color

White

DC Output Cable

14AWG, 1.5m

Type

L Type

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
