All Spec

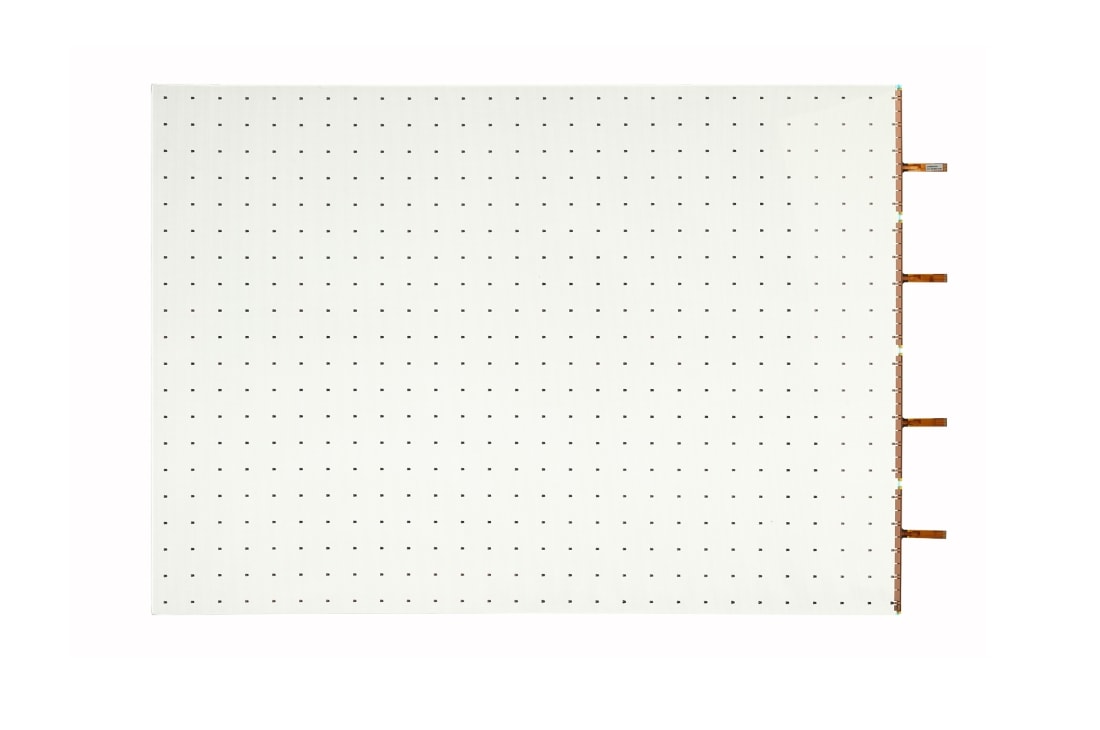

LAT240DT1
-
Pitch
-
24±0.2mm
-
LED Type
-
R, G, B 3in1 Color Package (SMD1818)
-
Resolution
-
28 x 20
-
Pixels per Panel
-
560
-
Pixel Density [point/m²]
-
1,736
-
Brightness (After Calibration)
-
>1,000nit
-
Contrast Ratio
-
≥ 100,000:1
-
Luminance Uniformity
-
≥ 70%
-
Chromaticity Uniformity
-
Δu’v’≤0.015
-
Viewing Angle (H x V)
-
120 x 120
-
Life Time (Brightness 50%)
-
50,000 Hrs
-
Daily Usage
-
24 Hrs / 7 Days
-
Warranty
-
2 Years
-
Transmittance
-
73%
-
Operating Temperature
-
0℃ ~ 45℃ (Indoor Glass Installation Only)
-
Curved Installation
-
1,100R (Convex and Concave)
-
Film Trimming
-
Yes (Parallel to the Bezel Side Only)
-
Film Surface Color Distortion
-
No
-
Color Processing
-
130/120/110 Level (R, G, B)
-
Colors
-
1,716,000 Colors
-
Color Chromaticity
-
Cx: 0.28±0.03, Cy: 0.28±0.03
-
Dimension (W x H x D)
-
668 x 480 x 2.0 mm (with Front & Back Protection Film)
-
Weight
-
0.73 kg
-
Power Consumption
-
37W (Transparent panel 1EA + Bezel kit 1EA)

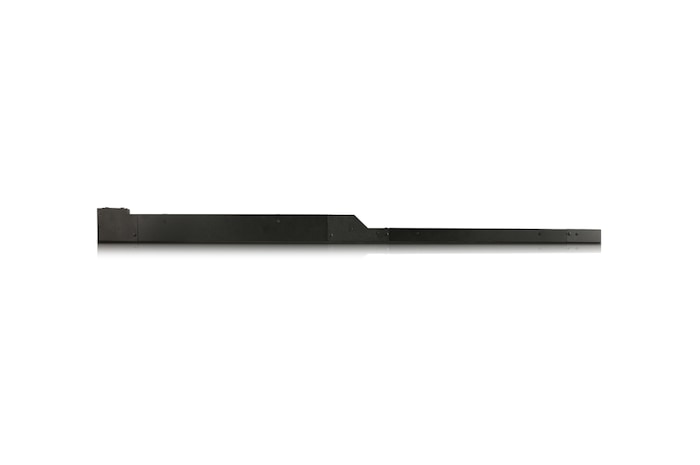

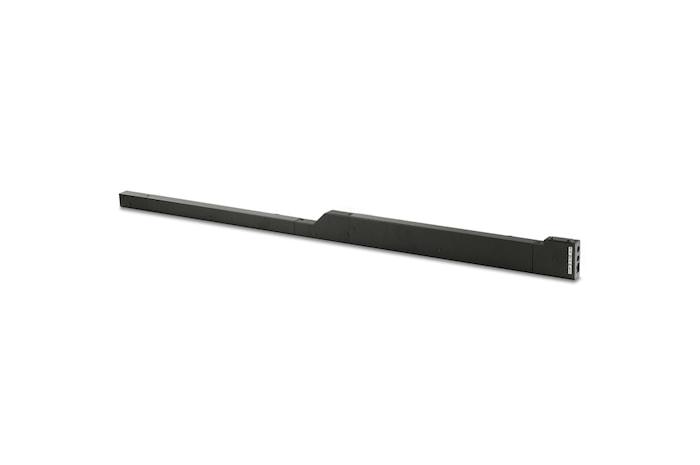

1ST BEZEL KIT
-
Dimension (W x H x D)
-
547.3 x 63 x 24 mm
-
Weight
-
0.45 kg

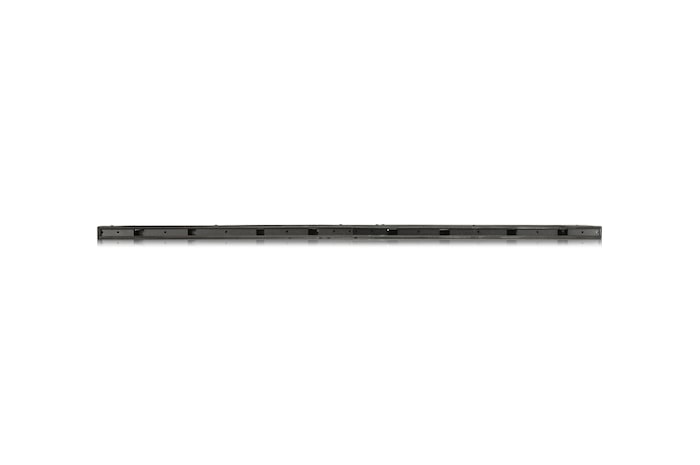

COMMON BEZEL KIT
-
Dimension (W x H x D)
-
479.5 x 28.1 x 24 mm
-
Weight
-
0.26 kg
UNIT CONTROLLER
-
Resolution
-
960 x 540 (4 Unit Controllers Needed for FHD)
-
Interface
-
Input : LVDSOutput : RJ45 x4EA
-
Maximum Transmission Length
-
100 m
-
Dimension (W x H x D)
-
293 x 37 x 188.7mm
-
Weight
-
1.5 kg
-
Temperature Sensor
-
Yes
-
Power Consumption
-
20 W
SYSTEM CONTROLLER
-
Video (Max. Input Resolution)
-
DP: 3,840 x 2,160 @30HzHDMI: 3,840 x 2,160 @30HzDVI-D: 1,920 x 1,080 @60Hz
-
Input
-
HDMI, DP, DVI-D, RS232C, RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB 3.0
-
Output
-
LVDS, DP, RS232C, RJ45 (w/o LED Indicator)
-
Dimension (W x H x D)
-
293 x 40.1 x 193.3 mm
-
Weight (Head)
-
1.6 kg
-
Temperature Sensor
-
Yes
-
Light Sensor
-
Yes
-
Source Selection
-
HDMI, DVI-D, DP
-
TPC (Temporal Peak luminance Control)
-
Yes
-
Power Consumption
-
17W
-
CMS S/W
-
Yes
-
Accessories
-
Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card
POWER
-
Dimension (W x H x D)
-
183 × 86 × 28 mm
-
Weight
-
0.769 kg
-
Input
-
100~240V, 50~60Hz
-
Output
-
19.5V/10.8A (210W)
-
Color
-
White
-
DC Output Cable
-
14AWG, 1.5m
-
Type
-
L Type
