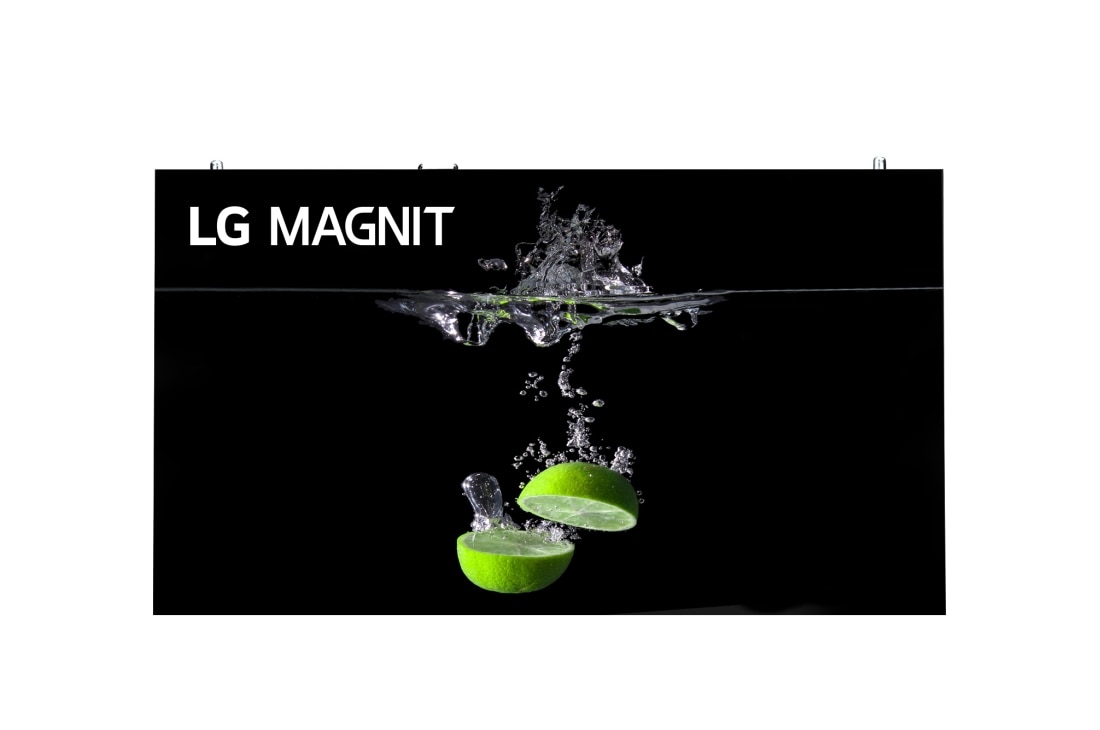

Indoor LG MAGNIT LED Signage | LSAB012-U12
LSAB012-U12
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Shipping options may vary by region.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
Are you sure you want to remove the coupon?
Pixel Configuration
Micro
Pixel Pitch (mm)
1.250
Module Resolution (WxH)
240 × 90
Module Dimensions(WxH,mm)
300 × 112.5
Weight per Module (kg)
0.18
No. of Modules per Cabinet (WxH)
6 (2 x 3)
Cabinet Resolution (WxH)
480 × 270
Cabinet Dimensions (W x H x D, mm)
600 × 337.5 × 44.9
Cabinet Surface Area (㎡)
0.203
Weight per Cabinet (kg/unit)
LSAB012-*2: 7.8
LSAB012-*12: 7.2
Weight per Square Meter (kg/㎡)
LSAB012-*2: 38.5
LSAB012-*12: 35.5
Physical Pixel Density (pixels/㎡)
640,000
Flatness of Cabinet (mm)
±0.5
Cabinet material
Die-casting Aluminum
Service access
LSAB012-*2: Front
LSAB012-*12: Front and Rear
Max Brightness (After Calibration, nit)
LSAB012-*2: 600 / 1,200 (Peak)
LSAB012-*12: 800 / Peak 1,600
Color Temperature (K)
3,200~9,300 / Default 7,300
Visual Viewing Angle (Horizontal)
160°
Visual Viewing Angle (Vertical)
160°
Brightness Uniformity(%)
95%
Color Uniformity
±0.02Cx, Cy
Contrast Ratio
LSAB012-*2: 30,000 : 1 @ 10lux
LSAB012-*12: 150,000:1 @10lux
Power Consumption (W/Cabinet, Max.)
LSAB012-*2: 60
LSAB012-*12: 82
Power Consumption (W/Cabinet, Avg.)
LSAB012-*2: 35
LSAB012-*12: 50
Power Consumption (W/㎡, Max.)
LSAB012-*2: 296
LSAB012-*12: 405
Heat Dissipation (BTU/h/Cabinet, Max.)
LSAB012-*2: 205
LSAB012-*12: 280
Heat Dissipation (BTU/h/Cabinet, Avg.)
LSAB012-*2: 120
LSAB012-*12: 171
Heat Dissipation (BTU/h/㎡, Max.)
LSAB012-*2: 1,013
LSAB012-*12: 1,385
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Operating Temperature(℃)
0°C to +40°C
Operating Humidity
10-80% RH
IP rating Front
IP50
IP rating Rear
IP20
LED Lifetime (Half brightness)
100,000
Certification
Safety 60950-1, EMC Class B, BS476 Part7 Class1
Environment
RoHS
Controller
LSAB012-*2: CSAB-0122D, CSAD
LSAB012-*12: CSAB-01212, CSAD
