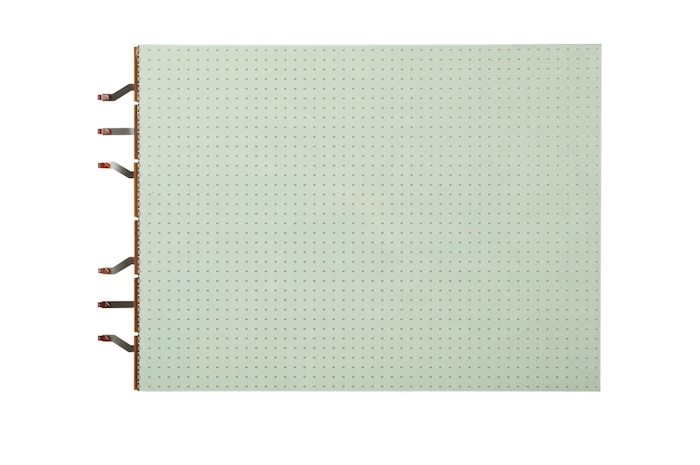

Transparent LED Film
LAT140GT81S
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Delivery fees vary by postcode and may include additional charges for Highland or remote areas. Final shipping costs will be confirmed at checkout.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
Are you sure you want to remove the coupon?
Dimension (W x H x D)
183 × 86 × 28 mm
Weight
769g
Input
100~240V, 50~60Hz
Output
19.5V/10.8A (210W)
Color
White
DC Output Cable
14AWG, 1.5m
Type
L Type
Dimension (W x H x D)
69.4 x 492 x 25mm (Cover)
Weight
0.4Kg
Pixel Pitch(mm)
13.7±0.2 mm
LED Type
R, G, B 3in1 Color Package (SMD2020)
Resolution
48 x 36
Pixels per Panel
1,728
Pixel Density (point/㎡)
5,102
Brightness (cd/㎡)
Typ.2,100nit
Contrast Ratio
≥ 100,000:1
Luminance Uniformity
≥ 70%
Viewing Angle (H x V)
120 x 120
Life Time (Duration of Half Brightness in Hours)
50,000 Hrs
Daily Usage
24h / 7days
Warranty
2 years
Transparency
Typ 53%
Operating Temperature
0℃ ~ 45℃ (Indoor Glass Installation Only)
Curved Installation
2,000 R (Concave, Convex with Glass Only)
Film Trimming
Yes (Parallel to the Bezel Side Only)
Color Processing
(9bit) 500/500/500 Level (R, G, B)
Colors
125,000,000 Colors
Color Chromaticity
Cx: 0.25±0.03, Cy : 0.34±0.03
Dimension (W x H x D)
655 x 492 x 2.9mm(with front & back protection film)
Weight
1kg
Power Consumption
37W (Transparent panel 1EA + Common Bezel kit 2EA)
Accessory
ESG, Regulation book, Warranty Card
Dimension (W x H x D)
51.4 x 492 x 25mm (Cover)
Weight
0.3Kg
Resolution
960x540 (1/4 FHD)
Interface
Input : LVDS Output : RJ45 x4EA
Maximum Transmission Length
100m (Cable types: CAT5E, CAT6)
Dimension (W x H x D)
293 x 188.7 x 37mm
Weight
1.5Kg
Temperature Sensor
Yes
Power Consumption
20 W
Video (Max. Input Resolution)
DP : 1920x1080@60Hz HDMI : 1920x1080@60Hz DVI-D : 1920x1080@60Hz
Interface (Input)
HDMI, DP, DVI-D, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (Phone Jacke Type), USB 3.0
Interface (Output)
DP, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), LVDS
Dimension (W x H x D mm)
293 x193.3 x 40.1mm
Weight (Head, Kg)
1.6kg
Temperature Sensor
Yes
Light Sensor
Yes
Source Selection
HDMI, DVI-D, DP
TPC (Temporal Peak luminance Control)
Yes
Motion Eye Care
Yes
Power Consumption
17W
CMS S/W
Yes (2.9)
Signage365care
Yes (2.7)
Accessory
Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card
Video
HDMI : 1920x1080@60Hz
Input
HDMI, RS232C (Phone Jack Type),RJ45, IR Receiver, USB 3.0
Output
RS232C (Phone Jack Type), RJ45 (2)
Dimension (W × H × D)
333 x 186.8 x 40.1mm
Weight (Head)
1.82 kg
Temperature Sensor / Light Sensor
Yes / Yes
TPC(Temporal Peak Luminance Control)
Yes
Power Consumption
30 W
CMS S/W
SuperSign CMS
Accessory
Power cord, IR+Bright Sensor (1.5m),4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card
