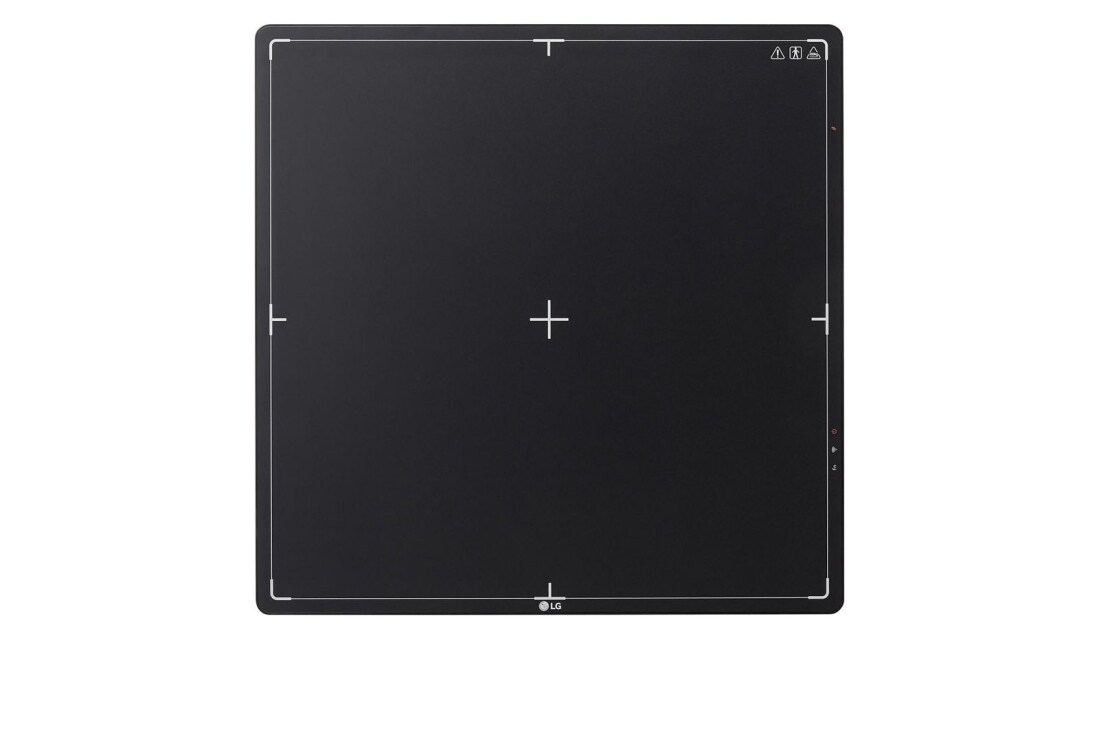

LG Digital X-ray Detector with a-Si TFT
17HQ701G-BP
Orders for the Scottish Islands and remote areas will be delivered by 3PL. The 3PL will contact you to arrange a suitable delivery date.
Delivery fees vary by postcode and may include additional charges for Highland or remote areas. Final shipping costs will be confirmed at checkout.
Further information regarding delivery can be found in our Delivery Terms and Conditions.
Are you sure you want to remove the coupon?
Operation Time
300 shots / 7.5 hrs (Typ.) (Condition : Cycle Time 90 sec)
Charging Time
3 hrs (Typ.)
Hot Swap
Yes (1 Min)
Cable
Power Cord, Main Cable 7 m (LAN Cable, Sync Cable Option)
Other
Battery Charger2 x Battery PacksControl Box
Dimension / Weight (Including battery)
460 mm x 460 mm x 15.6 mm3.7 kg (8.2 lbs)
Intended Use
General Radiography
TFT Type
a-Si
Scintillator
CsI
Pixel Pitch
140 ㎛
Number of Pixels
3072 x 3072 pixels
TFT Active Area
430.08 × 430.08 mm
MTF @ 0.5lp/mm (Typ.)
84%
A/D Conversion
16 bit
Data Output
16 bit
Type
Wired / Wireless
WLAN
IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
Auto Exposure Detection
Yes
Cycle Time
4.5 sec (Wired) / 5 sec (Wireless)
Full Image Transfer (Typ.) *Without window time
1.5 sec (Wired) / 2.5 sec (Wireless)
Maximum Load Weight
Full (Uniform Load) : 400 kg (881.8 lbs)Local (Point Load) : 200 kg (440.9 lbs)
Watertightness
IP68
Sensor Protection Plate
Carbon Fiber Plate
