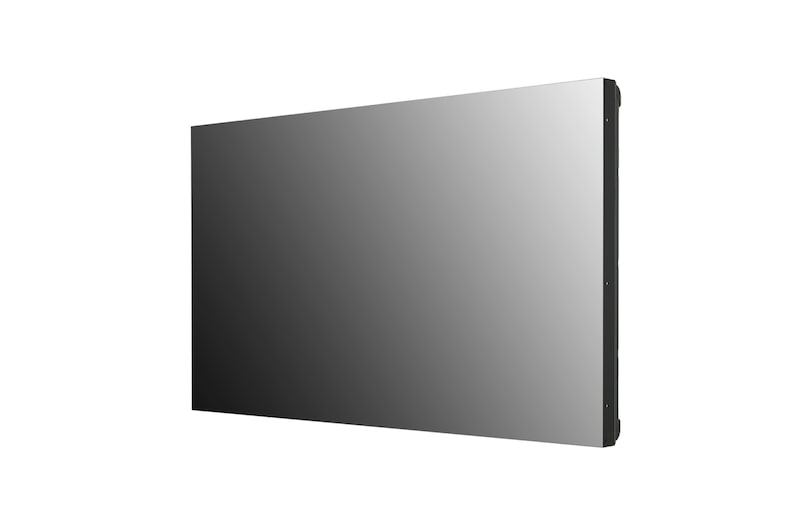

49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall
UKEU
Product Information Sheet

49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall

UKEU
Product Information Sheet

49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall

49VM5E-A

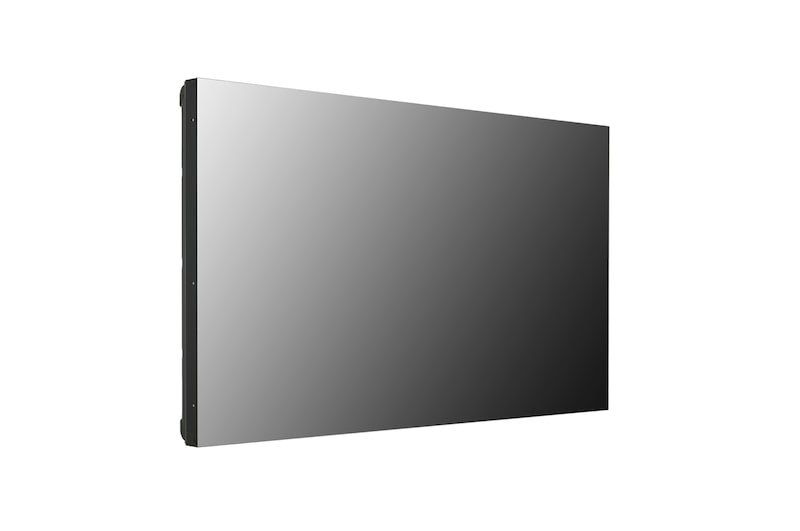

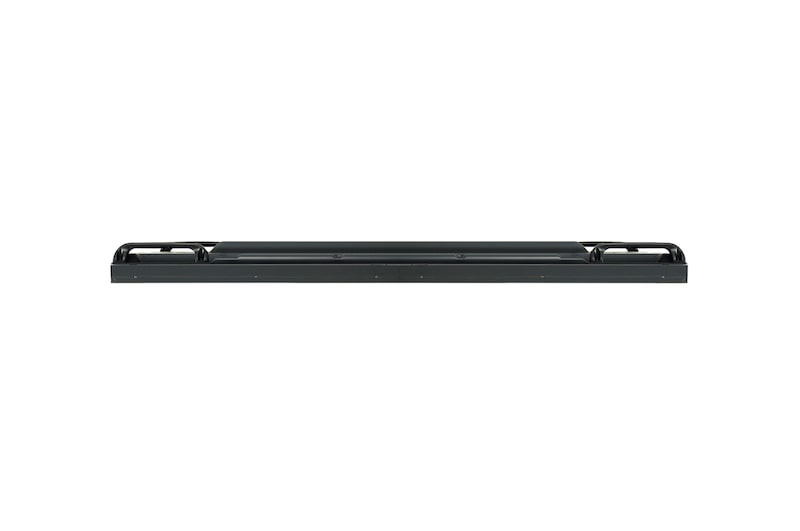

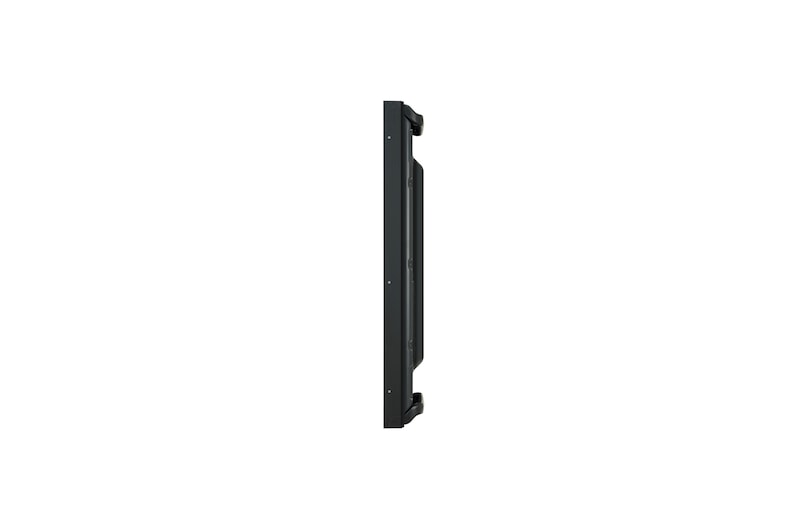

LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A
LG 49" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall, 49VM5E-A

Key Features

  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 0.9 mm (Even)

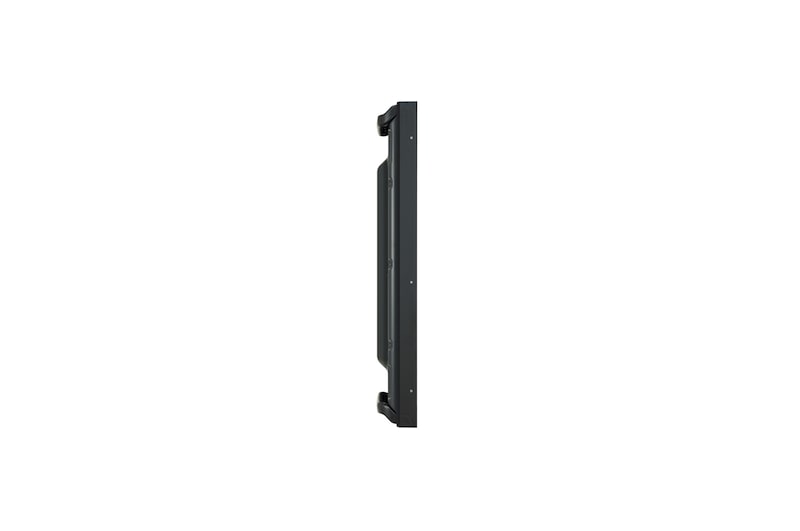

  • Depth : 86.2 mm
  • Interface : HDMI(2)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
More
Artistic Immersion, Overwhelming Captivation

Artistic Immersion, Overwhelming Captivation

The impressive immersion generated by the extremely narrow 0.9 mm bezel becomes even more powerful with a state-of-the-art smart signage platform. Beyond the self-playing feature, the VM5E series is capable of multitasking that raises brand awareness, drives traffic to your store, and engages customers in brand storytelling.

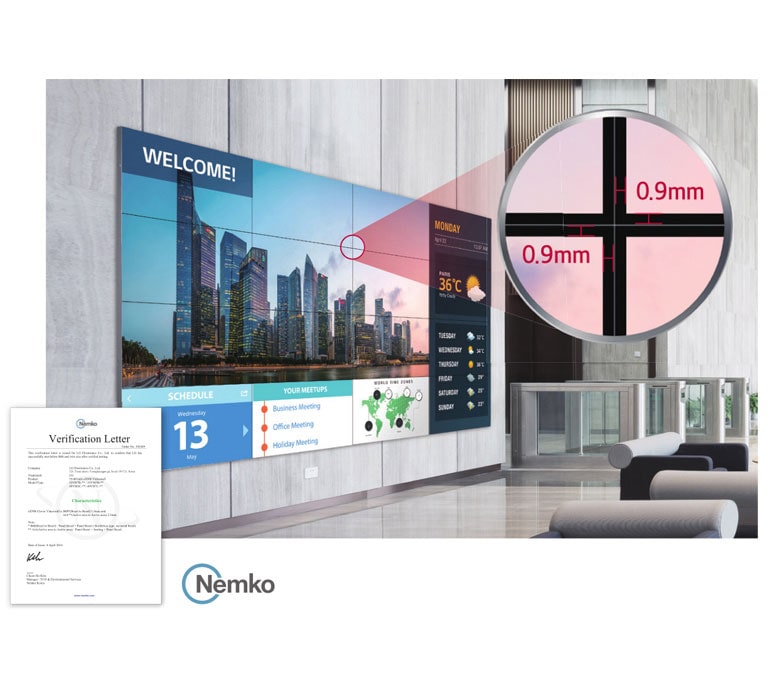

Seamless Large Screens with Extreme-Narrow Bezel
Achieving Incredible Immersion

Seamless Large Screens with Extreme-Narrow Bezel

The borderless design, with its 0.9 mm* even bezel and 1.8 mm* BtB (Bezel to Bezel), verified by Nemko, minimizes bezel interference and delivers immersive and seamless content on assembled video wall screens.

*The 0.9mm even panel bezel and 1.8mm BtB size (borderless type, no metal bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.

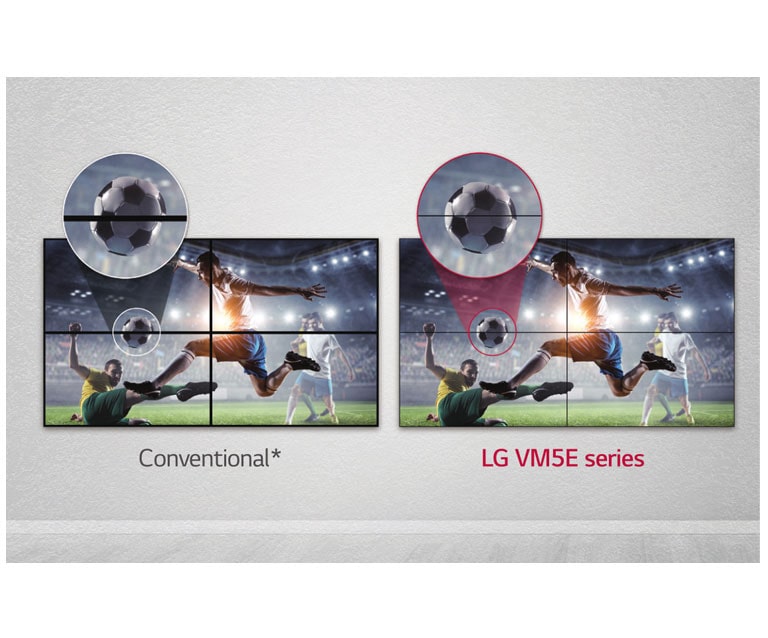

Image Gap Reduction1
Achieving Incredible Immersion

Image Gap Reduction

The VM5E series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

*The "Conventional" refers to displays which do not include an image improvement algorithm.

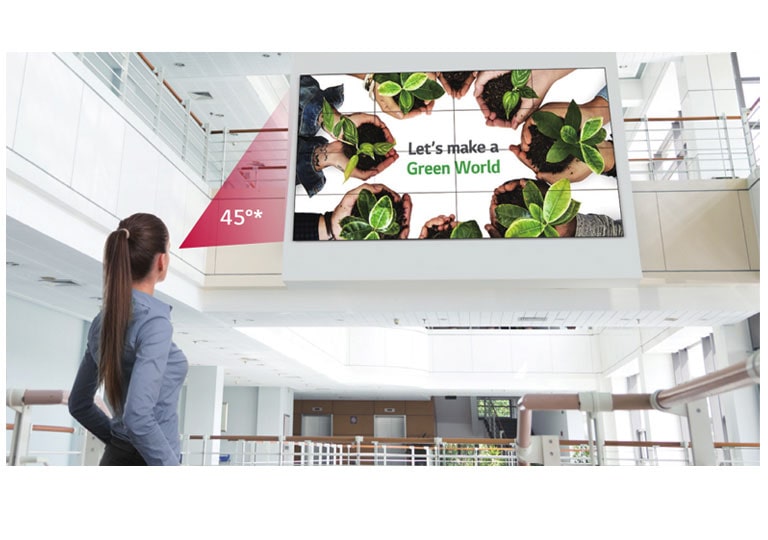

Higher Viewing Angle
Vivid and Dynamic Picture Quality

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VM5E series is high enough to display vivid colors throughout the screen with no distortion.

*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

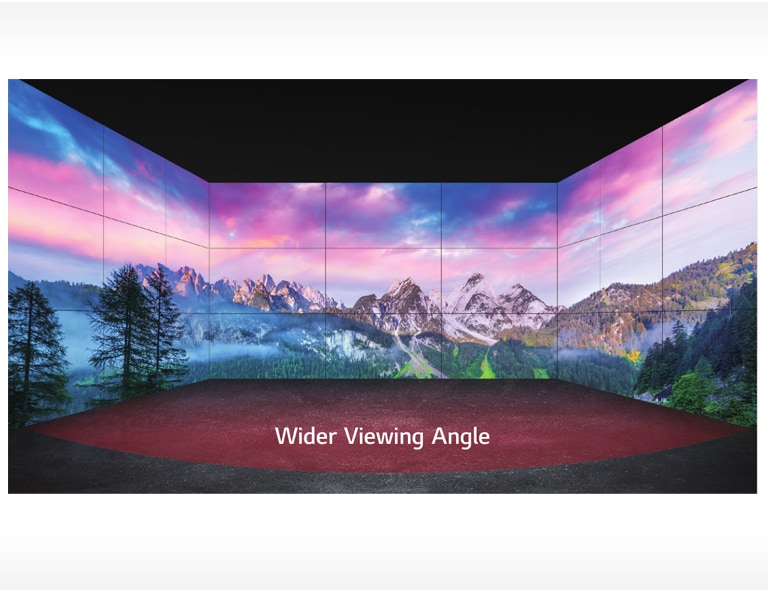

Wider Viewing Angle
Vivid and Dynamic Picture Quality

Wider Viewing Angle

It is well known that LG IPS panel technology provides better control of liquid crystals, which in turn allows the screen to be viewed at virtually any angle. Thereby, the VM5E series captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

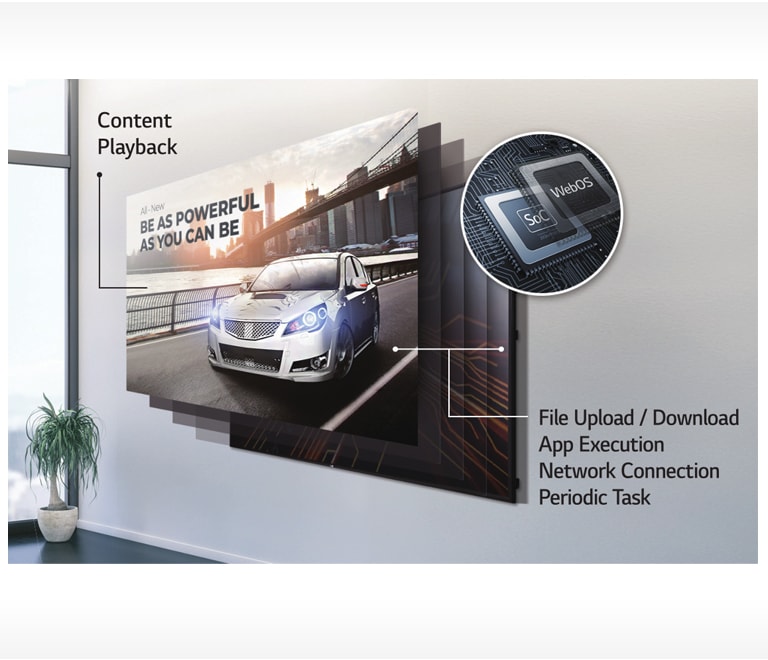

High Performance and Great Scalability
Powerful Smart Signage Platform

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VM5E series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a webbased
platform and offers SDK(Soft Development Kit), it is even easier for SIs to build and optimize.

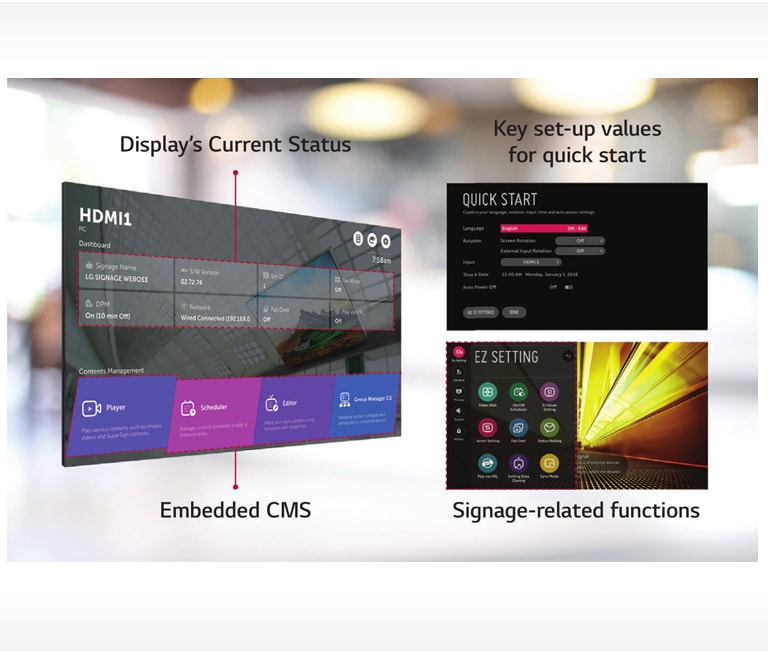

Intuitive Menu Structure1
User-Friendly Smart Signage UX

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trialand-error when exploring desired functions and managing displays.

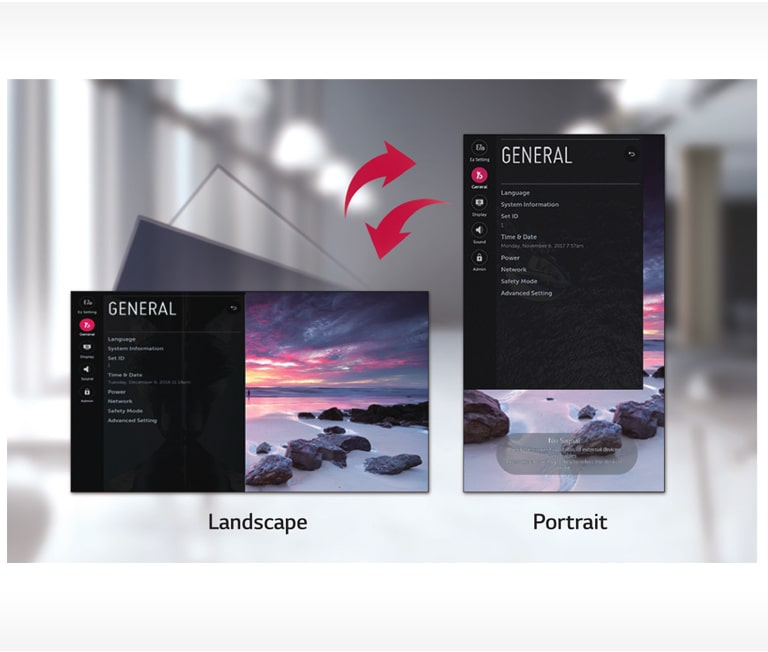

Dedicated GUI for Portrait Orientation1
User-Friendly Smart Signage UX

Dedicated GUI for Portrait Orientation

The conventional GUI(Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn't well-suited for screens in portrait mode. The OSD of the VM5E series, however, consists of a long range menu, creating a comfortable and efficient business environment.

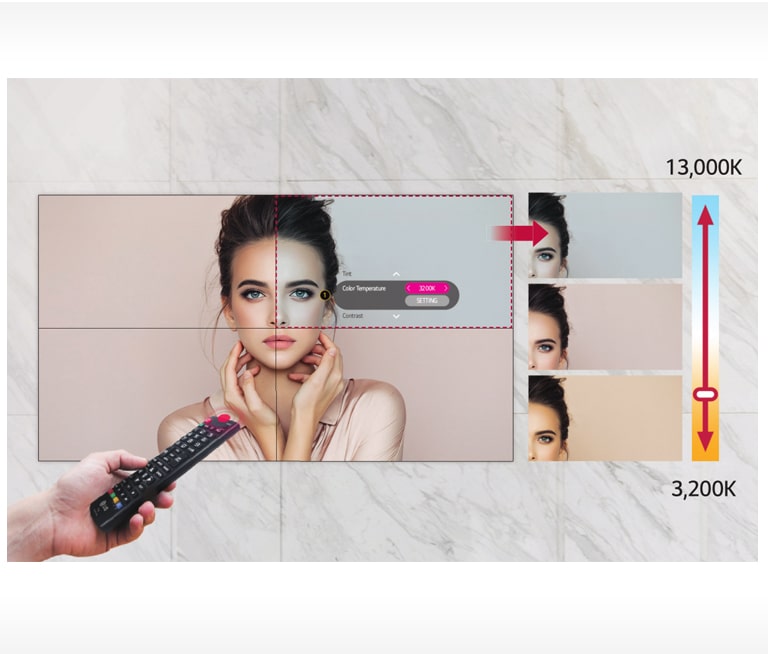

Easy Color Adjustment1
User Convenience

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

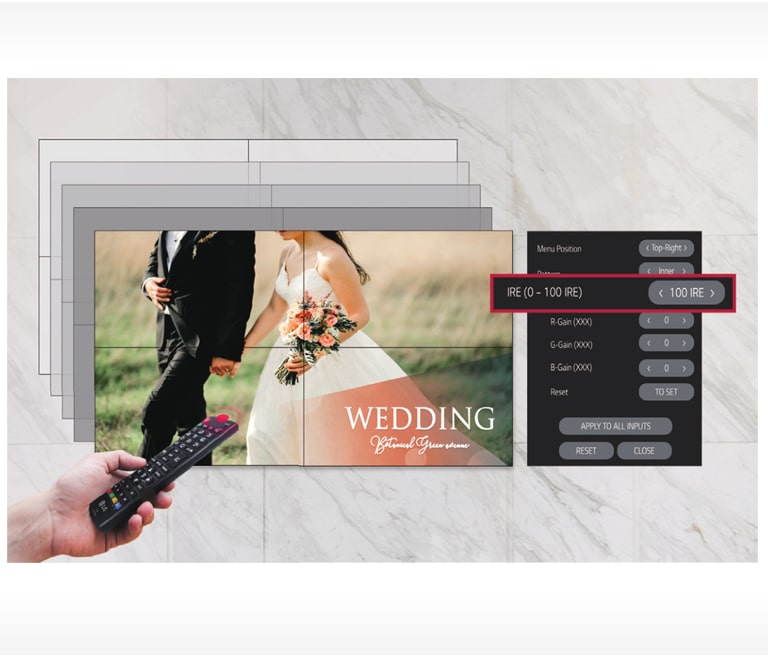

Simple White Balance Adjustment1
User Convenience

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VM5E series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

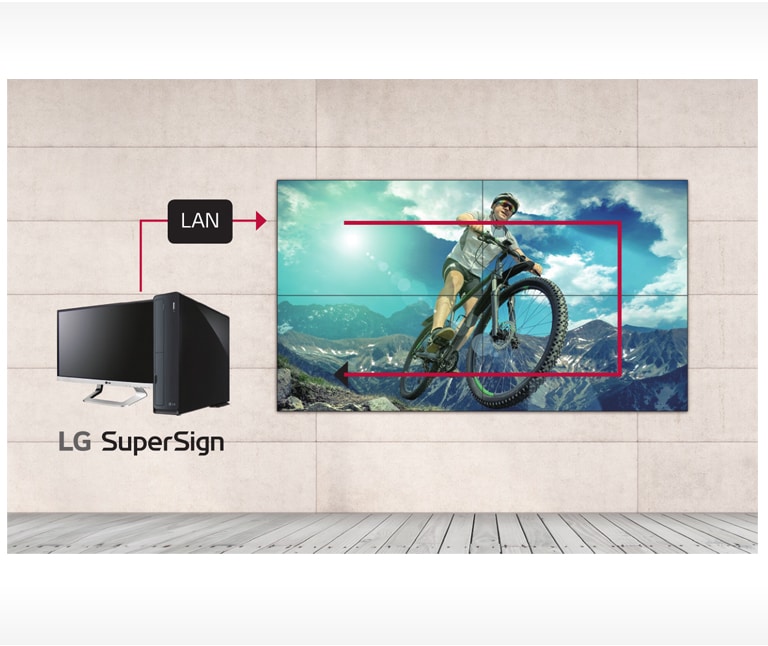

LAN Daisy Chain Management1
User Convenience

LAN Daisy Chain Management

A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.
Real-Time Care Service1
User Convenience

Real-Time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

*The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.

Print

All Spec

PANEL

  • Screen Size

    49"

  • Penel Technology

    IPS

  • Backlight Type

    Direct

  • Aspect Ratio

    16:9

  • Pixels(HxVx3)

    6,220,800

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    500nit

  • Contrast Ratio

    1,200:1

  • Dynamic CR

    30,000:1

  • Colour gamut

    NTSC 72%

  • Viewing Angle(H x V)

    178x178

  • Colour Depth

    1.07Billion(10 bit)

  • Response Time

    8 ms (G to G)

  • Surface Treatment (Haze)

    3%

  • Operation Hours

    24 Hrs

  • Life Time(Typ.)

    60,000Hrs (Trp.)

  • Orientation

    Portrait & Landscape

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control / Control+

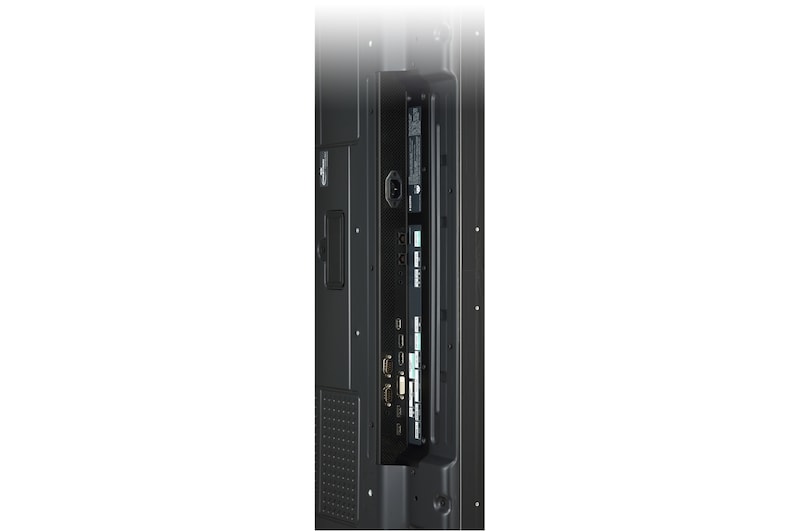

CONNECTIVITY

  • Input

    HDMI (2), DP, DVI-D, Audio, USB 2.0

  • USB

    O,(2.0)

  • Digital

    O(2), HDCP2.2

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

  • Power Switch

    No

  • Smart Energy Saving

    65 W

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    Yes (Piggyback)

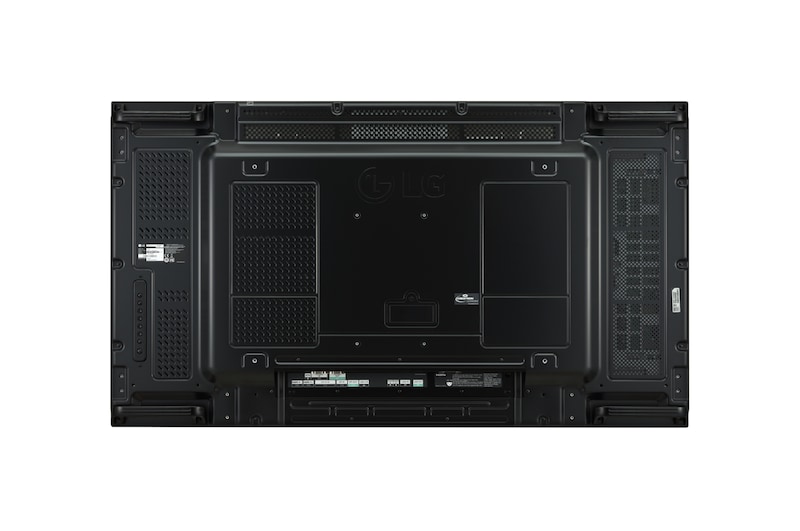

MECHANICAL SPECIFICATION

  • Bezel Colour

    Black

  • Bezel Width

    0.9 (top/bottom/left/right even bezel) mm (1.8mm) Penel Bezel + Penel Bezel

  • Handle

    Yes

  • VESA™ Standard Mount Interface

    600 x 400 mm

  • Monitor Dimension (W × H × D)

    1,075.6 x 605.8 x 86.2 mm

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ErP / Energy Star

    Yes(EU Only) / Yes (Energy Star 8.0)

  • ePEAT(US only)

    NA

KEY FEATURE

  • Internal Memory

    8GB(System 4GB + Available 4GB)

  • webOS ver.

    webOS 4.0

  • Tile Mode

    Yes(up to 15x15)

  • Source Selection

    RGB, HDMI1, HDMI2, DVI, DP, OPS, USB

  • ISM Method

    Normal, White Wash, Color Wash, User image, (User video, Inversion, Washing Bar will be supported from '15.9) Scheduling is supported additionally

  • Advanced

    Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma

  • Time

    Clock, On/Off Timer, Auto Off, Automatic Standby

  • Input Label

    O (PC/DTV)

  • Power on Status

    Standby, PWR, LST

  • DPM wake up

    Clock / Clock+Data selectable

  • Energy Saving

    O (Minimum, Medium, Maxium, Screen off)

  • USB Colning

    Logo image download, Sent to USB, Receive from USB

  • Contents scheduling

    USB, Internal memory

  • Sync mode

    Time sync, Content sync, Network sync

  • Limited mode(OSD, settings Locking)

    O (USB, IR, OSD)

  • Power on Delay

    0 ~ 250

  • Content Rotation

    OFF, 90, 180, 270

  • OSD Portrait Mode

    OFF, 90, 180, 270

  • SetID Setup

    Manual, Auto

  • Configuration Setup

    USB auto Playback

  • Lock Mode

    Home Dashboard, USB, OSD, IR Operation, Local Key

  • Fail over

    USB, RGB, DP, DVI, HDMI1, HDMI2,OPS Internal Memory

  • SuperSign Server Setup

    SIgnage name, Server IP setting, Server IP Status

LANGUAGE

  • Basic

    Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

  • Manual

    English, French, Italian, German, Spanish, Portugues, Hungarian, Greek, Russian, Ukrainian, Polish, Arabic, Indonesian, Korean, Turkish, Czech, Slovak, Taiwanese, Danish, Norwegian, Swedish, Finnish, Uzbekistan

  • Optional

    Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSF)
