Open Frame

Open Frame

Open Frame

49XF3E-B

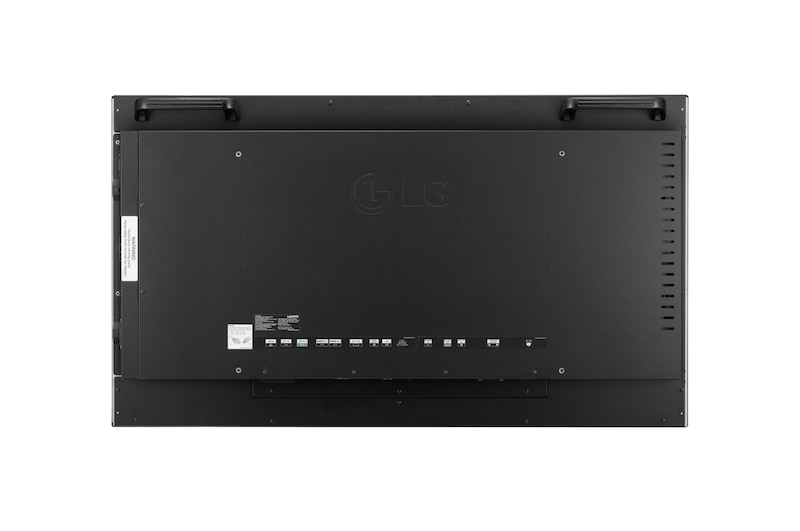

LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B

Key Features

  • Brightness : 3,000 cd/㎡ (Typ.)
  • Life Time : 50,000 hours
  • Bezel : 9 mm (T/B), 6.5 mm (L/R)
  • Depth : 105 mm
  • Interface: HDMI(2) / DP / DVI-D / RJ45 / RS232C / USB / External speaker out (L/R)
More
High Brightness1
Outstanding Visibility

High Brightness

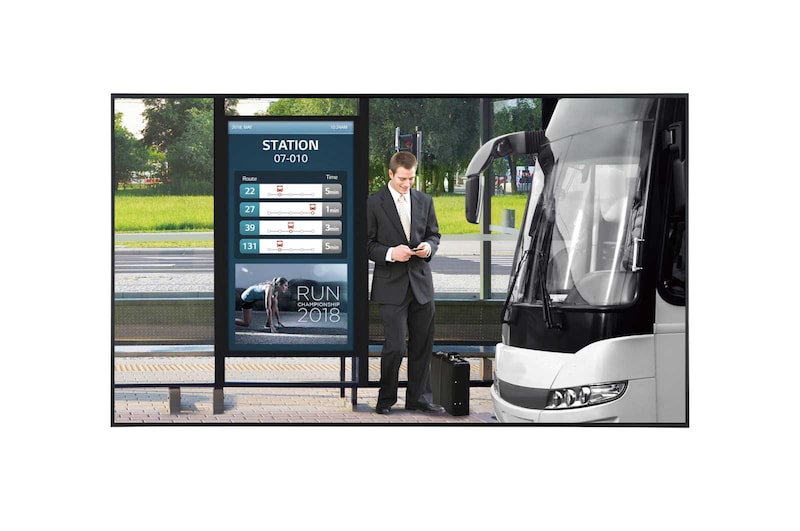

With a great brightness of 3,000 cd/㎡, XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.
Visible with Polarized Sunglasses1
Outstanding Visibility

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.

*Quarter Wave Plate

No Blackening1
Outstanding Visibility

No Blackening

Even under direct sunlight exposure, the open frame XF series remain free of blackening defects under 110°C and provide superior quality for outdoor usage.
Smart Brightness Control1
Outstanding Visibility

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
High Operating Temperature1
Product Reliability

High Operating Temperature

Its high reliability under high operating temperatures reduces additional costs for air conditioning system.
Conformal Coating1
Product Reliability

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.
High-Performance with webOS Smart Platform1
Easy Maintenance

High-Performance with webOS Smart Platform

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.
Slim Design1
Easy Maintenance

Slim Design

Thanks to its thin depth, the XF series takes up less space and leads to ease of installation for various applications.
Print

All Spec

PANEL

  • Screen Size

    49" (48.50" Measured Diagonal)

  • Resolution

    1,920 x 1,080 (FHD)

  • Brightness (Typ., cd/m²)

    3000

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0℃ to 50℃

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Type

    Built-In Power

  • Power Supply

    100-240V~, 50/60Hz

POWER CONSUMPTION

  • Typ./Max

    250 W / 290 W

  • Smart Energy Saving

    95 W

STANDARD(CERTIFICATION)

  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1

  • EMC

    FCC Class "A" / CE / KC

  • ErP

    Yes

ACCESSORY

  • Basic

    Remote Controller (2 Batteries Included), Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG)

  • Optional

    Wi-Fi Dongle (AN-WF500) * Stand is not available

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control+(Software compatibility may change over time.)

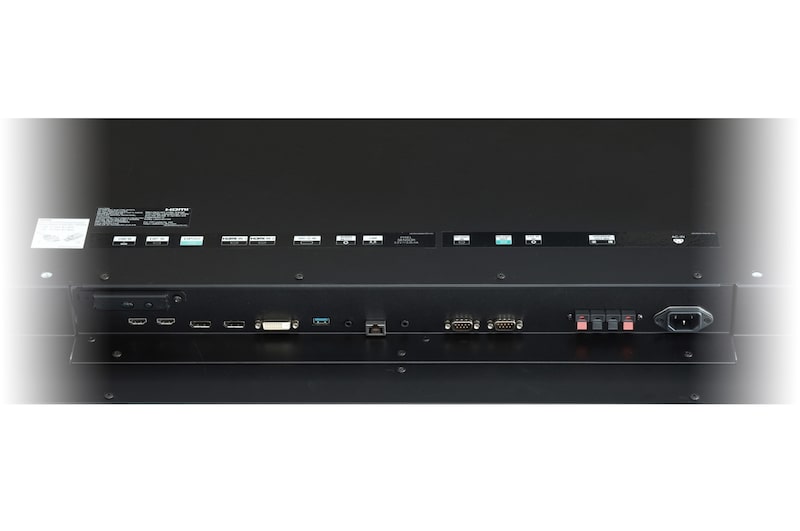

CONNECTIVITY

  • Input

    HDMI (2), DP, DVI-D, Audio, USB

  • Output

    DP, External Speaker

  • External Control

    RS232C In/Out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATION

  • Bezel Width

    9 mm (T/B), 6.5 mm (L/R)

  • Monitor Dimension (W x H x D)

    1,092.7 x 626.4 x 105 mm

  • Weight (Head)

    21.5 kg

  • Carton Dimensions (W x H x D)

    1,195 x 196 x 760 mm

  • Packed Weight

    26.2 kg

  • VESA™ Standard Mount Interface

    600 x 400 mm

COMPLIANCE INFORMATION

MORE COMPLIANCE INFORMATION
The safety information for accessories is included with the safety information for the product and is not provided separately.

Specification Sheet

extension : pdf
HSP894 - ID Specsheet 98UH5F.PDF
Download
extension : pdf
XF_Series_75XF3ES 75XF3C 55XF3E 49XF3E_LG_Digital_Signage.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
