43SH7DD-B

43" 700 nits FHD Standard Signage

Outstanding Brightness1
Outstanding Visibility

Outstanding Brightness

The 700 cd/m² brightness is enough to stand out against the surrounding background, so signage can attract passerby and delivers content vividly and effectively.
Wide Viewing Angle1
Outstanding Visibility

Wide Viewing Angle

Thanks to IPS technology, SH7DD series provides a clear, vibrant picture with no washed out tones at any angle.
Low Power Consumption1
Cost Effective

Low Power Consumption

SH7DD offers excellent energy efficiency and cost savings by decreasing power consumpton by approx. 32% compared to the conventional model with equal luminance.

*Based on 49" model

Power Management Mode1
Cost Effective

Power Management Mode

Even without signal from the media player, the network does not turn off completely, so remote control is possible, which prevents unnecessary power usage and enables efficient management.
USB Content Scheduling1
Convenient Managment

USB Content Scheduling

There is no need for additional server or media player connections because SH7DD supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB.

*Supported Content Type: Video (MPEG1/2/4, H.264),Audio (MP3, AC3, MPEG, AAC, HEAAC, LPCM), Image (JPEG, PNG, BMP)

Wi-Fi Support1
Convenient Managment

Wi-Fi Support

SH7DD series supports Wi-Fi dongle connection for easier content distribution and installation. And SNMP* support ensures convenient network management.

*SNMP: Simple Network Management Protocol

No Signal Image Setting1
Convenient Managment

No Signal Image Setting

In case there is no signal input, it is possible to play back images preset by the user using a USB, instead of displaying the conventional no signal image.
Local Time Setting1
Convenient Managment

Local Time Setting

A time zone can be configured at initial installament, so that the signage display accesses the local NTP* server and automatically sets the local time. In addition, the local time can be adjusted manually by grouping multiple signages using RS232C without a network connection.

* NTP: Network Time Protocol

Detachable Logo & Built-in Speaker1
Industrial Design

Detachable Logo & Built-in Speaker

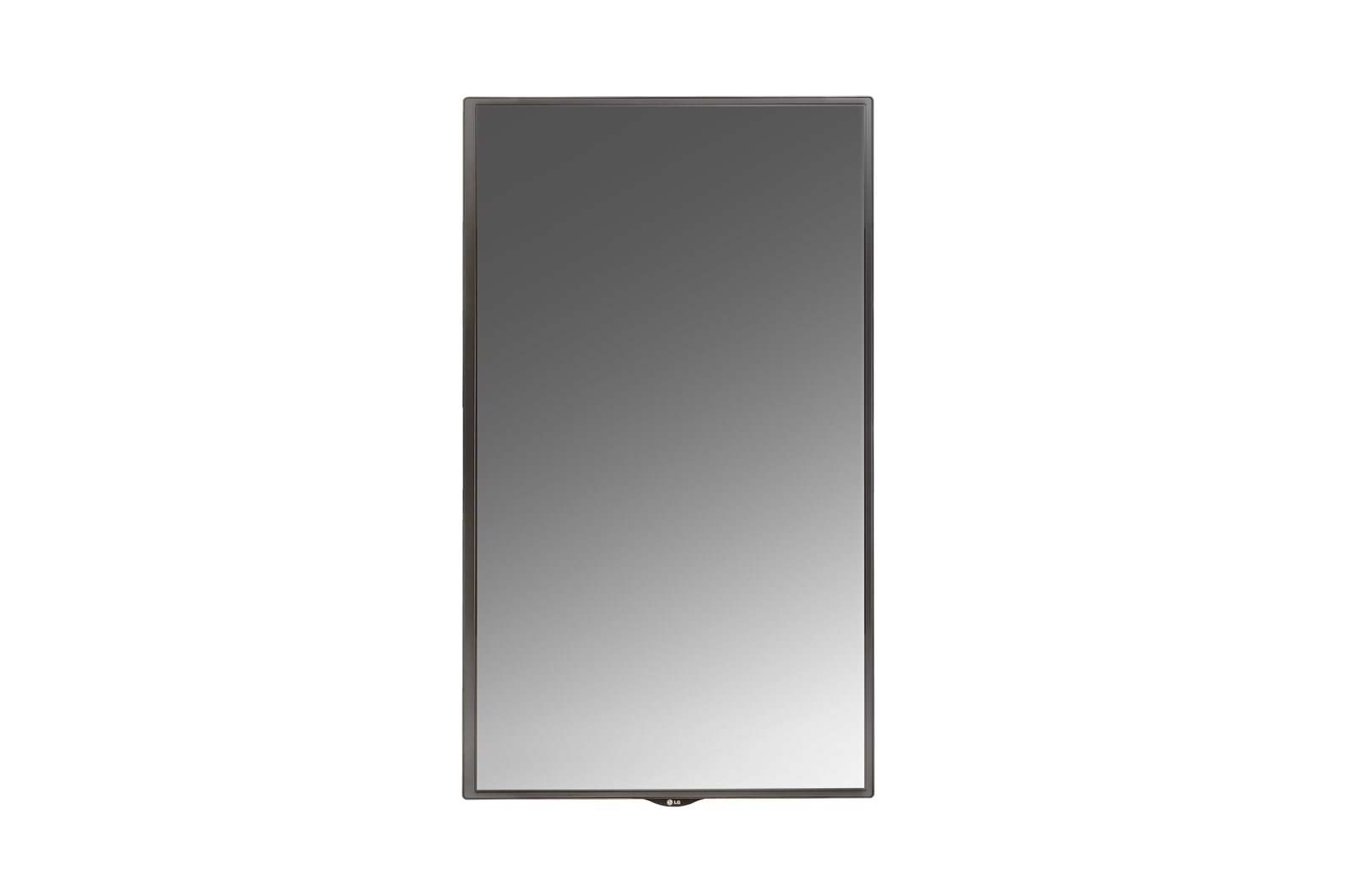

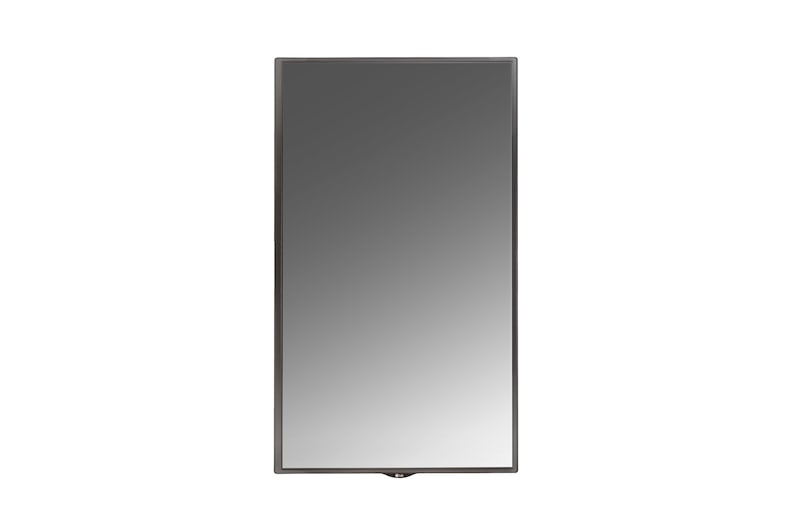

The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, giving advertisements greater impact.

All Spec

PANEL

  • Screen Size

    43"

  • Resolution

    1,920 x 1,080 (FHD)

  • Brightness(Typ.,cd/m²)

    700

CONNECTIVITY

  • Input

    HDMI (2), DVI, RGB, Audio, USB 2.0

  • Output

    Audio

  • External Control

    RS232C In/Out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATION

  • Bezel Width

    11.9 mm (T/R/L), 18 mm (B)

  • Monitor Dimension (W x H x D)

    969.6 x 563.9 x 54 mm

  • Weight (Head)

    10.0 kg

  • VESA™ Standard Mount Interface

    200 x 200 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    75 W

  • Smart Energy Saving

    55 W

STANDARD(CERTIFICATION)

  • Safety

    UL / cUL / CB / TUV / KC

  • EMC

    FCC Class "A" / CE / KCC

  • ErP / Energy Star

    N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible

    No

  • External Media player Attatchable

    Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign Premium

  • Control and Monitoring Software

    SuperSign C

ACCESSORY

  • Basic

    Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver

  • Optional

    Stand (ST-432T), Media player, Wall bracket (LSW230B), VESA Adapter (AM-B220S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T430)

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
