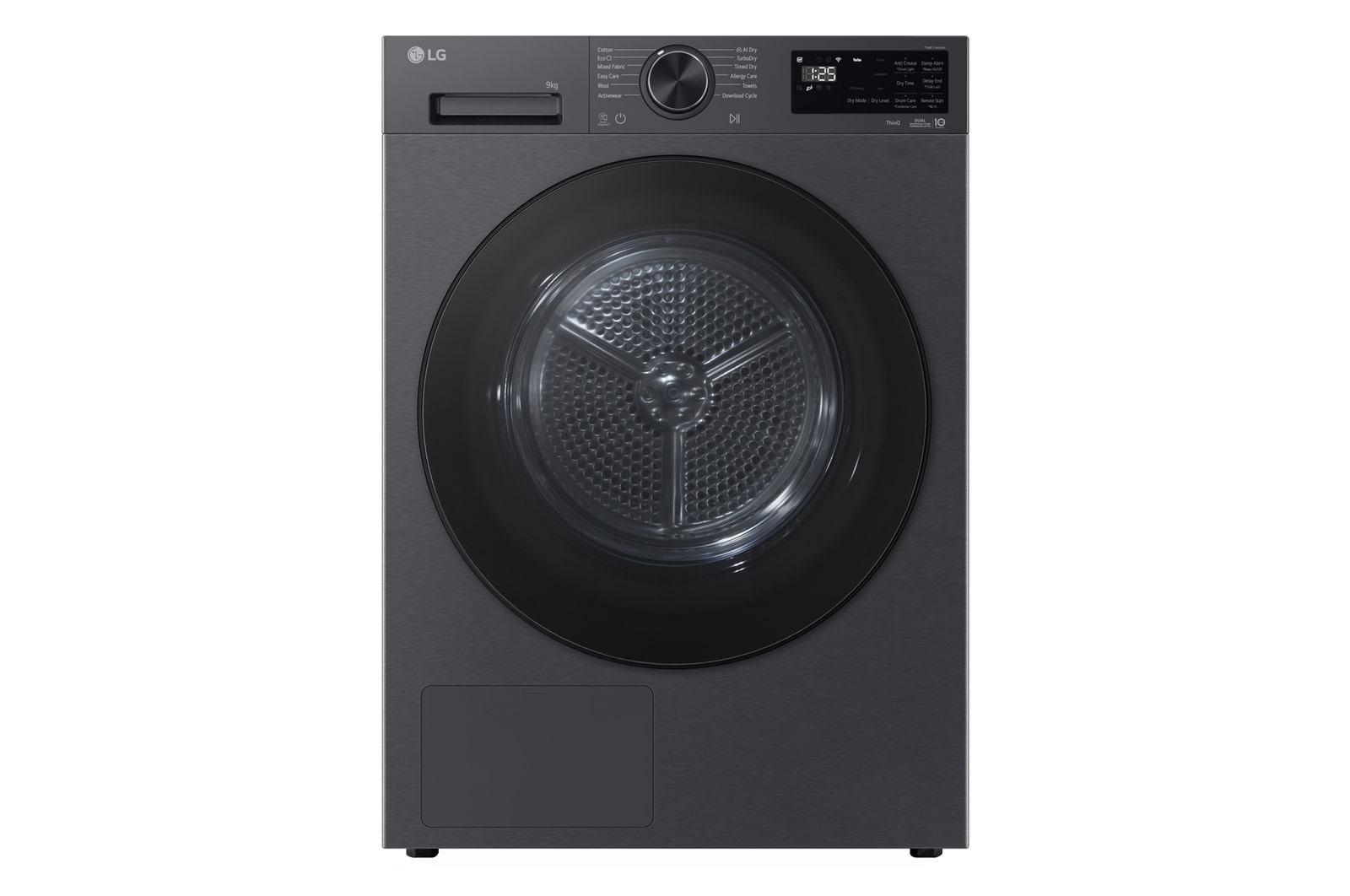

9kg DUAL Inverter Heat Pump™ Tumble Dryer, Series 5, Black
9kg DUAL Inverter Heat Pump™ Tumble Dryer, Series 5, Black
RHX5009TBB
()
Key Features
- DUAL Inverter Heat Pump™: Twin cylinders deliver faster, more efficient drying, saving you time and energy.
- AI Dry™: Automatically senses temperature and humidity in every load, adjusting the cycle for consistent, reliable drying every time.
- TurboDry: drying done in just 81 minutes, thanks to the powerful Dual Inverter Compressor.
- LG Auto Clean Condenser™: Keeps itself clean after every cycle, maintaining peak performance with zero effort from you.
- Smart Pairing™: Receives data from compatible LG washers to set the dryer automatically.
- LG ThinQ™ Wi-Fi: Models allow simple control, monitoring and even download of new cycles.
Smarter drying, simpler days

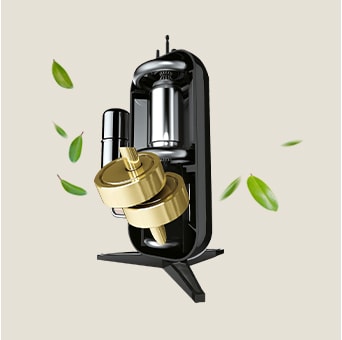

AI DUAL Inverter™
AI to the core, optimal drying
AI Dry™ uses AI DUAL Inverter™¹⁾ to adjust drying by fabric and load, saving time and energy. Dual cylinders reduce vibration and boost efficiency, while low-temp drying helps prevent shrinkage. Includes 10-year warranties on key components.

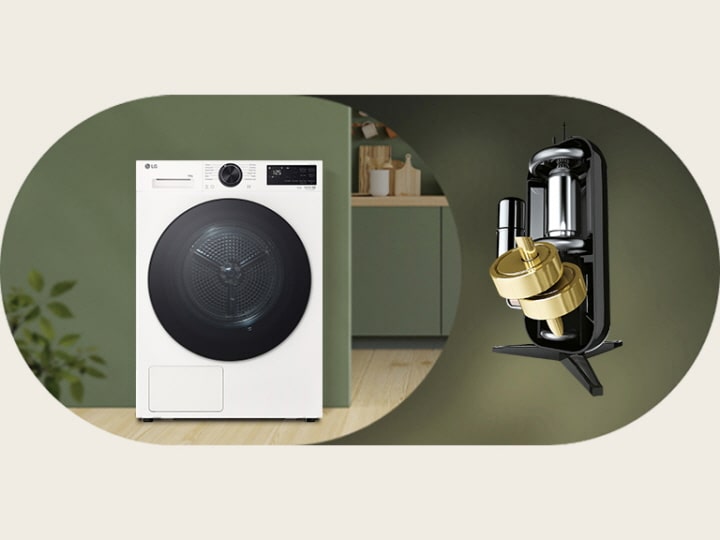

Image of an LG dryer placed in a green-themed interior with a visual highlight of the AI DUAL Inverter component

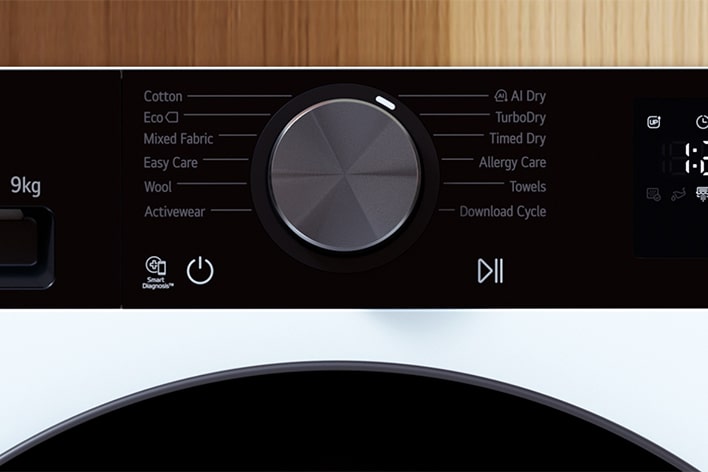

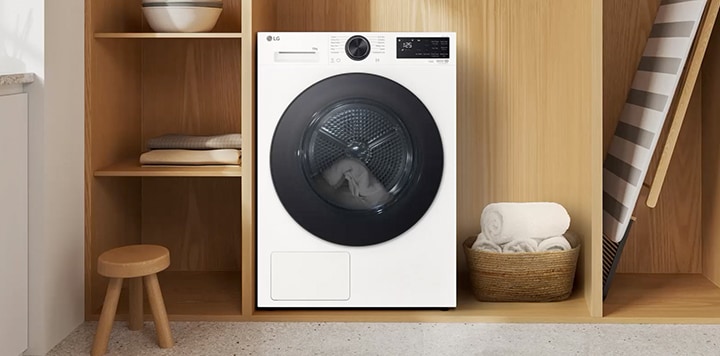

AI Dry™
AI enhanced optimal drying
AI Dry™²⁾optimises drying by fabric type and load size, which can help save energy and time for efficient results with soft fabrics.
*The product images in the image and video are for illustrative purposes only and might differ from the real product.
TurboDry
Speed up in 81 minutes
Get quick 81-minute³⁾ drying powered by the DUAL Inverter Compressor for less waiting and more living.
Allergy Care
Say goodbye to live dust mites
'Allergy Care' cycle which maintains internal temperatures of up to 60℃. This process reduces live dust mites, which may cause allergy or respiratory issues.
Image of a blanket and teddy bear inside a LG dryer with the British Allergy Foundation logo displayed
*Allergy Care cycle approved by BAF(British Allergy Foundation) reduces allergens such as house dust mites.⁴⁾
*Global Warming Potential: R290: about 3, R134a: about 1340⁵⁾
Smart Pairing™
Wash and dry in Sync
The Wi-Fi-connected washer and dryer can be set up with the Smart Pairing™ using the LG ThinQ™ application, and when the washing is finished, the dryer automatically sets the optimal drying cycle.
*The Wi-Fi-connected washer and dryer can be set up with the Smart Pairing™ using the LG ThinQ™ application, and when the washing is finishes, the dryer automatically sets the optimal drying cycle.⁶⁾
*The product images in the image and video are for illustrative purposes only and might differ from the real product.

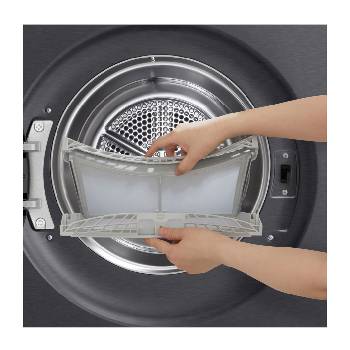

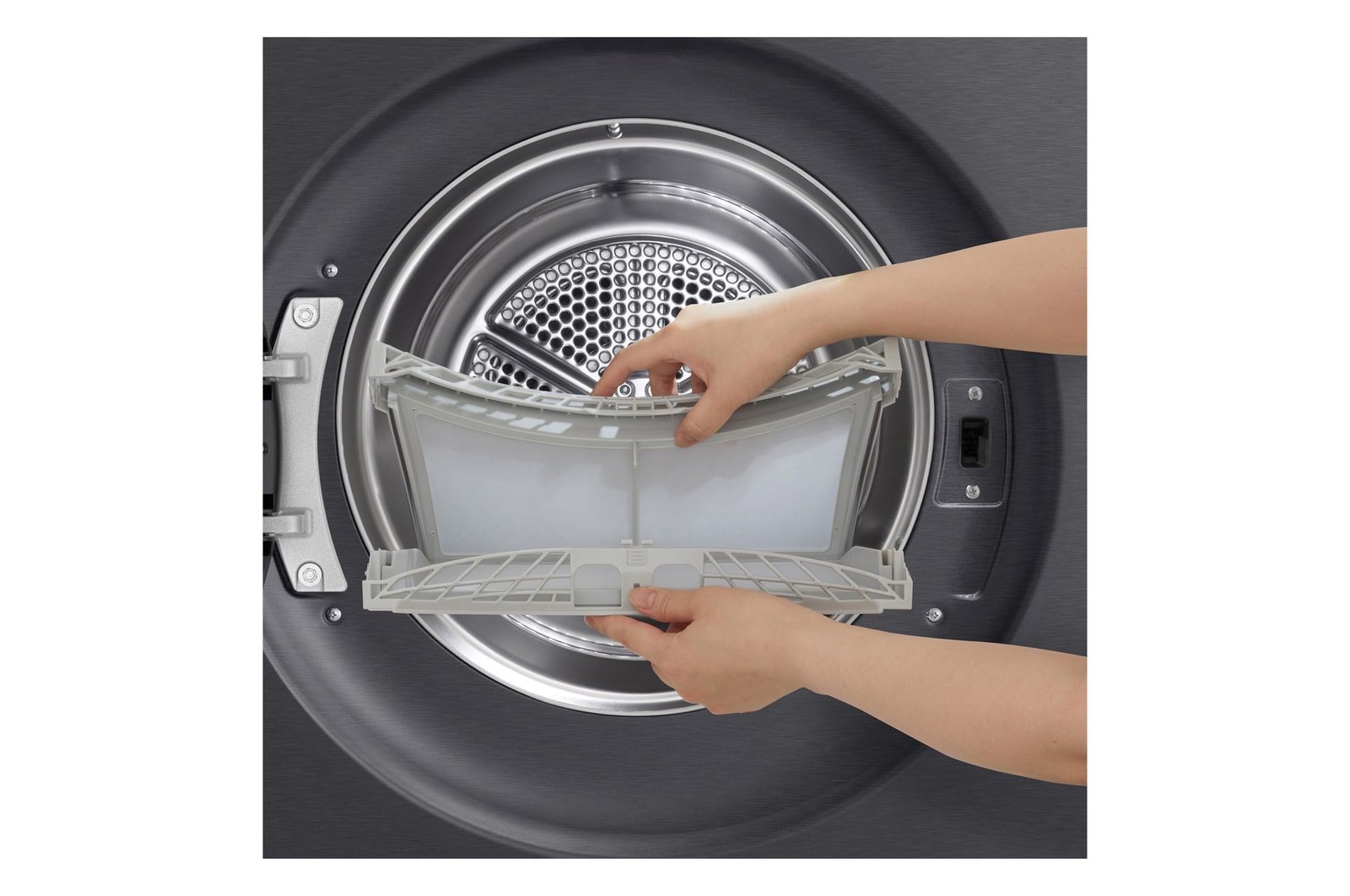

Dual Lint Filter
Keep clothes clean by easily removing lint

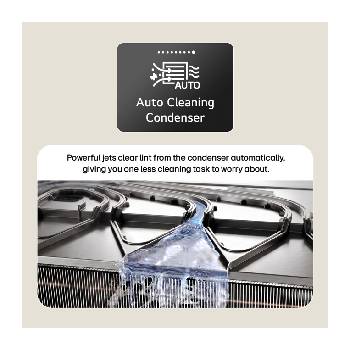

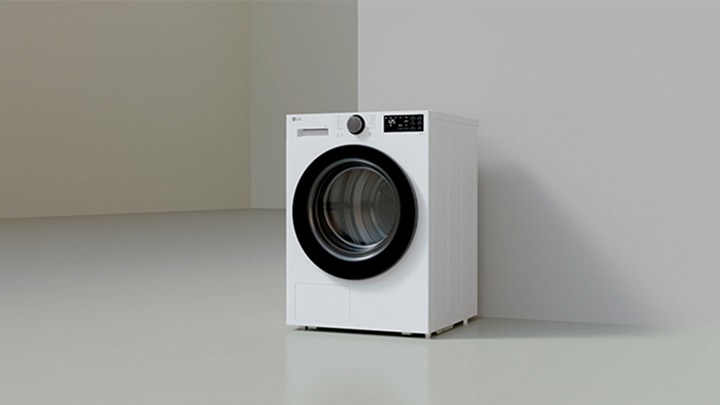

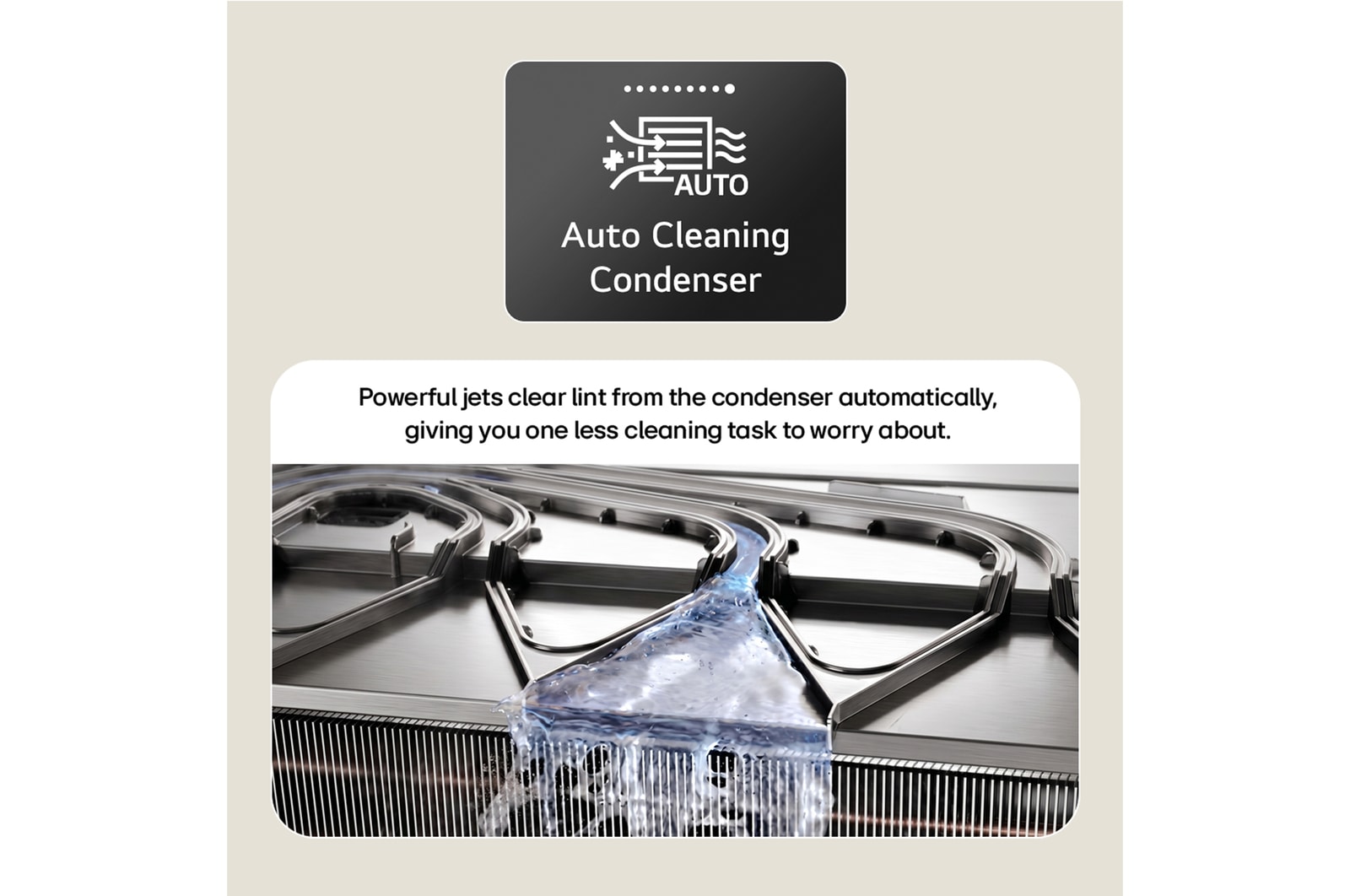

Auto Cleaning Condenser⁷⁾
No manual cleaning required for the condenser
Automatically removes lint & dirt in the condenser to keep drying performance running consistently and powerfully. This not only takes the hassle out of cleaning the condenser, but also reduces potential damage to the part from manual cleaning.
*The product images in the image and video are for illustrative purposes only and might differ from the real product.
LG ThinQ™
Smart Life begins with easy control
With LG ThinQ™, do laundry smarter—control remotely, download extra cycles, and connect with the latest tech like Google Assistant.
Control your laundry anytime, anywhere
The LG ThinQ™ app allows you to connect with your dryer like never before. Start your load with just the tap of a button.
Easy maintenance and monitoring
Whether it's everyday maintenance or larger tasks, conveniently monitor your dryer's energy usage through the LG ThinQ™ app.
Hands-free laundry with Voice Assistant
Tell your smart speaker or AI assistant what you need and let your dryer take care of the rest.
*Support for smart home devices that are compatible with Google Assistant may vary by country and your individual smart home setup.⁸⁾

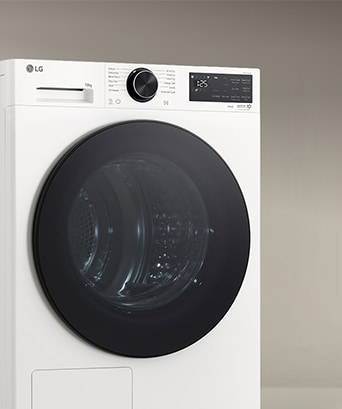

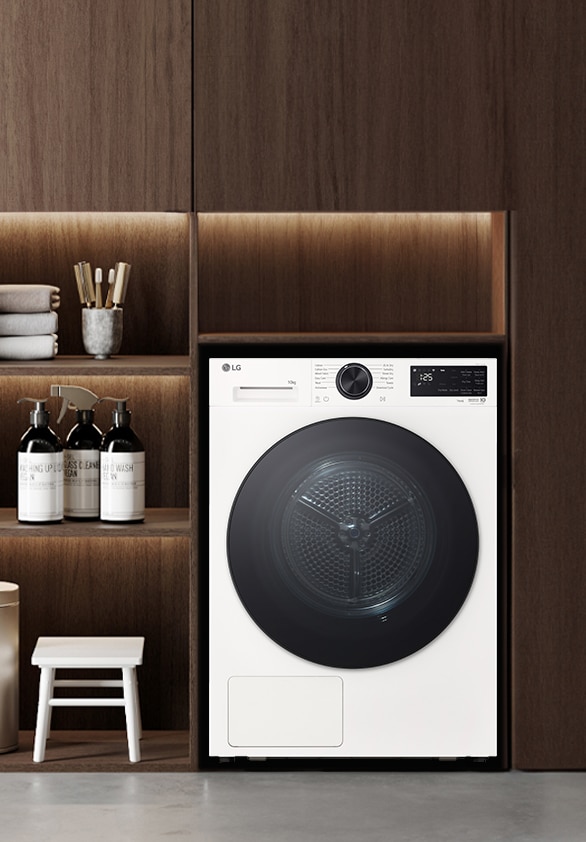

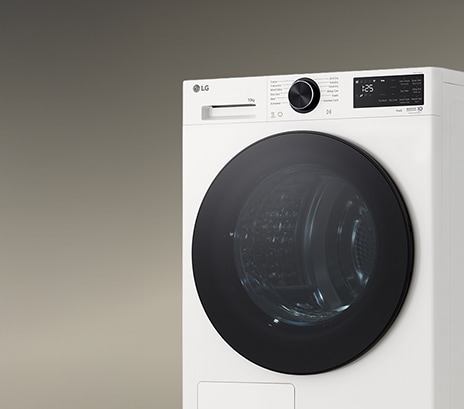

Sleek design built for your needs
1) AI DUAL Inverter™
- Tested by Intertek in July 2024. Compared to the Cotton cycle, the AI Dry cycle showed a reduction in drying time and a decrease in energy consumption with a 3kg mixed load of soft fabrics (blended shirts, blouses, functional T-shirts, chiffon skirts, poly shorts, etc.). (Based on AI Dry representative model: RH90X75V3N. Results may vary depending on models, loads, and environment.) Not all situations are eligible for savings. Depending on the type and thickness of clothing and the environment, the time or energy consumption may increase and the results may vary. **AI sensing is activated when the load is under 5kg. AI Dry should only be used with similar fabric types [not all fabrics are detected]. ***Tested by Intertek on August 2024, Cotton cycle of LG Heatpump dryer compared to Dry Only of LG Conventional heater washer-dryer based on 3kg of IEC loads with 60% initial moisture content (RH90X75V3N vs F4Y7RRPYW). ****The 10-year warranty is on the Dual Inverter Compressor and Inverter Motor only. Warranty period/policy may vary depending on the country or region. *****Noise level: 62dB (Sound Power Level), based on EU Regulation 392/2012 (RH90X75V3N).
2) AI Dry™
- Tested by Intertek in July 2024. Compared to the Cotton cycle, the AI Dry cycle showed a reduction in drying time and a decrease in energy consumption with a 3kg mixed load of soft fabrics (blended shirts, blouses, functional T-shirts, chiffon skirts, poly shorts, etc.) (RH90X75V3N). Depending on the type and thickness of clothing and the environment, the time or energy consumption may increase and the results may vary. *AI sensing is activated when the load is under 5kg. AI Dry should only be used with similar fabric types [not all fabrics are detected].
3) TurboDry
- Tested by Intertek on July 2024. TurboDry cycle with 5kg of load (Blended shirt, 100% poly T-shirt, 100% cotton T-shirt) with 33% initial moisture content at a temperature condition of 23℃. The results may be different depending on the clothes and environment.
4) Allergy Care
- Allergy Care cycle approved by BAF(British Allergy Foundation) reduces allergens such as house dust mites.
5) R290
- Global Warming Potential: R290: about 3, R134a: about 1340
6) Smart Pairing™
- The Wi-Fi-connected washer and dryer can be set up with the Smart Pairing™ using the LG ThinQ™ application, and when the washing is finished, the dryer automatically sets the optimal drying cycle.
7) Auto Cleaning Condenser
- The cleanliness of the condenser may differ depending on the operating environment.
- The frequency of running 'auto cleaning condenser' may vary depending on the size and the initial moisture amount of the laundry.
8) LG ThinQ™
- Support for smart home devices that are compatible with Google Assistant may vary by country and your individual smart home setup.
Summary
DIMENSIONS

Key Spec
DIMENSIONS & WEIGHTS - Product Dimensions (WxHxD mm)
600 x 850 x 660
ENERGY - Energy Efficiency Class (Dry)
B
FEATURES - DUAL Inverter Heat Pump
Yes
FEATURES - Auto Cleaning Condenser
Yes
FEATURES - Heat Source Type
Heat Pump Electric
FEATURES - Reversible Door
Yes
SMART TECHNOLOGY - ThinQ(Wi-Fi)
Yes
All Spec
MATERIAL & FINISH
Door Type
Black Tinted Tempered Glass Cover
Body Color
Matte Black
CAPACITY
Max Dry Capacity(kg)
9.0
CONTROL & DISPLAY
Delay Timer
3-19 hours

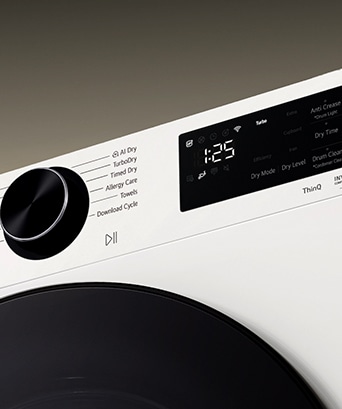

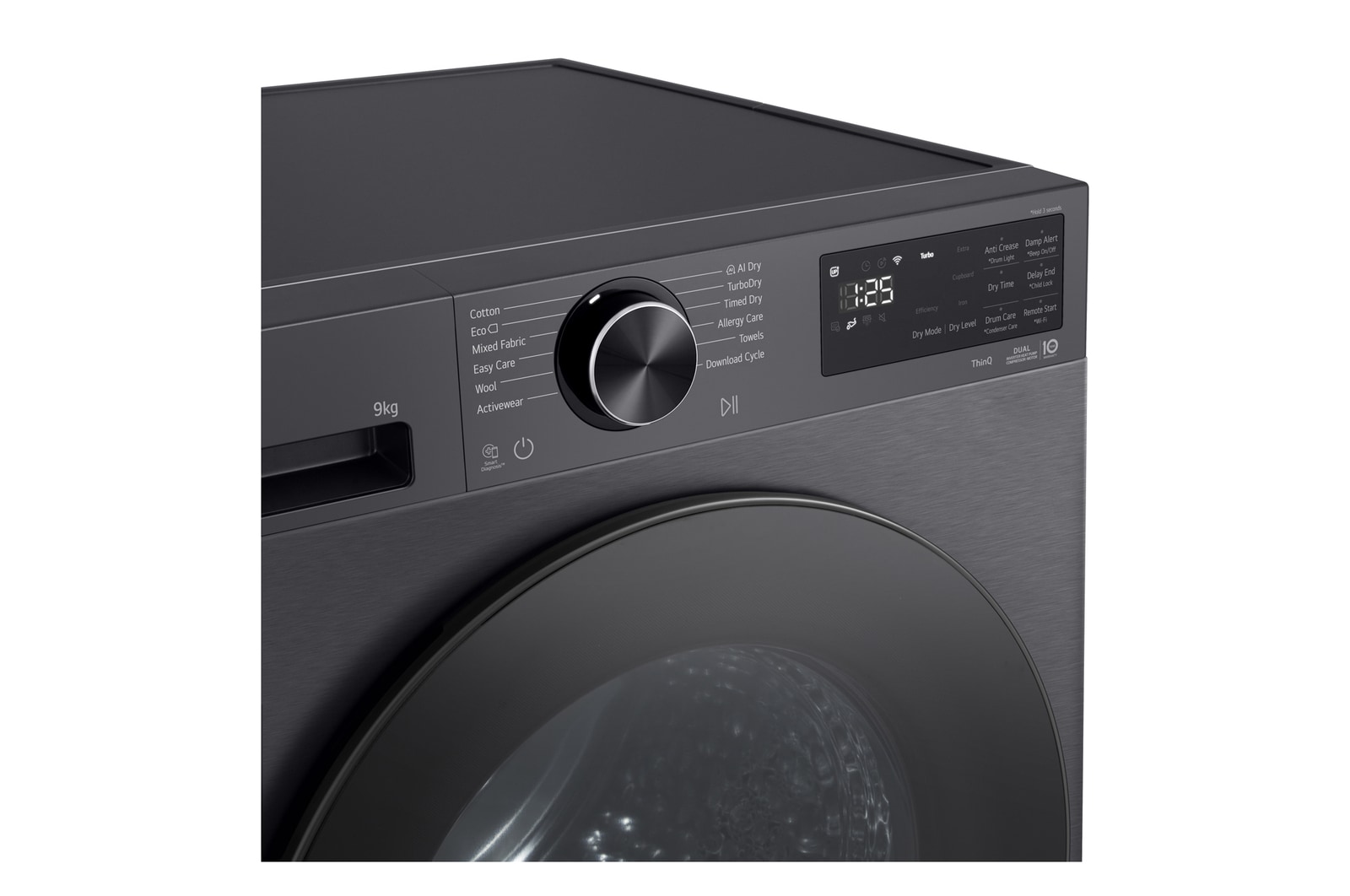

Display Type
Dial + Full Touch Buttons & LED Display
Door Lock Indication
No
Figure Indicator
18:88
FEATURES
6 Motion DD
No
AI DD
No
Type
Condenser Dryer (Ventless)
Auto Cleaning Condenser
Yes
Dual Dry (EcoHybrid)
Yes
DUAL Inverter Heat Pump
Yes
Dual Lint Filter
Yes
Empty Water Indicator
Yes
Heat Source Type
Heat Pump Electric
End of Cycle Signal
Yes
Auto Restart
No
Inverter DirectDrive
No
Reversible Door
Yes
LoadSense
Yes
Sensor Dry
Yes
Drum Light
Yes
Leveling Legs
Yes
Embossing Inner Drum
Yes
Inverter Motor
Yes
ENERGY
Energy Efficiency Class (Dry)
B
Energy Efficiency Class (Dry) - Previous Standard
A+++
SMART TECHNOLOGY
Download Cycle
Yes
Energy Monitoring
Yes
Remote Start and Cycle Monitor
Yes
Smart Diagnosis
Yes
ThinQ(Wi-Fi)
Yes
Smart Pairing
Yes
ADDITIONAL OPTIONS
Anti Crease
Yes
Condenser Care
Yes
Drum Care
Yes
Dry Level
3 Levels
Favourite
No
Less Time
No
More Time
No

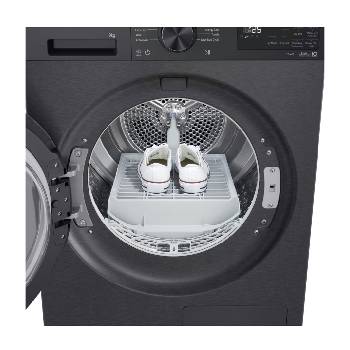

Rack Dry
No
Wi-Fi
Yes
Beep On/Off
Yes
Child Lock
Yes
Delay End
Yes
Drum Light
Yes
Remote Start
Yes
Steam
No
Dry Time
Yes
DIMENSIONS & WEIGHTS
Box Dimensions (WxHxD mm)
660 x 890 x 702
Product Dimensions (WxHxD mm)
600 x 850 x 660
Weight (kg)
53.0
Weight include packing (kg)
57.0
Product Depth with door open 90˚ (mm)
1140
OPTIONS/ACCESSORIES
Drain Hose Kit
Yes

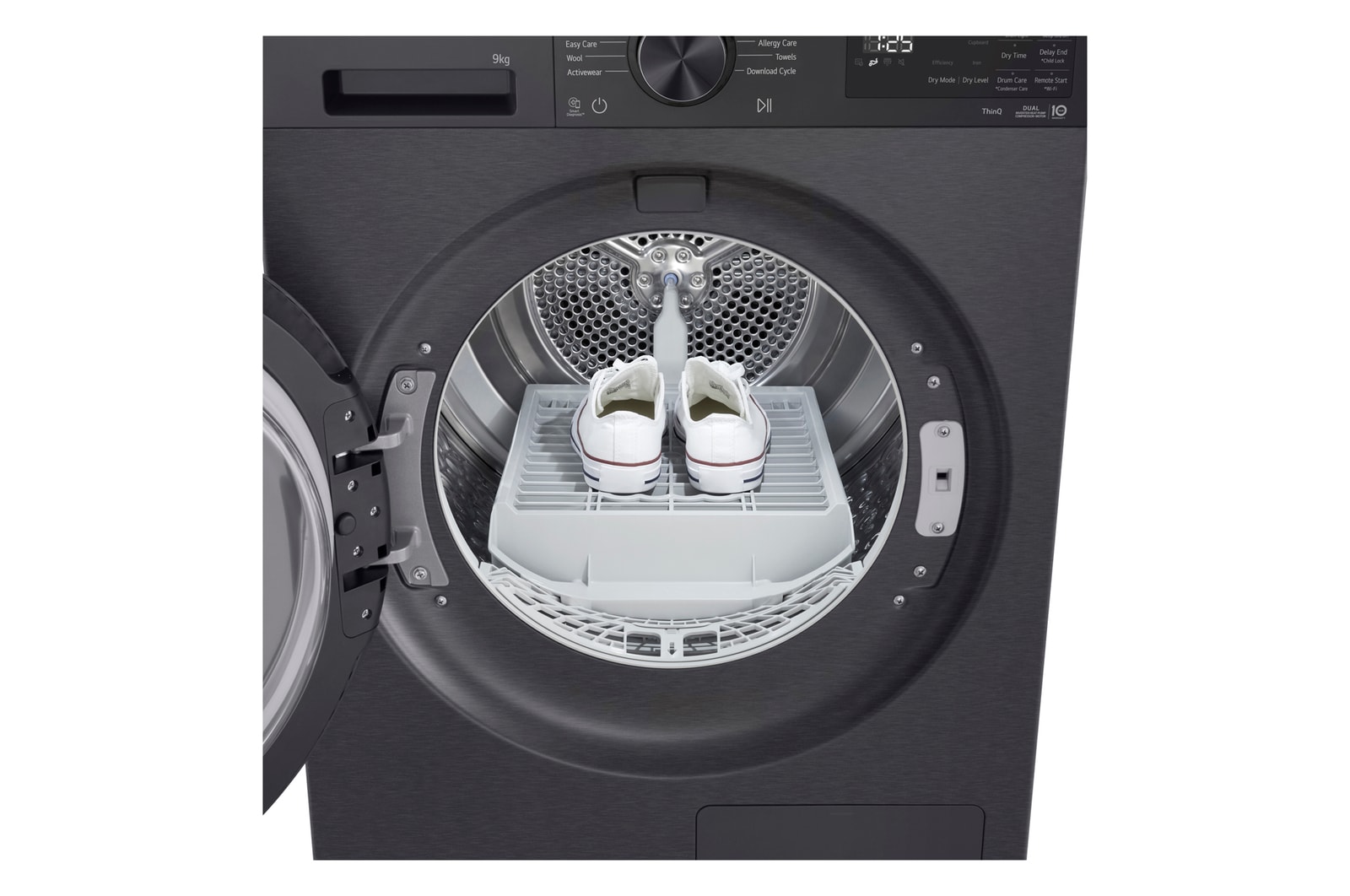

Rack Assembly
Yes
Stacking Kit
No
LG TWINWash Compatible
No
PRODUCT FICHE (DRYER) - CURRENT STANDARD
Awarded an ‘EU Ecolabel award’
No
Automatic Tumble Dryer
Yes
Condensation Efficiency Class
B
Edry1/2 (kWh)
0.76
Edry (kWh)
1.43
Full Load Condensation Efficiency (%)
91
Half Load Condensation Efficiency (%)
91
Noise Level (sound power level) (dBA)
62
Power Consumption(W) - Off-Mode
0.35
Power Consumption(W) - On-Mode
0.35
Standard Drying Program
Eco Cupboard Efficiency
Time (Min) - (Full Load)
269
Time (Min) - (Partial Load)
160
Weighted Condensation Efficiency (%)
91
Weighted Energy Consumption per 100 cycle (kWh)
92
Weighted Programme Time
186
COMPLIANCE
The security update is supported for
5 years from the product launch date stated at https://lgsecurity.lge.com/bulletins/homeappliance
PRODUCT FICHE (DRYER) - PREVIOUS STANDARD
Automatic Tumble Dryer
Yes
Awarded an ‘EU Ecolabel award’
No
Condensation Efficiency Class
A
Duration of the left-on mode (Min)
10
Edry1/2 (kWh)
0.76
Edry (kWh)
1.43
Energy Consumption per Year (kWh)
171
Full Load Condensation Efficiency (%)
91
Half Load Condensation Efficiency (%)
91
Noise Level (sound power level) (dBA)
62
Power Consumption(W) - Off-Mode
0.35
Power Consumption(W) - On-Mode
0.35
Standard Drying Program
Eco Cupboard Efficiency
Time (Min) - (Full Load)
269
Time (Min) - (Partial Load)
160
Weighted Condensation Efficiency (%)
91
Weighted Programme Time
207
PROGRAMS
Activewear(Sportswear)
Yes
Air Dry (Cool Air)
No
AI Dry
Yes
Allergy Care (dryer)
Yes
Bedding Refresh
No
Bulky Item
No
Cotton
Yes
Cotton +
No
Delicates
No
Download Cycle
Yes
Down Jacket Refresh
No
Duvet
No
Easy Care
Yes
Eco
Yes
Jeans
No
Mixed Fabric
Yes
Quick 30
No
Quick 40
No
Quick Dry
No
Rack Dry
No
Refresh
No
Skin Care
No
Steam Hygiene
No
Steam Refresh
No
Timed Dry
Yes
Towels
Yes
Turbo Dry
Yes
Warm Air
No
Wool
Yes
