SK10Y

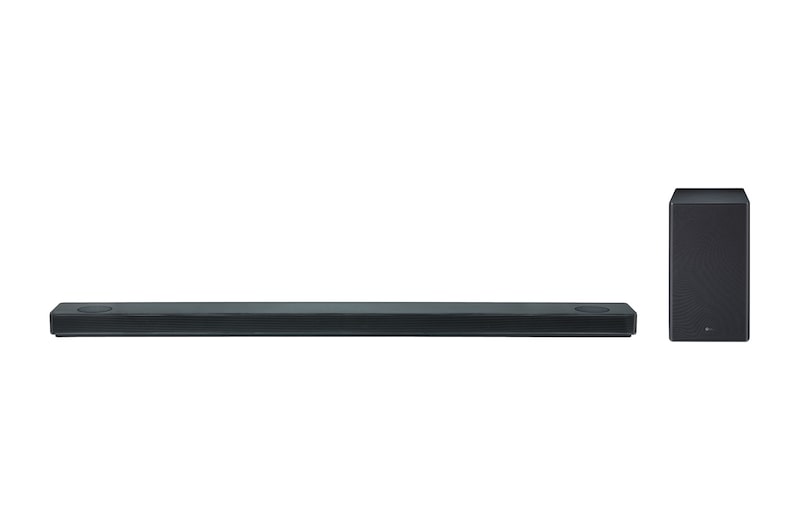

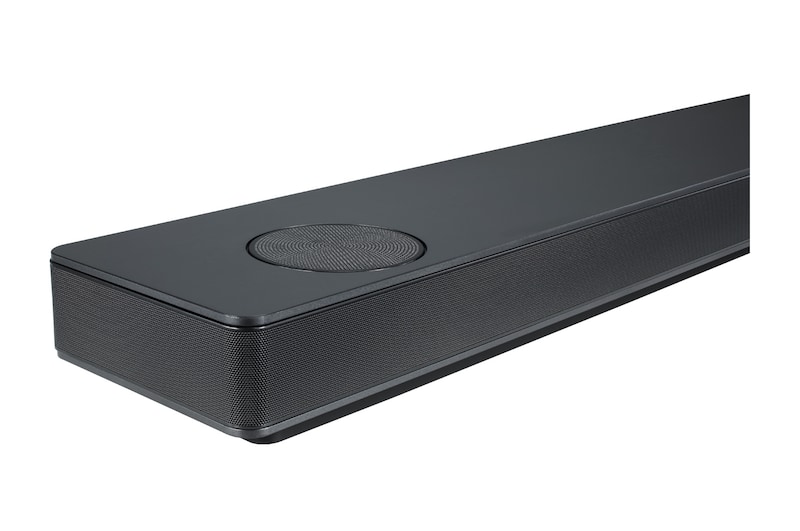

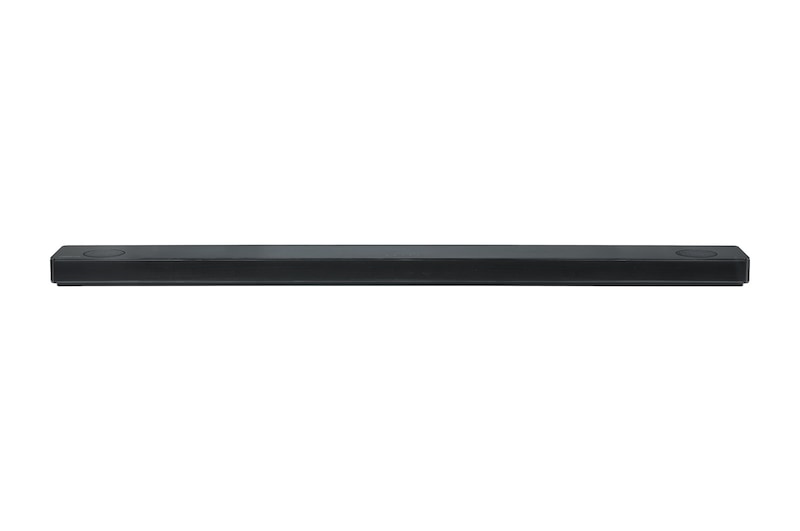

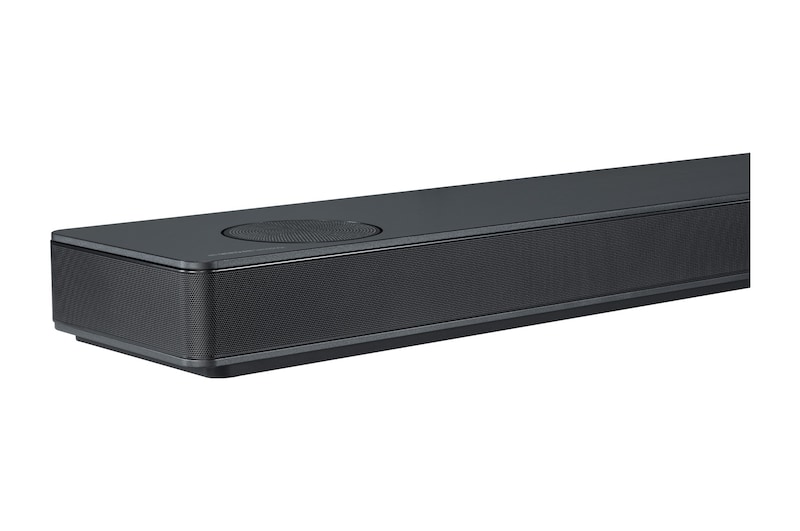

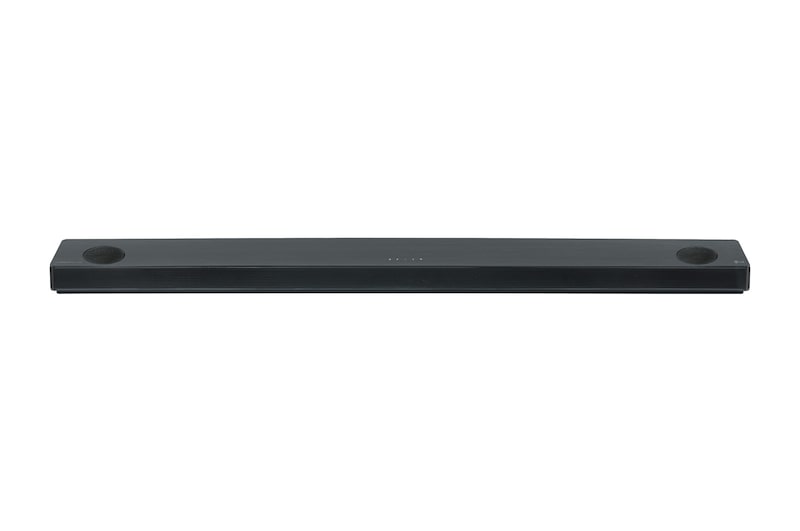

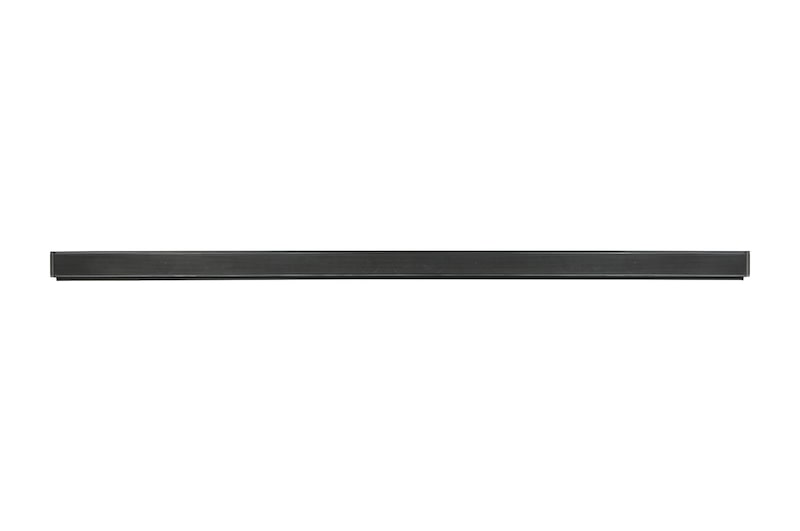

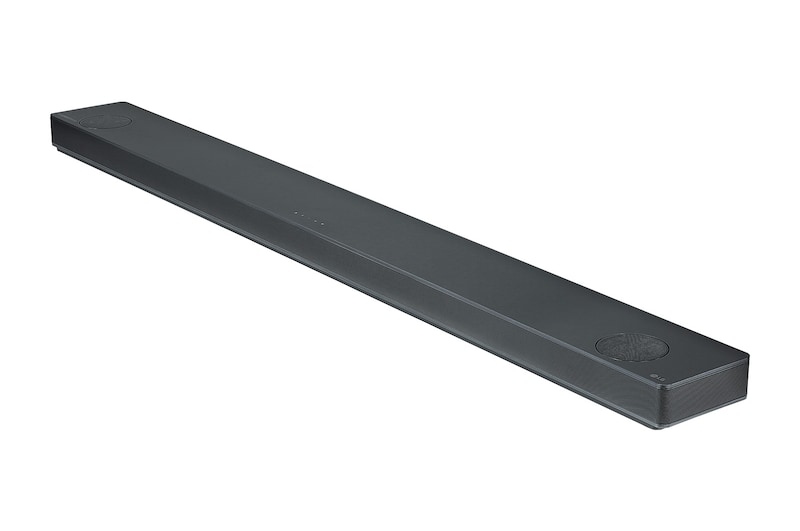

5.1.2 ch High Res Audio Sound Bar w/ Meridian Technology
  • with MERIDIAN Techonlogy
  • Dolby Atmos
  • High Resolution Audio
  • Sound Up-converting
  • TV Matching Design
  • 4K Pass-through

component-OBScountrySelectDesc

5.1.2 ch High Res Audio Sound Bar w/ Meridian Technology

Dimensions

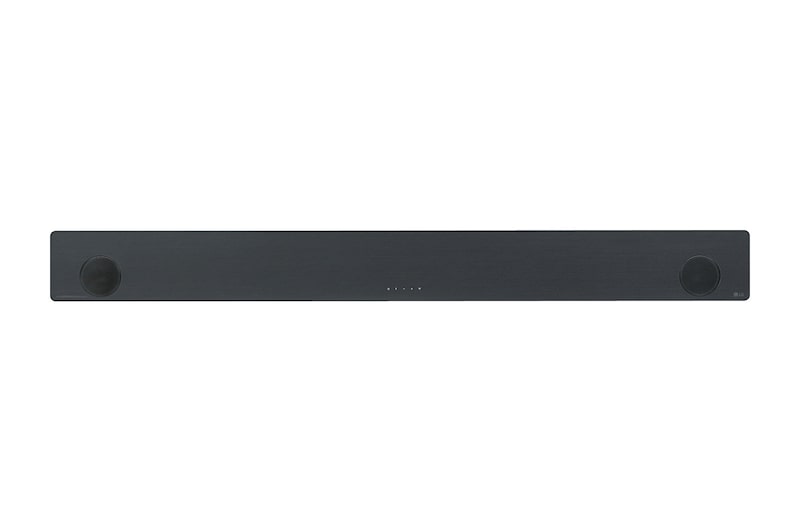

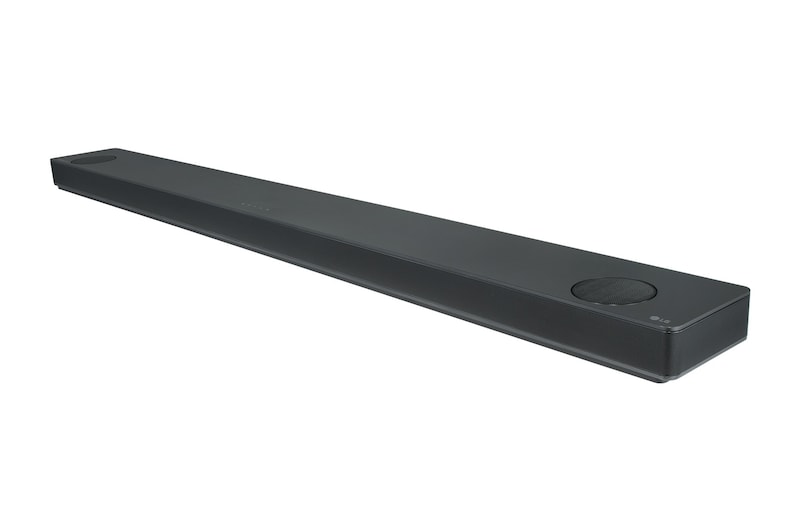

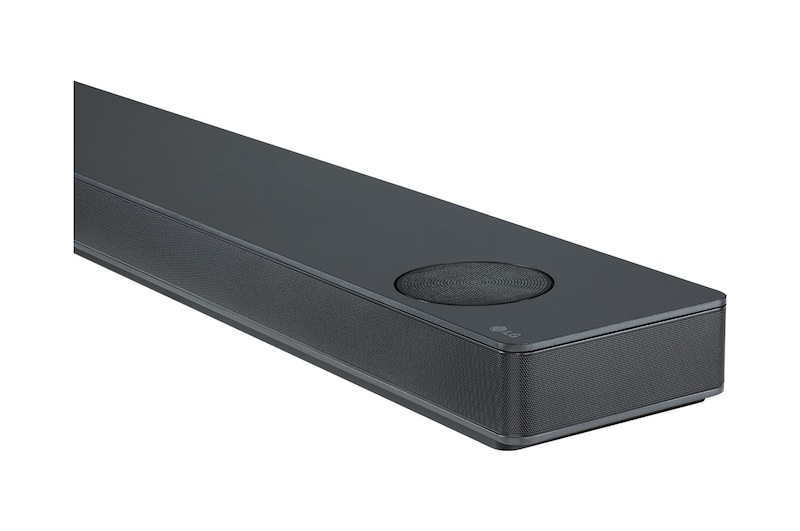

  • Main (W x H x D / mm)
    1443.0 x 63.0 x 146.0

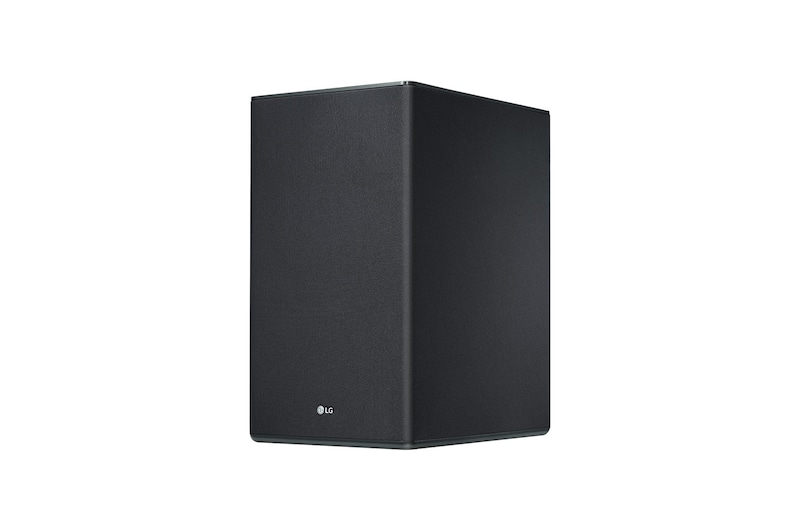

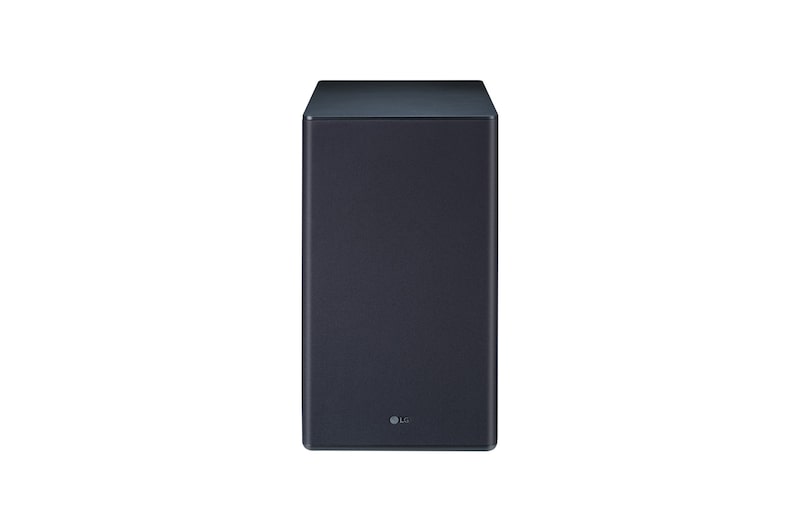

    Subwoofer (W x H x D / mm)
    221.0 x 390.0 x 312.8
  • Carton Size (W x H x D / mm)
    1516 x 472 x 284
    Carton Type
    Offset
  • Main (Net Weight / Kg)
    7.5
    Subwoofer (Net Weight (Kg)
    7.6
  • Gross Weight (Kg)
    19.3
    Material - Mainset - Front
    Metal Grille
  • Material - Mainset - Top/Bottom
    Mold / Mold
    Material - Subwoofer - Front
    Jersey
  • Material - Subwoofer - Body
    Wood
    Container Quantity - 20ft
    112
  • Container Quantity - 40ft
    240
    Container Quantity - 40ft (HC)
    300
  • Matching TV size ('18 New Designed LG TV)
    55 ~ 66 inch

Channel/Output Power

  • Channel
    5.1.2ch
    Output Power (THD 10%) - Total
    550W
  • Output Power (THD 10%) - Front
    50W x 2
    Output Power (THD 10%) - Center
    50W
  • Output Power (THD 10%) - Surround
    50W x 2
    Output Power (THD 10%) - Top
    50W x 2
  • Output Power (THD 10%) - Subwoofer
    200W(Wireless)
    Audio DAC - 192kHz/24bit
    Yes

Speaker

  • Main - SPL
    82dB
    Main - System
    Closed
  • Main - Tweeter Unit - Front Only
    20mm AL Dome
    Main - Woofer Unit
    40x100mm
  • Main - Impedance
    4ohm
    Main - Magnetic Shielding
    non-Shield
  • Top - SPL
    80dB
    Top - System
    Closed
  • Top - Woofer Unit
    2.5"
    Top - Impedance
    7ohm
  • Top - Magnetic Shielding
    non-Shield
    Subwoofer - SPL
    85dB
  • Subwoofer - System
    Bass Reflex
    Subwoofer - Woofer Unit
    7 inch
  • Subwoofer - Impedance
    3ohm
    Subwoofer - Magnetic Shielding
    non-Shield

Network

  • WiFi Band Width - 2.4G / 5G
    Yes

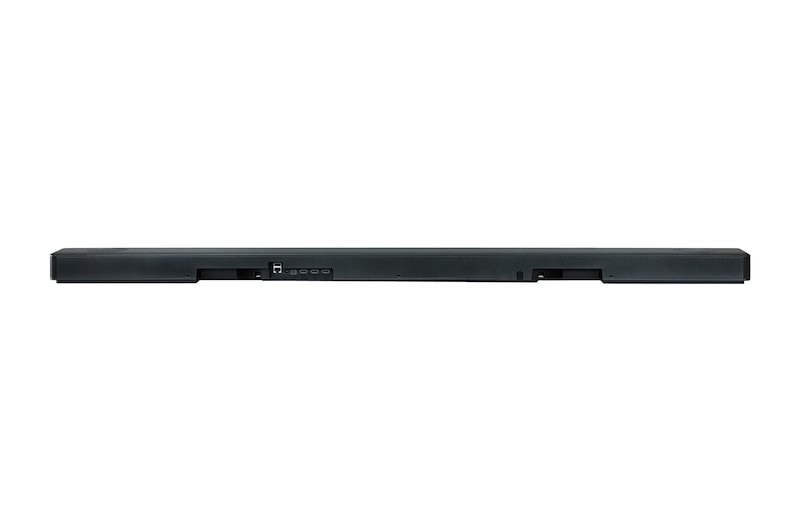

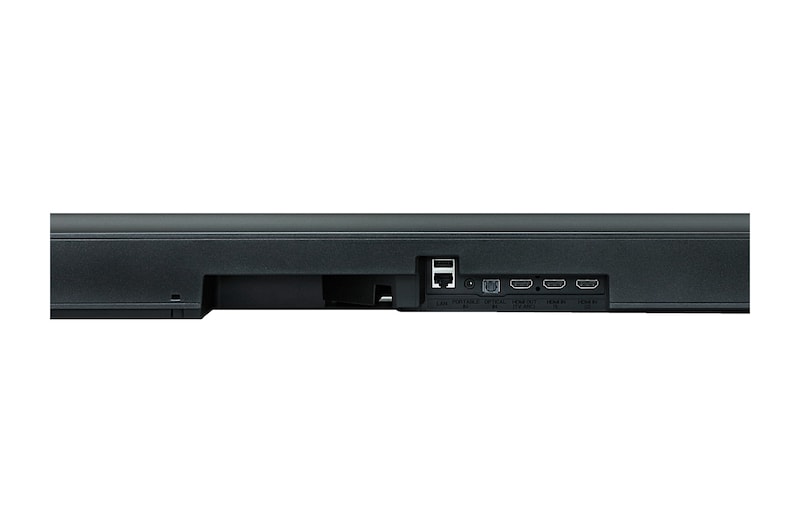

Connectivity

  • General - Audio Input - Portable In (3.5Ø)
    Yes
    General - Optical
    Yes(1)
  • General - HDMI 2.0 (HDCP 2.2): 4K pass through - In / Out
    Yes (2) / Yes (1)
    General - USB
    Yes(Service Only)
  • Wireless - Bluetooth 4.0
    Yes
    Wireless - Ethernet port
    Yes
  • Wireless - WiFi
    Yes

Information Display

  • Display Type
    LCD (8 char.)
    LED indicator Colour
    2 colour LED (Red/White)

Sound Mode

  • Hi-Res Audio - Sampling - 24bit/192kHz
    Yes
    Hi-Res Audio - Sampling - 24bit/96kHz
    Yes
  • Hi-Res Audio - Upbit/upsampling to 24bit/192kHz
    Yes
    Google Multi Zone - Group Play Mode (one source --> multi speaker)
    Yes
  • Sound Effect - ASC (Adaptive Sound Control : Default)
    Yes
    Sound Effect - Standard
    Yes
  • Sound Effect - Music
    Yes
    Sound Effect - Bass Blast
    Yes
  • Sound Effect - Movie / DTS Virtual X
    Yes / No
    Sound Effect - Meridian
    Yes
  • Tone control - User EQ
    Yes
    Night Mode - On/Off
    Yes
  • Dynamic Range Control - On/Off
    Yes
    Auto Volume Leveler - On/Off
    Yes

Convenience

  • Smart Phone & Tablet Remote App - iOS / Android OS
    Yes / Yes
    Smart Phone File Playback
    Yes
  • EZ setup (BLE)
    Yes
    Works with the Google Assistant
    Yes
  • NSU(Network Software Update)
    Yes
    Control with your TV Remote - Vol + , - , Mute
    Yes
  • Sound Sync - Bluetooth (LG TV)
    Yes
    Sound Sync - Optical
    Yes
  • Automatic Power on/off - Bluetooth (LG TV)
    Yes
    Automatic Power on/off - Optical
    Yes
  • A/V Sync - 0~300ms
    Yes
    SIMPLINK
    Yes
  • Audio Return Channel (ARC)
    Yes
    Woofer Level - -15~+6 (Step)
    Yes
  • Mute
    Yes
    Auto Dimmer
    Yes
  • Timer / Sleep
    Yes
    Demo music x 2
    Yes
  • Bluetooth Stand-By
    Yes
    Wireless Rear Speaker Ready - 1:1 Rx module Type (Wireless Kit for rear)
    Yes

Audio Format

  • LPCM
    Yes
    Dolby Atmos
    Yes
  • Dolby TrueHD
    Yes
    Dolby Digital Plus
    Yes
  • Dolby Digital
    Yes
    DTS Digital Surround
    Yes
  • FLAC - Up to 192kHz
    Yes
    OGG - Up to 48kHz
    Yes
  • WAV
    Yes
    Apple Lossless (m4a)
    Yes
  • MP3
    Yes
    WMA
    Yes
  • AAC / AAC+
    Streaming (Wi-Fi), Bluetooth
    AIFF
    Yes

Audio Streaming Service

  • Chrome Cast
    Yes

Power Consumption

  • Main - Type
    SMPS (100~240V, 50/60Hz)
    Main - Power Off Consumption
    0.5W Under
  • Main - Power Consumption
    61W
    Subwoofer - Type - SMPS
    100~240V, 50/60Hz
  • Subwoofer - Power Off Consumption
    0.5W Under
    Subwoofer - Power Consumption
    33W
  • Subwoofer - Wireless Frequency
    5.8GHz

Accessories

  • Owners Manual - Web (w/ Simple Manual)
    Yes (Full)
    Owners Manual - Book
    Simple / Yes
  • Owners Manual - Wall Mount Guide
    Yes
    Owners Manual - Open Source
    Yes (Full)

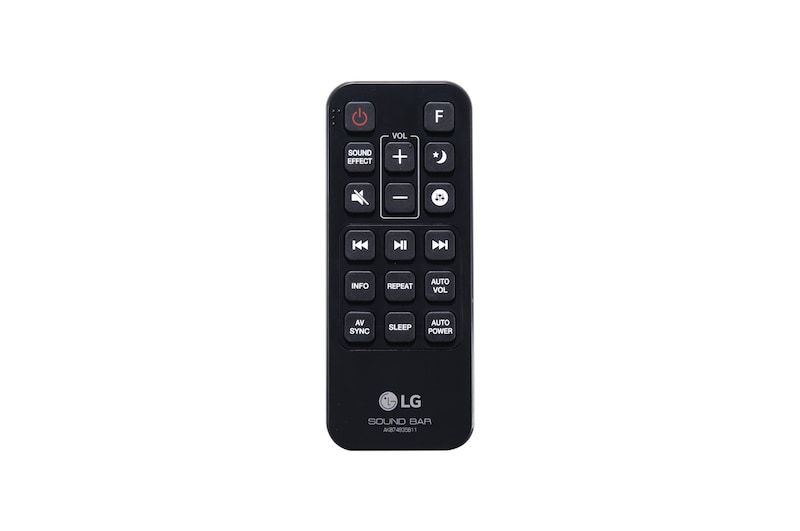

  • Remote Control Unit - Model
    MA7
    Remote Control Unit - Battery(Size)
    AAA x 2
  • Batteries
    Yes
    Warranty Card
    Yes
  • Optical Cable
    Yes
    Wall Mount Bracket
    Yes
  • Cable Management
    Tie
    Box Type
    Offset
