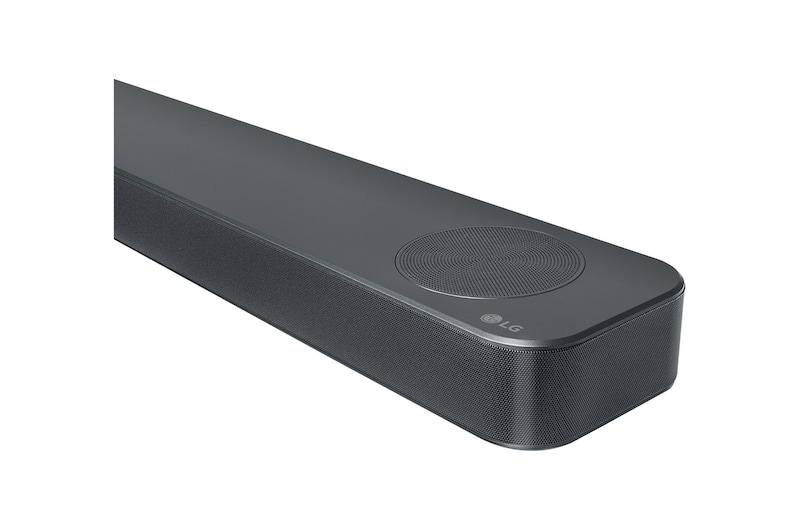

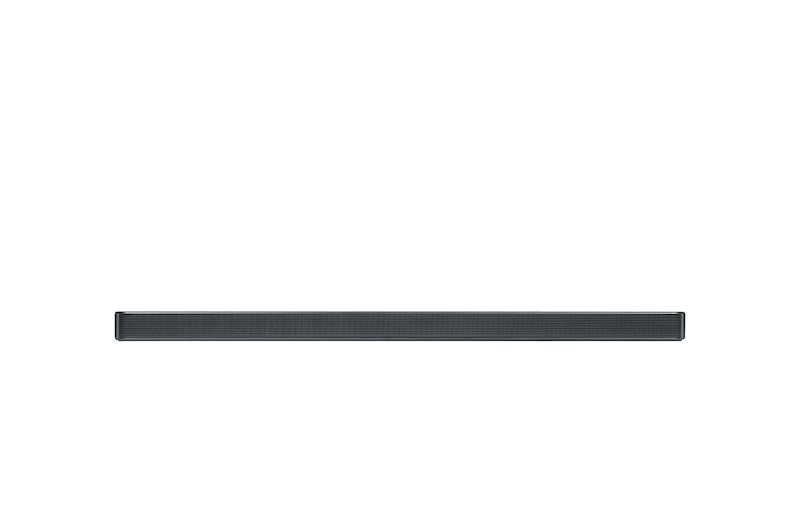

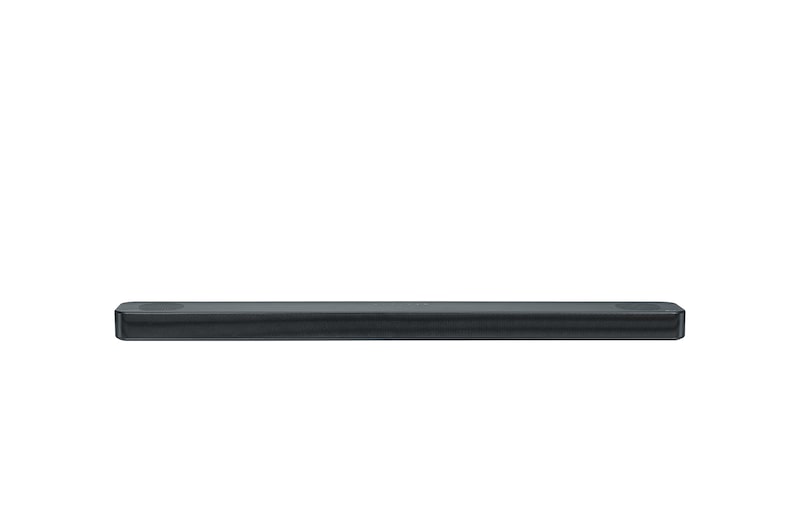

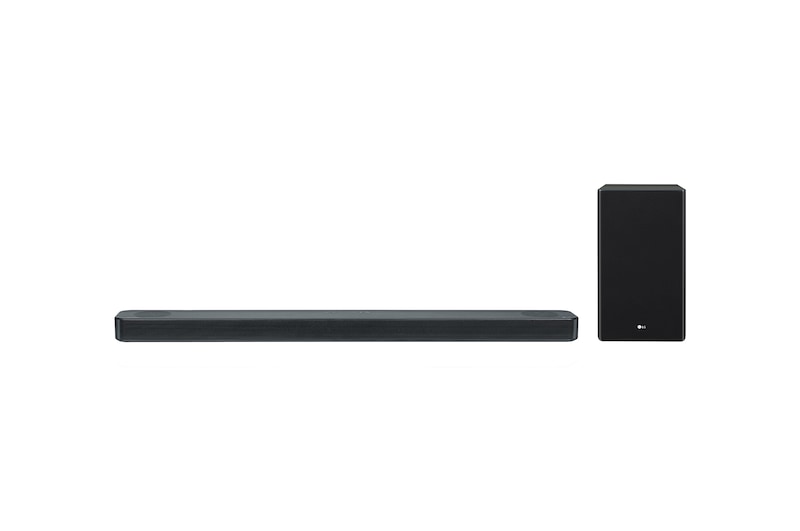

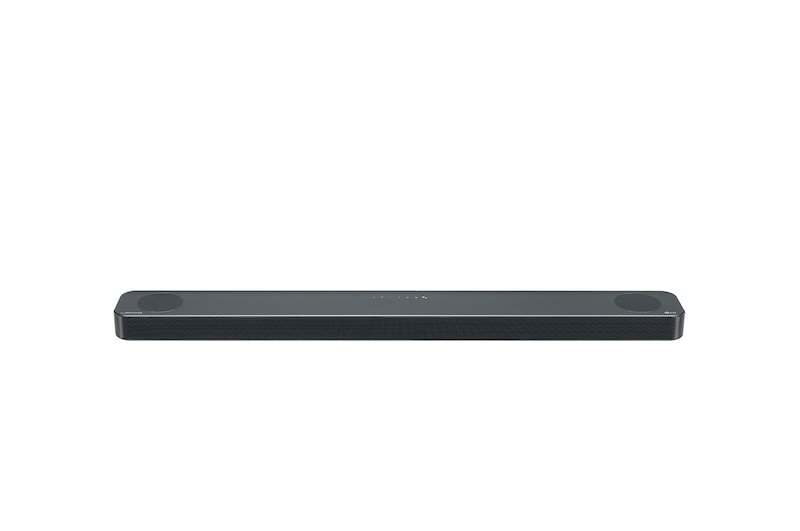

3.1.2 Ch Supreme Sound Bar with Meridian Audio

Key Features

component-OBScountrySelectDesc

3.1.2 Ch Supreme Sound Bar with Meridian Audio
Dimensions
  • Main (W x H x D / mm)
    1060 x 57 x 119
    Subwoofer (W x H x D / mm)
    221.0 x 390.0 x 312.8
  • Carton Size (W x H x D / mm)
    1155 x 280 x 587
    Carton Type
    Offset
  • Main (Net Weight / Kg)
    4.4
    Subwoofer (Net Weight (Kg)
    7.8
  • Gross Weight (Kg)
    15.34
    Built-in Foot (H) mm
    14
  • Material - Mainset - Front
    Metal Grille
    Material - Mainset - Top/Bottom
    Mold/Mold
  • Material - Subwoofer - Front
    Jersey
    Material - Subwoofer - Body
    Wood
  • Container Quantity - 20ft
    240
    Container Quantity - 40ft
    480
  • Container Quantity - 40ft (HC)
    640
    Matching TV size ('18 New Designed LG TV)
    Over 49 inch
Channel/Output Power
  • Channel
    3.1.2ch
    Output Power (THD 10%) - Total
    440W
  • Output Power (THD 10%) - Front
    50W x 2
    Output Power (THD 10%) - Center
    40W
  • Output Power (THD 10%) - Top
    40W x 2
    Output Power (THD 10%) - Subwoofer
    220W (Wireless)
  • Audio DAC - 96kHz/24bit
    Yes
Speaker
  • Main - SPL
    82dB
    Main - System
    Closed
  • Main - Tweeter Unit - Front Only
    20mm Silk Dome
    Main - Woofer Unit
    40x100 mm
  • Main - Impedance
    4ohm
    Main - Magnetic Shielding
    non-Shield
  • Top - SPL
    83dB
    Top - System
    Closed
  • Top - Woofer Unit
    2.5"
    Top - Impedance
    4ohm
  • Top - Magnetic Shielding
    non-Shield
    Subwoofer - SPL
    85dB
  • Subwoofer - System
    Bass Reflex
    Subwoofer - Woofer Unit
    7 inch
  • Subwoofer - Impedance
    3ohm
    Subwoofer - Magnetic Shielding
    non-Shield
Network
  • WiFi Band Width - 2.4G / 5G
    Yes

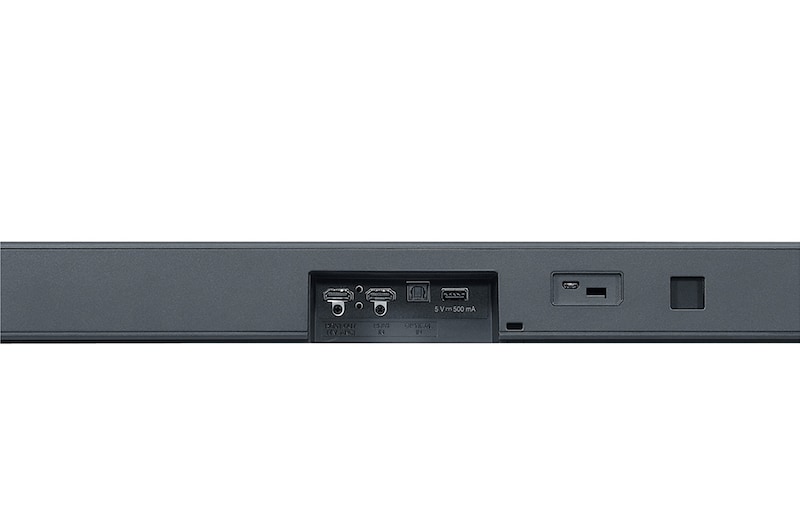

Connectivity
  • General - Optical
    Yes(1)
    General - HDMI 2.0 (HDCP 2.2): 4K pass through - In / Out
    Yes(1) / Yes(1)
  • General - USB
    Yes
    Wireless - Bluetooth
    Yes (ver. 4.2, Bluetooth codec SBC)
  • Wireless - WiFi
    Yes
    AI MIC Input
    Yes (2ea)
Information Display
  • Display Type
    LCD (5 Char.)
    AI Indicator
    Yes (4ea)
Sound Mode
  • Hi-Res Audio - Sampling - 24bit/96kHz
    Yes
    Hi-Res Audio - Upbit/upsampling to 24bit/92kHz
    Yes
  • Google Multi Zone - Group Play Mode (one source --> multi speaker)
    Yes
    Sound Effect - ASC (Adaptive Sound Control : Default)
    Yes
  • Sound Effect - Standard
    Yes
    Sound Effect - Music
    Yes
  • Sound Effect - Bass Blast
    Yes (Bass Blast / Bass Blast +)
    Sound Effect - Movie
    Yes
  • Sound Effect - Dolby Atmos
    Yes
    Sound Effect - DTS:X
    Yes
  • User EQ
    Yes (RCU / App)
    Night Mode - On/Off
    Yes (RCU / App)
  • Dynamic Range Control - On/Off
    Yes (App)
    Auto Volume Leveler - On/Off
    Yes (App)
Convenience
  • Smart Phone & Tablet Remote App - iOS / Android OS
    Yes / Yes
    Smart Phone File Playback
    Yes
  • EZ setup (BLE)
    Yes
    Google Assistant Built In
    Yes
  • Works with the Google Assistant
    Yes
    NSU(Network Software Update)
    Yes
  • Control with your TV Remote - Vol + , - , Mute
    Yes
    Sound Sync - Optical
    Yes
  • Automatic Power on/off - Optical
    Yes
    A/V Sync - 0~300ms
    Yes (App)
  • SIMPLINK
    Yes
    Audio Return Channel (ARC)
    Yes
  • Woofer Level Volume
    Yes (-15 ~ +6dB)
    Channel Level
    Yes (-6 ~ +6 (step), Top, Center and Surround)
  • Mute
    Yes
    Auto Dimmer
    Yes
  • Sleep Timer
    Yes (App)
    USB Host
    Yes
  • Wireless Rear Speaker Ready - 1:1 Rx module Type (Wireless Kit for rear)
    Yes
Audio Format
  • LPCM
    Yes
    Dolby Atmos
    Yes
  • Dolby TrueHD
    Yes
    Dolby Digital Plus
    Yes
  • Dolby Digital
    Yes
    DTS Digital Surround
    Yes
  • DTS-HD Master Audio
    Yes
    DTS-HD High Resolution
    Yes
  • DTS X
    Yes
    AAC / AAC+
    Yes
  • FLAC - Up to 192kHz
    Yes (C4A)
    OGG - Up to 48kHz
    Yes (C4A / USB)
  • WAV
    Yes (C4A)
    MP3
    Yes (C4A / USB)
  • AAC
    Yes (C4A / USB)
Audio Streaming Service
  • Chrome Cast
    Yes
Power Consumption
  • Main - Type
    Adaptor (25V, 2A)
    Main - Power Off Consumption
    0.5W Under
  • Main - Power Consumption
    45W
    Subwoofer - Type - SMPS
    100~240V, 50/60Hz
  • Subwoofer - Power Off Consumption
    0.5W Under
    Subwoofer - Power Consumption
    38W
  • Subwoofer - Wireless Frequency
    5.8GHz
Accessories
  • Owners Manual - Web (w/ Simple Manual)
    Yes (Full)
    Owners Manual - Book
    Yes (Simple)
  • Owners Manual - Wall Mount Guide
    Yes
    Owners Manual - Open Source
    Yes (Full)
  • Remote Control Unit - Model
    MA7
    Remote Control Unit - Battery(Size)
    AAA x 2
  • Batteries
    Yes
    Warranty Card
    Yes
  • Wall Mount Bracket
    Yes
    Cable Management
    Tie
  • Additional Foot
    Yes
    Box Type
    Offset
