Evaporadora Hi Wall, 12.000 BTU/h, 220 V

Recursos

Galeria

Especificações

Suporte

Recurso

Procure um distribuidor
Solicitar orçamento

Evaporadora Hi Wall, 12.000 BTU/h, 220 V

Compartilhe este conteúdo.

Você pode compartilhar os itens que você gosta com seus amigos.

Evaporadora Hi Wall, 12.000 BTU/h, 220 V

AMNW12GSJA1
  • Front View

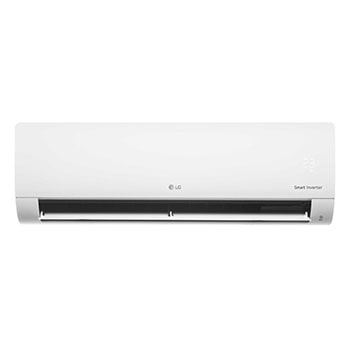

  • front view with open wings

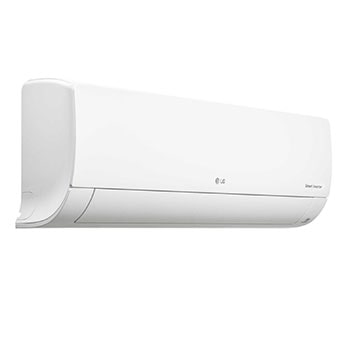

  • side view

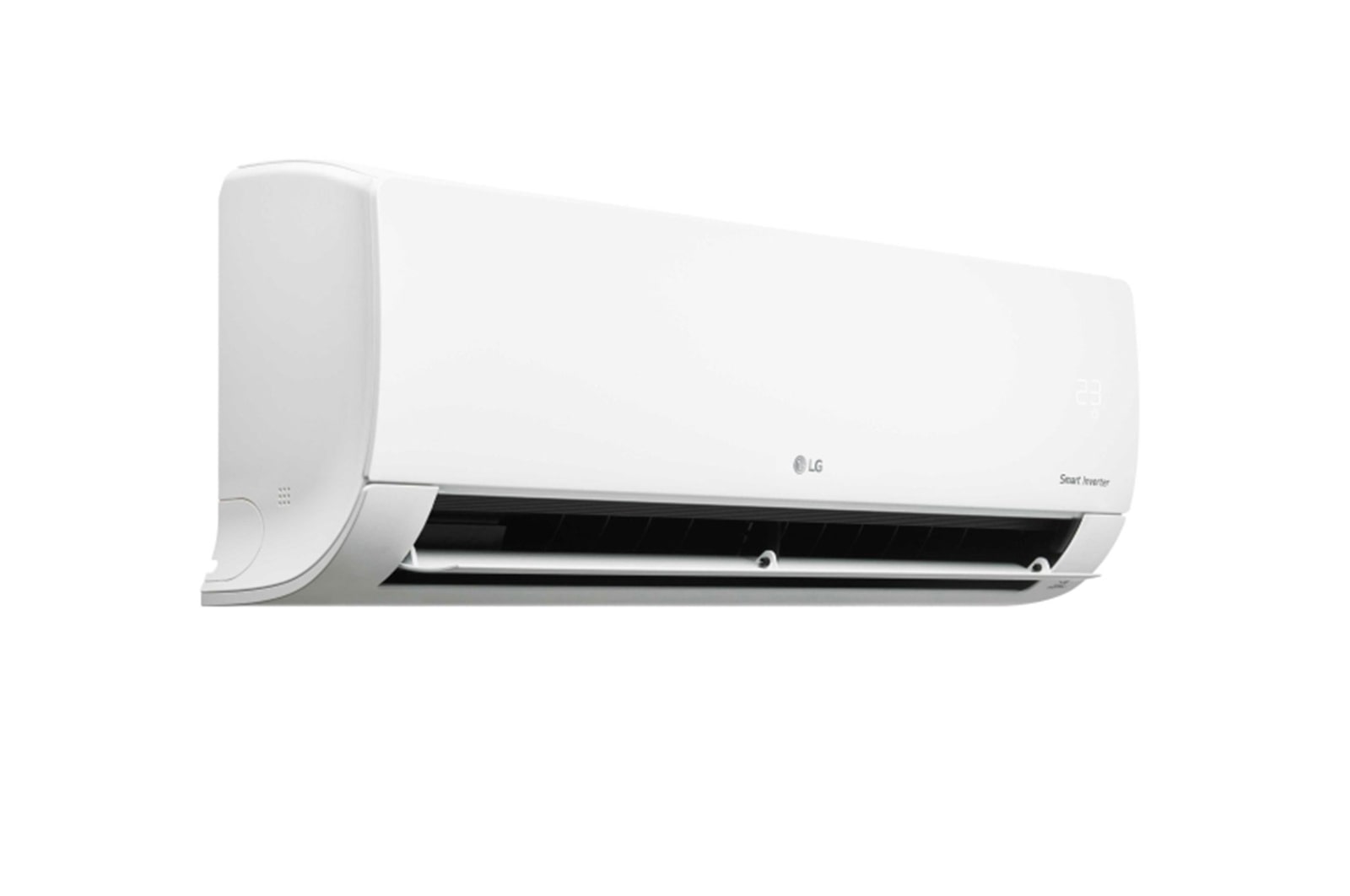

  • side view with open wings

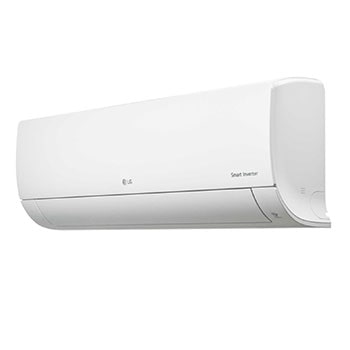

  • right view

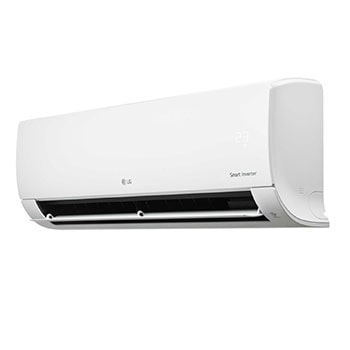

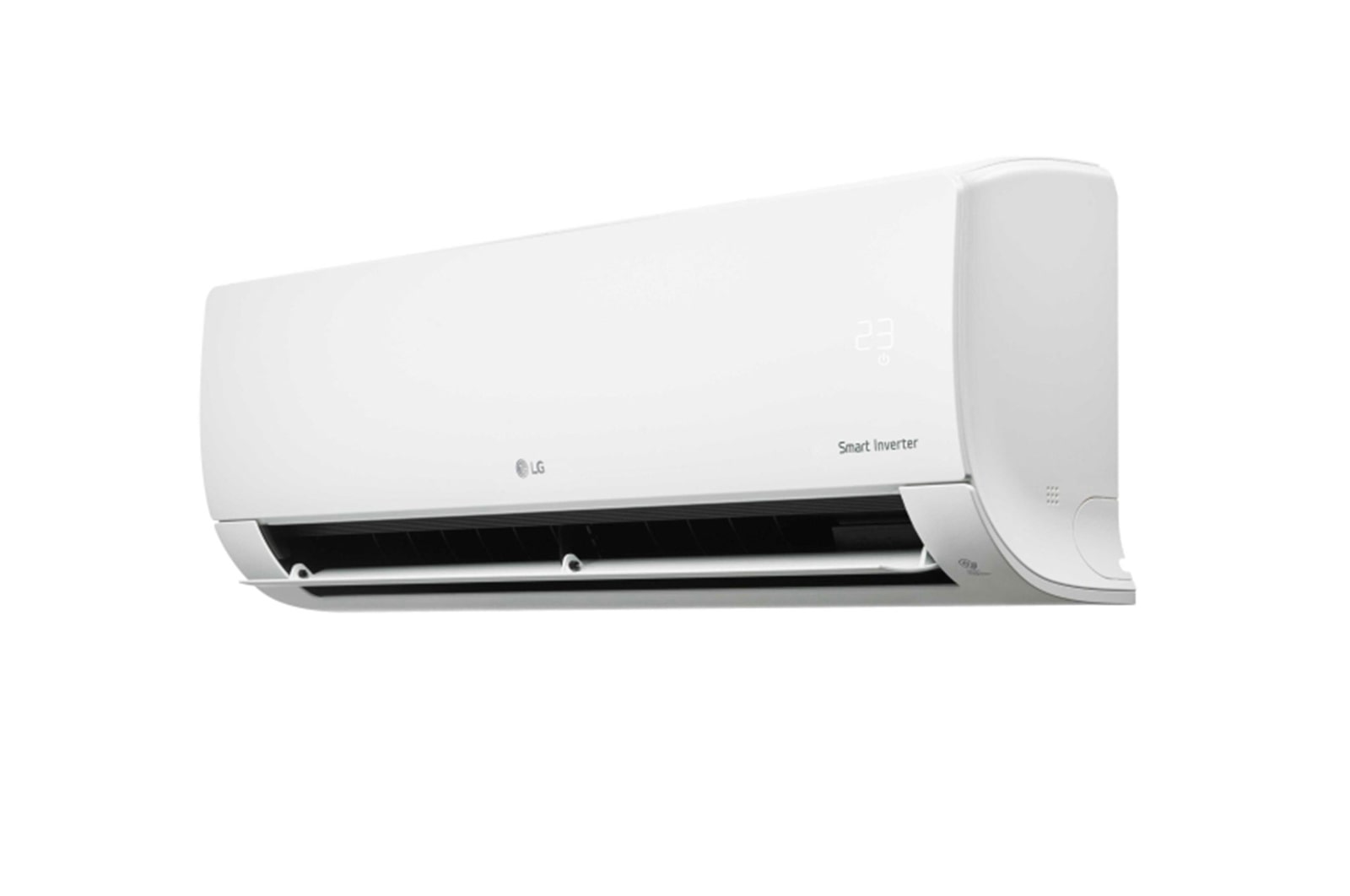

  • right view with open wings

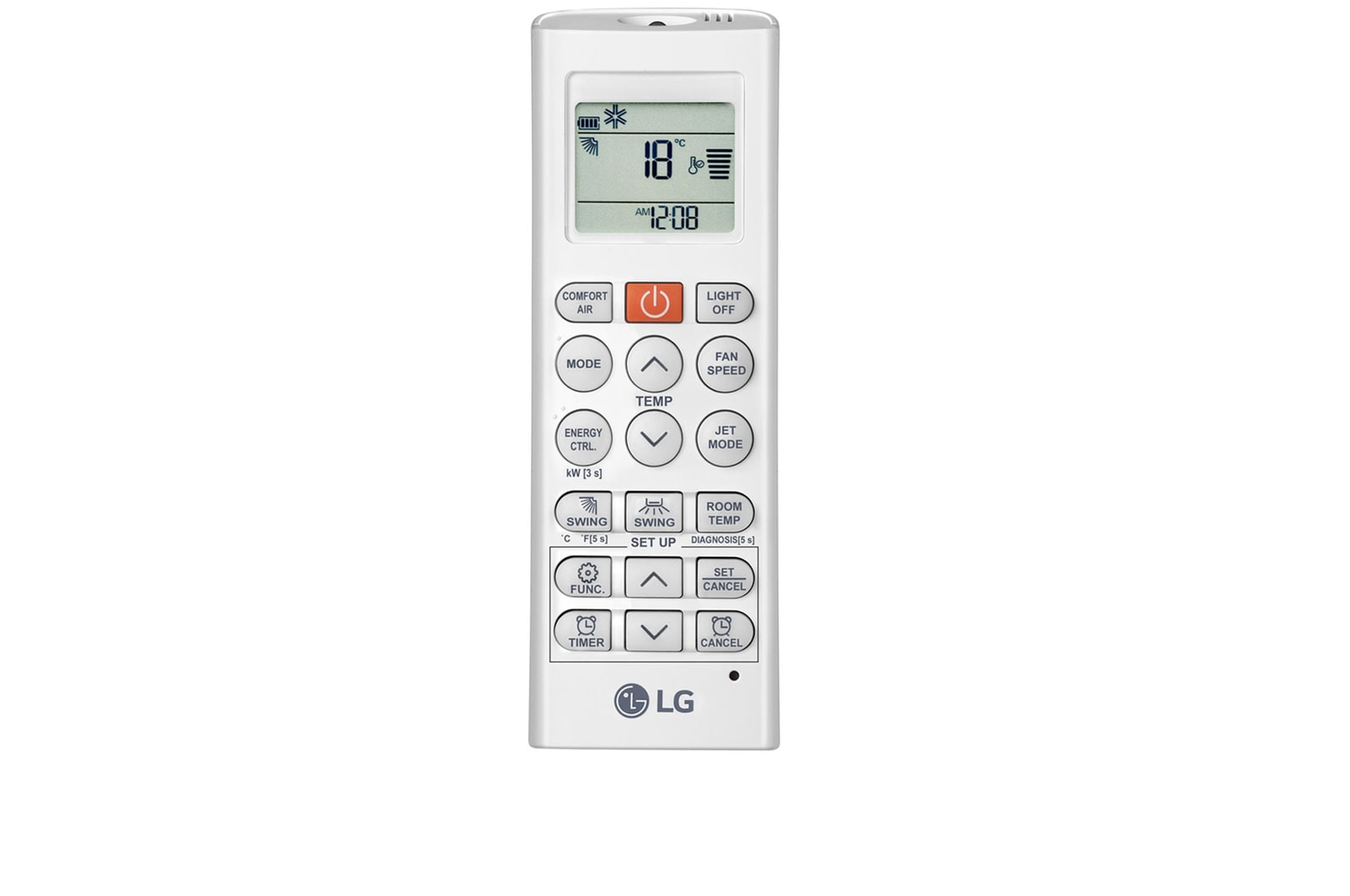

  • remote

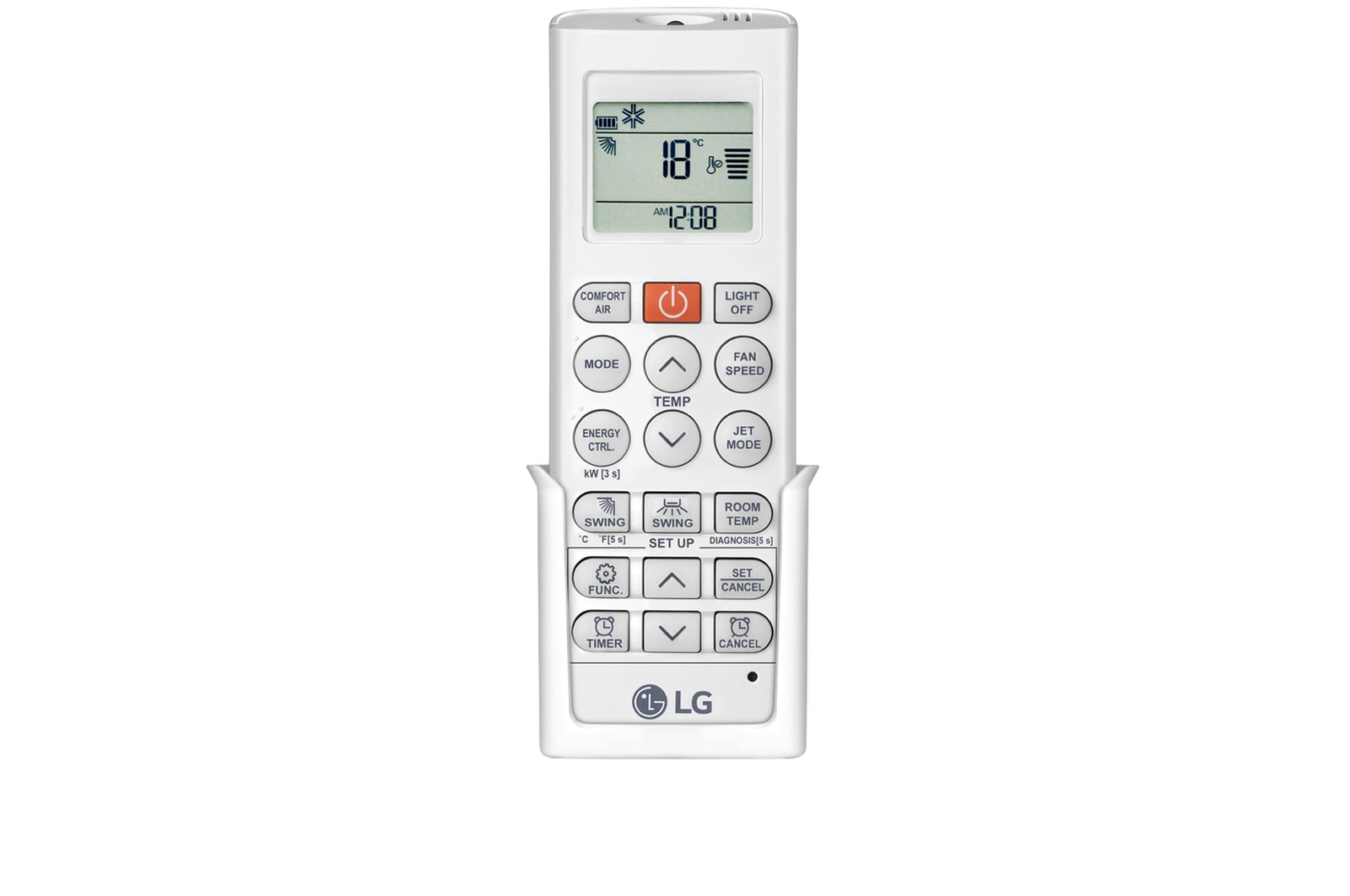

  • remote with cover

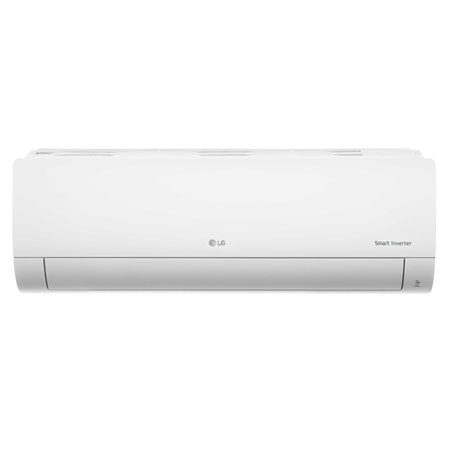

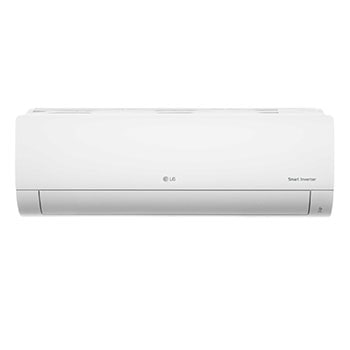

Front View

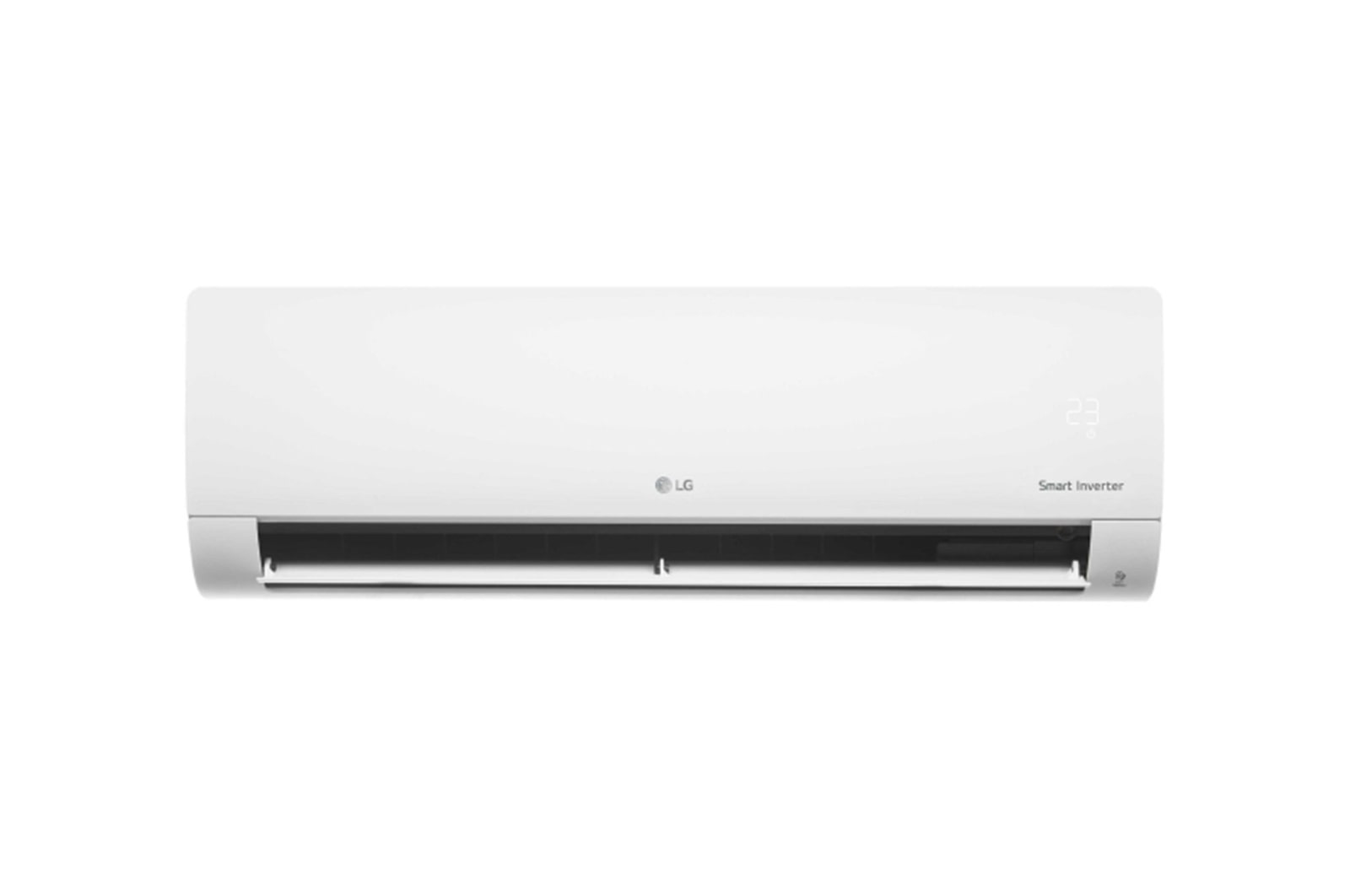

front view with open wings

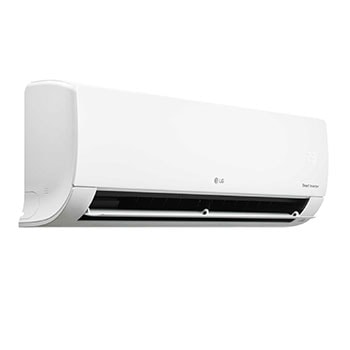

side view

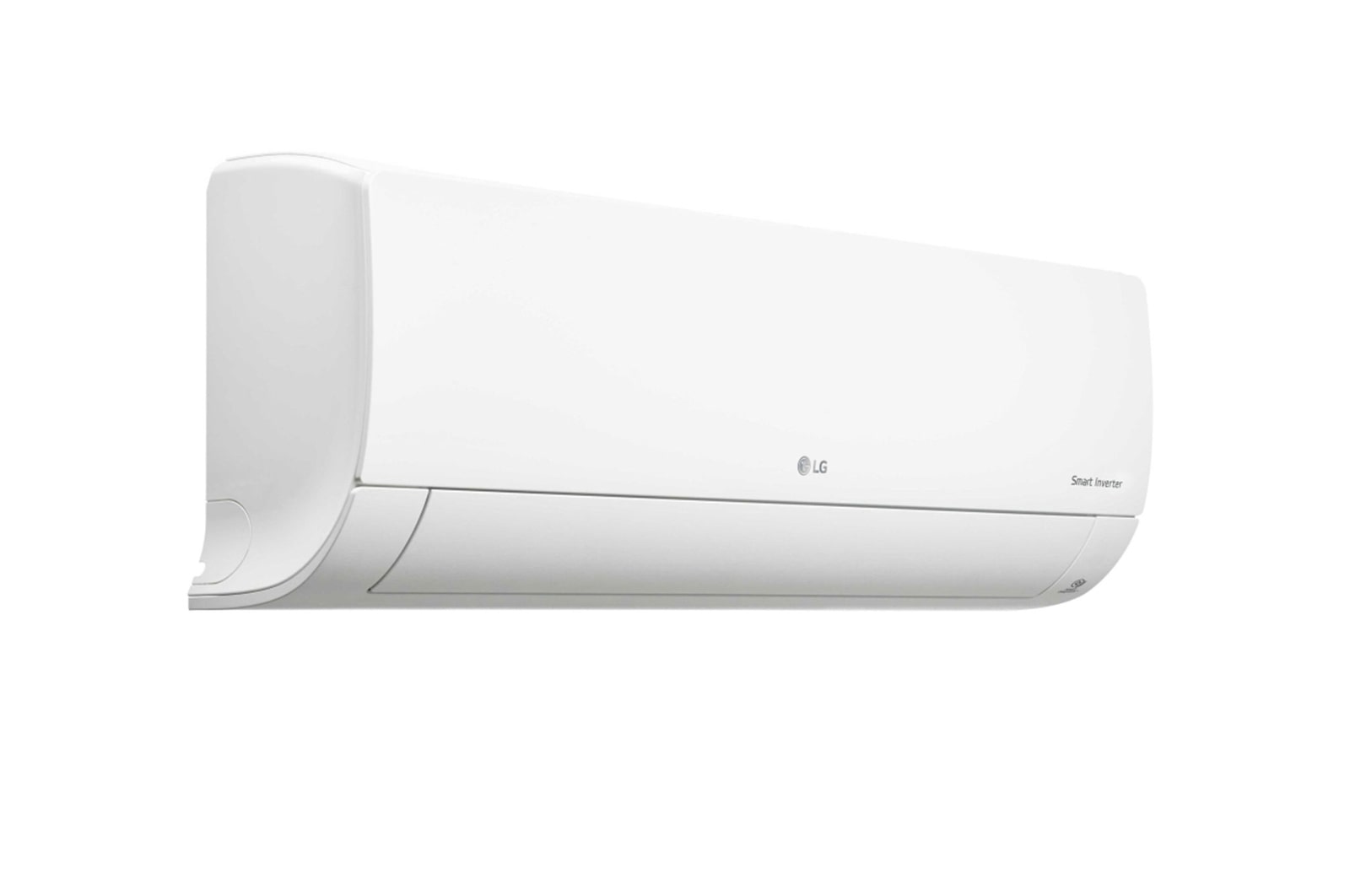

side view with open wings

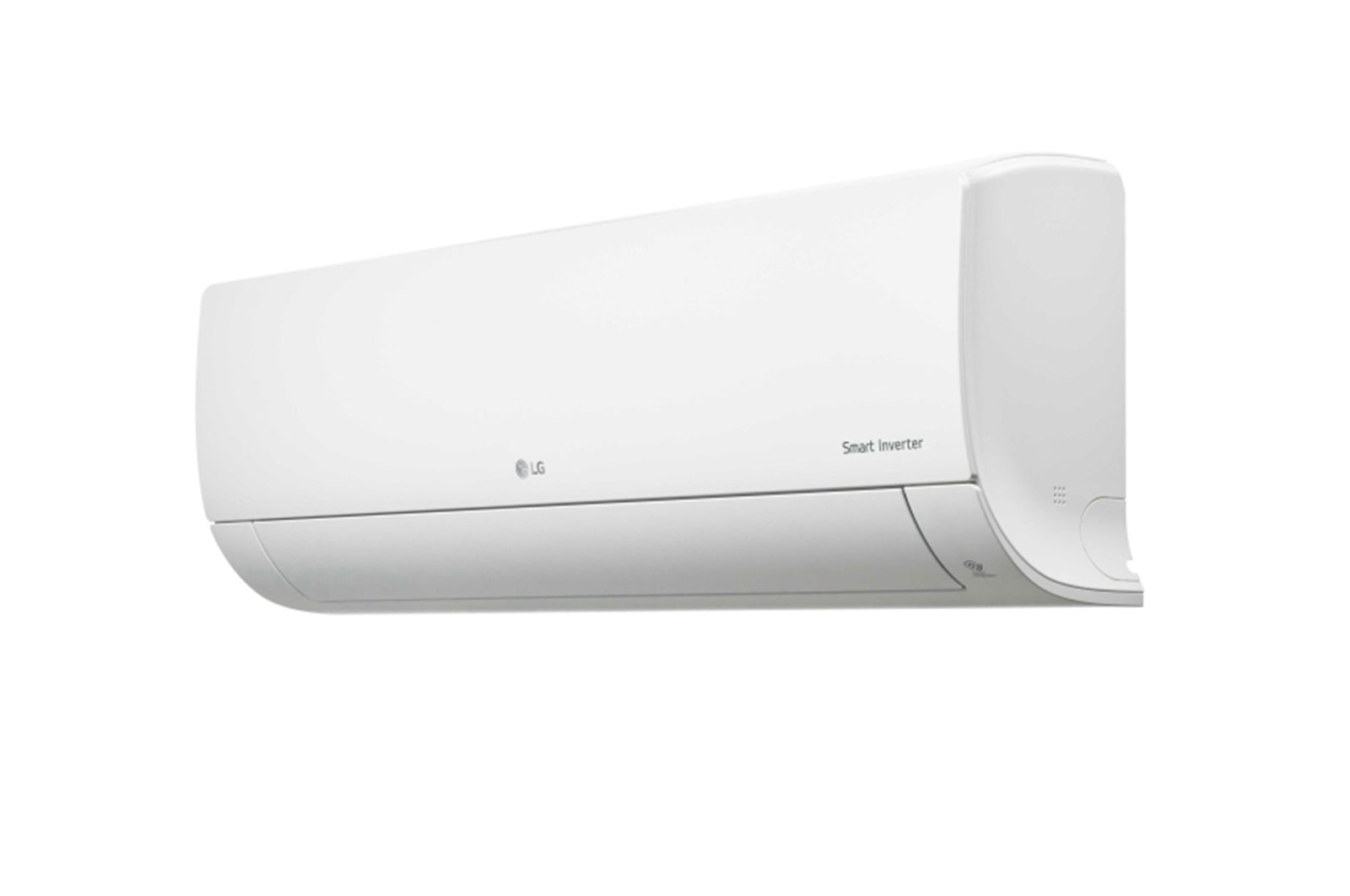

right view
right view with open wings

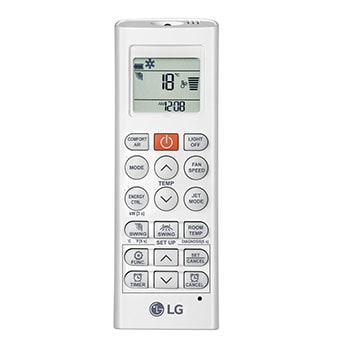

remote
remote with cover

Principais recursos

  • DC Inverter
  • Vasta Gama de Combinação de Unidades
  • Economia de Energia
  • Controles Avançados
Mais

Simples instalação e manutenção1

Simples instalação e manutenção

A avançada tecnologia inverter LG leva a uma performance superior com um baixo consumo de energia.

Key Feature

  • DC Inverter
  • Vasta Gama de Combinação de Unidades
  • Economia de Energia
  • Controles Avançados
Imprimir

Todas as especificações

POTÊNCIA (EVAPORADORA)

  • A/M/B (W)

    30 / 19 / 11

CORRENTE (EVAPORADORA)

  • A/M/B (A)

    0.20 / 0.17 / 0.10

VENTILADOR INTERNO

  • Tipo

    Cross Flow Fan

MOTOR DO VENTILADOR DA EVAPORADORA

  • Saída (Nº)

    1

  • Saída (W)

    30 (w)

  • Tipo

    BLDC

TROCADOR DE CALOR

  • Área de Face (m²)

    0.19

  • Líquido (L x A x P) (mm)

    837 x 308 x 189

  • Nº

    1

  • Linhas x Colunas x FPI

    2 x 15 x 21

  • Embalagem (L x A x P) (mm)

    909 x 383 x 256

PESO

  • Líquido (kg)

    7,3

  • Embalagem (kg)

    9.7

CONEXÃO DA TUBULAÇÃO

  • Gás (mm(pol))

    Φ9.52 (3/8)

  • Líquido (mm(pol))

    Φ6.35 (1/4)

REFRIGERANTE

  • Tipo

    R32

EXTERIOR

  • Cor

    Munsell 7.5BG 10/2

CABO DE CONEXÃO

  • Cabo de Alimentação e Comunicação (H07RN-F, incluso terra) (mm² x núcleos)

    1.0 x 4C

FONTE DE ALIMENTAÇÃO

  • Caso 1

    220, 1, 60

Para acessar mais documentação técnica e downloads, visite o Portal do parceiro B2B da LG.
