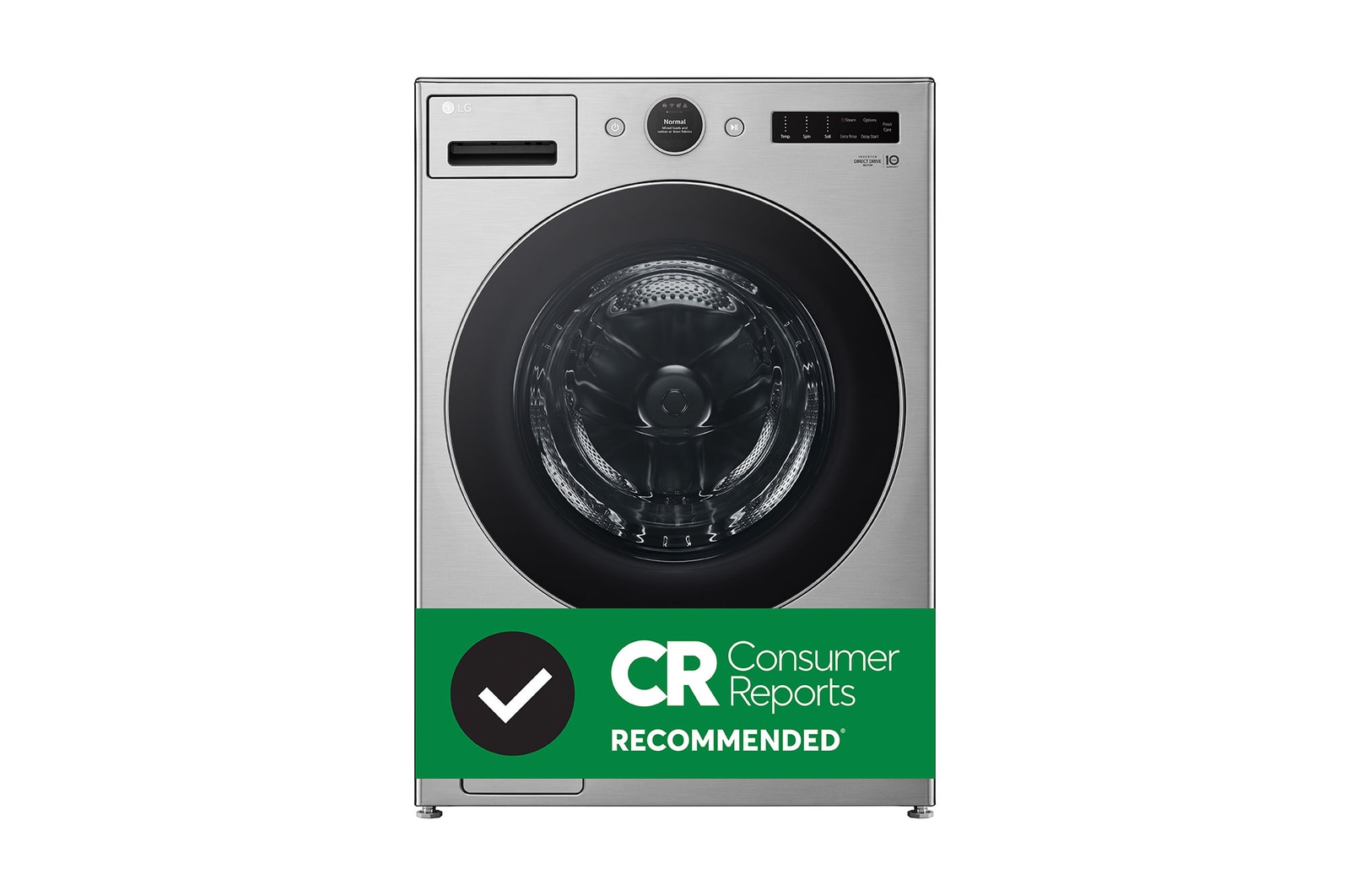

5.2 cu. ft. Capacity Smart Front Load Washer

5.2 cu. ft. Capacity Smart Front Load ENERGY STAR^® Washer with TurboWash^® 360° and AI DD^® Built-In Intelligence

WM5500HVA

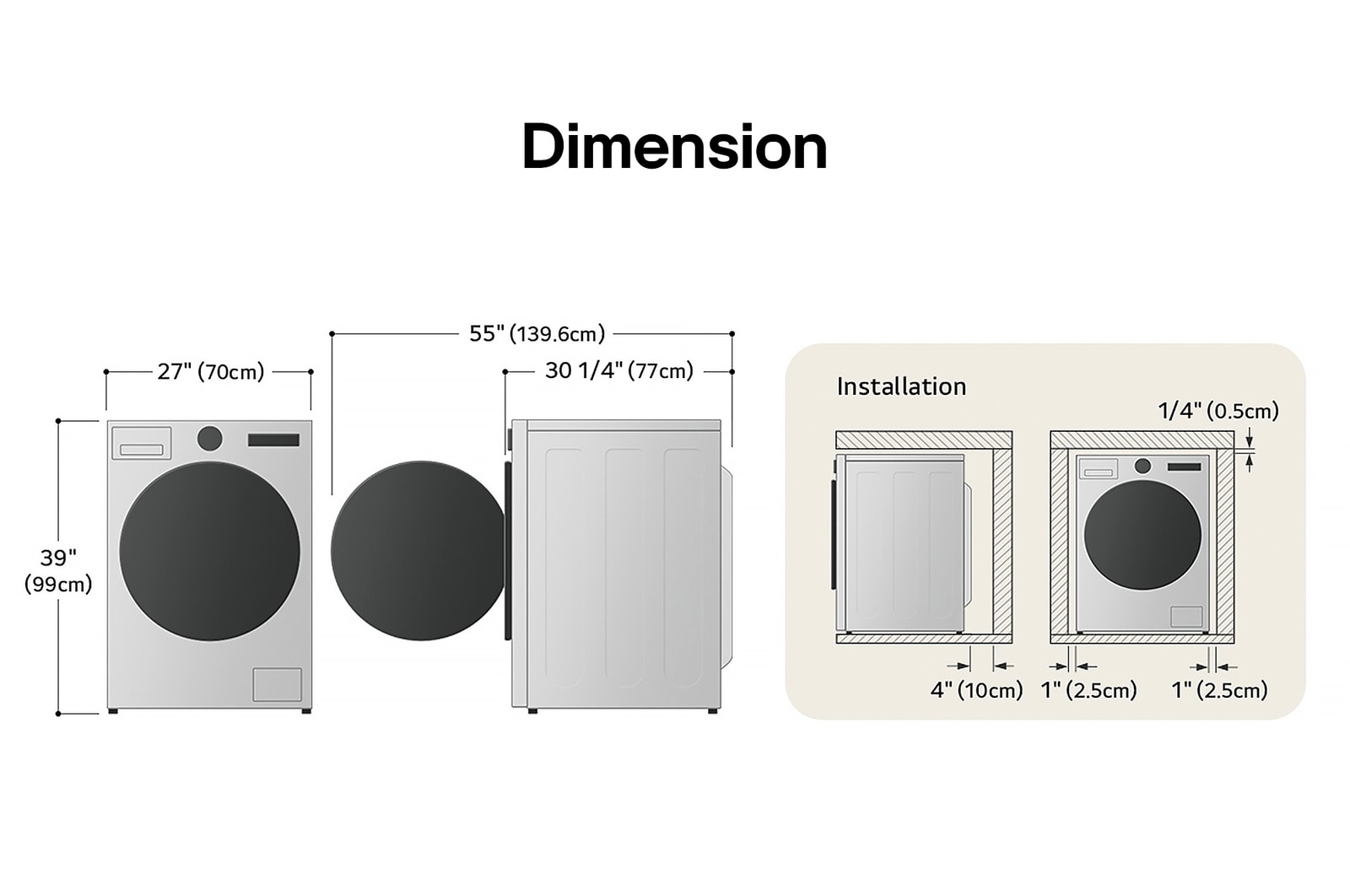

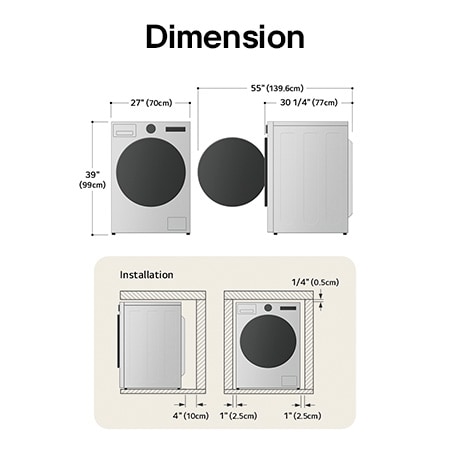

Technical dimension and installation diagram for the LG Front Load Washer: 27 in (70 cm) wide, 39 in (99 cm) high, 30 1/4 in (77 cm) deep, and 55 in (139.6 cm) with door open, detailing installation clearances.

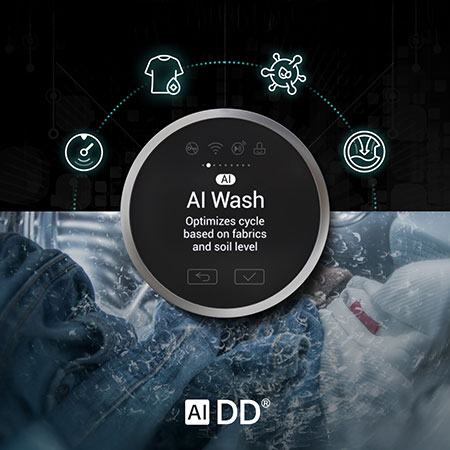

Graphic illustration of the LG Front Load Washer WM5500HVA's AI DD® and AI Wash technology, which automatically optimizes the washing cycle based on fabric type and soil level.

Graphic illustration of the LG Front Load Washer WM5500HVA's TurboWash® 360° technology, highlighting a powerful and thorough 30-minute wash cycle.

The LG Front Load Washer and Dryer set (WM5500HVA) in Graphite Steel, illustrating the Smart Pairing feature, which wirelessly connects the units to automatically set the optimal drying cycle.

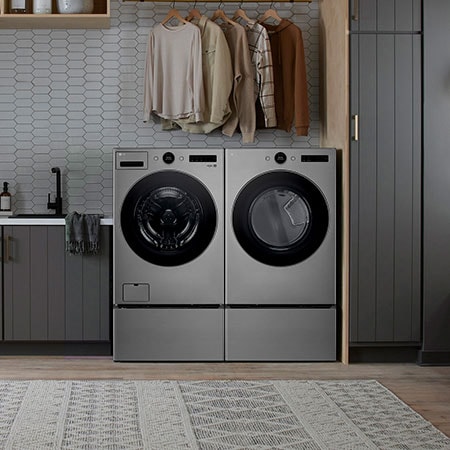

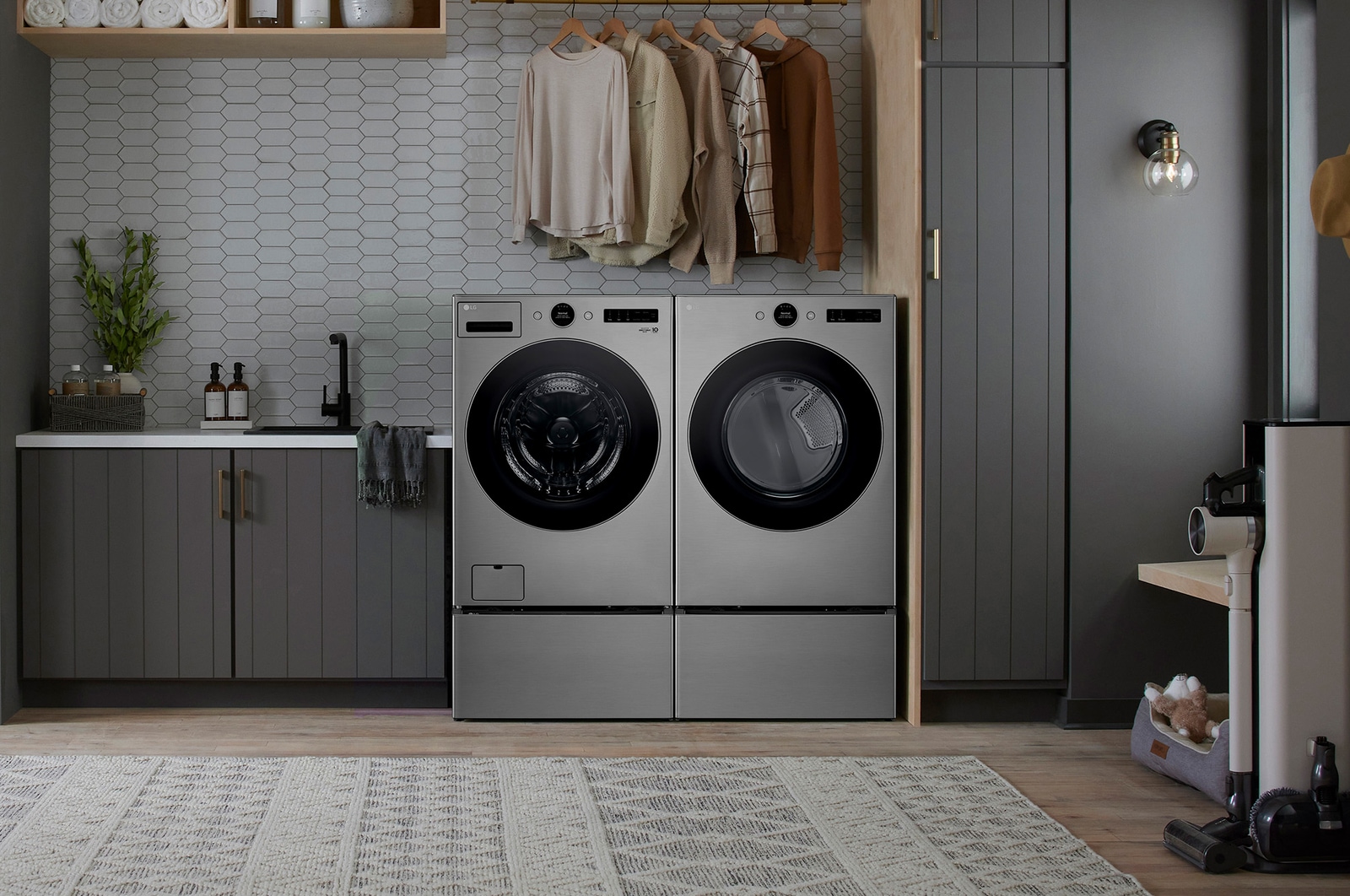

The LG Front Load Washer and Dryer set (WM5500HVA) in Graphite Steel, showcasing its premium aesthetic and seamless integration into a stylish, modern laundry room.

Key Features

Digital Dial Control LCD Display with Touch Button Control Panel
AI DD^®: AI Fabric and Weight Sensors with Smart Pairing
5.2 cu. ft. Ultra Large Capacity with TurboWash^®360°
LG Allergiene^® Cycle
ENERGY STAR^® Certified
Stackable Washer and Dryer or LG Pedestal / LG SideKick^® Pedestal Washer Compatible

Save $200 on any laundry pair. Offer valid from Nov 20, 2025 to Jan 7, 2026.

Stack up the savings

Save $200 when you purchase any LG Laundry Pair*

Buy Now

*Offer valid November 20, 2025 to January 7, 2026.

Available with purchase of eligible new LG Laundry Pairs, while supplies last. The LG WashTower® and LG WashCombo® units are included in this promotion as single units. Excludes Accessories and LG STUDIO Major Appliances. Offer subject to change without notice and is not combinable with any other offer. Other conditions apply.

AI DD® Built-In Intelligence

Built-in sensors use AI technology to detect fabric texture & load size, then automatically select the right wash motions, temperatures and more for advanced fabric care.

Power Clean Big Loads in 30 Minutes¹

5 powerful jets spray clothes from multiple angles for a complete clean in under 30 minutes.¹

¹ Based on independent testing on comparable models WM4500 and WM3900 in normal cycle with TurboWash® Option, 10 lb. load (March 2021).

Smart Pairing

With Smart Pairing, the washer can even tell the dryer to select a compatible drying cycle², making it the ultimate laundry hack.

² Both washer and dryer need to be registered in LG ThinQ® app and connected to Wi-Fi to set up Smart Pairing feature.

Wash Two Loads at The Same Time

Wash small loads that can't wait or two loads at once with the LG SideKick®️ Pedestal Washer.³

³ LG SideKick® Sold Separately.

Simply. Brilliant.

The modern flat front design, graphite steel finish and tinted, tempered glass doors bring a premium point of view to your laundry space.

Information at Every Turn

The intuitive digital dial control gives you more information with each turn. From descriptions of each setting, helpful prompts, status updates and remaining cycle time.

Touch Button Control Panel

Streamlined controls feature an LED Touch Button Panel that’s as easy on the eyes as it is to use.

Smooth Surface Helps Prevent Snags

Unlike porcelain and plastic, stainless steel tub avoids chips that snag on and ruin clothing.

Get It All Done In Less Time

Ultra Large Capacity (5.2 cu. ft.) means you have even more room to do laundry in fewer loads.

⁴ Wi-Fi and ThinQ® app required. Available on select smart appliances.

Save Time & Simplify Laundry Day

Expand the limits of your laundry room with the ThinQ® app. Remote start your washer or dryer, select a cycle, start or stop the wash and get notifications about when your laundry will be done.

DIMENSIONS

CAPACITY

5.2 cu ft

Dimensions (WxHxD)

27" x 39" x 30 1/4" (55" D with door open)

Steam Technology

Yes

ThinQ®

Yes

All Spec

CAPACITY

Capacity
5.2 cu.ft.

ENERGY

ENERGY STAR® Most Efficient
Yes
ENERGY STAR® Certified
Yes
CEE Tier
Tier2
IMEF
2.92
IWF
3.0

WASH PROGRAMS

No. of Programs
25
Wash Programs
Normal, AI Wash, Bedding, Delicates, Towels, Quick Wash, Heavy Duty, Allergiene™, Perm.Press, Tub Clean, Bright Whites™, Sanitary, Rinse+Spin, Spin Only, Hand/Wool, Active Wear, Swimwear, Kids Wear, Jeans, Dresses, Color Care, Sweat Stains, Small Load, Large Load, X Large Load
No. of Options
15
Options
TurboWash®, Steam, Fresh Care, Pre-wash, Remote Start, Delay Wash, Wi-Fi, Add Item, Extra Rinse, Control Lock, Drum Light, Cold Wash, Signal, Cycle List Edit, Cycle Optimization
No. of Wash/Rinse Temps
5
Wash/Rinse Temps
Ex. Hot / Hot / Warm / Cold / Tap Cold
No. of Spin Speeds
5
Spin Speeds
Ex. High / High / Medium / Low / No Spin
No. of Water Levels
Load Sensing
No. of Soil Levels
5

FABRIC CARE FEATURES

AI DD™
Yes
TurboWash® 360 Technology:
Yes
Steam Technology
Yes
Allergiene™ Cycle
Yes
Sanitary Cycle
Yes
ColdWash™ Option
Yes

CONVENIENCE FEATURES

Vibration sensing(Cabinet Vibration sensor)
Yes
TrueBalance® Anti-Vibration System
Yes
4 Tray Dispenser
Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener
End of Cycle Signal
Yes
LoadSense
Yes
Control Lock
Yes
Auto Suds Removal
Yes
Leveling Legs
4 Adjustable Legs
Drum Light
Yes

MATERIALS AND FINISHES

NeveRust® Stainless Steel Drum
Yes
Cabinet
Painted Steel (One unit)
Top Plate
Painted Steel
Door / Rim
Glass/STS Silver
Door Cover
Tempered Glass Door
All Available Colors
White (W), Graphite Steel (V)

DIMENSIONS

Product (WxHxD)
27" x 39" x 30 1/4"
Depth with Door Open
55"
Carton (WxHxD)
29 1/2" x 42 1/8" x 31 1/2"
Weight (Product/Carton)
200.8 / 214.4 lbs.
Pedestal (WxHxD)
27" x 13 5/8" x 28" (43 7/8" D with door open)
LG Sidekick<sup>™</sup> Pedestal Washer (WxHxD)
27" x 14 1/8" x 30 3/4" (50 1/2 with drawer open)

POWER SOURCE

Ratings
UL Listed
Electrical Requirements
120V, 10 Amps
Type
Electric

SUMMARY

Series
LG
Type
Front Load Washer, Electric
Matching Electric Dryer
DLEX5500V
Matching Gas Dryer
DLGX5501V
Color
Graphite Steel (V)
LCD Display
Yes
Touch Buttons
Yes
Dial-A-Cycle<sup>®<sup>
Yes

OPTIONS/ACCESSORIES

Pedestal
WDP6V
LG Sidekick™ Pedestal Washer
WD300CV
Stacking Kit
KSTK4

THINQ® TECHNOLOGY

SmartDiagnosis™
Yes
WiFi
Yes
Energy Monitoring
Yes
Tub Clean Coach
Yes

CERTIFICATION

Asthma Canada
Yes

MOTOR & AGITATOR

Motor Type
Inverter Direct Drive Motor
Axis
Horizontal
Max RPM
1300

WARRANTY & UPC

Parts & Labour
1 Year
Direct Drive Motor
10 Years
Drum
3 Years
UPC
195174052976

What size washing machine is best for a family?

Washing machines in the 4.0 to 5.5 cu.ft range are ideal for families. A 4.0 cu.ft model suits a family of 3–4, while 5.0–5.5 cu.ft is better for larger households or those doing frequent loads.

How do I clean a washing machine?

To clean your washing machine, remove and soak the detergent drawer in hot water, then wipe its compartment. Clean the drain filter by removing debris and soaking in hot water. Wipe the drum with a cloth. For the rubber seal, run an empty cycle with baking soda, then clean with warm water. For detailed instructions, see the YouTube link.

https://youtu.be/LA6dPVAEbfE

What is AI DD™ in a smart LG washing machine?

LG’s AI DD™ washing machines utilise intelligent technology to individually analyse the weight and fabric type of your laundry. The result? Your machine automatically optimises the washing motion, leading to enhanced fabric protection and ensuring your cherished clothes look their best for longer. The DirectDrive™ Motors provide 6-motion technology for an effective wash with fewer moving parts, resulting in a more durable performance.

How do I install a washing machine?

To install your washing machine, begin by ensuring you have a suitable location with access to water, drainage, and a power outlet. Carefully remove all packaging and transport bolts from the machine. Position the washing machine on a level surface to prevent vibration during operation. Connect the water inlet hose to the tap, ensuring it is securely fastened, and attach the drain hose to your plumbing system. Plug the machine into a grounded power socket. Once everything is connected, run a test cycle to check for leaks or issues. For more detailed instructions, please refer to the YouTube link we have prepared for you.

https://youtu.be/FiwpMT5LDys
