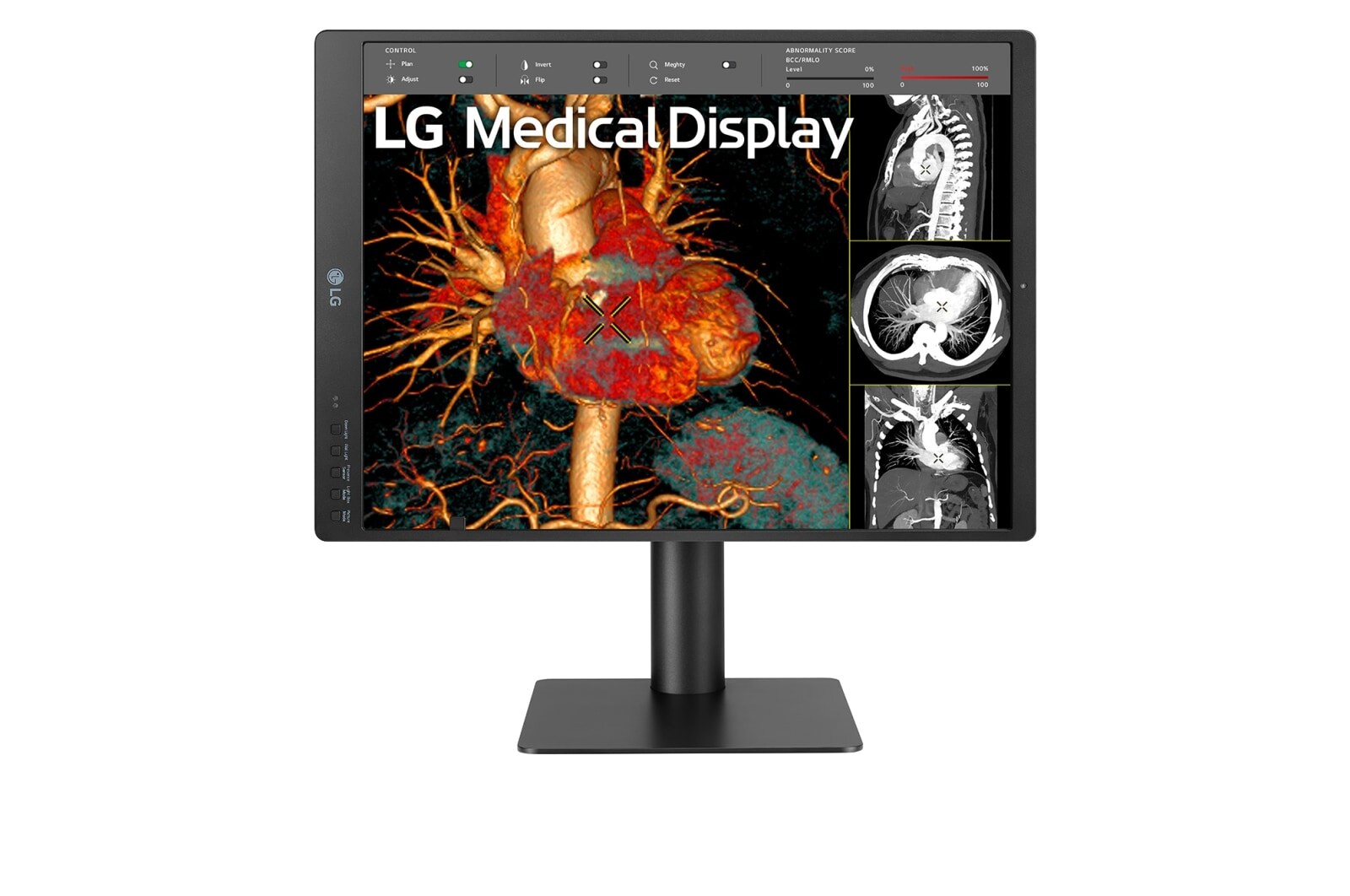

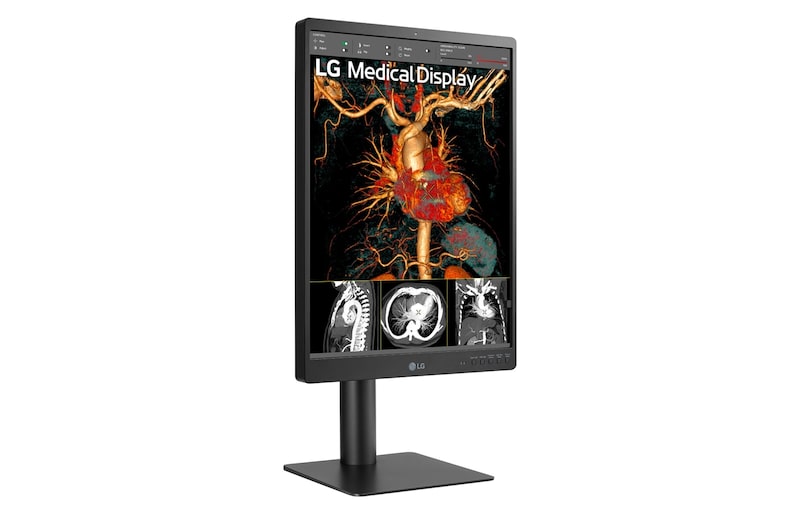

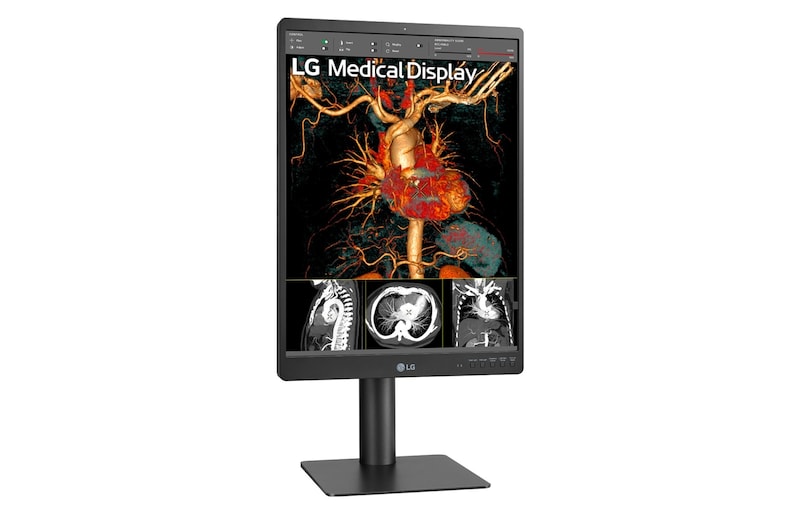

21.3'' 3MP IPS Diagnostic Monitor
21.3-inch 3MP IPS Display
Easy Calibration with Front Sensor

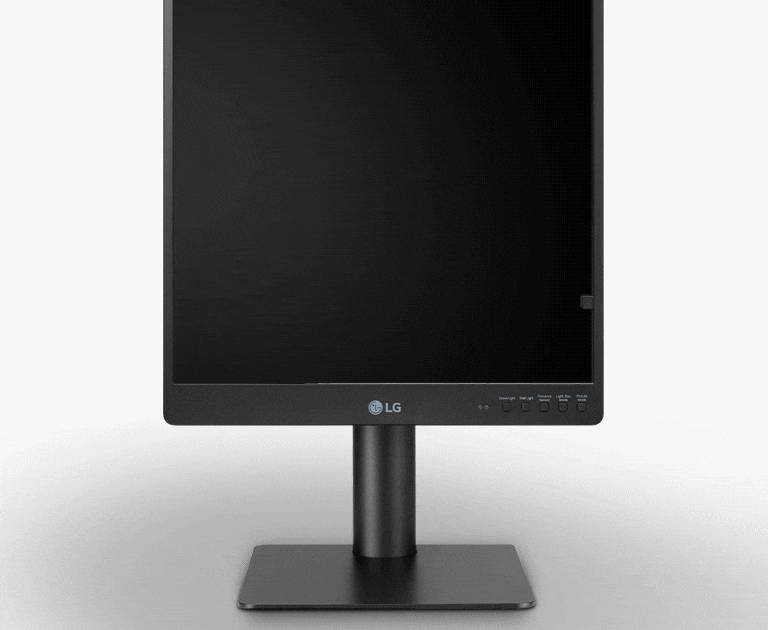

Focus View
5 Hot Keys & Lighting
Daisy Chain
Ergonomic Design
Integrated Front Sensor
The Integrated Front Sensor allows easy calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.
Down and Wall Lighting Modes minimise the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.
5 Hot Keys
The 21HQ513D's 5 Hot Keys make changing between screen modes easier and more intuitive than operating through an OnScreen menu. The 5 Hot Keys are much faster and easier to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.
5 hot keys offering user's intuitive control consisting of down light, wall light, presence sensor, light box mode, and picture mode.

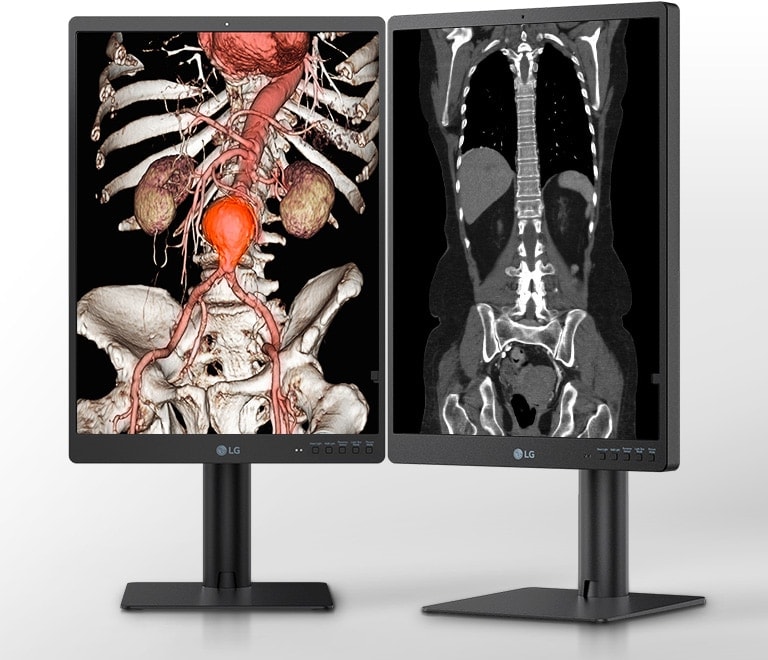

Daisy Chain
The 21HQ513D with 2 USB 3.0 Upstream Port and DisplayPort support Daisy Chain Setup. So you can establish a productive workstation by connecting two diagnostic Monitors and a PC.
productive workstation by connecting two diagnostic Monitors and a PC.

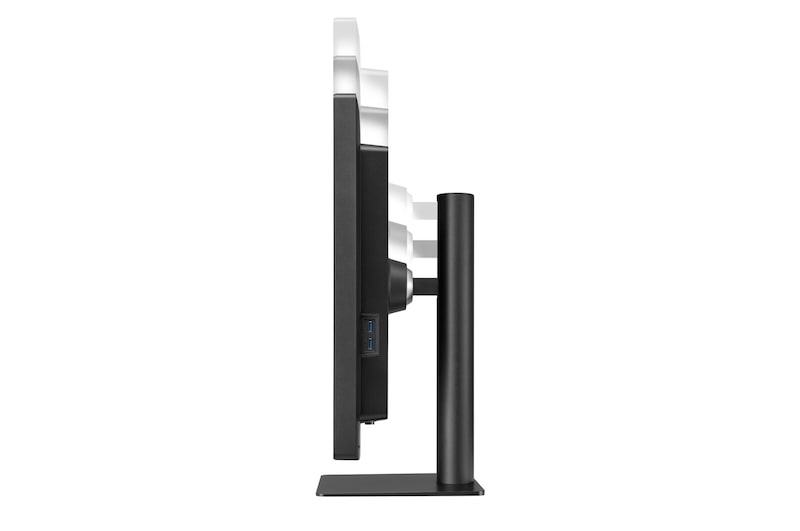

Ergonomic Design
The monitor comes with tilt, height and pivot adjustments, to suit the posture of healthcare professionals while they are performing image reviews.
Size [Inch]
21.3
Aspect Ratio
3:4
Response Time
5ms (GtG at Faster)
Resolution
1536x2048
Pixel Pitch [mm]
0.2115x0.2115
Viewing Angle (CR≥10)
178°(Right/Left), 178°(Up/Down)
Brightness (Typ.) [cd/m²]
1100
Contrast Ratio (Typ.)
1800:1
Colour Gamut (Typ.)
NTSC 72%
Colour Bit
10bit
Surface Treatment
Anti-glare, 3H
DisplayPort
YES(In 2ea/Out 1ea)
USB Downstream Port
YES(2ea/ver3.0)
USB Upstream Port
YES(2ea/ver3.0)
Daisy Chain
YES(3MP/60Hz)
Smart Energy Saving
YES
Flicker Safe
YES
Black Stabiliser
YES
Reader Mode
YES(Text mode)
Super Resolution+
YES

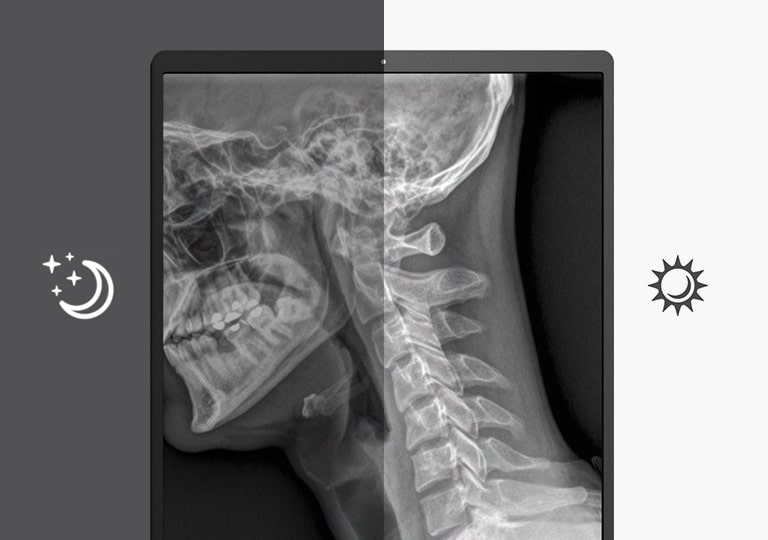

Auto Brightness
YES
Brightness stabilisation
YES
Colour Temperature
6500K/7500K/9300K/Manual (5000K ~ 10000K)
DICOM Compliant
YES
Focus View
YES
Front Sensor
YES
Hot Key
YES(5keys)
HW Calibration
YES(PerfectLum)
Lighting
YES(Down/ Wall)
Light Box Mode
YES
Pathology Mode
YES

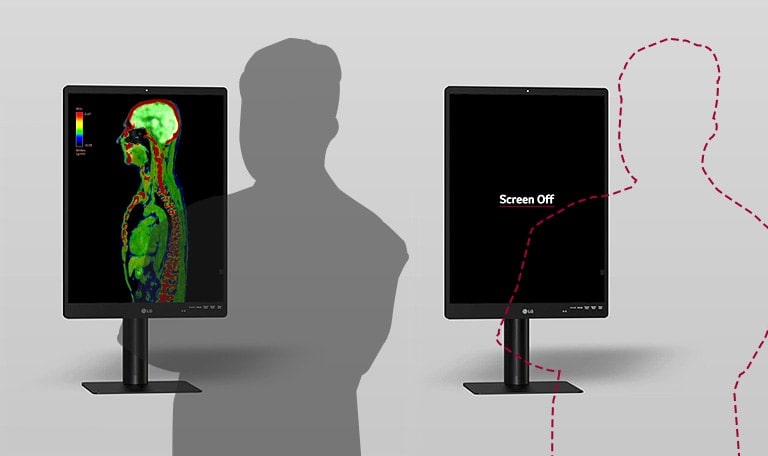

Presence Sensor
YES
Display Position Adjustments
Tilt/Height/Pivot
Wall Mountable [mm]
100x100
Borderless Design
Normal
Machanical Power Switch
YES
OneClick Stand
YES
Dimension in Shipping (W x H x D) [mm]
567x187x652
Dimension with Stand (W x H x D) [mm]
343.1x640x234.6
Dimension without Stand (W x H x D) [mm]
343.1x484x72.4
Weight in Shipping [kg]
10.5
Weight with Stand [kg]
7
Weight without Stand [kg]
5
Power Consumption (DC Off)
Less than 0.3W
AC Input
100-240Vac, 50/60Hz
Type
External Power(Adapter)
DC Output
19V, 6.32A
Display Port
YES
Adapter
YES
Calibration Report (Paper)
YES
DVI-D
YES
Power Cord
YES
USB A to B
YES
RoHS
YES
CE
MDR
EN (EN 60601-1 / EN 60601-1-2)
YES
EN (EN 60950-1 / EN 55032, 55024)
YES
FDA
510(k) (Class II)
GMP
YES
IEC (IEC 60601-1 / IEC 60601-1-2)
YES
IEC (IEC 60950-1 / IEC 55032, 55024)
YES
ISO13485
YES
MFDS
YES
REACH
YES
UL (cUL)
YES
WEEE
YES
