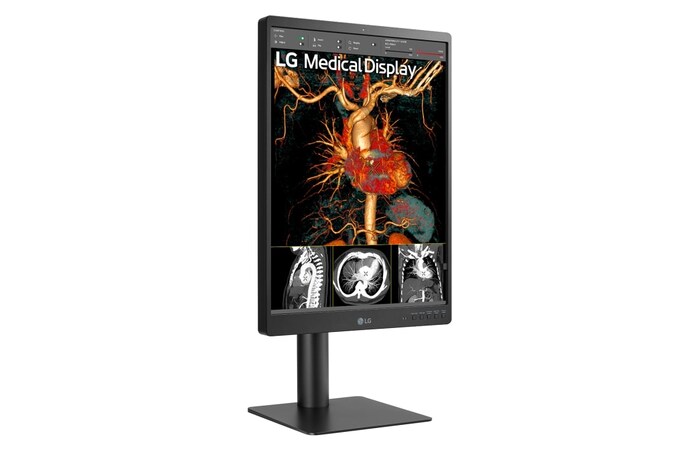

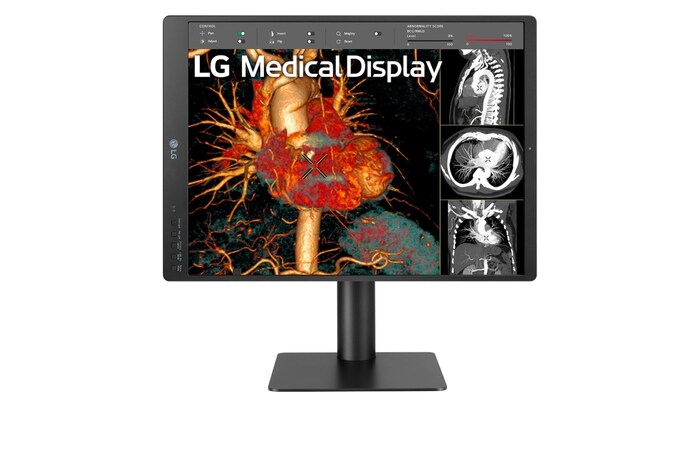

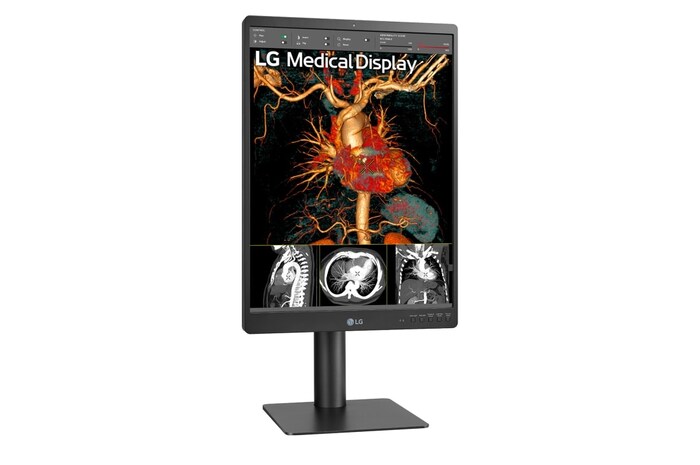

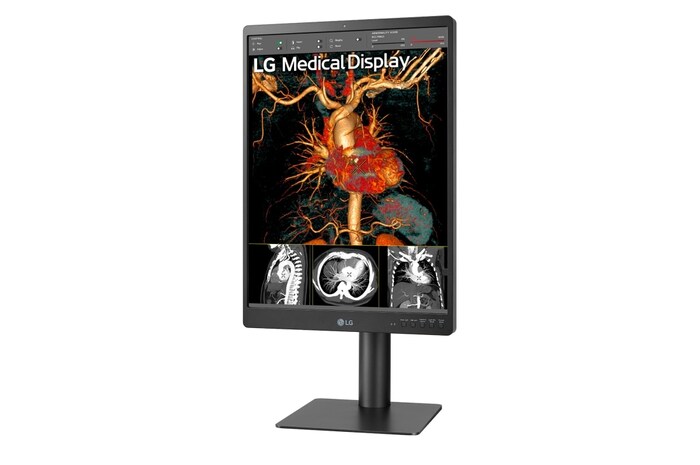

- 21.3-inch 3MP IPS Display
- 1200cd/m² Brightness (Typ.)
- Pathology Mode, Focus View Mode
- Down light & Wall light
- Ergonomic Design
All Spec
DISPLAY
Size [Inch]
21.3
Aspect Ratio
3:4
Response Time
5ms (GtG at Faster)
Resolution
1536x2048
Pixel Pitch [mm]
0.2115x0.2115
Viewing Angle (CR≥10)
178°(Right/Left), 178°(Up/Down)
Brightness (Typ.) [cd/m²]
1100
Contrast Ratio (Typ.)
1800:1
Colour Gamut (Typ.)
NTSC 72%
Colour Bit
10bit
Surface Treatment
Anti-glare, 3H

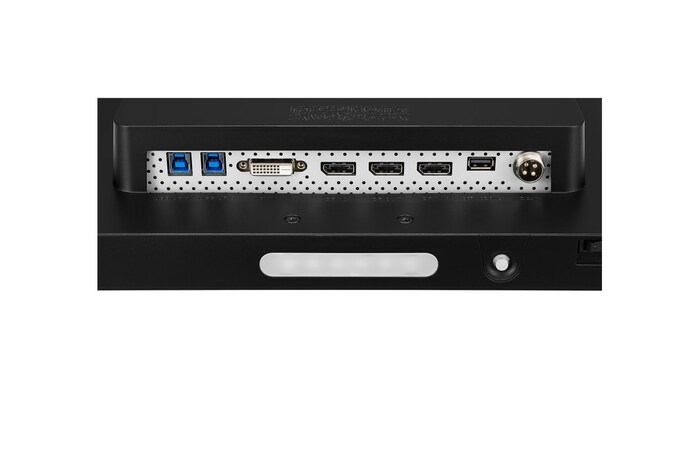

CONNECTIVITY
DisplayPort
YES(In 2ea/Out 1ea)
USB Downstream Port
YES(2ea/ver3.0)
USB Upstream Port
YES(2ea/ver3.0)

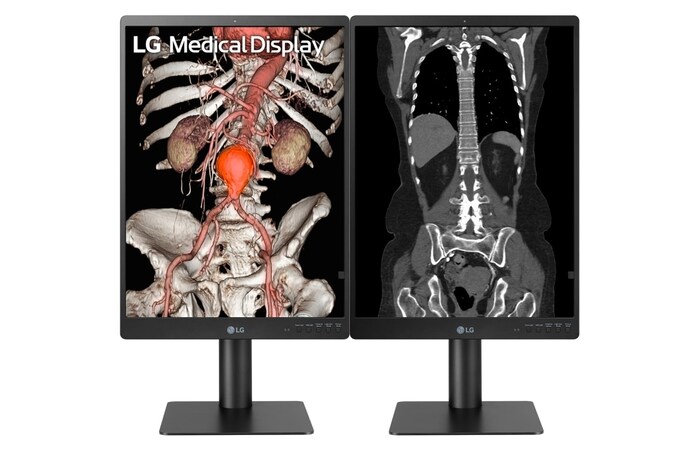

Daisy Chain
YES(3MP/60Hz)
FEATURES
Smart Energy Saving
YES
Flicker Safe
YES
Black Stabiliser
YES
Reader Mode
YES(Text mode)
Super Resolution+
YES
Auto Brightness
YES
Brightness stabilisation
YES
Colour Temperature
6500K/7500K/9300K/Manual (5000K ~ 10000K)
DICOM Compliant
YES
Focus View
YES
Front Sensor
YES
Hot Key
YES(5keys)
HW Calibration
YES(PerfectLum)

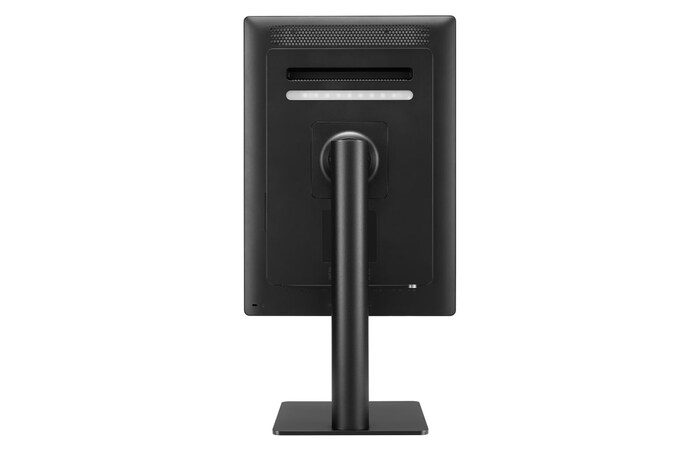

Lighting
YES(Down/ Wall)
Light Box Mode
YES
Pathology Mode
YES
Presence Sensor
YES
MECHANICAL

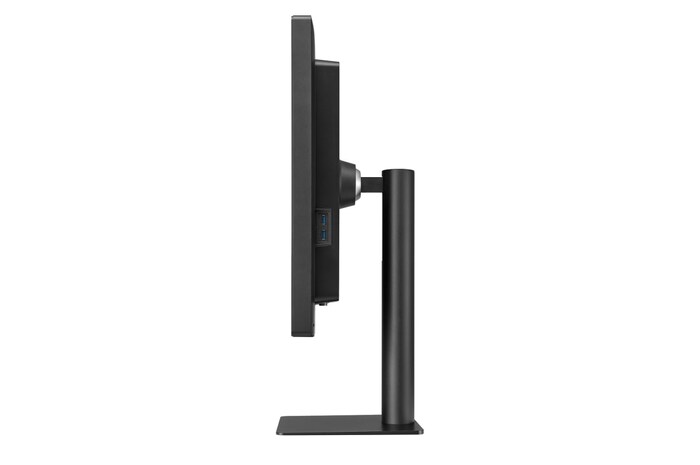

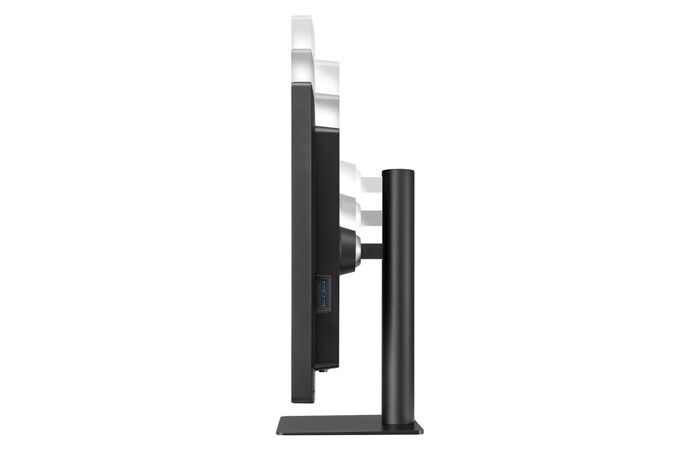

Display Position Adjustments
Tilt/Height/Pivot
Wall Mountable [mm]
100x100
Borderless Design
Normal
Machanical Power Switch
YES
OneClick Stand
YES
DIMENSIONS/WEIGHTS
Dimension in Shipping (W x H x D) [mm]
567x187x652
Dimension with Stand (W x H x D) [mm]
343.1x640x234.6
Dimension without Stand (W x H x D) [mm]
343.1x484x72.4
Weight in Shipping [kg]
10.5
Weight with Stand [kg]
7
Weight without Stand [kg]
5
POWER
Power Consumption (DC Off)
Less than 0.3W
AC Input
100-240Vac, 50/60Hz
Type
External Power(Adapter)
DC Output
19V, 6.32A
ACCESSORY
Display Port
YES
Adapter
YES
Calibration Report (Paper)
YES
DVI-D
YES
Power Cord
YES
USB A to B
YES
STANDARD
RoHS
YES
CE
MDR
EN (EN 60601-1 / EN 60601-1-2)
YES
EN (EN 60950-1 / EN 55032, 55024)
YES
FDA
510(k) (Class II)
GMP
YES
IEC (IEC 60601-1 / IEC 60601-1-2)
YES
IEC (IEC 60950-1 / IEC 55032, 55024)
YES
ISO13485
YES
MFDS
YES
REACH
YES
UL (cUL)
YES
WEEE
YES
