24CN650W-AP
23.8'' Full HD All-in-One Thin Client
  • 23.8" Full HD (1920x1080) IPS Display
  • Built-in Full HD Webcam & Speakers
  • Quad-core Processor
  • Windows 10 IoT Enterprise

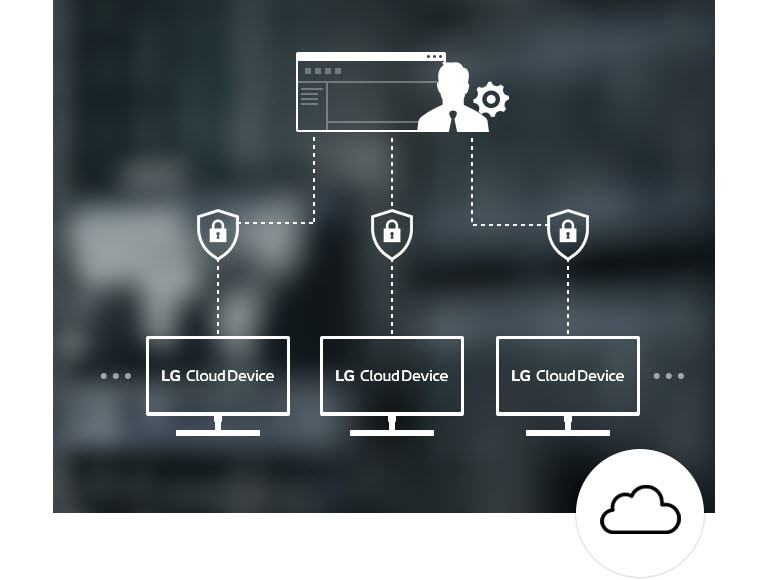

  • LG Cloud Device Manager
  • Fanless Design

component-OBScountrySelectDesc

23.8'' Full HD All-in-One Thin Client
Why Cloud Device

Productivity and Efficiency

LG offers various Thin Client products that can add value to your work environment with enhanced performance.
Productivity and Efficiency Productivity and Efficiency
Quad-core Processor

More Powerful Performance

With advanced Quad-core Processor and a powerful system memory, the monitor helps you complete your work.
More Powerful Performance More Powerful Performance

Processor Processor Intel® Celeron J4105

RAM & Storage RAM & Storage 8GB DDR4 / SSD 128GB

OS OS Windows 10 IoT Enterprise

*RAM and storage specifications as detailed above apply only to the model with Windows operating system, and may differ by model.
23.8" Full HD IPS Display

True Color at Wide Angles

LG Full HD display with IPS technology delivers clear and consistent images. View on screen content including charts and reports at angles of up to 178 degrees.
Supports up to 2 Displays

Create Productive Workstations

LG monitor supports up to 4K UHD resolution dual displays. With flexibility for multi-monitor set-up options, you can get more done in less time.
The Most Productive Workstation The Most Productive Workstation
*Supporting connected displays via USB Type-C™ and DisplayPort out.
  • USB Type-C™

    USB Type-C™

    The single USB Type-C™ connection delivers up to 4K hi-resolution images and transmits data quickly.

  • Various Interface

    Various Interface

    DisplayPort 2, USB Type-C™, USB 3.0, Gigabit Ethernet, HDMI, Headphone, USB 2.0

*Types of Inputs specified in the right side are numbered from left to right, top to bottom of the image on the right.
Versatile Design

Adjustable Stand for Better Comfort

The screen can be tilted, raised and lowered so you can adjust the screen to your preferred position.

One Click Stand One Click Stand

Swivel Swivel

Pivot Pivot

Tilt & Height Tilt & Height

PC COMPONENTRY
  • Processor
    Intel® Celeron J4105 (Quad Core 1.5GHz, up to 2.5GHz burst), Fanless
    Graphics
    Integrated Graphics
  • Operation System
    Windows 10 IoT Enterprise LTSC
    System Memory
    8GB (2x4GB) DDR4, 2666MHz, 2 SODIMM slots
  • Storage
    128GB SSD (M.2)
    Display Support
    Up to 2 displays : 3840x2160@60Hz (via Display Port 1.2 out), 3840x2160@60Hz (via USB Type-C)
  • Expansion Slot
    M.2 Slots x 2 (Slot 1 : 128GB SSD, Slot 2 : Wi-Fi + Bluetooth card) * Note: Slot 1 should be capable of supporting SATA,
    SO-DIMM x 2 (Slot 1 : 4GB DDR4, Slot 2 : 4GB DDR4)
    TPM (Trust Platform Module)
    Hardware TPM 2.0
  • VDI Support
    Citrix, VMware, Microsoft RDP, PCoIP S/W
DISPLAY
  • Size (Inch)
    23.8
    Size (cm)
    60.47
  • Aspect Ratio
    16:9
    Resolution
    1920 x 1080
  • Panel Type
    IPS
    Panel Multi
    BMS / LGD Module
  • Backlight Technology
    LED
    Backlight Type
    Edge
  • Backlight Array
    H1B
    Backlight Dimming Technology
    Global Dimming
  • Pixel Pitch
    0.2745 x 0.2745 mm
    Brightness (Min.)
    200 cd/m²
  • Brightness (Typ.)
    250 cd/m²
    Colour Gamut (Typ.)
    NTSC 72% (CIE1931)
  • Colour Depth (Number of Colours)
    16.7M
    Colour Bit
    8bit (6bit+FRC)
  • Contrast Ratio (Min.)
    600:1
    Contrast Ratio (Typ.)
    1000:1
  • Contrast Ratio with DFC
    Mega
    Response Time
    5ms (GtG at Faster)
  • Viewing Angle (CR≥10)
    178º(R/L), 178º(U/D)
    Surface Treatment
    Anti Glare, 3H
FEATURES
  • Webcam
    Yes (FHD, Integrated with Microphone, Pop-up type, no webcam app provided)
    Black Stabilizer
    Yes
  • Colour Weakness
    Yes
    Dynamic Action Sync
    Yes
  • Flicker safe
    Yes
    Picture Mode
    Custom, Reader, Photo, Cinema, Color Weakness, Game
  • Reader Mode
    Yes
    Smart Energy Saving
    Yes
  • Super Resolution+
    Yes
SW APPLICATION
  • Management Console
    LG Cloud Device Manager
    OnScreen Control (LG Screen Manager)
    Yes
CONNECTIVITY
  • HDMI
    Yes x1
    HDMI Version
    1.4
  • HDMI (H-Frequency)
    30~85KHz
    HDMI (V Frequency)
    56~75Hz
  • HDMI (HDCP Version)
    1.4
    HDMI (Max. Resolution at Hz)
    1920X1080 75Hz
  • Display Port
    YES(out 1ea)
    DP Version
    1.2
  • DP (Max. Resolution at Hz)
    3840x2160 @ 60Hz
    MIC & Headphone out combo
    YES (1 x 3.5mm audio-mic combo jack (CTIA Type))
  • USB
    2x USB 2.0 Type-A, 4 x USB 3.1 gen1 (5Gb/s) Type-A
    USB-C
    YES(out 1ea)
  • USB-C (DP Version)
    1.2
    USB-C (DP Alternate Mode)
    Yes
  • USB-C (Data Transmission)
    Yes
    USB-C (Max. Resolution at Hz)
    3840×2160@60Hz
SOUND
  • Speaker
    Yes
    Speaker Channel
    2ch
  • Speaker Output (unit)
    3W
    Speaker Direction
    Down Firing
  • Maxx Audio
    Yes
POWER
  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    19V 5.79A
  • Power Consumption (DC Off)
    Less than 1.2W
    Power Consumption (Energy Star)
    72.2Kwh
  • Power Consumption (Max.)
    68W
    Power Consumption (Typ.)
    25W
  • Power Consumption (Sleep Mode)
    1.24W
    Long Idle (Display Off)
    3.8W
  • Short Idle (Display On)
    17.5W
    TEC (kWh)
    95.6KWh
  • Type
    External Power (Adapter)
MECHANICAL
  • Borderless Design
    Normal
    Assembly Step
    Three-Step
  • Base Detachable
    Yes
    Colour (Front Cabinet)
    Matt Black
  • Colour (Middle Cabinet)
    Matt Black
    Colour (Back Cover)
    Matt Black
  • Colour (Stand Body)
    Matt Black
    Colour (Stand Base)
    Matt Black
  • Display Position Adjustments
    Tilt/Height/Swivel/Pivot
    Tilt
    -5º ~ 35º
  • Swivel
    0°~355° (±5°)
    Pivot
    Bi-Direction
  • Height Range
    130mm
    Down Height
    70mm
  • OneClick Stand
    Yes
    Wall Mountable
    100 x 100 mm
DIMENSIONS & WEIGHT
  • Dimension in Shipping (W x H x D)
    614 x 462 x 174 mm
    Dimension with Stand (W x H x D)
    553.4 x 382.7 x 240 mm
  • Dimension without Stand (W x H x D)
    553.4 x 332.7 x 59.4 mm
    Pallet Stuffing (20ft/40ft/40ft HC)
    440/924/1008
  • Weight in Shipping
    8.6kg
    Weight with Stand
    6.2kg
  • Weight without Stand
    4.1kg
STANDARD
  • CB
    Yes
    CE
    Yes
  • EPA
    YES (8.0)
    EPEAT (Germany)
    BRONZE
  • EPEAT (USA)
    BRONZE
    Energy Star
    Yes
  • ErP
    Yes
    FCC-B
    Yes
  • HDMI
    Yes
    KC (for Rep. of Korea)
    Yes
  • ROHS, REACH
    Yes
    TUV-Ergo
    Yes
  • TUV-GS
    Yes
    TUV-TYPE
    Yes
  • UL(cUL)
    Yes
    VESA wall mount standard
    Yes
ACCESSORIES
  • Adapter
    Yes
    Adapter (Colour)
    Black
  • Power Cord
    Yes
    Power Cord (Colour/Length)
    Black / 1.55m
  • External Antenna
    NO (Internal Antenna)
NETWORK
  • LAN
    1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
    Wi-Fi
    Dual Band 802.11a/b/g/n/ac 2x2 (BT 5.0 Combo, Internal Antenna)
  • Bluetooth
    BT5.0
RESOLUTION
  • HDMI (PC)
    1920x1080@75Hz
    HDMI (Video)
    1920x1080@60Hz
CONTROL KEY
  • Key Location
    Front
    Key Number (Power Key Included)
    7
  • Key Type
    Tact
    LED Colour (On Mode)
    White
  • LED Colour (Power Save Mode)
    Blinking
    LED Colour (Standby)
    OFF
OSD
  • Country
    English, German, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese (Brazil), Hindi, Traditional Chinese
    Number of Language
    18
BOX COSMETIC
  • Box Printing Type
    Flexo
    Handle
    Hand Hole
  • Packing Material
    EPS
    Stacking Type
    Face Down
  • Stand Packing Type
    Detached
CLIMATIC FACTORS
  • Humidity Range
    Operating : 20%~80%, Storage : 10%~90%
    Temperature Range
    Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C
