76L InstaView Series 5 Oven – Glass

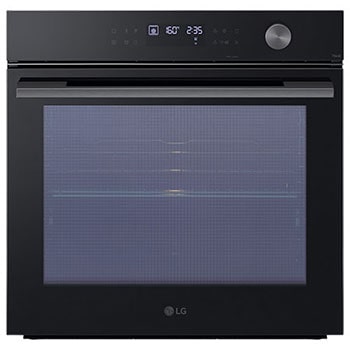

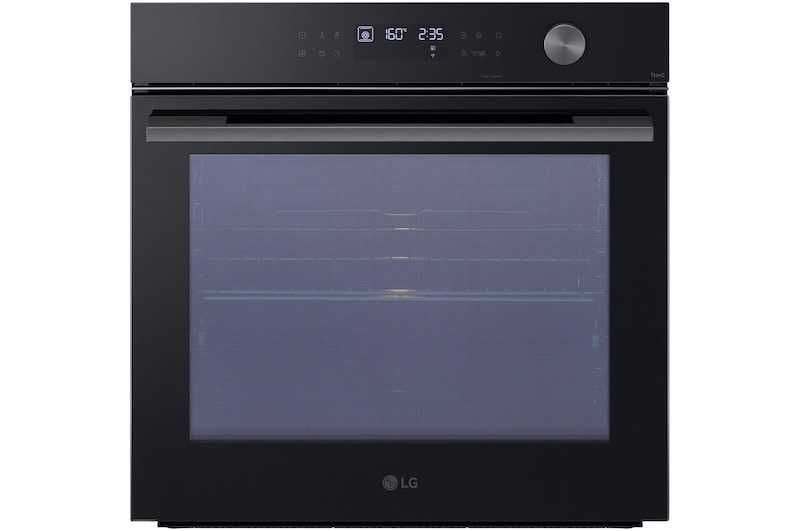

/02_BO24_WS7D7610G_BO605G1GL5_AP_Front_LightOn-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)

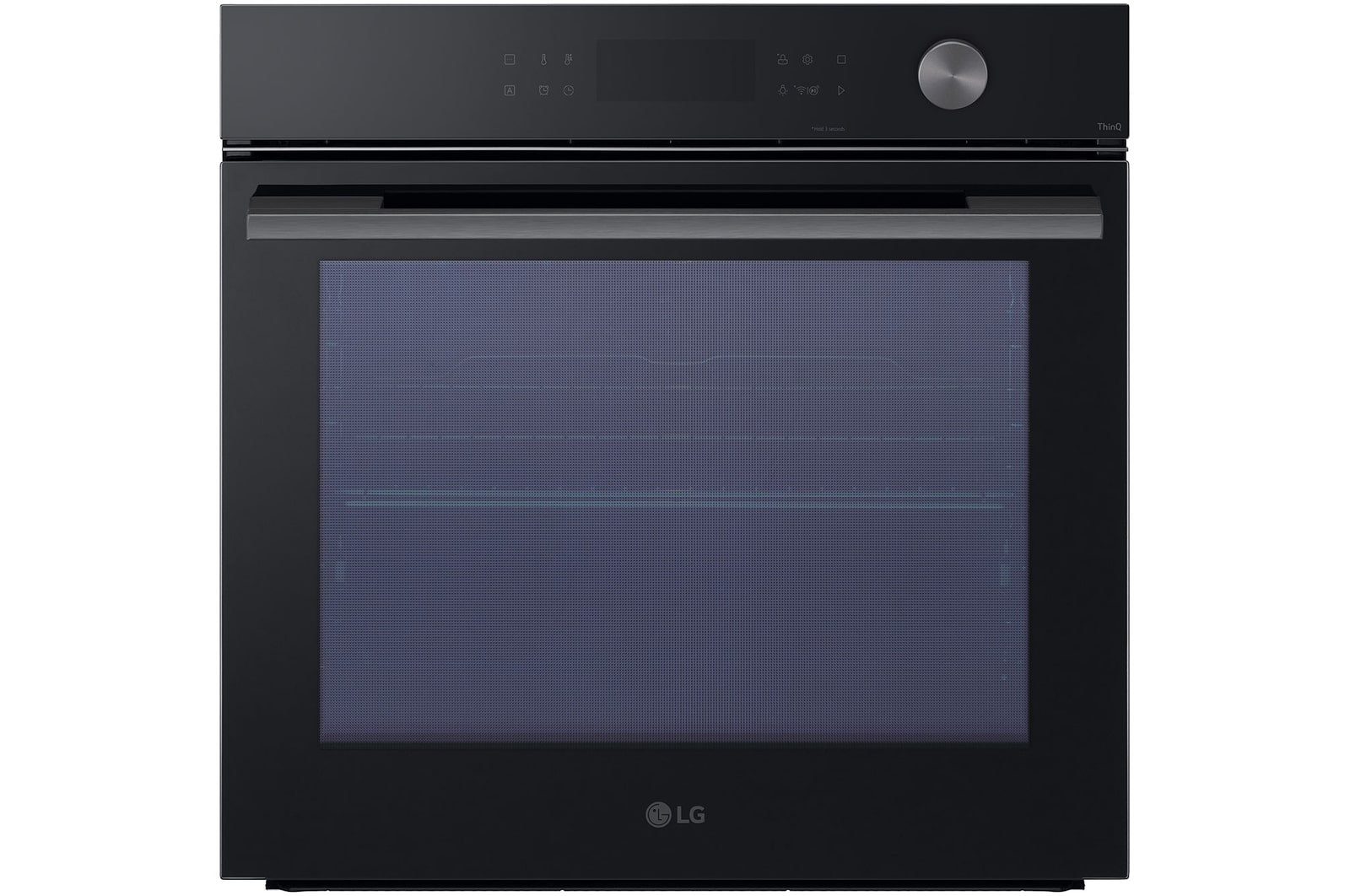

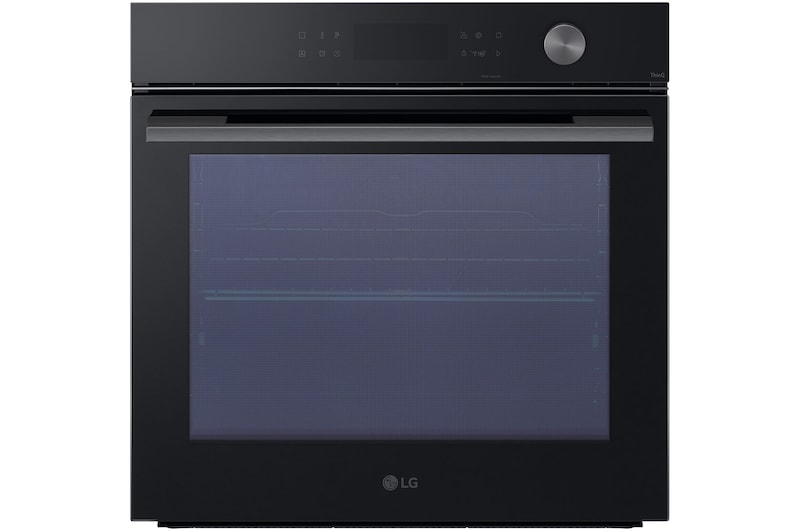

/01_BO24_WS7D7610G_BO605G1GL5_AP_Front_LightOff-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)

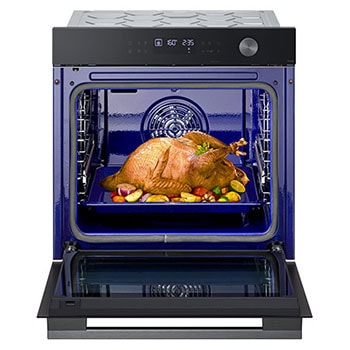

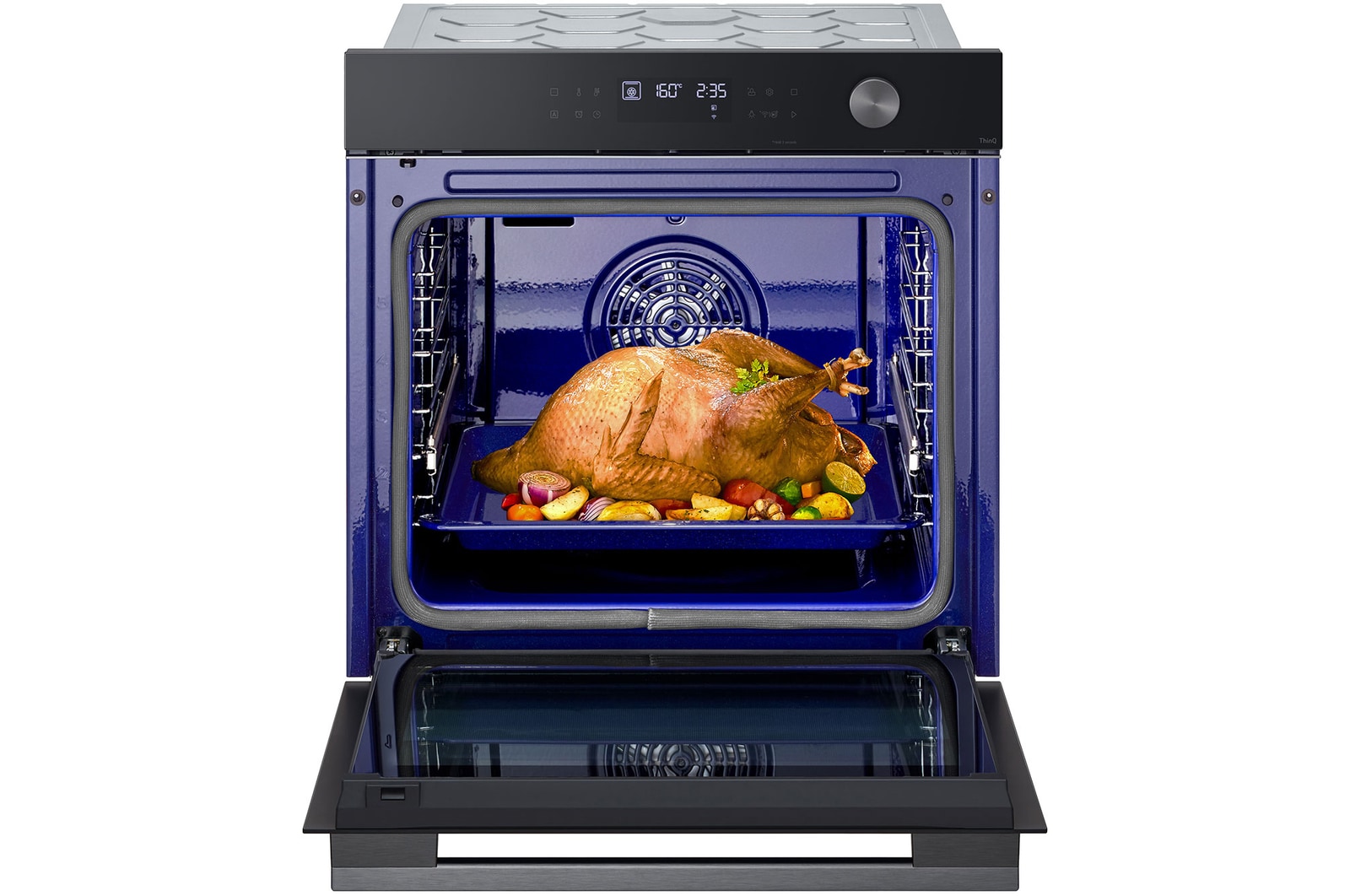

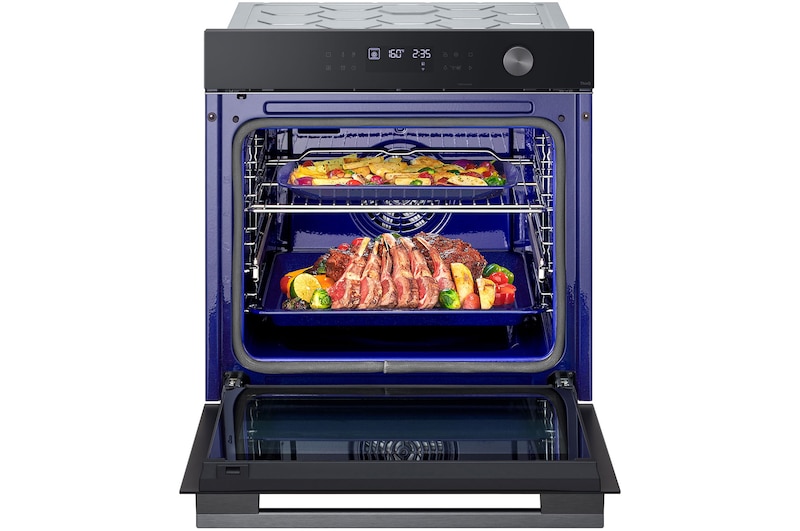

/03_BO24_WS7D7610G_BO605G1GL5_AP_FrontOpen_Food1-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)

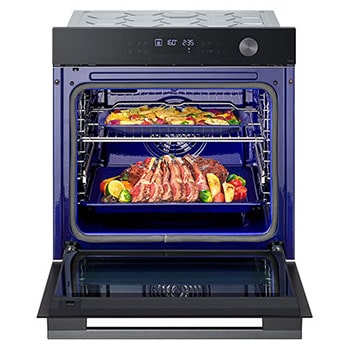

/04_BO24_WS7D7610G_BO605G1GL5_AP_FrontOpen_Food2-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)

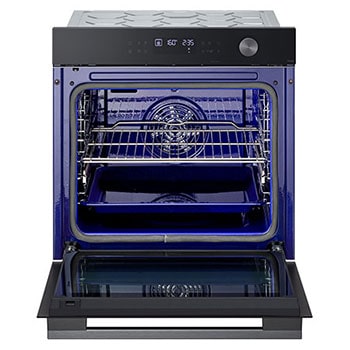

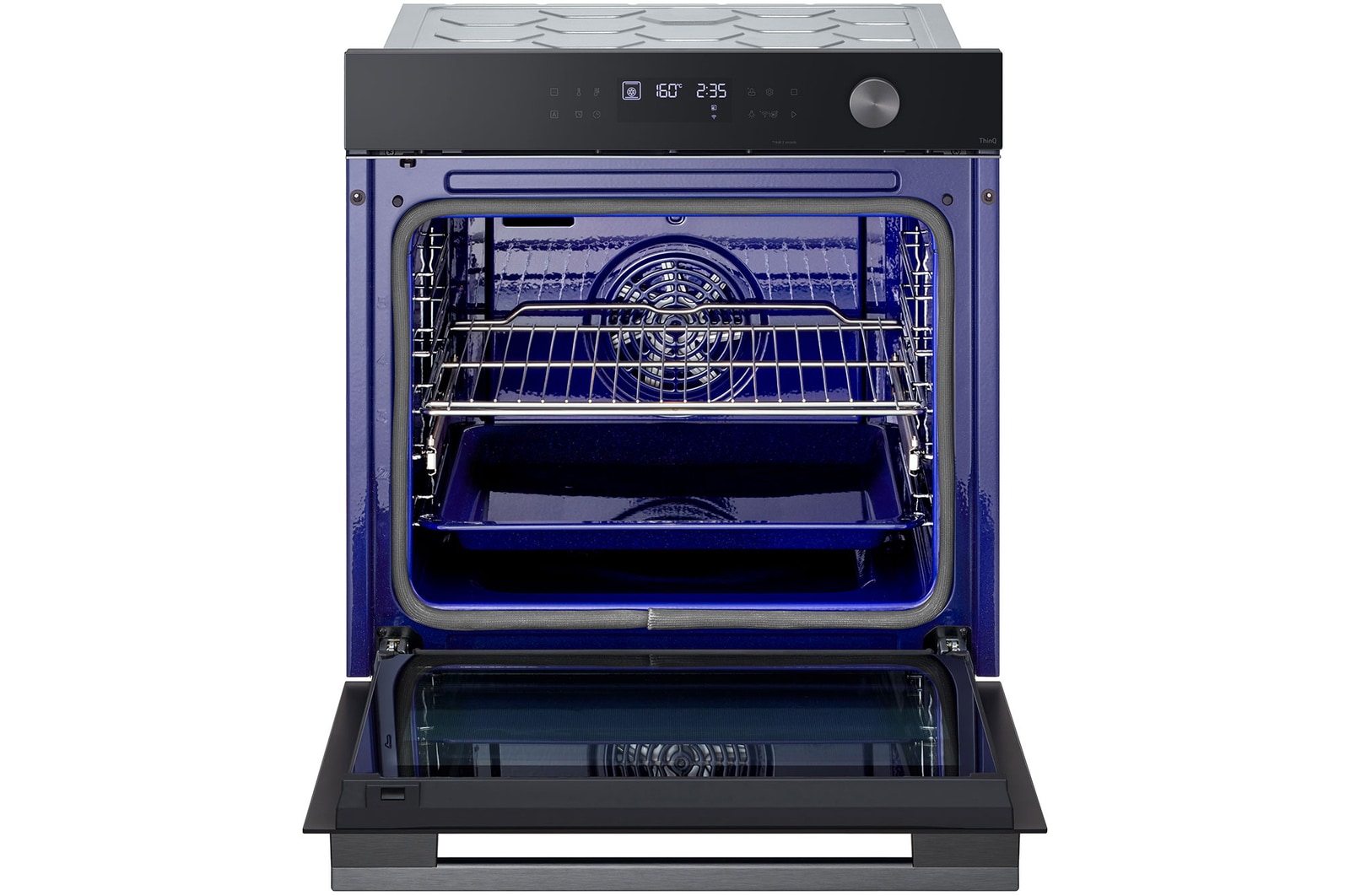

/05_BO24_WS7D7610G_BO605G1GL5_AP_FrontOpen_RackO-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)

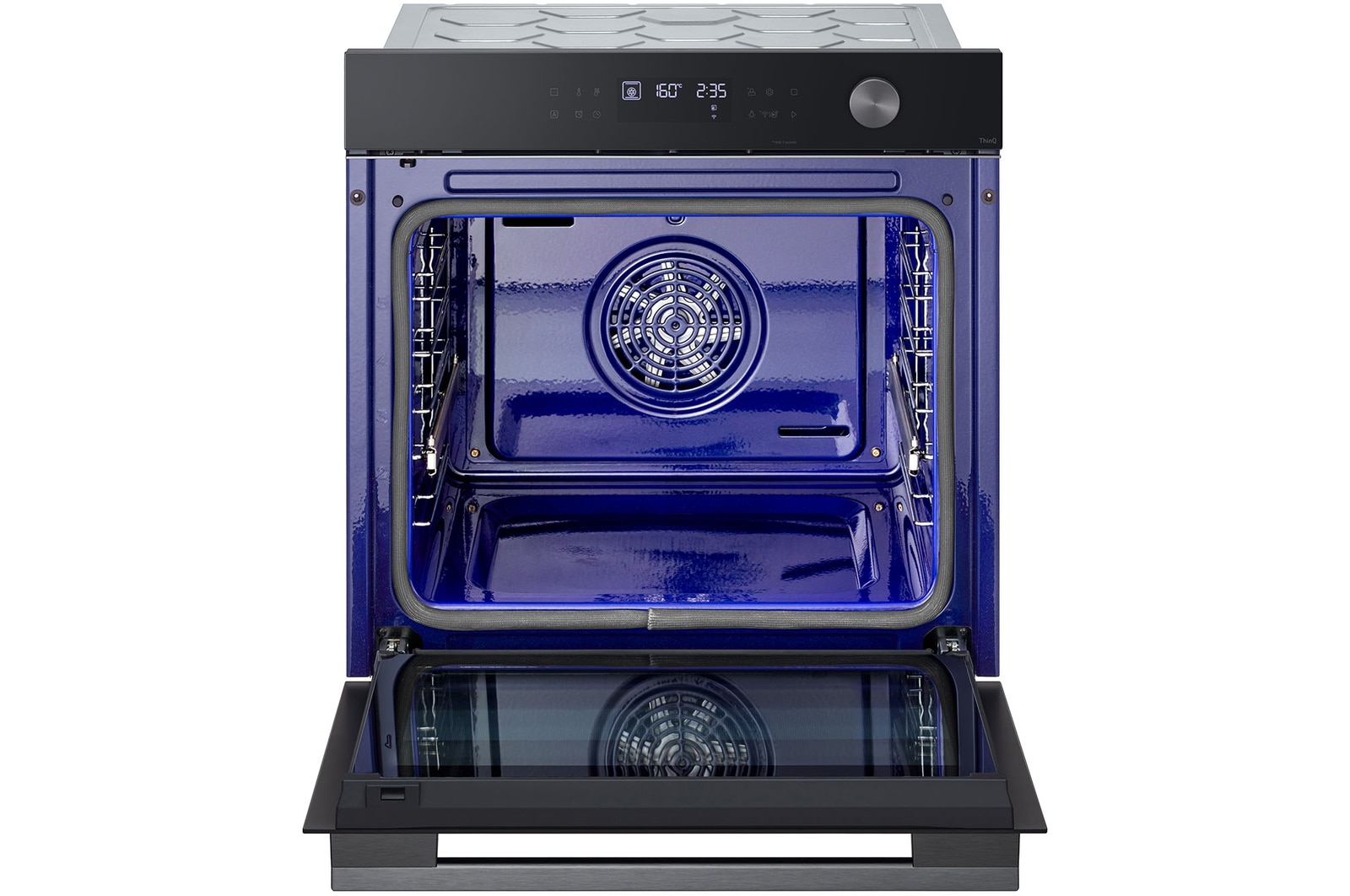

/06_BO24_WS7D7610G_BO605G1GL5_AP_FrontOpen_RackX-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)

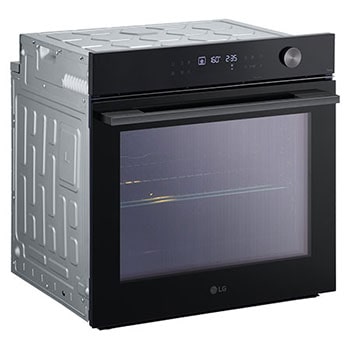

/07_BO24_WS7D7610G_BO605G1GL5_AP_LeftSide-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)

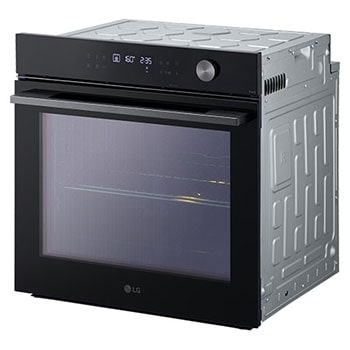

/08_BO24_WS7D7610G_BO605G1GL5_AP_RightSide-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)

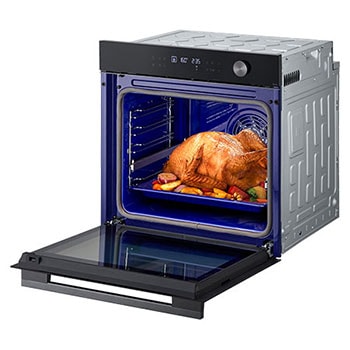

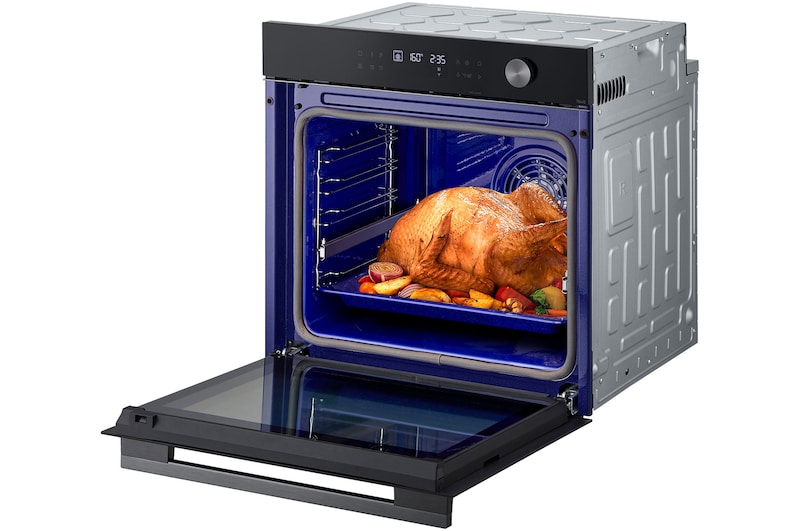

/09_BO24_WS7D7610G_BO605G1GL5_AP_RightSideOpen_Food1-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)
/10_BO24_WS7D7610G_BO605G1GL5_AP_RightSideOpen_Food2-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)

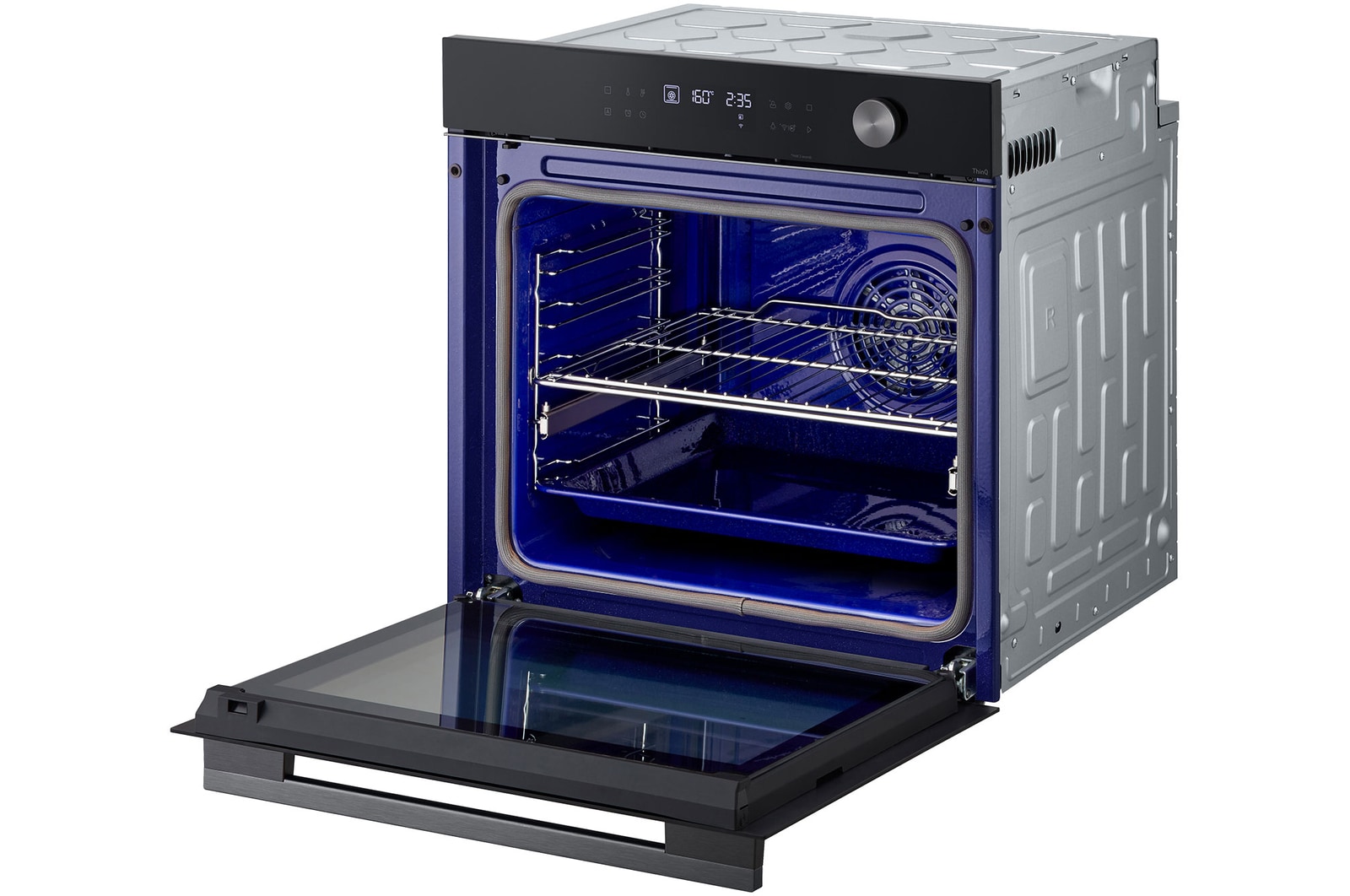

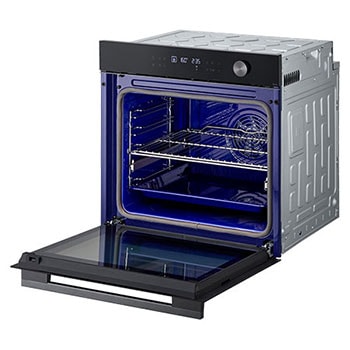

/11_BO24_WS7D7610G_BO605G1GL5_AP_RightSideOpen_RackO-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)
/12_BO24_WS7D7610G_BO605G1GL5_AP_RightSideOpen_RackX-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)

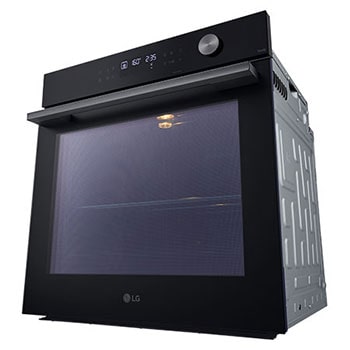

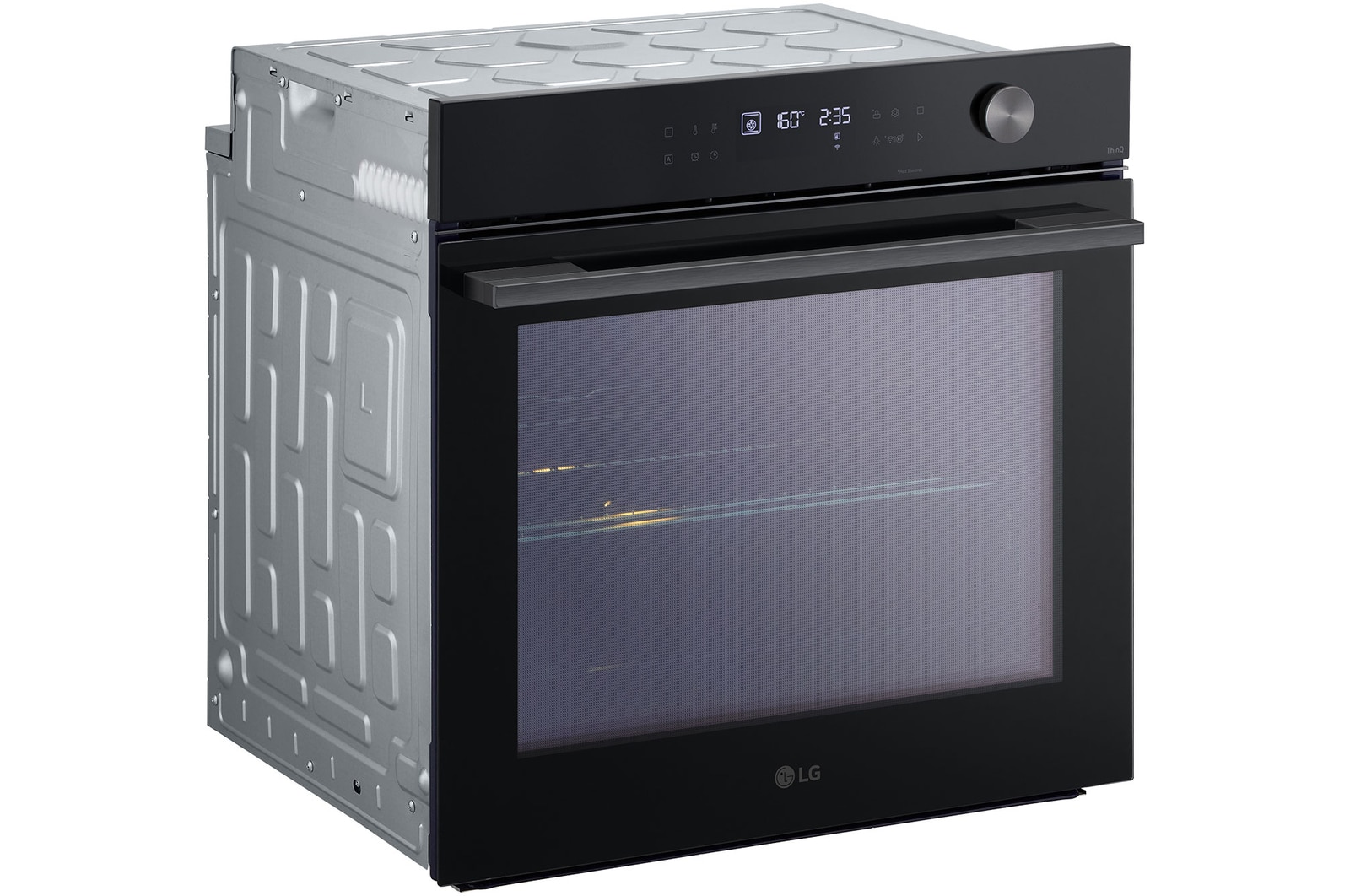

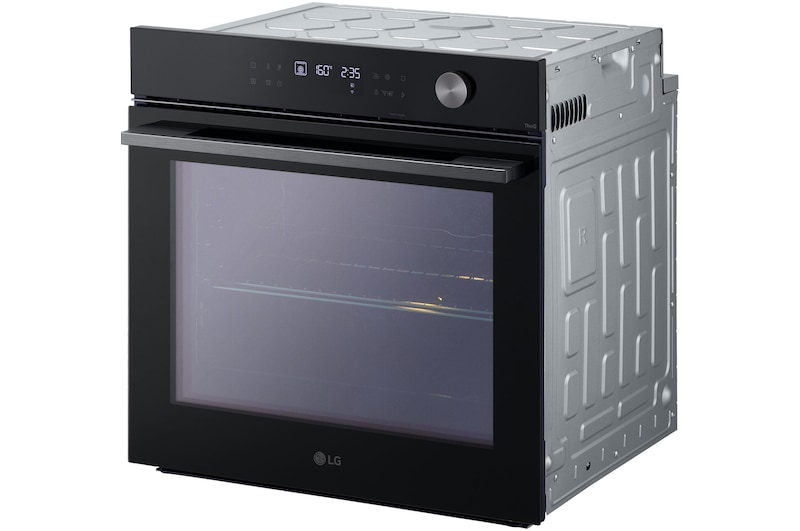

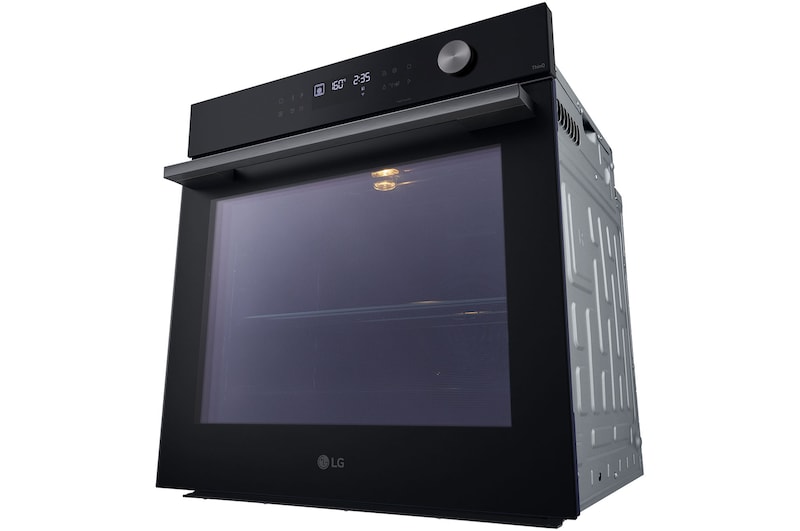

/13_BO24_WS7D7610G_BO605G1GL5_AP_RightPerspective-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)

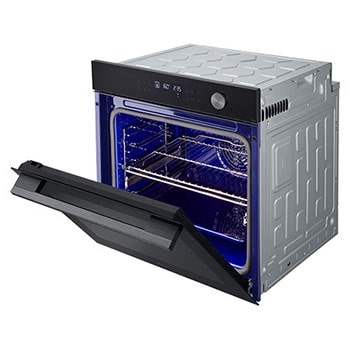

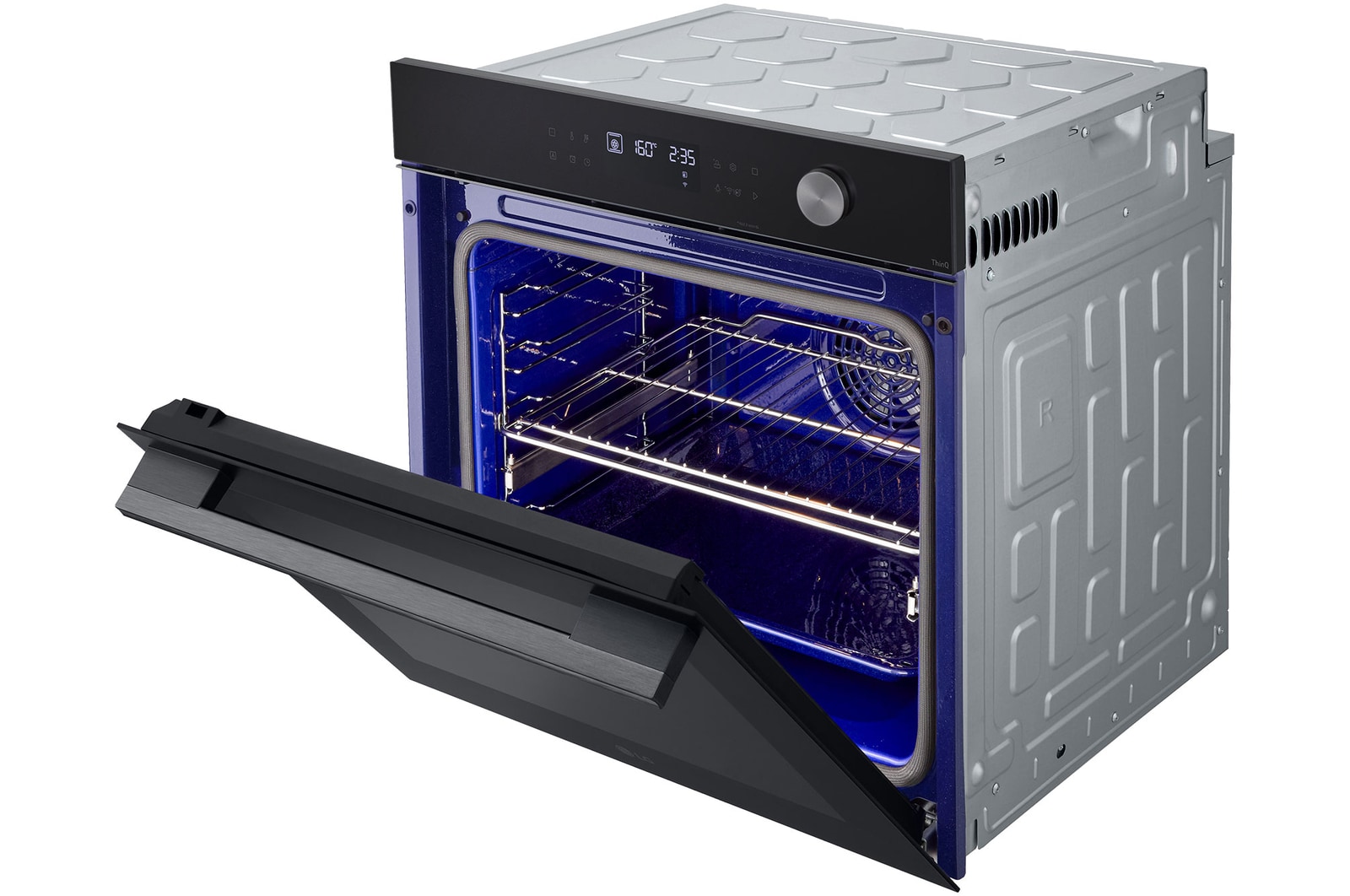

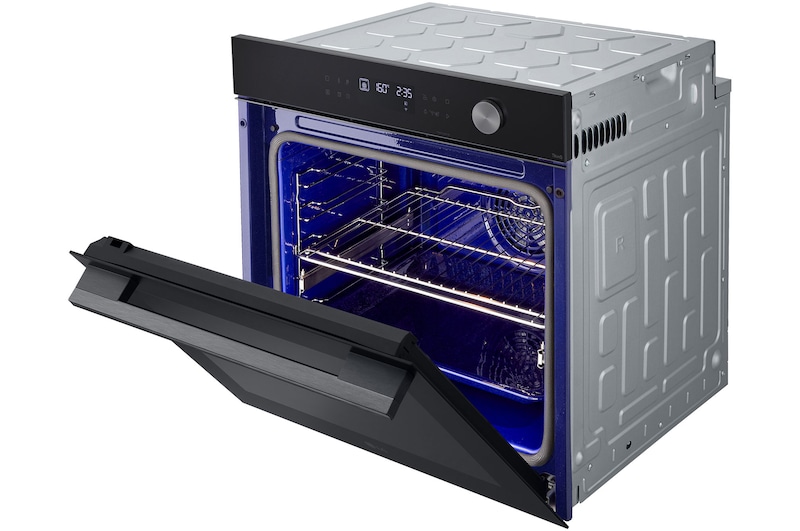

/14_BO24_WS7D7610G_BO605G1GL5_AP_DoorOpen-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)

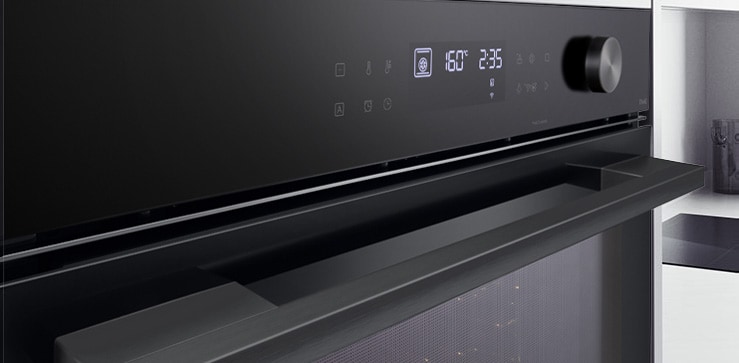

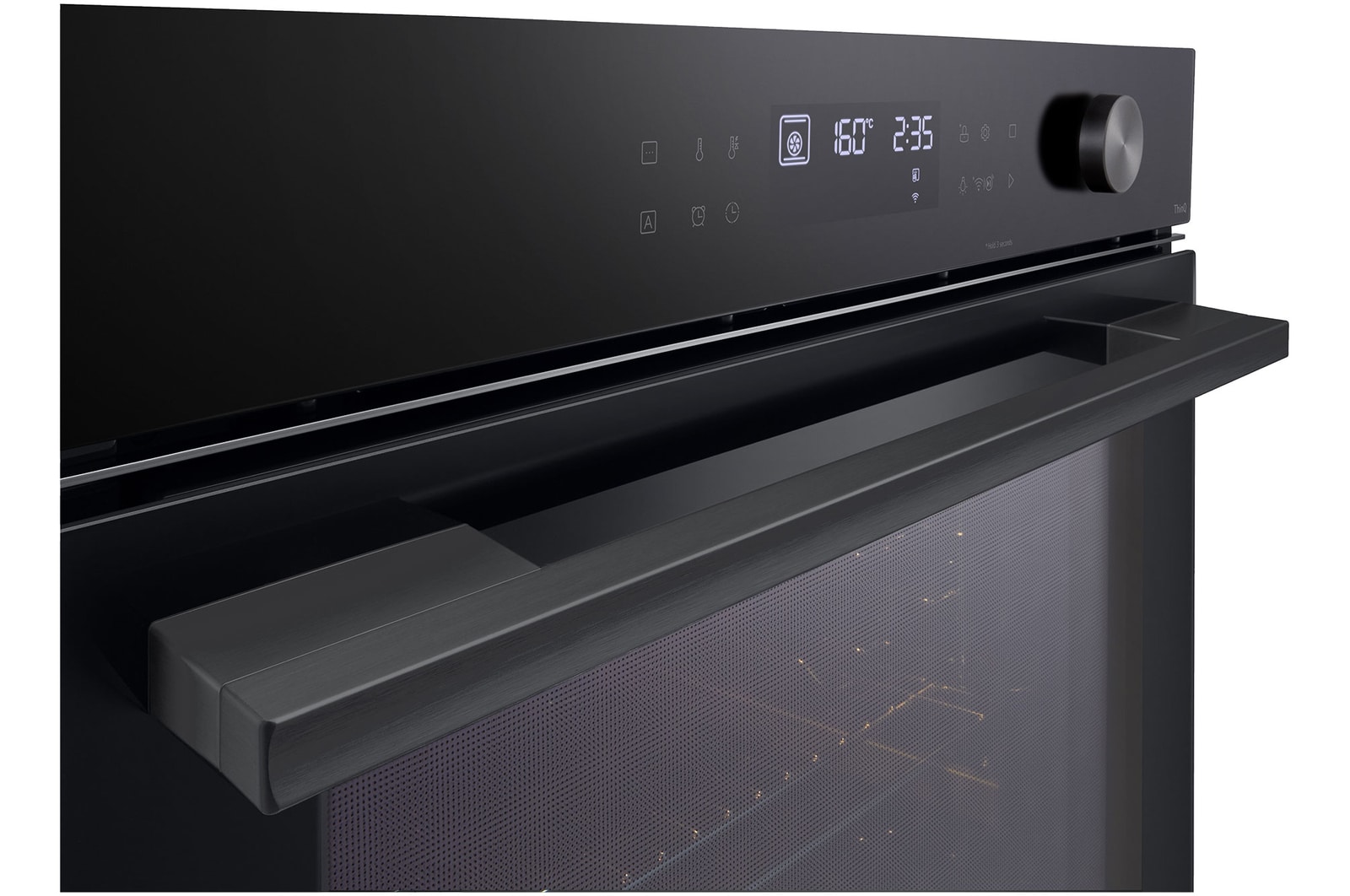

/15_BO24_WS7D7610G_BO605G1GL5_AP_ControlPanel-Handle-2010X1334.jpg/jcr:content/renditions/thum-1600x1062.jpeg)
Key Features
Check your food instantly without opening the oven with InstaView™.
Convection Oven, Air Fryer, Air Sous Vide, and Pizza Mode.
Blue EasyClean™ helps you clean your oven in 10 min.
Check your food's progress from anywhere in the house.
*Model subsequent images may differ from the model presented on this page: please refer to image gallery at the top of the page for correct model and finish.
4-in-1 Pro Cooking
Expand your culinary horizons with a versatile 4-in-1 appliance: Convection Oven, Air Fryer, Air Sous Vide, and Pizza Mode.
This is an image of steamed chicken breasts, air-fried chicken wings, cookies, and air sous vide steak on the table. Icons representing ProBake convection, air sous vide, air fry, and ProBake steam functions are also included below.
.jpg)
This is an image that vacuum-packed meat cooked through an air sous vide.
This is an image that vacuum-packed meat cooked through an air sous vide.
This is an image of pizza baked in an oven.
*Vacuum sealer and bag required for Sous Vide cooking is not included.
*Air Fry perforated tray pictured not included.
Split view of oven: left dirty, soapy, right clean, hand sprays for EasyClean.
Fill a spray bottle 510ml of water. Spray about 60ml of water on the wall and corners.
Manual Cook, Steam Cook, Recipe Cook, My Recipes, Settings
Then pour the remaining water onto the bottom of the oven.
This is an image of steam being sprayed from inside the oven.
Press the EasyClean™ button.
The image of wiping the inside of the oven with a cloth.
Simply wipe away any residue with a cloth or towel.
The image of wiping the inside of the oven with a cloth.
*Blue EasyClean™ requires spraying water inside the oven for non-steam models.
*The results may vary depending on oven use and the cleaning frequency of oven.
*Model subsequent images may differ from the model presented on this page: please refer to image gallery at the top of the page for correct model and finish.
LG ThinQ® Smart Kitchen
Experience innovative simplicity and control with the convenience of smart cooking. Monitor, preheat, adjust cooking settings remotely and simplify your meal prep with Smart Recipes in the LG ThinQ® app.
*Wi-Fi, LG ThinQ® app & compatible smartphone required. Refer to lg.com/thinq for details.
*Model shown in this video and subsequent images may differ from the model presented on this page: please refer to image gallery at the top of the page for correct model and finish.
This is an image of a woman looking at a food recipe on her smartphone.
This is an image of a woman looking at a food recipe on her smartphone.
This is an image of a woman looking at a food recipe on her smartphone.
This is an image of a woman looking at a food recipe on her smartphone.
This is an image of a woman looking at a food recipe on her smartphone.
Product Demo Videos
In this video series, our LG Product Expert offers a hands-on intro to the LG range of Cooking appliances.
Click for further details on how the Built-in Oven fits into your space, including a guide to measurements and other criteria to heed.
This image shows the dimensions of the oven.
This image shows the margin required for oven installation.
This image shows the parts that need fixing when installing the oven.
Which features does this product have?
Features vary by model. Not all features referred to in the below Q&A are available on every product in the LG range. Please refer to specifications / product pages for details by model.
Do LG Cooking Appliances have the ThinQ feature?
Yes, the full LG Cooking Appliance range is compatible with the LG ThinQ feature. Explore smart kitchen connectivity and use the ThinQ app across Ovens, Cooktops and Rangehoods to personalise your cooking experience. *LG ThinQ® app & compatible smartphone required with mobile data or home Wi-Fi connection. Refer to lg.com.au/lg-thinq for details.
Is an induction Cooktop better than gas?
Seamlessly blending style and technology, our LG induction cooktops differ from gas cooktops by focusing heat towards the bottom of the cookware only. This technology ensures quick, even heating from start to finish. Boasting safe operation features and smooth electronic controls, LG's versatile induction cooktops accomodate larger pots, with a single glass pane design that can easily be wiped clean.
How do I install an LG cooktop?
You must engage a qualified electrician to complete the installation of your LG Cooktop, in accordance with the Owner Manual. Incorrect installation by a non qualified electrician may result in product not working properly, failure or safety risk.
Does the LG Cooktop have a high performance mode?
The LG Oven's Boost function is used to further increase the maximum power delivered by each cooking zone or a combination of cooking zones in Flexi Mode. For example, a zone at power level 15 delivers 2kW, however with the Boost function it reaches a maximum of 3.7kW. The Boost function allows you to rapidly boil water or heat pans.
Does the Cooktop have any child safety features?
To prevent your children from inadvertently turning on the induction Cooktop, just hold down the lock button for 3 seconds. This turns the child lock on which disables all controls and helps the safety of your family. If you are already cooking something on one zone, the power slider still remains active, but you will not be able to turn on other zones. LG induction cooktops are also equipped with 2-stage residual heat indicators and automatic safety shut-off function.
Is the heat from the Cooktop dangerous?
The induction technology ensures heat is only transferred from the cooktop to the cookware. This means that the bottom of the cookware can heat the top glass to a potentially dangerous temperature. To help prevent accidental burns, LG Induction Cooktops come with 2-stage residual heat indicator lights that turn on when the surface is hot and stay on until it cools down.
Would an Induction Cooktop look good in my kitchen?
Our LG Induction Cooktops boasts a seamless built-in design, tailored to compliment any kitchen. The black glass finish complimented by sleek white LED lights brings style and harmony to any kitchen space.
How can I connect my LG Cooktop and Rangehood?
The LG Rangehood automatically activates with compatible LG Cooktops and adjusts extraction speed to match cooktop settings, once set-up via the LG ThinQ app (please consult owner's manual for instructions). With your Rangehood and Induction Cooktop synchronized, you can focus on cooking while smart connectivity takes care of the rest. The ThinQ app lets you turn the Hood on/off, monitor the operation status, and control the speed mode all from your phone. *LG ThinQ® app & compatible smartphone required with mobile data or home Wi-Fi connection. Refer to lg.com.au/lg-thinq for details.
Clock
Yes
Oven Cleaning Type
Blue EasyClean™
Sabbath Mode
Yes
Soft Closing System
No
Timed Cook
Yes
[Elec]Bake Element Power (W)
1500
[Elec]Broil Element Power (W)
1600 / 1500
[Elec]Convection Element Power (W)
1900
Automatic Safety Shut-Off
Yes
Convection Fan
Dual Speed (High/Low)
Fuel Type
Electric
Number of Rack Positions
5
Oven Capacity (L)
76
Oven Cooking Mode
Healthy Fry, Air Sous-Vide, Bottom Heat, Defrost, Eco Hot Air, Eco Top Bottom Heat, Fan Assisted Air, Hot Air, Large Grill, Pizza Mode, Proof, Roasting, Small Grill, Top Bottom Heat, Keep Warm
Oven Light Type
Halogen
Cavity Material
Enamel
Control Display
White LED
Door Color
Clear
Handle Color
Black Stainless Steel
Handle Material
Aluminum
Interior Color
Blue
Knob Color
Black Stainless Steel
Body Finish
Black
Oven Control Type
Knob+Glass Touch
Cut-out Dimensions (W x H x D) (mm)
560 x 590 x 556
Oven Interior Dimension (W x H x D)(mm)
488 x 373 x 420
Packing Dimensions (W x H x D) (mm)
700 x 645 x 660
Product Dimensions (W x H x D) (mm)
592 x 594 x 569
Product Weight (kg)
43.0
Plug Type
3-prong wire
SmartDiagnosis
Yes
ThinQ(Wi-Fi)
Yes
Universal Tray (Ea)
1
Wire Grill (Ea)
1
Standard Telescopic Runners (Set)
1
Rail Rack (Ea)
2
Ean Code
8806096409671
Product
2 Years
