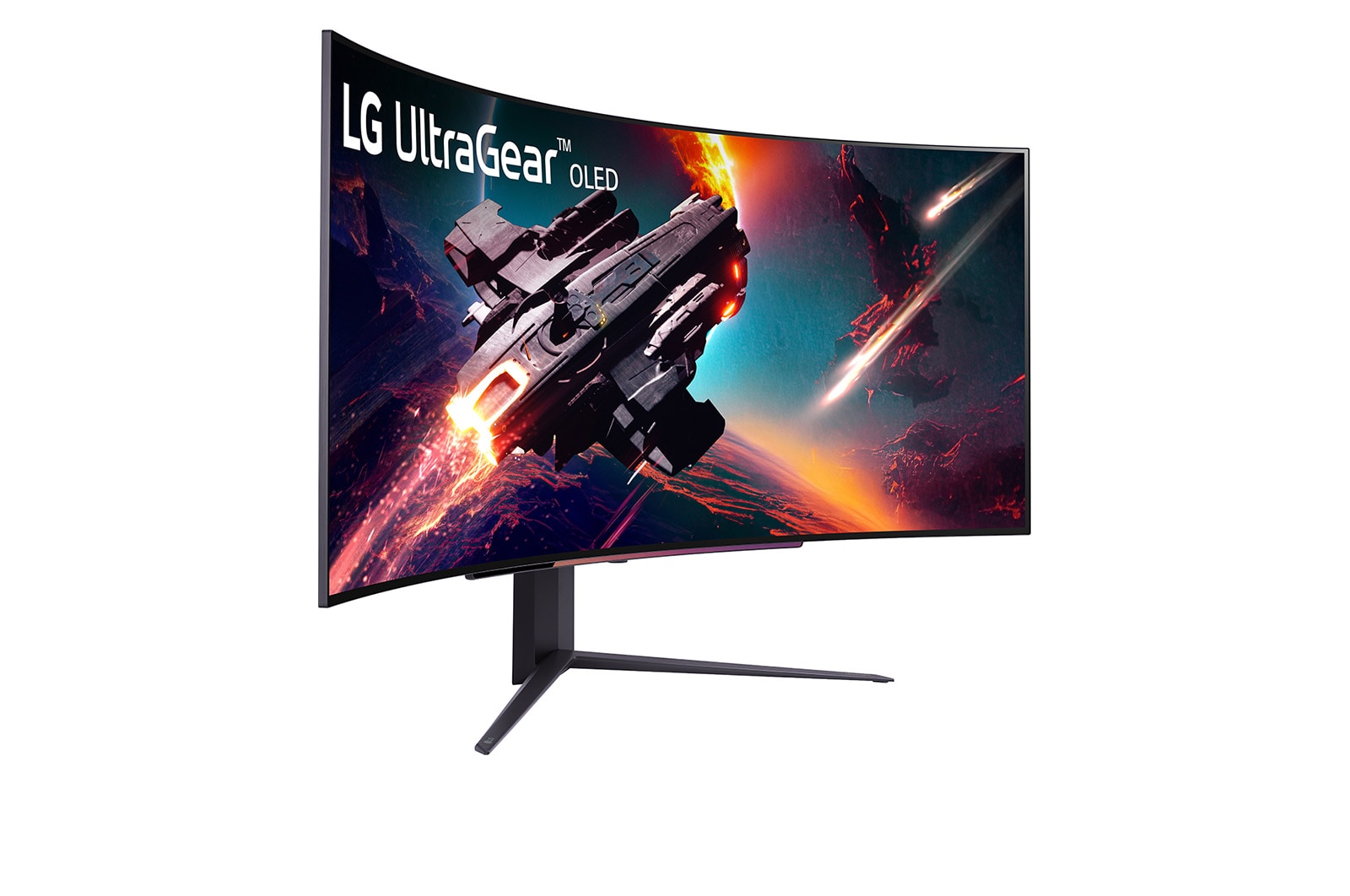

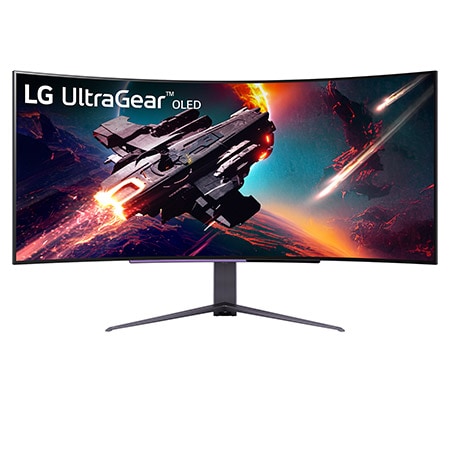

UltraGear™ 45 inch OLED 240Hz 800R Curved Gaming Monitor with 0.03ms(GtG), DisplayHDR True Black 400, and DepthSound
45GS96QB-B
()
Born to game
Complete the game with a bright OLED 800R curved gaming monitor equipped with USP Type-C™, and built-in speakers.
Images simulated to enhance feature understanding. It may differ from actual use.
*The brightness of the monitor is compared to the previous model, LG UltraGear™ 45GR95QE.
Display
• 45" Ultra-WQHD Curved OLED DisplayHDR True Black 400 / DCI-P3 98.5% Anti-glare & Low reflection
Speed
• 240Hz refresh rate 0.03ms (GtG) response time 240Hz from HDMI, DP & USB Type-C™
Technology
• VESA ClearMR/ DepthSound NVIDIA® G-SYNC® Compatible AMD FreeSync™ Premium Pro
800R curved screen is designed for optimal view considering the distance from the monitor and the natural angle of the human eye to see the whole scene at a glance.
It is a 45" 800R curved monitor.
*Based on the assumption of viewing an 800R curved display from a distance of 800mm, and may vary depending on the distance from the screen and the user's posture.
45” 21:9 Ultra-WQHD
Size matters:
45" outpaces 49"
The 45 inch OLED gaming monitor offers an incredibly magnificent and pleasant viewing experience. The actual screen size of 45" 21:9 is 12% larger than the 49" 32:9 and has a well-proportioned ratio vertically and horizontally.
Images simulated to enhance feature understanding. It may differ from actual use.
275nits up to 1300nits
Ever bright OLED*
This OLED monitor has a luminosity of 275nits in standard use and can reach up to 1300nits** as its brightest. You can be sure that you won't be playing in the dark, as the new OLED keeps the visuals bright and vibrant.
Images simulated to enhance feature understanding. It may differ from actual use.
*The brightness of the monitor is compared to the previous model, LG UltraGear 45GR95QE.
**Brightness is 275-1,300nits (Typ.).
Micro Lens Array+
The evolution of OLED
Our UltraGear™ OLED features Micro Lens Array+ (MLA+) technology, increasing SDR brightness by 37.5% when compared with standard MLA.
Images simulated to enhance feature understanding. It may differ from actual use.
DisplayHDR True Black 400 / DCI-P3 98.5%
The explosion of colors
VESA DisplayHDR True Black 400 makes every scene, whether it is bright or dark, come to life with its realistic details with a 1.5M* contrast ratio. Immerse yourself in gaming with the vibrant world created by DCI-P3 98.5%.
Images simulated to enhance feature understanding. It may differ from actual use.
* 1.5m:1 is the contrast ratio at 25% APL (Average Picture Level) value is given as a percentage and refers to the value between the black level and the reference level for white.
Images simulated to enhance feature understanding. It may differ from actual use.

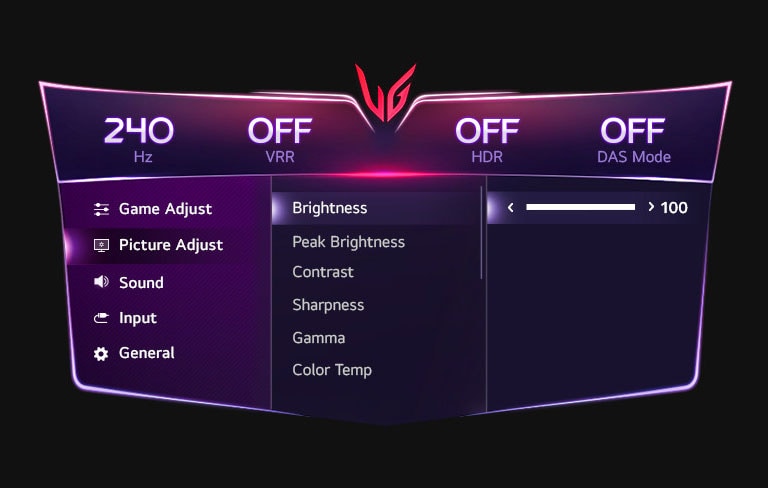

*Power consumption may increase when the above options are chosen.
*The display burn-in may occur in brighter mode.
Images simulated to enhance feature understanding. It may differ from actual use.
Images simulated to enhance feature understanding. It may differ from actual use.
OLED 240Hz refresh rate
Incredibly smooth motion
This 240Hz monitor allows gamers to see the next frame quickly and makes images appear smoothly. Gamers can respond rapidly to opponents and aim at targets easily.
Images simulated to enhance feature understanding. It may differ from actual use.
Extremely fast
0.03ms (GtG) response time
With 0.03ms (GtG) response time, less reverse ghosting, and helping objects render clearly, enjoy the game with smooth movement and surreal visual fluidity.
Images simulated to enhance feature understanding. It may differ from actual use.
*It supports up to 240Hz rapid refresh rate. A graphic card that supports DP 1.4, HDMI 2.1, or USB Type-C™ cable is required to work properly.
**The graphics card is NOT included in the package. You should purchase it separately. The DisplayPort, HDMI, and USB Type-C™ cables are included in the package.
Fluid gaming experience
Comparison of fluid gaming image - The left image is tearing, and the Right image is tear-free.
Images simulated to enhance feature understanding. It may differ from actual use.
*The performance of the feature is compared to models not applying the sync technology.
Bring sharpness
to your play
This monitor has received VESA ClearMR 13000 certification, allowing you to see movement as clearly as still images with incredibly reduced motion blur for gaming.
Images simulated to enhance feature understanding. It may differ from actual use.
Images simulated to enhance feature understanding. It may differ from actual use.
*Headsets are NOT included in the package. You should purchase it separately.
How to Protect your OLED
You can prevent occurring afterimages or display burn-in by turning on the 'OLED Screen Move', which moves the screen slightly at regular intervals, 'Screen Saver' and 'Image Cleaning'.
*This feature is only available as a 4-way joystick is included in the package.
Images simulated to enhance feature understanding. It may differ from actual use.

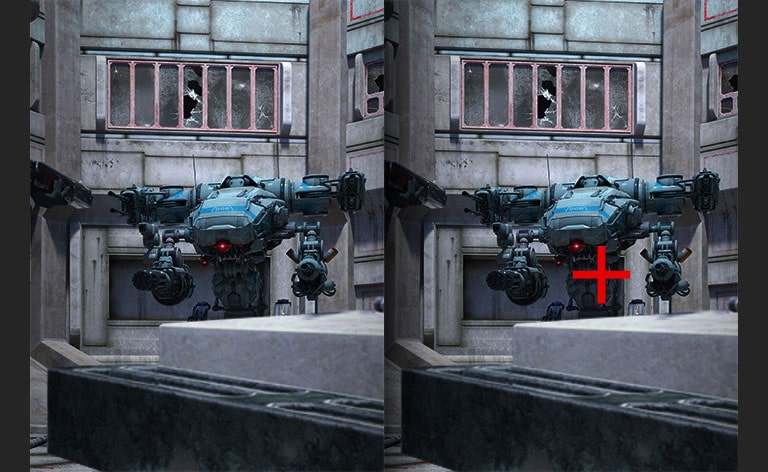

*The Crosshair feature is unavailable while the FPS Counter is activated.

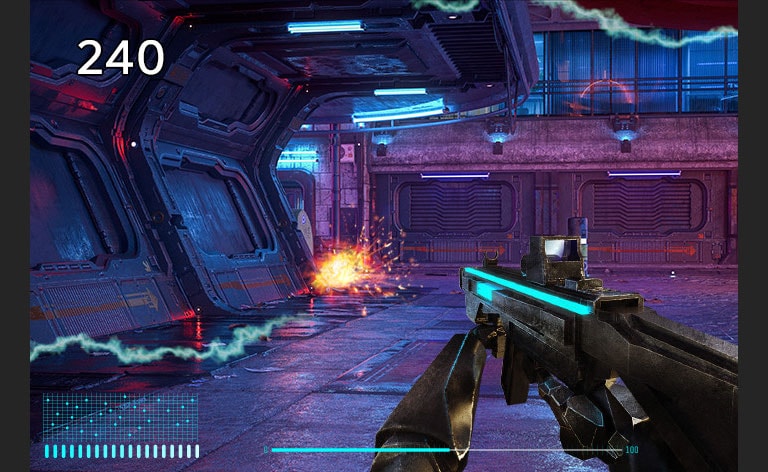

**FPS (Frame Per Second) Counter: Measurement of frames per second. FPS Counter may display the value that exceeds the monitor’s maximum refresh rate.
Images simulated to enhance feature understanding. It may differ from actual use.
*The software and a Calibration Sensor are NOT included in the package. To download the latest LG Calibration Studio software, visit LG.COM.

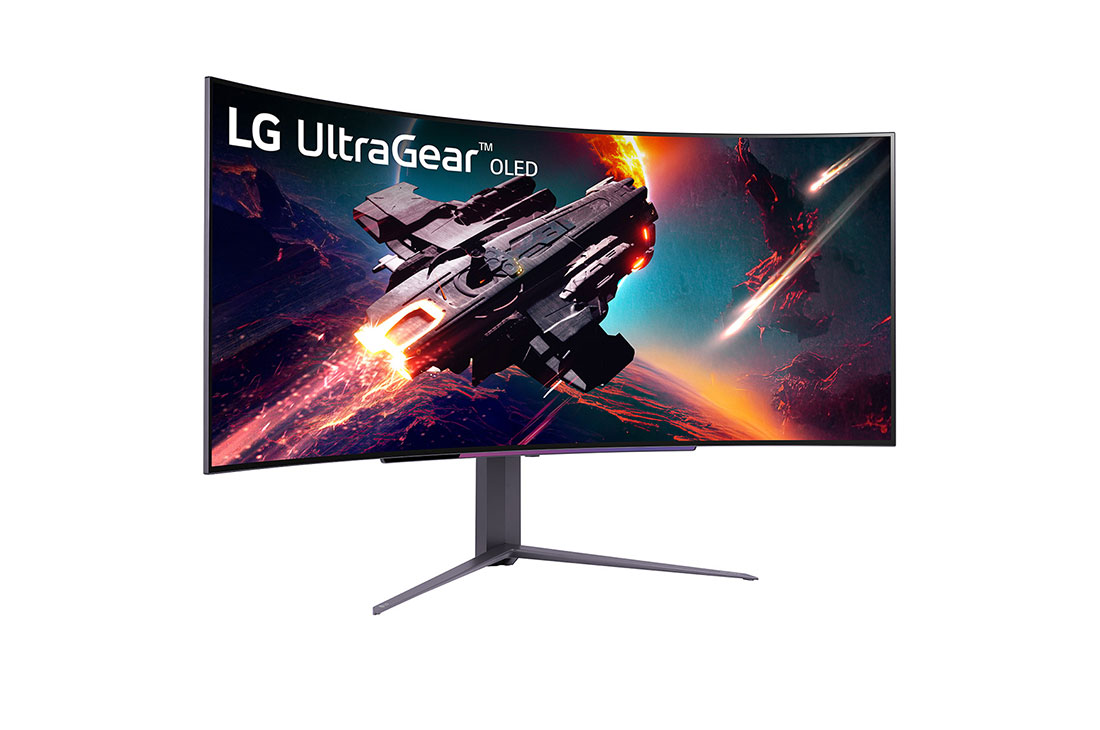

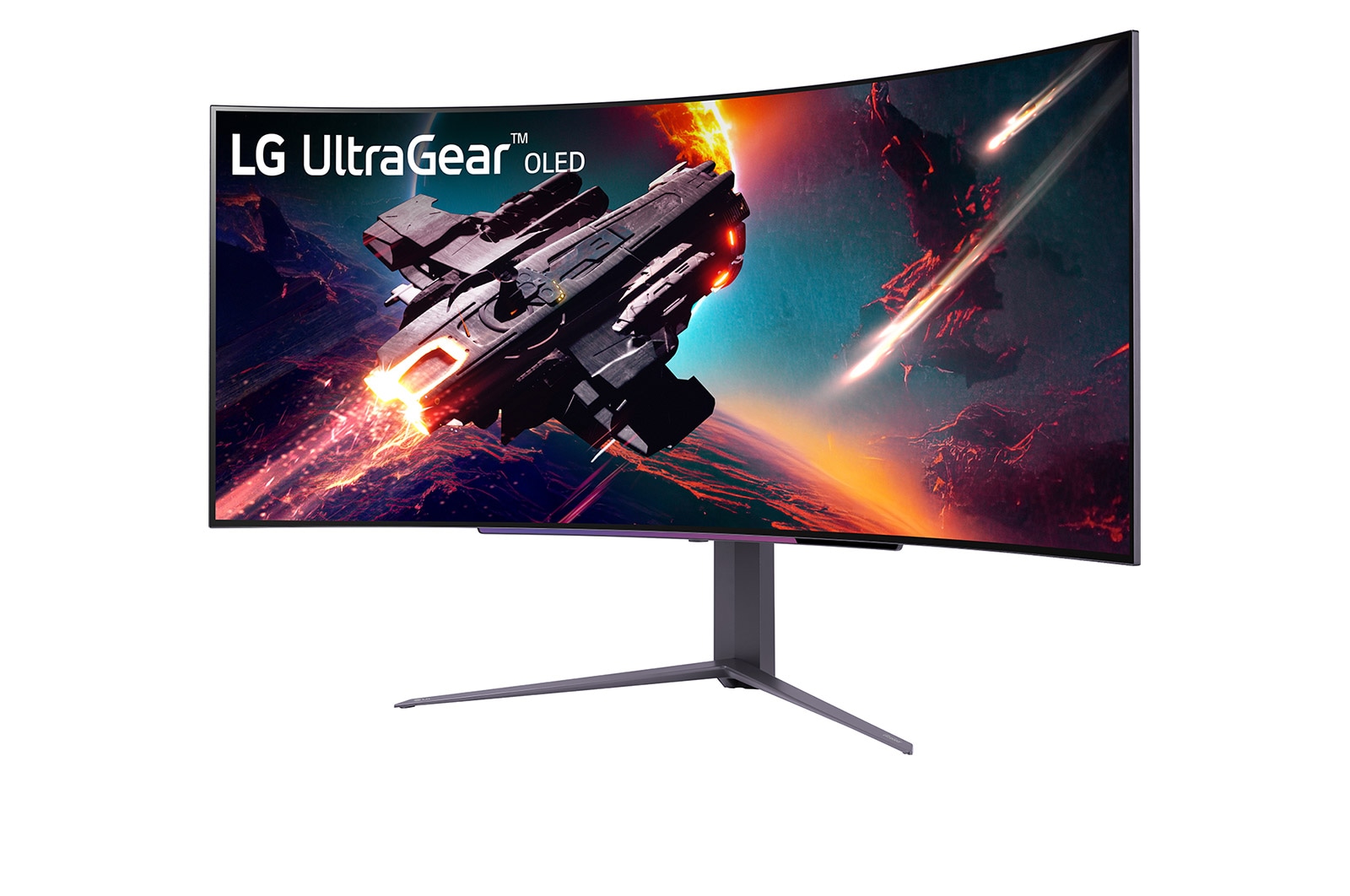

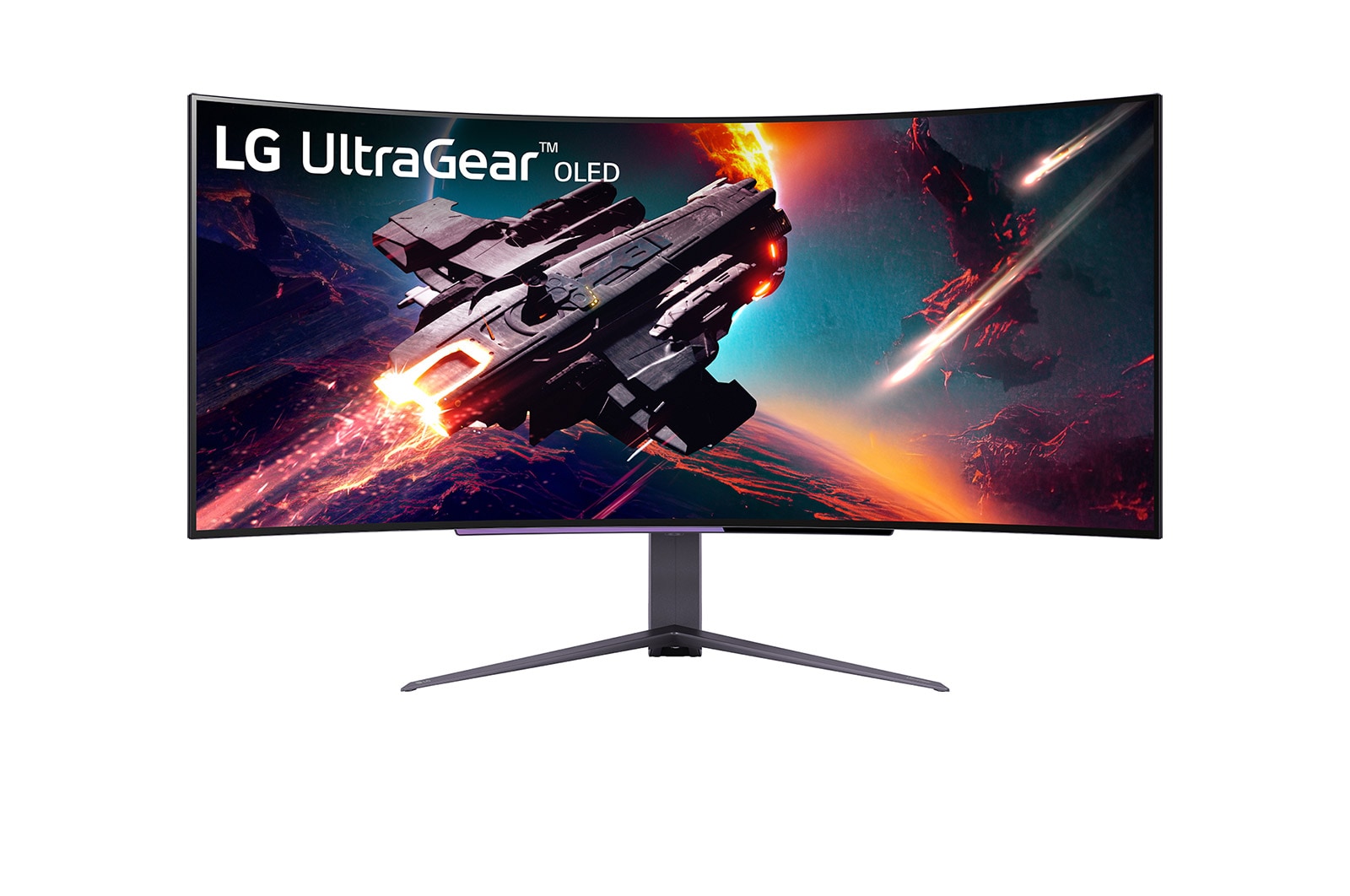

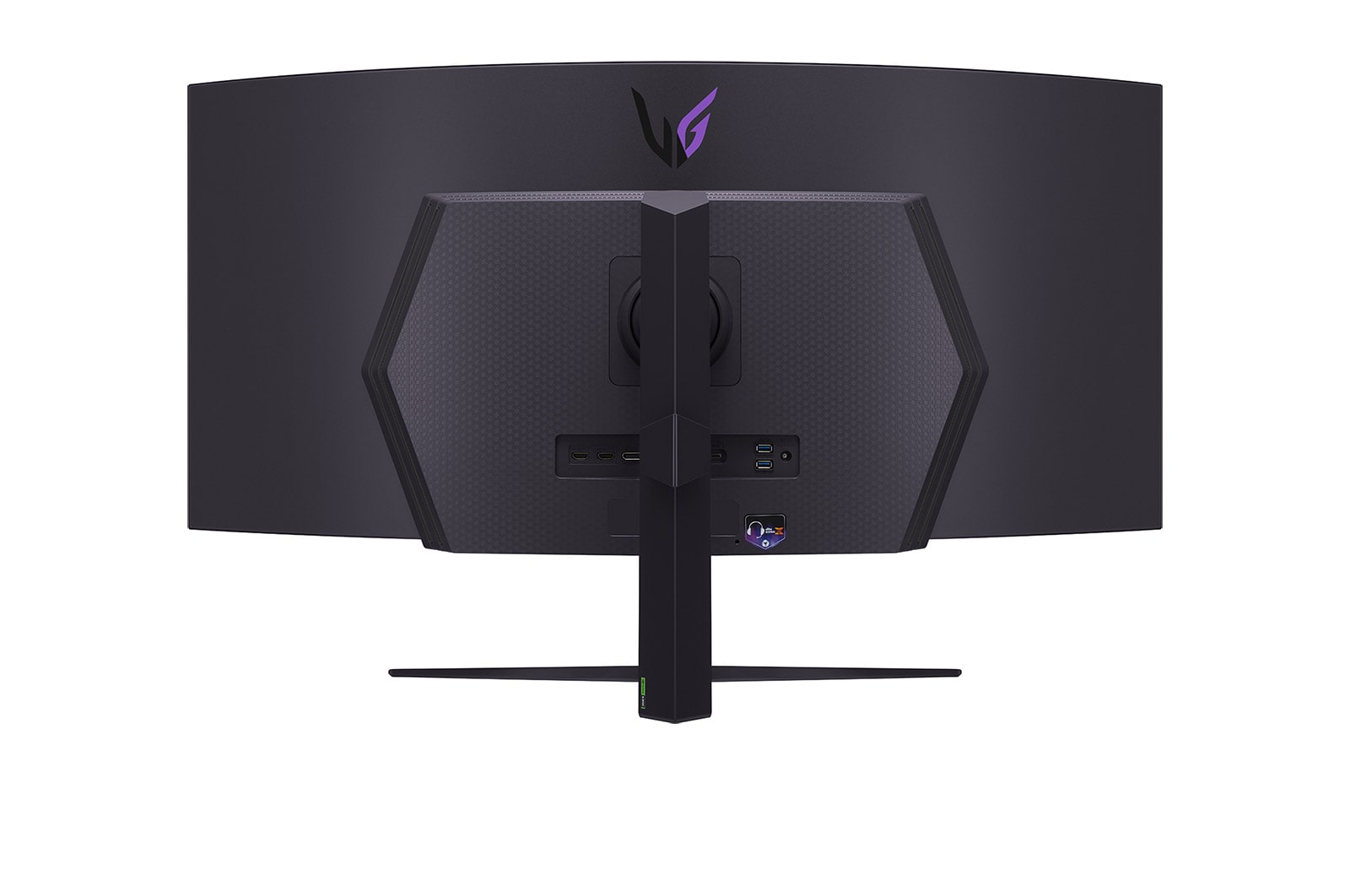

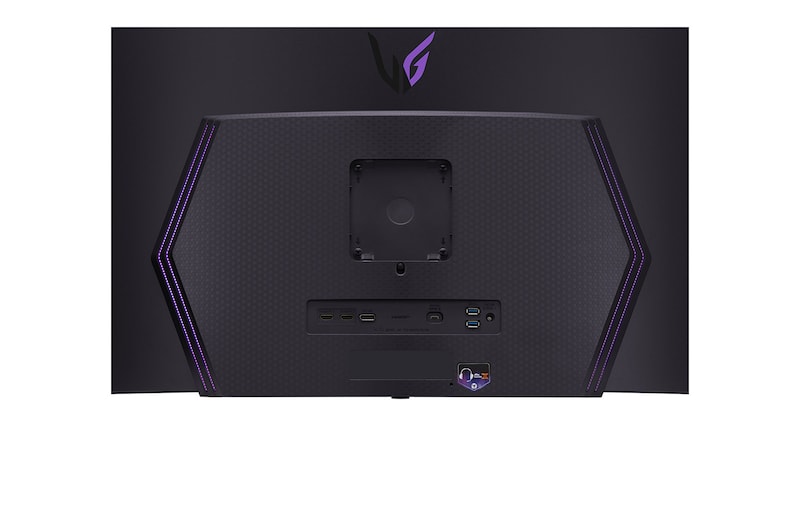

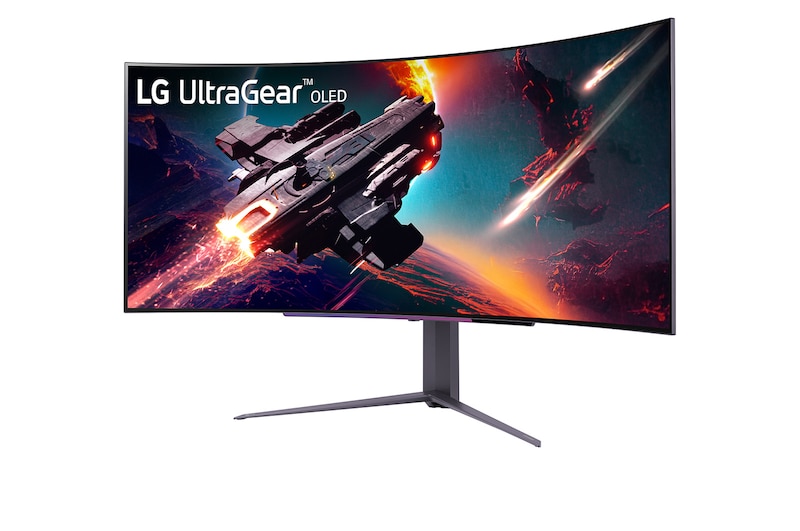

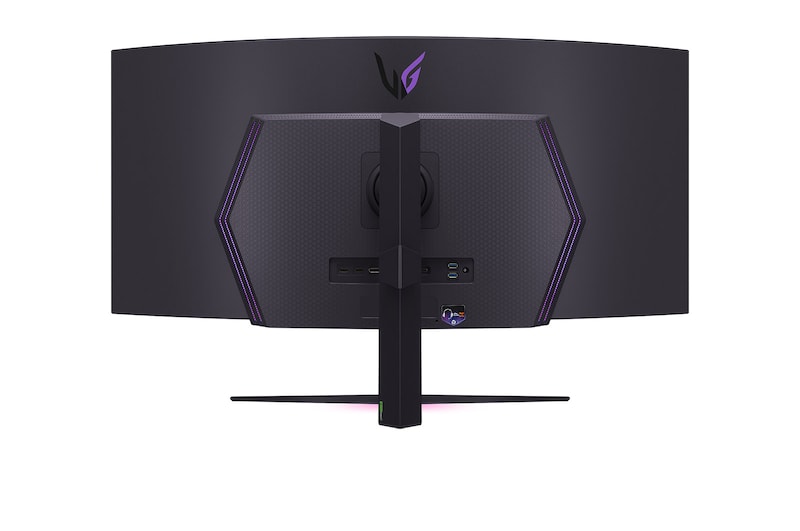

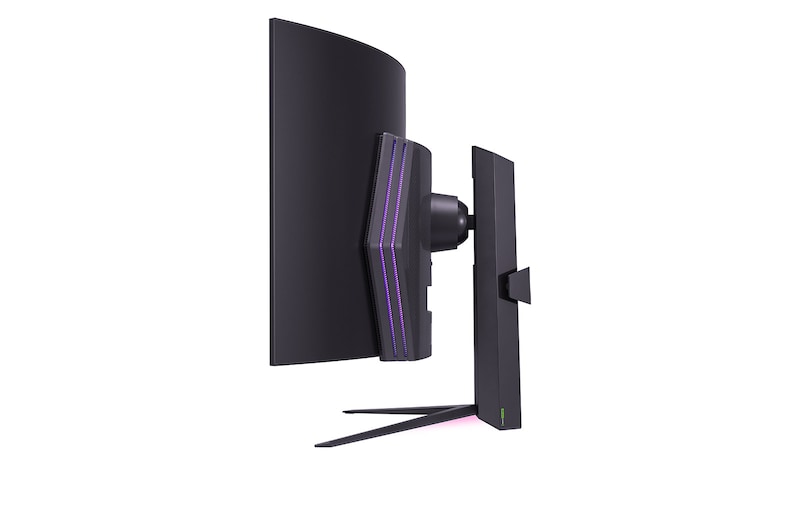

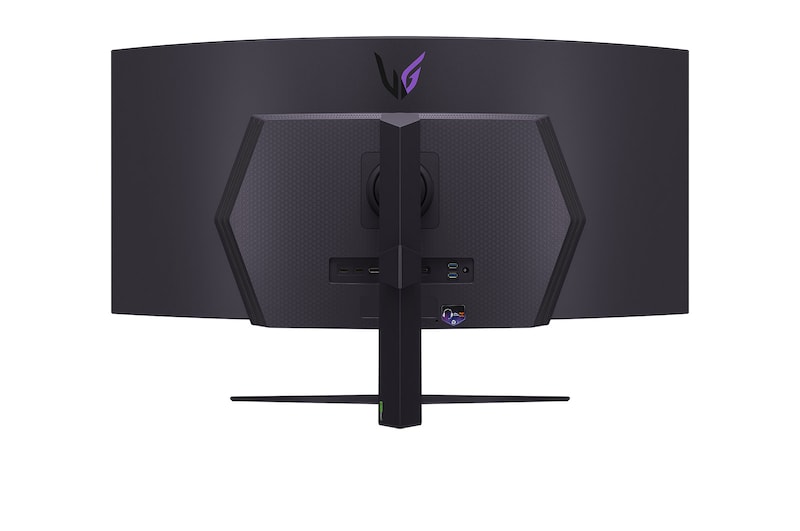

Gallery
Key Specs
Size [Inch]
44.5
Resolution
3440 x 1440
Panel Type
OLED
Aspect Ratio
21:9
Colour Gamut (Typ.)
DCI-P3 98.5%
Brightness (Typ.) [cd/m²]
275
Curvature
800R
Refresh Rate (Max.) [Hz]
240
Response Time
0.03ms (GTG)
Display Position Adjustments
Tilt/Height/Swivel
All Spec
DISPLAY
Size [Inch]
44.5
Aspect Ratio
21:9
Panel Type
OLED
Surface Treatment
Anti-Glare, Low-Reflection of the front polarizer
Response Time
0.03ms (GTG)
Resolution
3440 x 1440
Pixel Pitch [mm]
0.303 x 0.303
Colour Depth (Number of Colours)
1.07B
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Brightness (Typ.) [cd/m²]
275
Contrast Ratio (Typ.)
1.5M:1
Colour Gamut (Typ.)
DCI-P3 98.5%
Curvature
800R
Colour Gamut (Min.)
DCI-P3 90%
Refresh Rate (Max.) [Hz]
240
Brightness (Min.) [cd/m²]
250
Contrast Ratio (Min.)
1.2M:1
Colour Bit
10bit
Size [cm]
113

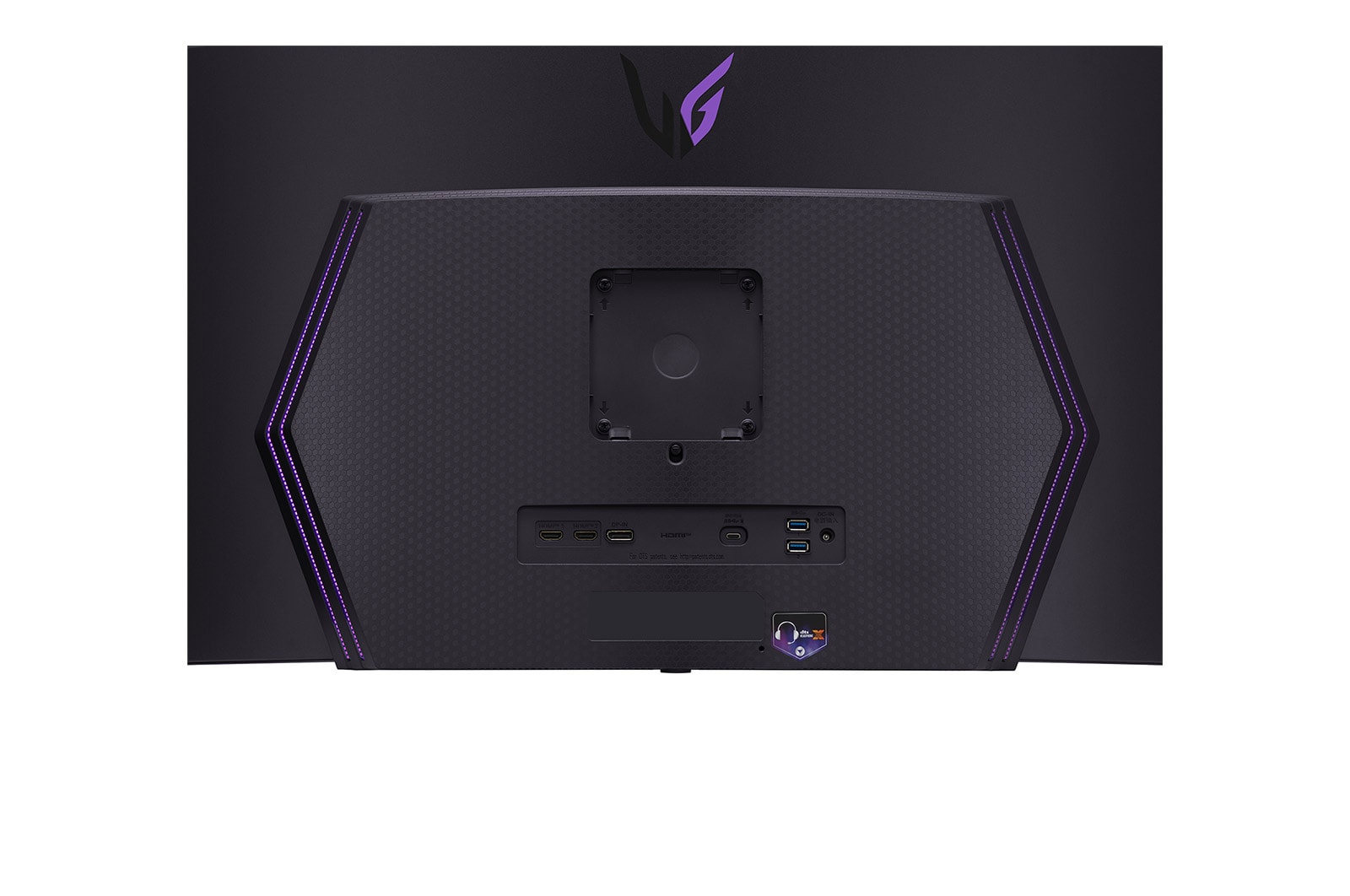

CONNECTIVITY
Audio In
NO
D-Sub
NO
Built-in KVM
NO
DVI-D
NO
HDMI
YES(2ea)
Daisy Chain
NO
DisplayPort
YES(1ea)
DP Version
1.4 (DSC)
D-Sub (Max. Resolution at Hz)
N/A
DVI (Max Resolution at Hz)
N/A
Thunderbolt
NO
USB-C
YES(1ea)
Headphone out
4-pole (Sound+Mic)
LAN (RJ-45)
NO
Line out
NO
Mic In
NO
SPDIF out (Optical Digital Audio Out)
NO
Thunderbolt (Data Transsmission)
N/A
Thunderbolt (Max. Resolution at Hz)
N/A
Thunderbolt (Power Delivery)
N/A
USB Downstream Port
YES(2ea/ver3.0)
USB Upstream Port
NO
USB-C (Data Transmission)
YES
USB-C (Max. Resolution at Hz)
3440x1440@240Hz
USB-C (Power Delivery)
65W
FEATURES
HDR 10
YES
AMD FreeSync™
FreeSync Premium Pro
Auto Brightness
NO
Colour Weakness
YES
Smart Energy Saving
YES
Colour Calibrated in Factory
YES
PIP
YES
PBP
2PBP
Flicker Safe
NO
NVIDIA G-Sync™
G-SYNC Compatible
HW Calibration
HW Calibration Ready
Dynamic Action Sync
YES
Black Stabiliser
YES
Crosshair
YES
Others (Features)
VESA DSC Tech, 4way Joystick
Reader Mode
YES
FPS Counter
YES
VRR
YES
Super Resolution+
NO
Dolby Vision™
NO
VESA DisplayHDR™
DisplayHDR True Black 400
Mini-LED Technology
NO
Nano IPS™ Technology
NO
Advanced True Wide Pol.
NO
Motion Blur Reduction Tech.
NO
OverClocking
NO
User Defined Key
YES
Auto Input Switch
YES

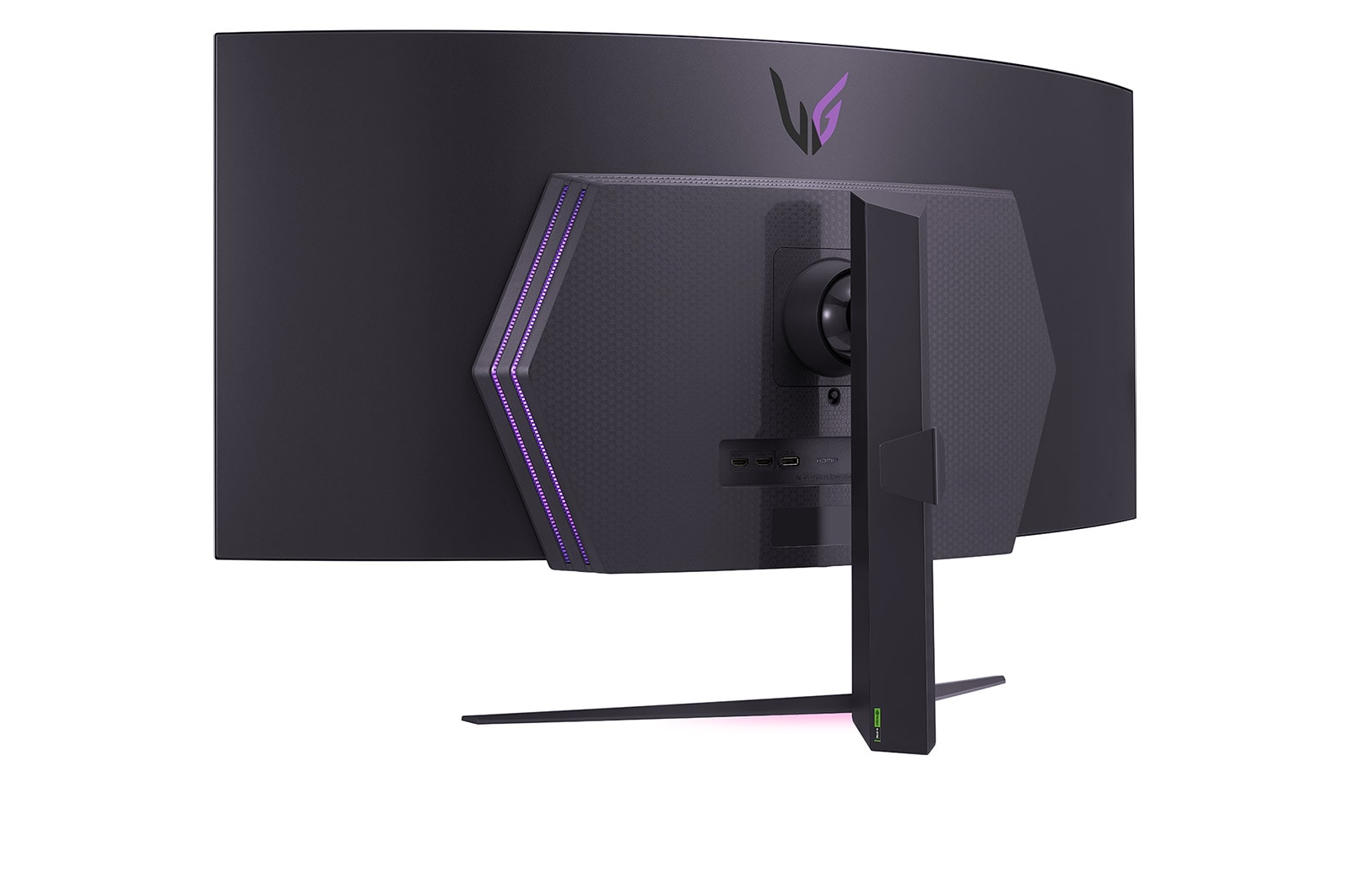

RGB LED Lighting
Unity Hexagon Lighting
Camera
NO
Mic
NO
HDR Effect
YES
MECHANICAL

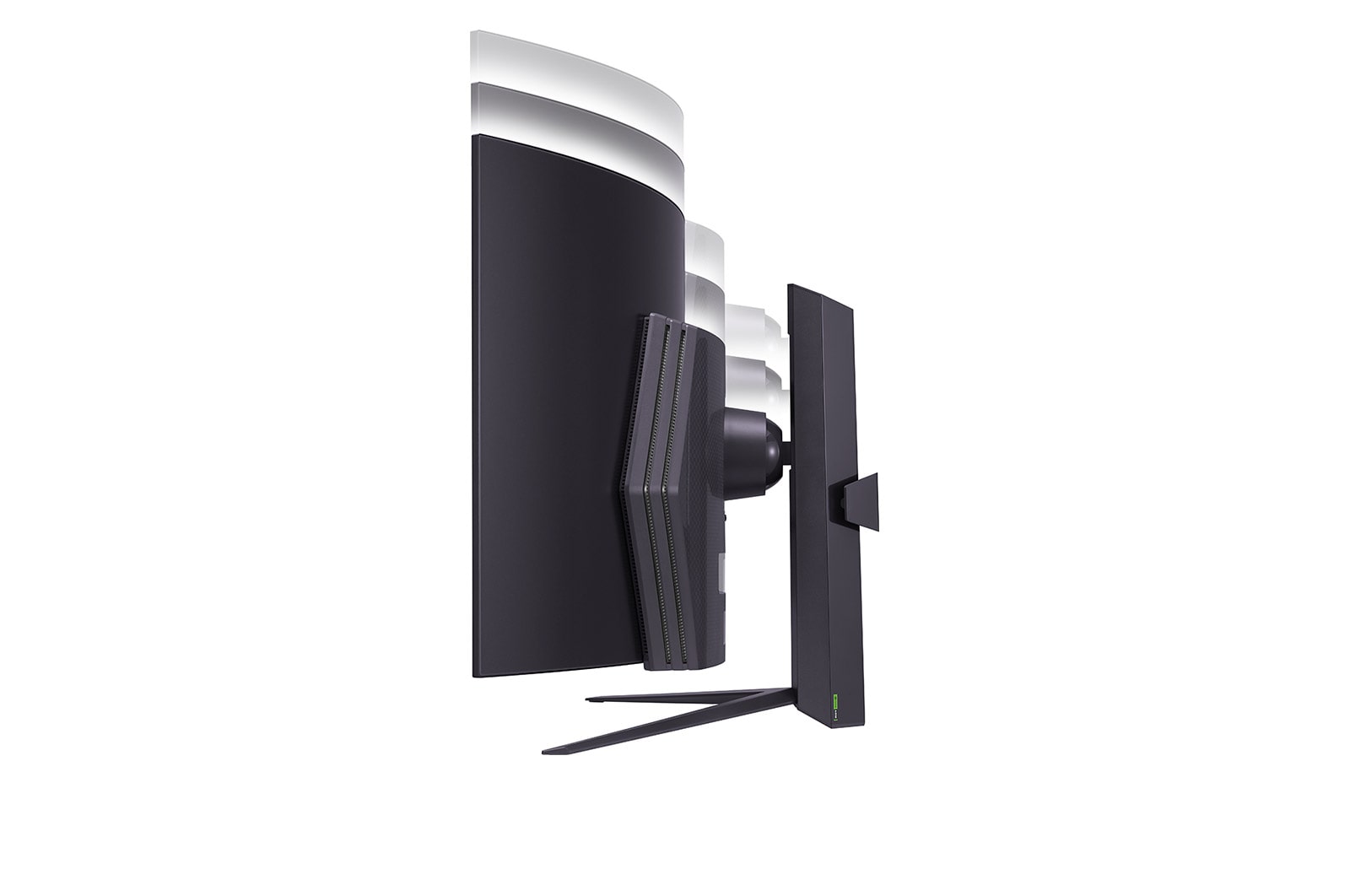

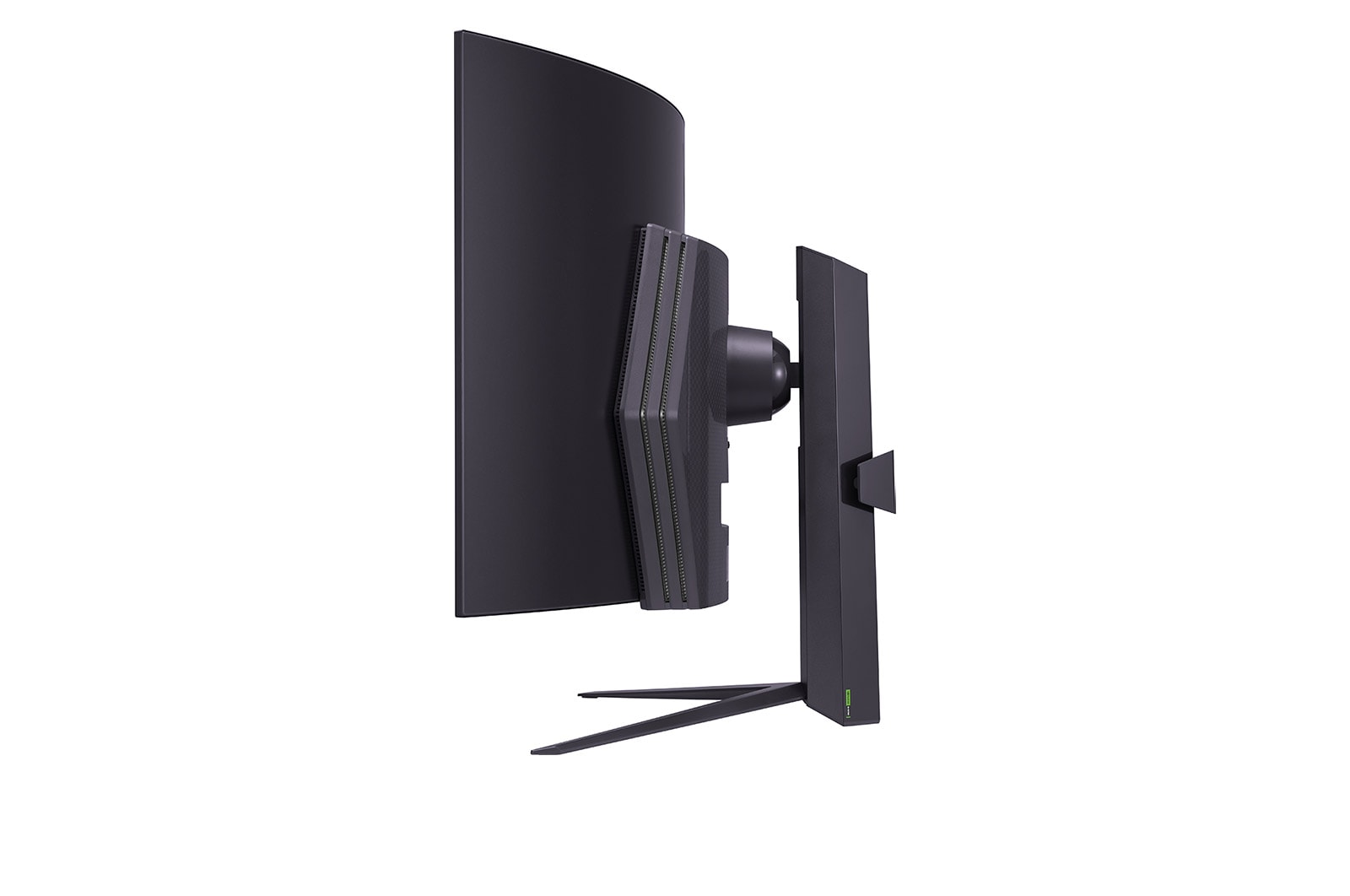

Display Position Adjustments
Tilt/Height/Swivel
Borderless Design
4-Side Virtually Borderless Design
Wall Mountable [mm]
100 x 100 mm
OneClick Stand
YES
SOUND
Bluetooth Connectivity
NO
DTS Headphone:X
YES
Maxx Audio
NO
Rich Bass
NO
Speaker
7W x 2
DIMENSIONS/WEIGHTS
Dimension in Shipping (W x H x D) [mm]
1100 x 317 x 550
Dimension with Stand (W x H x D) [mm]
992.7 x 647.7 x 362.5(UP) / 992.7 x 537.7 x 362.5(DOWN)
Dimension without Stand (W x H x D) [mm]
992.7 x 457 x 218
Weight in Shipping [kg]
17
Weight with Stand [kg]
11.3
Weight without Stand [kg]
9
INFO
Product name
UltraGear
Year
2024
POWER
Power Consumption (Max.)
43W
Power Consumption (Energy Star)
60.5W
Power Consumption (Sleep Mode)
Less than 0.5W
Power Consumption (Typ.)
56W
Power Consumption (DC Off)
Less than 0.3W
AC Input
100-240V (50/60Hz)
Type
External Power(Adapter)
DC Output
20V, 13.5A
ACCESSORY
Adapter
YES
Calibration Report (Paper)
YES
Display Port
YES
DVI-D
NO
D-Sub
NO
HDMI
YES (ver 2.1)
HDMI (Colour/Length)
Black / 1.8m
Others (Accessory)
Stand Cable Holder
Power Cord
YES
Remote Controller
NO
Thunderbolt
NO
USB A to B
NO
USB-C
YES
SW APPLICATION
Dual Controller
YES
LG Calibration Studio (True Colour Pro)
YES
LG UltraGear™ Control Center
N/A
LG UltraGear™ Studio
N/A
OnScreen Control (LG Screen Manager)
YES
STANDARD
UL (cUL)
YES
CE
YES
KC (for Rep. of Korea)
YES
