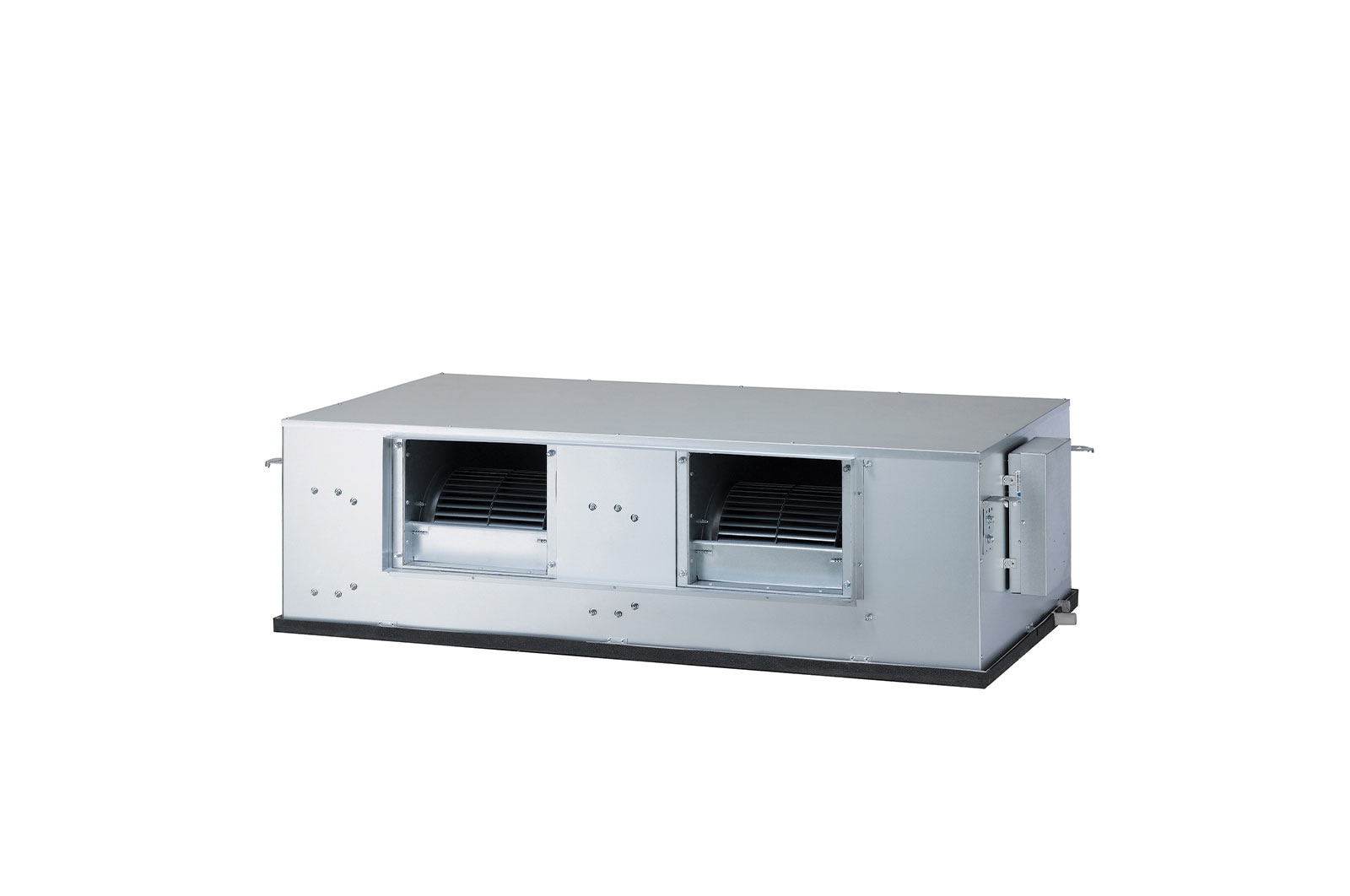

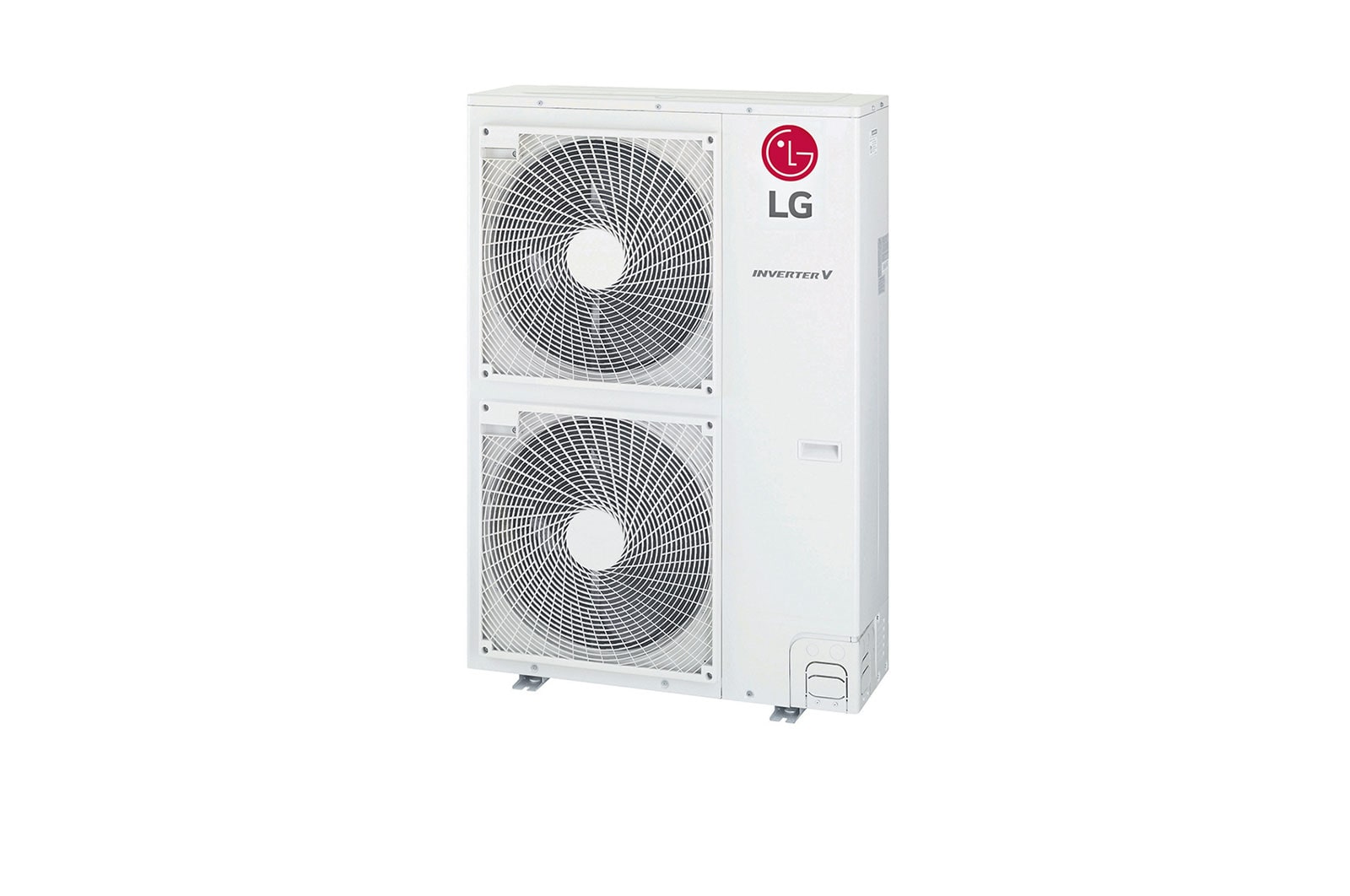

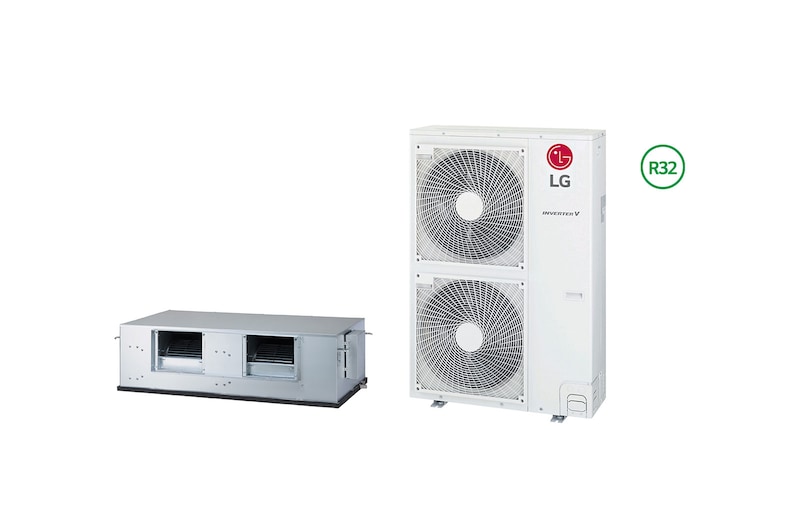

Ducted System - High Static 10.5kW (Cooling)
R1 Compressor1
Night Operation1
AUTO External Static Pressure + Zone Control (On/Off)1
Unoccupied Mode (Optional Accessory)1
*Home Leave Set Temperature function can only be used in a 2 set control mode.
Come Home to Comfort1
*LG ThinQ® app available from Google Play Store or Apple App required, for this feature, compatible with Android or iOS smartphones required (Android OS 7.0 or higher, iOS 14.0 or higher).Phone and Home Wi-Fi Data connection and product registration with LG ThinQ® required. Visit lg.com/au/lg-thinq for features, system compatibility and service availability which may vary by model.
Image used for illustrative purposes only. Actual user interface may differ with updates to ThinQ app from time to time
Zone Control (Optional Accessory)1
*Premium Controller sold separately.
Premium Controller (Optional Accessory)1
D04-01_Premium-Controller_D
*Sold Separately
Get a quote
ThinQ(Wi-Fi)
Optional
Cooling Capacity-Rated <sup>2)</sup>(kW)
10.50
Cooling Capacity-Min ~ Max(kW)
3.20~13.00
Heating Capacity-Rated <sup>2)</sup>(kW)
13.00
Heating Capacity-Min ~ Max(kW)
3.40~13.70
AEER
3.749
ACOP
4.126
Rated Current-Cooling(A)
12.20
Rated Current-Heating(A)
13.80
Full Load Amps(A)
29.0
Air Flow Rate-Rated(L/s)
700
Air Flow Rate-Min ~ Max(L/s)
320 ~ 693
External Static Pressure-Min ~ Max(Pa)
50 ~ 200
Indoor-Net(W x H x D)(mm)
1,320 x 400 x 534
Indoor-Net Weight(kg)
47.6
Indoor-Cooling ((SH)/H/M/L)(dB(A))
- / 40.0 / 37.0 / 35.0
Outdoor-Net(W x H x D)(mm)
950 x 1,380 x 330
Outdoor-Net Weight(kg)
89.0
Outdoor-Cooling / Heating (@ 1.5m height)(dB(A))
53.0 / 54.0
Power Supply(Ø , Hz , V)
1 , 50 Hz, 220-240 V
Compressor-Type
Inverter Scroll
Compressor-Motor Type
BLDC
Heat Exchanger-Fin Type
Wide Louver Plus
Heat Exchanger-Corrosion Protection (Coating)
Black 2
Refrigerant-Type
R32
Refrigerant-Pre-charge Length(m)
20
Pipe size-Liquid(mm(inch))
Φ9.52 (3/8)
Pipe size-Gas(mm(inch))
Φ15.88 (5/8)
Pipe size-Drain Pipe (Drain Pump) OD/ID-(mm(inch))
Ø 32(1-1/4) / 25(31/32)
Piping Length-IDU - ODU (Rated / Max / Min)(m)
7.5 / 85 / 5.0
Maximum Height Difference -IDU - ODU (Max)(m)
30
Supply Air Opening-H x W, Flange (Discharge) (mm)
287 x 840
Return Air Opening-H x W, Flangeless(mm)
317 x 1,172
Continuous Operation-Cooling(°C (DB))
-15 ~ 48
Continuous Operation-Heating(°C (WB))
-18 ~ 18
Wi-Fi Compatible<sup>4)</sup>
Optional
Disclaimer
1. Capacities are based on following conditions • Cooling: Indoor Temp 29°C DB / 19°C WB, Outdoor Temp 35°C DB / 24°C WB • Heating: Indoor Temp 20°C DB, Outdoor Temp 7°C DB / 6°C WB 2. (Sold separately) Dongle required for Wi-Fi Connectivity. Internet connection required.
