Outdoor LED

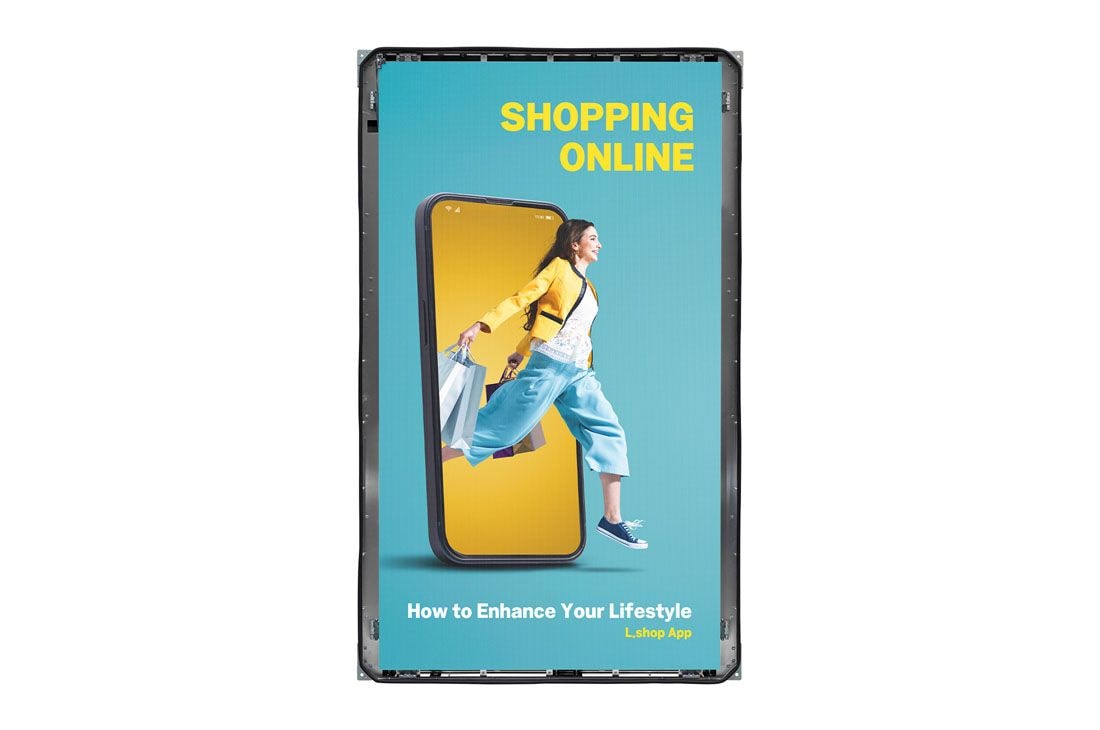

GEAA018-GQ8

Key Features

Pixel Pitch : 1.88 mm
Brightness : 3,500 nit (Max.)
Open-frame Type
High Reliability
High Picture Quality
Energy Efficiency

A display as tall as a person is installed on the street, and a woman walking by is watching an advertisement with clear image quality on its screen.

* All images in this page are for illustrative purposes only.
* Availability of product may differ by region. Contact your local LG sales agent for details.

Open-frame Type LED Signage

GEAA is an open-frame LED that gives you the flexibility to customize the display to your exact preferences. It meets various customer needs by combining superior screen and controller technology with advanced heat dissipation.

A large-sized display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen.

The GEAA is installed outdoors, and a man is watching advertisements on its screen, which remains clear and visible.

High Picture Quality

With its high picture quality, GEAA delivers clear content that captures the attention of passersby. Additionally, its high contrast ratio and outstanding low gray-scale performance allow it to convey a wide range of information effectively.

A woman in a car is looking at a DOOH (Digital Out Of Home media) advertisement on the side of the road. This display can operate within a wide temperature range of -20℃ to 50℃.

Wide Operating Temperature Range

GEAA is suitable for outdoor environments exposed to wide temperature fluctuations. It can operate within a temperature range of -20℃ to 50℃

The GEAA is capable of front installation.

Easy Installation and Maintenance

GEAA offers front access, freeing customers from needing rear access space and minimizing limitations in installation and maintenance. Additionally, its screw-less design contributes to lower maintenance costs, leading to long-term savings.

The GEAA, with its lowered power consumption, offers higher energy efficiency.

Efficient Energy Management

You can enjoy energy savings as GEAA uses low power thanks to its operating technology.

All Spec

ELECTRICAL SPECIFICATIONS

Power Consumption (W/h, Max.)
1750(Typ: 1420 @ 220V)
Power Consumption (W/h, Avg : IEC62087 standard video)
430
Power Consumption (W/m², Max.)
800
Heat Dissipation (BTU/h/Cabinet, Max.)
5630
Heat Dissipation (BTU/h/Cabinet, Avg.)
1467
Heat Dissipation (BTU/h/m², Max.)
2730
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3840

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-20℃ to +50℃
Operating Humidity
10~80%RH
IP Rating Front
IP54
IP Rating Rear
IP20

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)
3,500
Color Temperature (K)
3,000 ~ 10,000
Visual Viewing Angle (Horizontal)
170
Visual Viewing Angle (Vertical)
170
Brightness Uniformity
0.95
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
8,000:1
Processing Depth (bit)
14

PHYSICAL PARAMETERS

Pixel Configuration
Single SMD
Pixel Pitch(mm)
P1.88
Module Resolution (WxH)
72 X 128
Module Dimensions(WxH,mm)
135 X 240
Weight per Module (kg)
0.32
No. of Modules per Cabinet (WxH)
8x8
Set Dimensions (W x H x D, mm)
1202.8 x 2003 x 163.9
Cabinet Dimensions (W x H x D, mm)
1080*1920*47
Cabinet Resolution (WxH)
576x1024
Cabinet Surface Area (m²)
2.0736
Weight per set(kg/unit)
109
Weight per Cabinet (kg/unit)
60
Physical Pixel Density (pixels/m²)
284,444
Flatness of Cabinet (mm)
±1.0
Cabinet Material
Aluminum
Service Access
Front (Cabinet only)

CONTROLLER

Controller
Including

ENVIRONMENT

Environment
RoHS, REACH

STANDARD

Certification
CE, FCC, cTUVus, CB Class A

Datasheet

GEAA_Datasheet(low)_LG Outdoor LED_250521.pdf

Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
