LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall
Contact us

LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall

Contact us

LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall

55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 139.7 CM (55) 700 nits FHD Slim Bezel Video Wall, 55VH7J-H

Key Features

  • Brightness(Typ.) : 700 nit
  • Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
  • Depth : 86.9 mm
  • Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
More
A big video wall is installed on the wall of the car showroom and the car advertisement is on the screen.

A big video wall is installed on the wall of the car showroom and the car advertisement is on the screen.

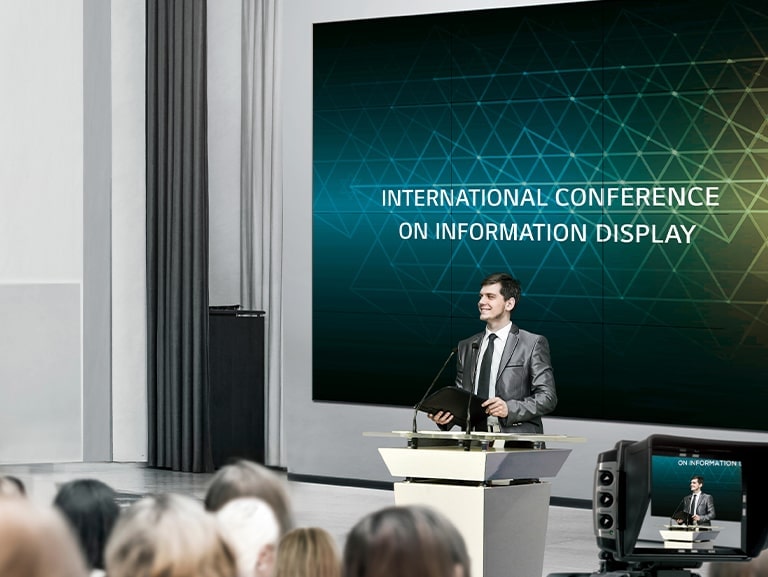

Artistic Immersion, Overwhelming Captivation

*All images in this web page are for illustrative purposes only.
LG 55VH7J-H Seamless Large Screens

LG 55VH7J-H Seamless Large Screens

Seamless Large Screens with Extreme-Narrow Bezel

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

*The 1.74mm BtoB (Panel Bezel to Panel Bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.
LG 55VH7J-H Image Gap Reduction

LG 55VH7J-H Image Gap Reduction

Image Gap Reduction

The VH7J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

*The "LG Conventional" refers to displays which do not include an image improvement algorithm.
**The image shown above are for illustration purposes only.
LG 55VH7J-H Higher Viewing Angle

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40˚) enables effective picture quality for video walls. The viewing angle of the VH7J-H is high enough to display vivid colors throughout the screen without any color distortion.

*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

LG 55VH7J-H Wider Viewing Angle

Wider Viewing Angle

LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VH7J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

LG 55VH7J-H Easy Color Adjustment

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

LG 55VH7J-H Simple White Balance Adjustment

Simple White Balance Adjustment

n conventional video walls, white balance was adjustable only in “full-white” mode, but the VH7J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

LG 55VH7J-H High Performance

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VH7J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

*SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)

LG 55VH7J-H Flexible Content Creation

Flexible Content Creation

Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.

*Supported protocols : RTSP, RTP, HLS, UDP Multicast.

LG 55VH7J-H Intuitive Menu Structure

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
LG 55VH7J-H Dedicated GUI for Portrait Orientation

Dedicated GUI for Portrait Orientation

The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VH7J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.
LG 55VH7J-H Conformal Coating

LG 55VH7J-H Conformal Coating

Conformal Coating

Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.

*Actual images (Signage display) available may differ from the example images shown.
EMC Class B Certified

EMC Class B Certified

EMC Class B Certified

The VH7J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

LG 55VH7J-H ConnectedCare

LG 55VH7J-H ConnectedCare

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

*LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

LG 55VH7J-H Daisy Chain Capability

LG 55VH7J-H Daisy Chain Capability

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.

ENERGY STAR® Certified

ENERGY STAR® Certified

All Spec

ACCESSORY

  • Basic

    Remote Controller(include battery 2 ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual

  • Optional

    OPS Kit(KT-OPSF)

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

OPS COMPATIBILITY

  • OPS Type compatible

    YES (Piggyback)

  • OPS Power Built-in

    NO

POWER

  • Power Supply

    AC 100-240 V~, 50/60 Hz

  • Power Type

    Built-in Power

SOUND

  • Speaker (Built-in)

    NO

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

FEATURE - HARDWARE

  • Wi-Fi/BT (Built-in)

    NO

  • Acceleration (Gyro) Sensor

    YES

  • Auto Brightness Sensor

    NO

  • BLU Sensor

    YES

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    8 GB

  • Local Key Operation

    YES

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

SPECIAL FEATURE

  • Smart Calibration

    N/A

  • Conformal Coating (Power Board)

    YES

  • Direct Sunlight

    N/A

  • IP Rating

    IP5X tested

  • Overlay Touch Compatibility

    N/A

  • Power Protection

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

CERTIFICATION

  • ERP / Energy Star

    YES / Energy Star 8.0

  • EMC

    FCC Class "B" / CE / KC

  • ePEAT (US only)

    NO

  • Safety

    CB / NRTL

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

CONNECTIVITY

  • RJ45 (LAN) In

    YES (1 ea)

  • Audio In

    YES

  • Audio Out

    YES

  • Daisy Chain

    Input : HDMI, DP, DVI-D / Output : DP

  • DP In

    YES (HDCP 2.2)

  • DP Out

    YES

  • DVI-D In

    YES (HDCP 1.4)

  • External Speaker Out

    NO

  • HDMI In

    YES (2 ea)

  • HDMI In (HDCP Ver.)

    2.2

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    NO

  • RGB In

    NO

  • RJ45 (LAN) Out

    YES

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB 2.0 Type A (1 ea)

MECHANICAL SPECIFICATION

  • VESA™ Standard Mount Interface (mm)

    600 x 400 mm

  • Bezel Color

    Black

  • Bezel Width

    B2B : 1.74 mm (Panel Bezel to Panel Bezel), 1.3 mm(T/L), 0.44 mm(B/R) A2A : 2.49 mm (Active area to Active area), 1.75 mm(T/L), 0.74 mm(B/R)

  • Carton Dimensions (W x H x D, mm)

    1393 x 955 x 303 mm

  • Handle

    YES

  • Monitor Dimensions (W x H x D, mm)

    1212.2 x 683.0 x 86.9 mm

  • Monitor Dimension with Stand (W x H x D, mm)

    N/A

  • Packed Weight

    28.0 Kg

  • Weight (Head)

    18.8 Kg

  • Weight (Head+Stand)

    N/A

PANEL

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Aspect Ratio

    16:9

  • Back Light Type

    Direct

  • Brightness

    700 nit (Typ.)

  • Color Gamut

    NTSC 72 %

  • Dynamic CR

    500,000:1

  • Native Resolution

    1920 x 1080 (FHD)

  • Operation Hours (Hours/Day)

    24/7

  • Panel Technology

    IPS

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    60 Hz

  • Response Time

    8 ms (G to G)

  • Screen Size

    139 CM (55)

  • Surface Treatment (Haze)

    Haze 28 %

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178 º x 178 º

FEATURE - SOFTWARE

  • Scan Inversion

    YES

  • Auto Set ID

    YES

  • Backlight Sync

    NO

  • BEACON

    NO

  • Booting Logo Image

    NO

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    YES

  • Fail Over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    YES

  • No Signal Image

    YES

  • OS Ver. (webOS)

    webOS 4.1

  • PBP

    NO

  • PIP

    NO

  • Play Via URL

    YES

  • PM mode

    YES

  • Pro:Idiom

    YES

  • RS232C Sync

    YES

  • Screen Rotation

    YES

  • Screen Share

    NO

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    YES

  • USB Plug & Play

    YES

  • Video Tag

    YES (4 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    YES

  • W/B Setting by Grey scale

    YES

POWER CONSUMPTION

  • Others - BTU (British Thermal Unit)

    682 BTU/Hr(Typ.), 853 BTU/Hr(Max.)

  • DPM

    0.5 W

  • Max.

    250 W

  • Power off

    0.5 W

  • Smart Energy Saving (70%)

    105 W

  • Typ.

    200 W

Leaflet

extension : pdf
Information_Display_Range_Catalogue_250221.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
