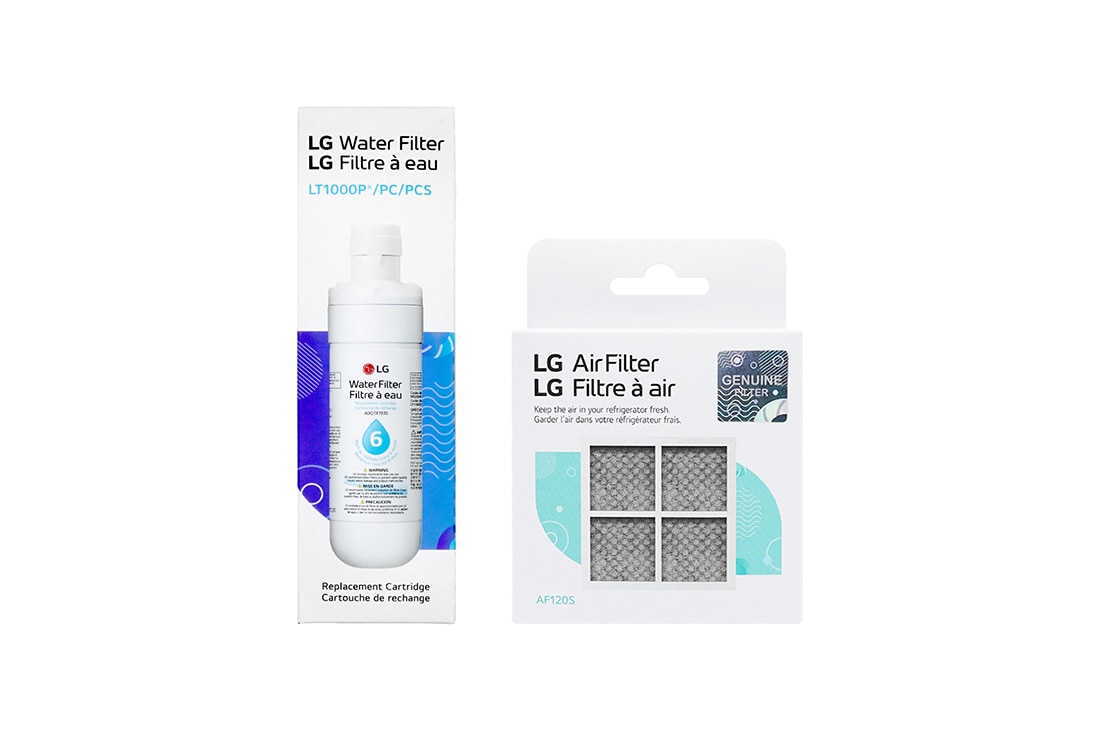

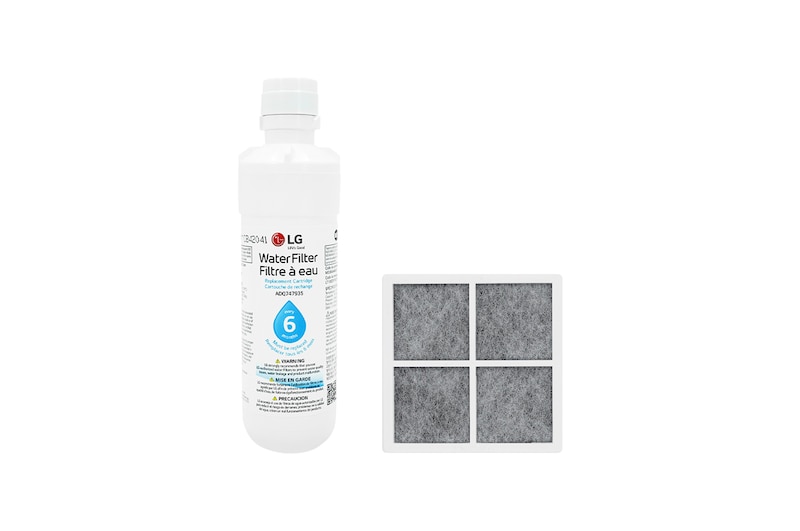

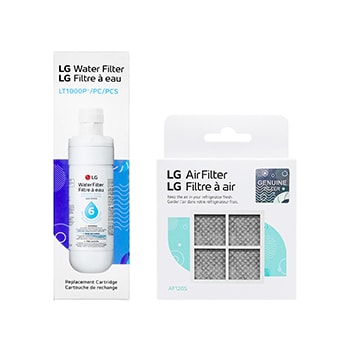

LG LT1000P & AF120S Refrigerator Water Filter and Air Filter Bundle
Key Features

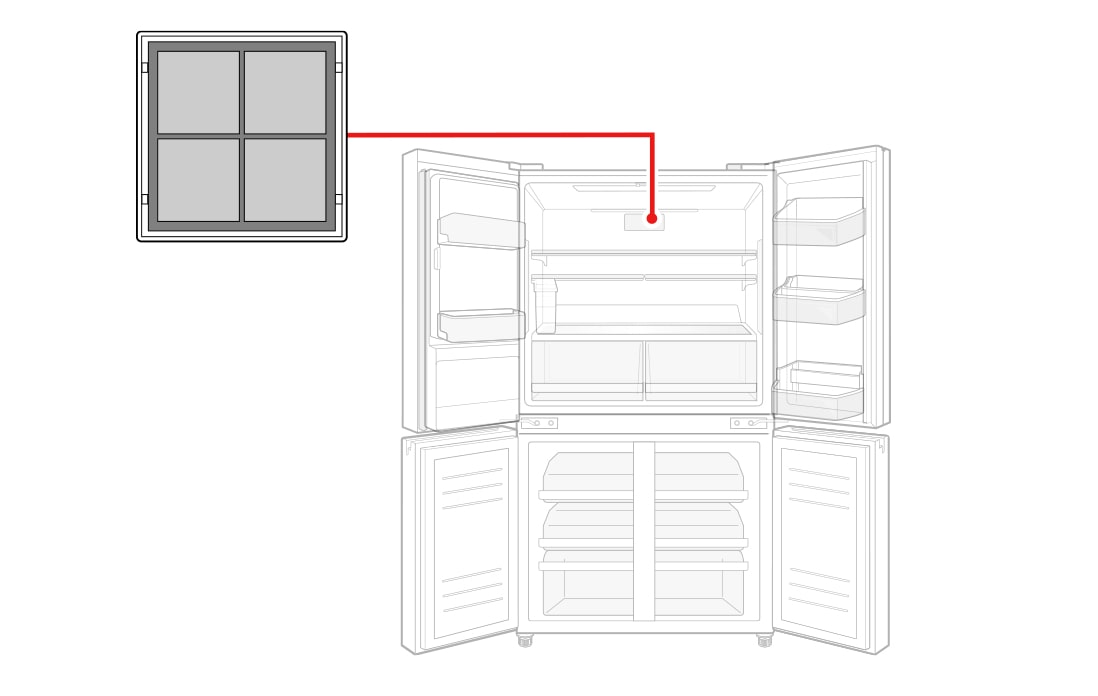

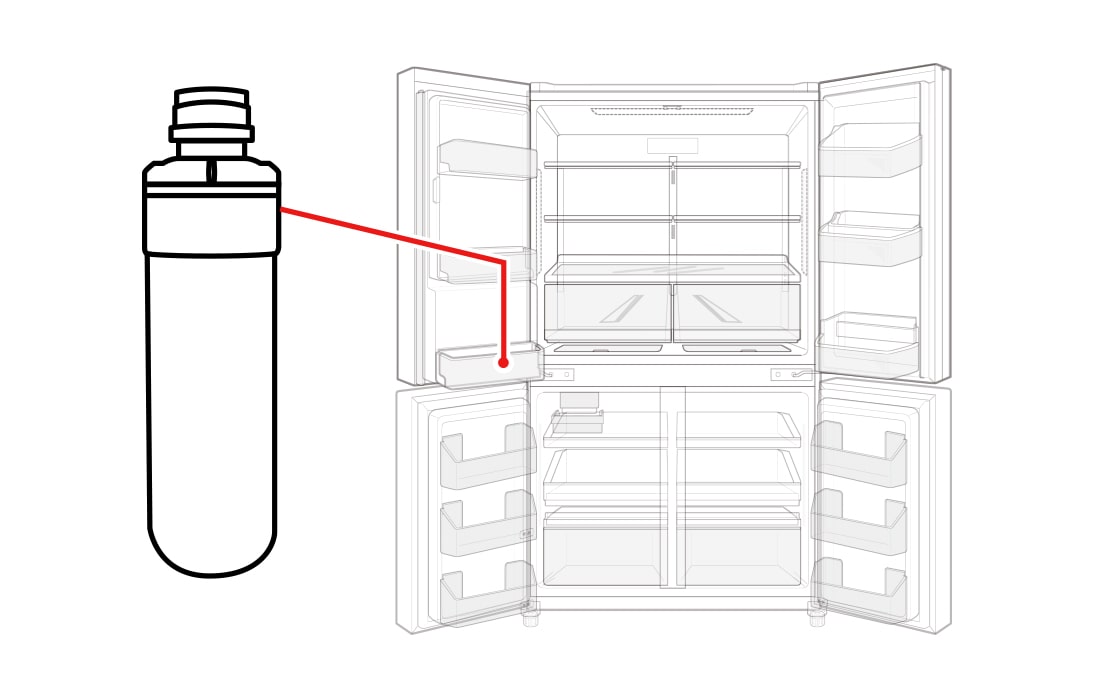

The actual installation location of this item may vary depending on product model.
For more detailed information, please refer to the product manual for your model.
Make sure to read this user guide before installing or using the product to ensure correct and proper use.

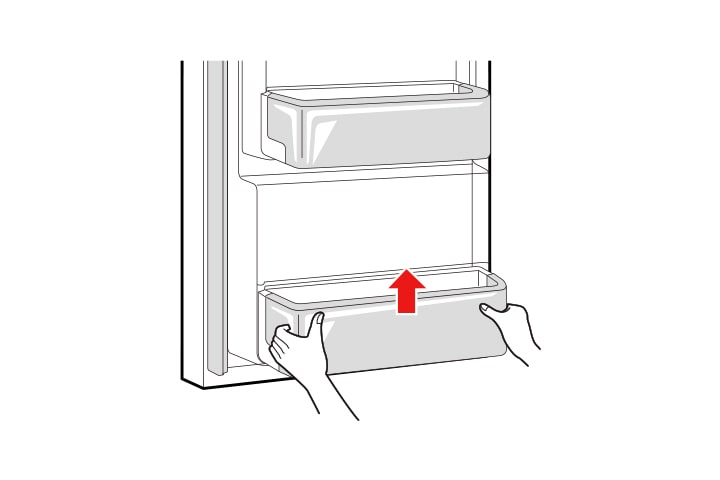

Remove the door basket.
- Depending on the model you use, there may be no door basket.
STEP 1

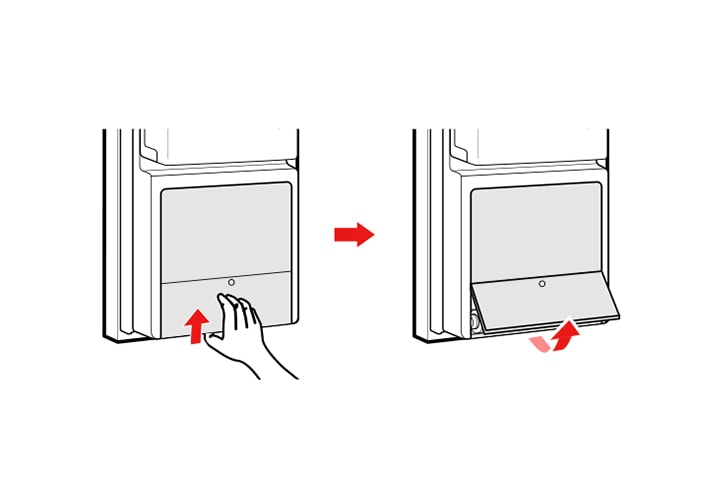

Open the water filter cover.
STEP 2

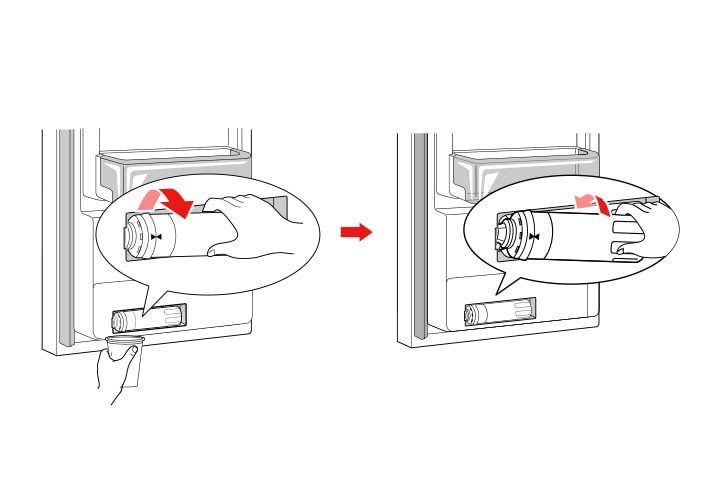

Remove the disposable water filter.
Replace with a new water filter.
Insert the new filter into the filter head and rotate it clockwise until the arrow on the new filter lines up with the arrow on the filter head.
Swing the filter back into the compartment.
STEP 3

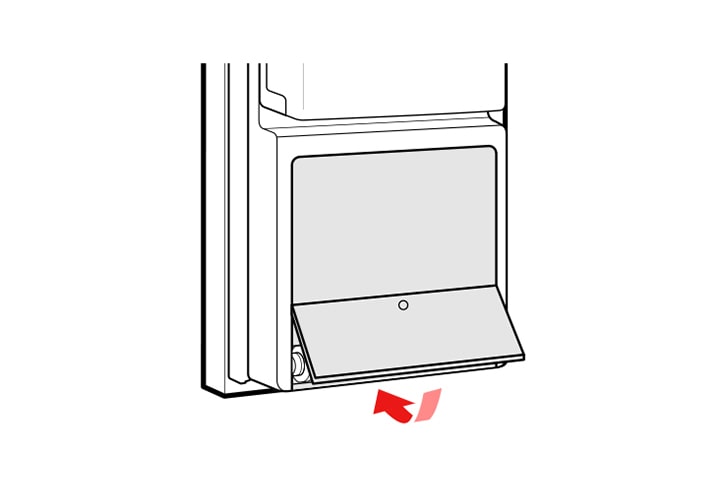

Close the water filter cover.
- After the water filter is replaced, dispense 2.5 gallons of water (flush for approximately 5minutes) to remove trapped air and contaminants from the system.
STEP 4
Refit the door basket.
After changing the filter, press and hold the Water Filter button for three seconds to reset the indicator light.
STEP 5
The replacement instruction for this item may differ slightly from the information below.
For more detailed information, please refer to the product manual for your model.
Make sure to read this user guide before installing or using the product to ensure correct and proper use.

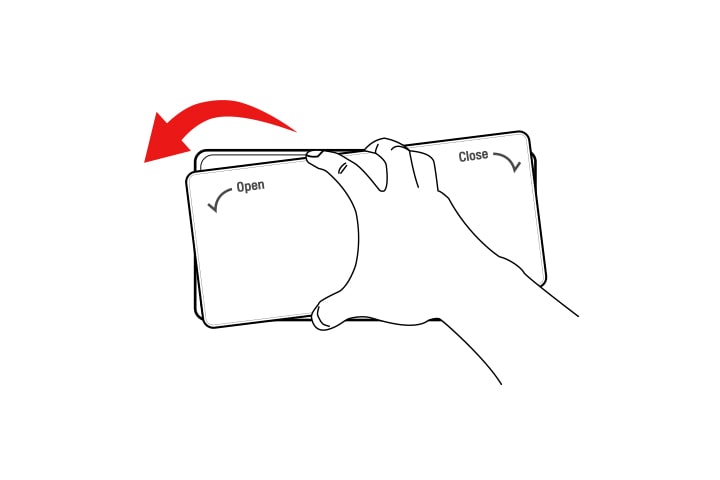

Rotate the filter cover counterclockwise to release the tabs, and remove the cover.Rotate the filter cover counterclockwise to release the tabs, and remove the cover.
STEP 1

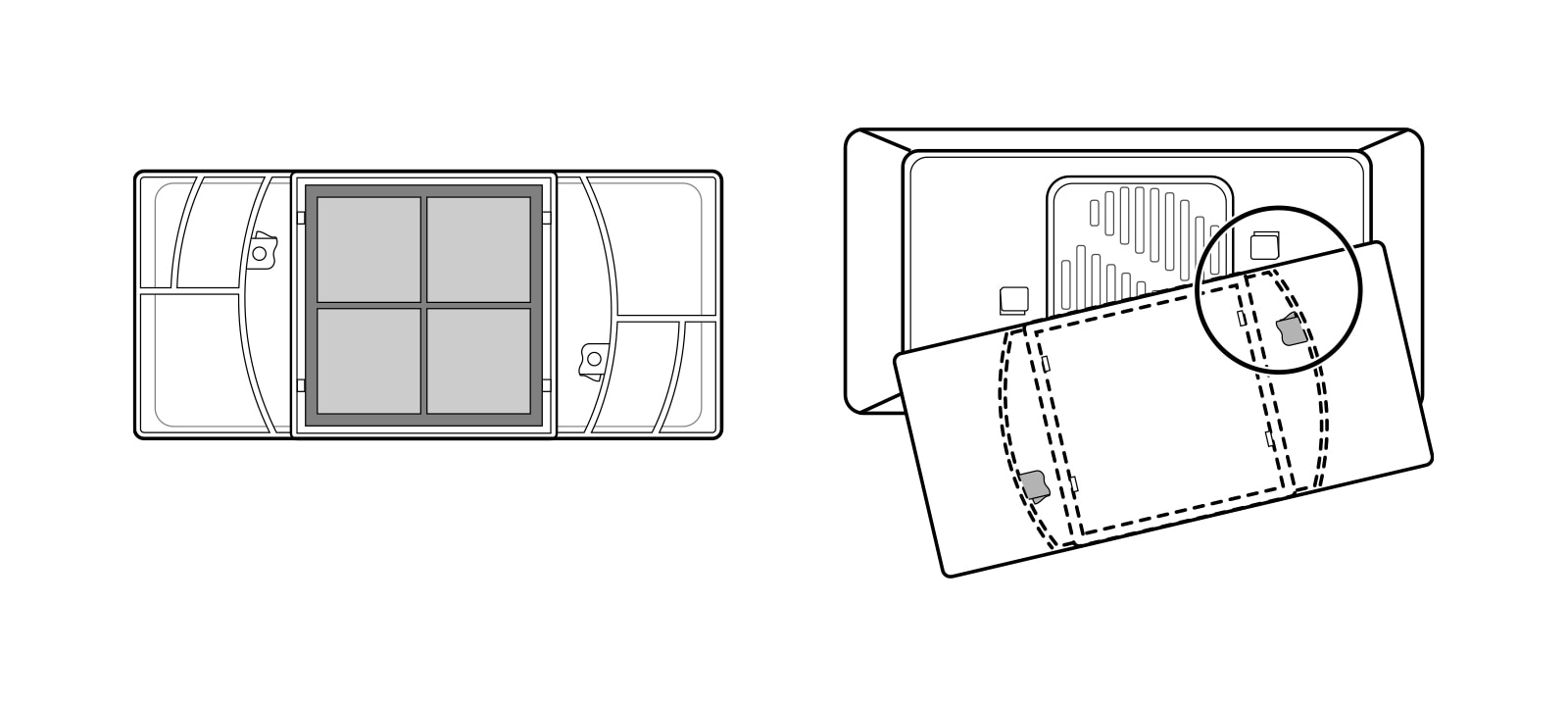

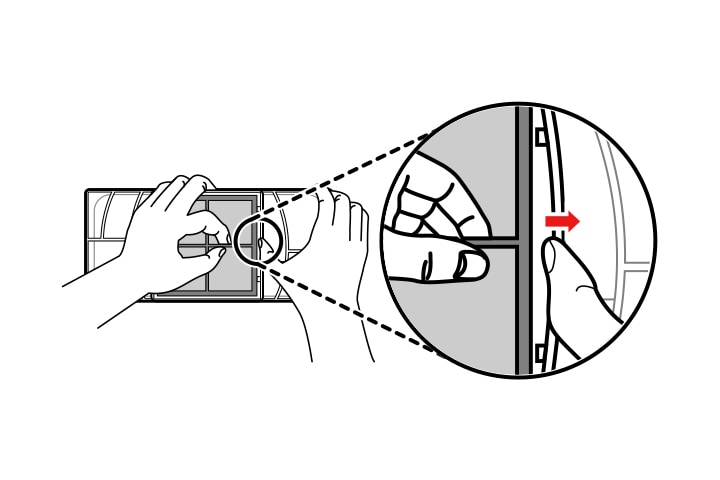

Remove the filter from the inside of the cover by pressing the side of the filter in and then pulling the center out.
STEP 7

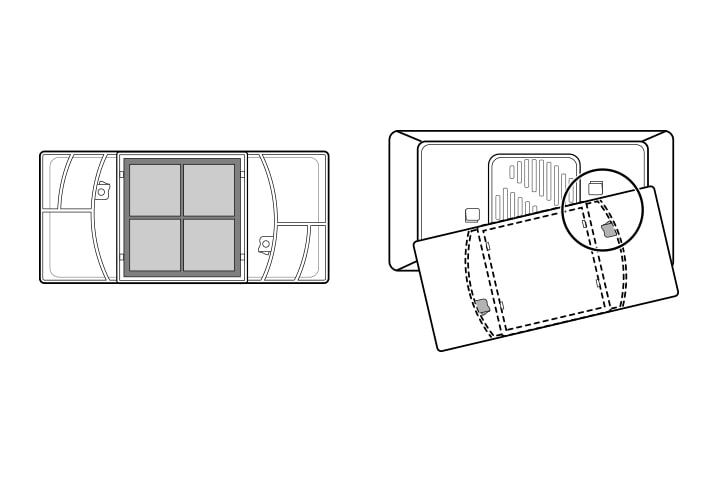

Place the new filter inside of the cover with the side that says FRONT facing outward.

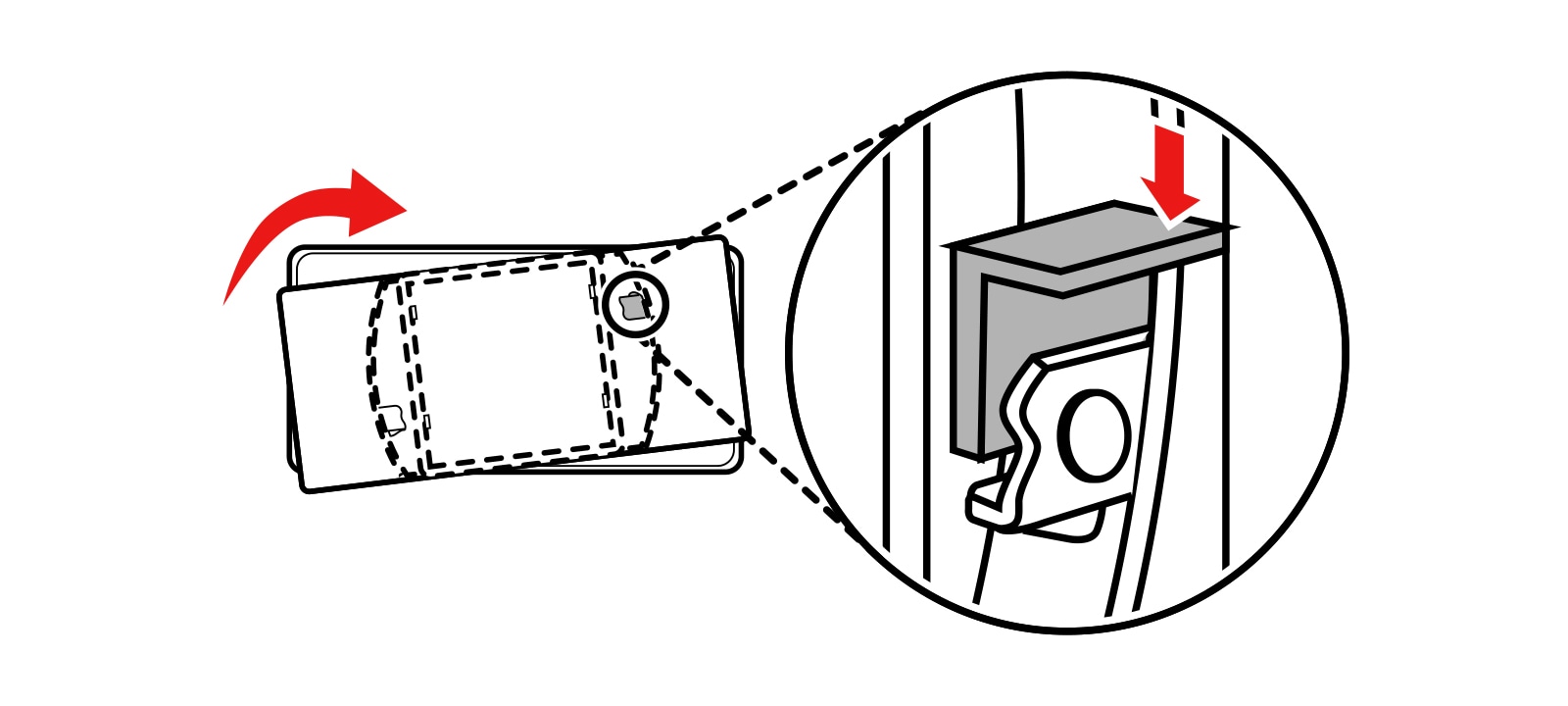

Align tabs on the filter cover with hooks on the refrigerator wall.
STEP 3

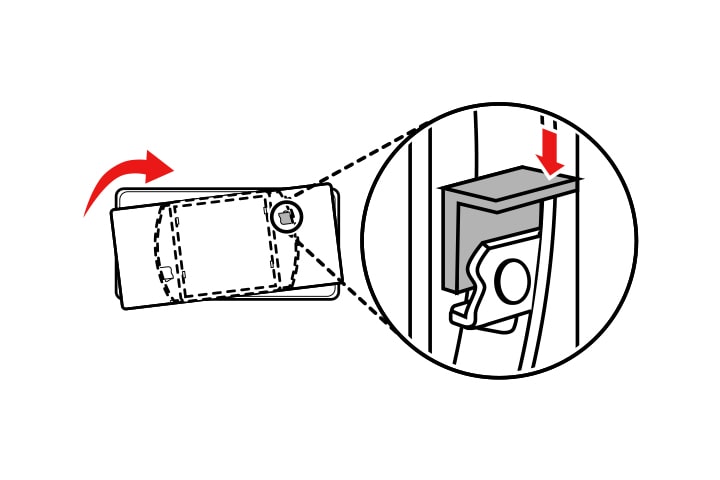

Rotate the air filter cover clockwise until the hooks engage and the cover locks in place.
STEP 4

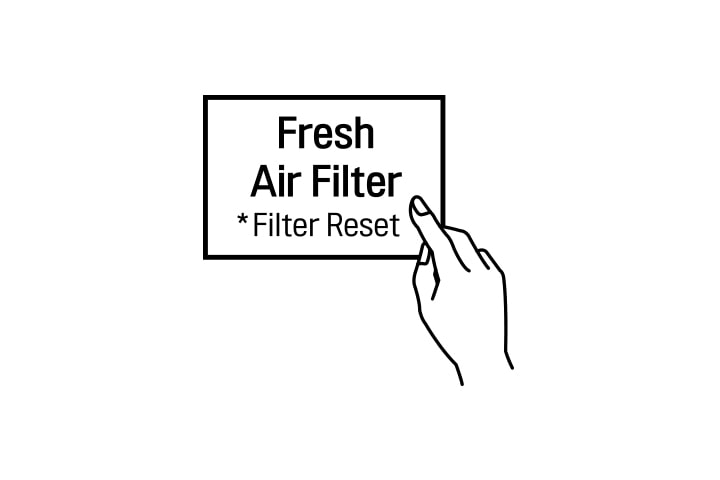

Press and hold the Fresh Air Filter button on the control panel for 3 seconds to reset the filter replacement interval reminder.
STEP 5
The replacement instruction for this item may differ slightly from the information below.
For more detailed information, please refer to the product manual for your model.
*Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.
*All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.
*The performance of the product may vary depending on the usage environment, and availability may vary by store.
Diameter (cm)

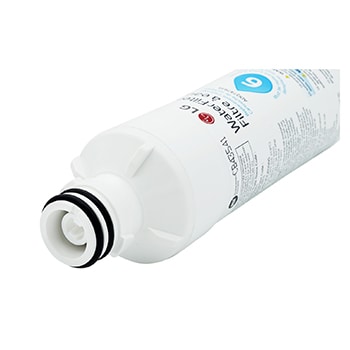

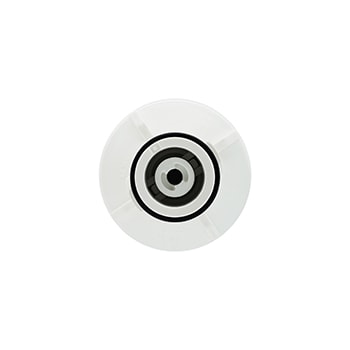

Water Filter : 4.5cm
Length (cm)
Water Filter : 16.5CM
Net Weight (g)
Water Filter : 151 / Air Filter : 22
Outer Diameter (cm)
Water Filter : 2.2
Product Dimension (W x H x D, mm)

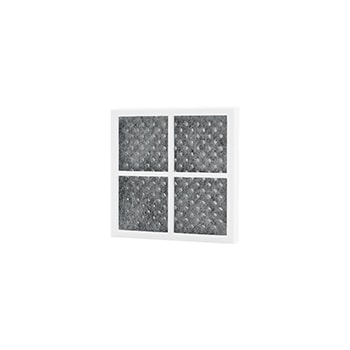

Air Filter : W 82mm X H 10mm X D 82mm
Part Number
AGF30556703
Category
Filter Combo

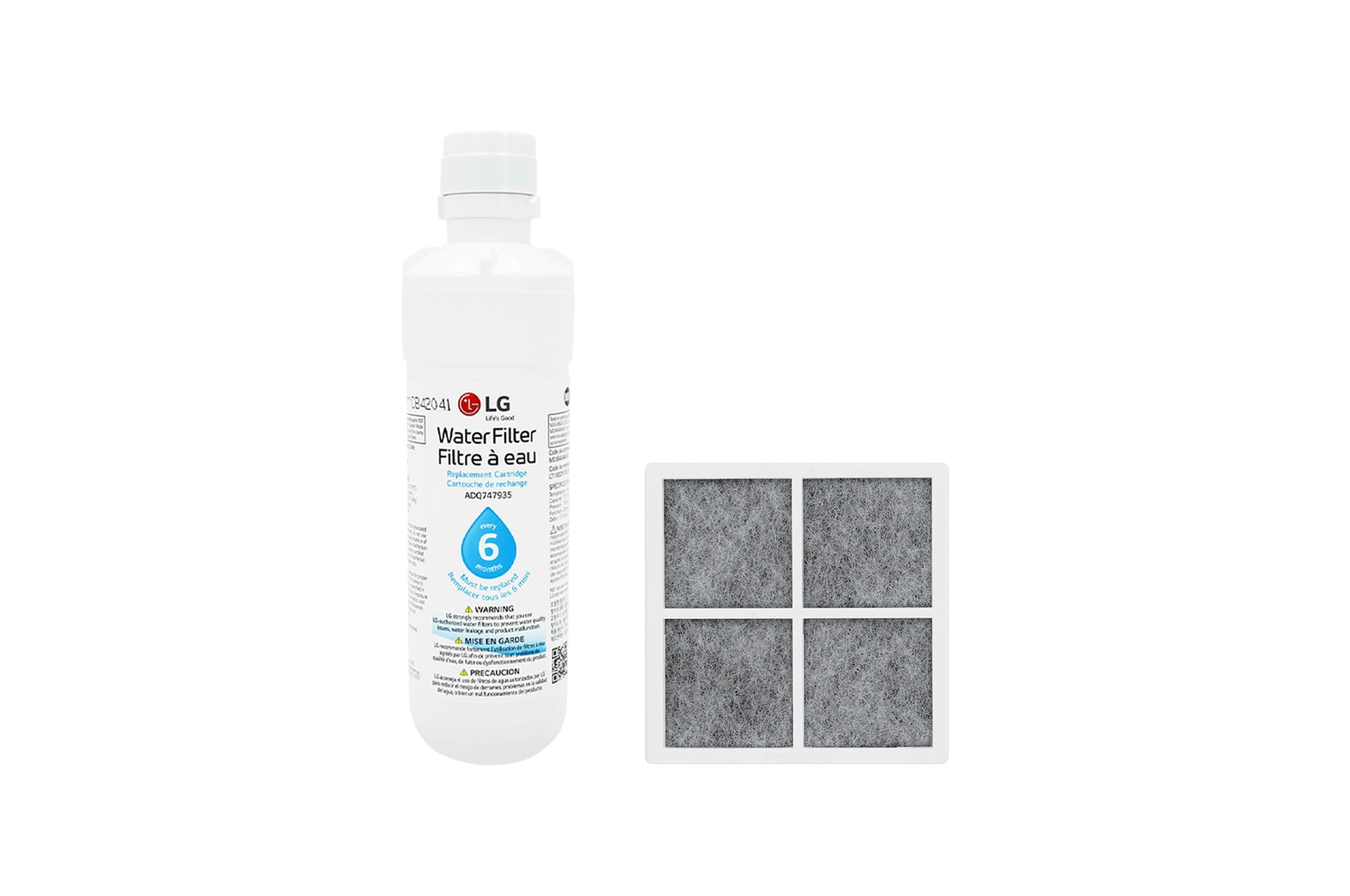

Components
AGF80300705(Water Filter), ADQ73334010(Air Filter)
