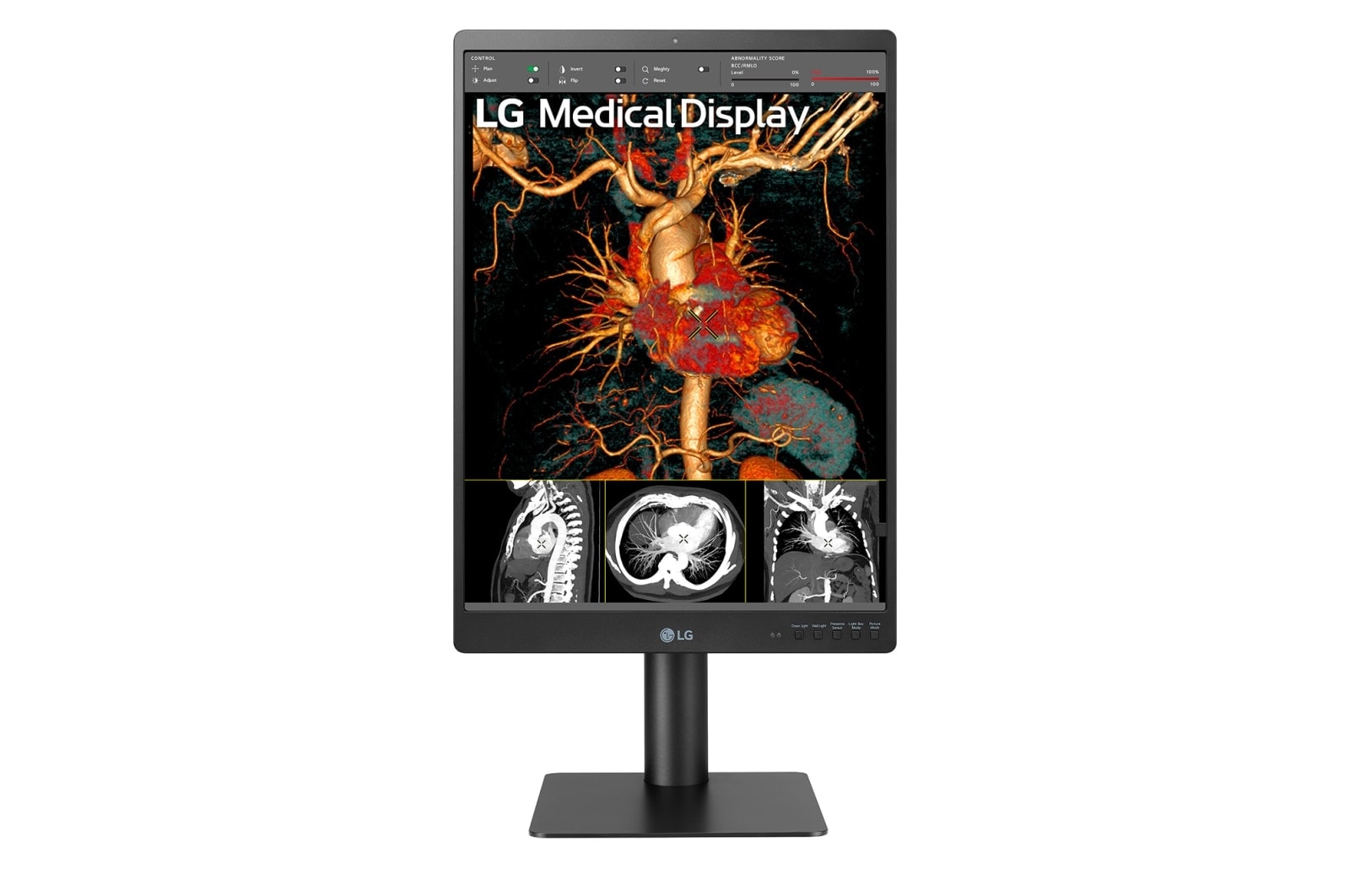

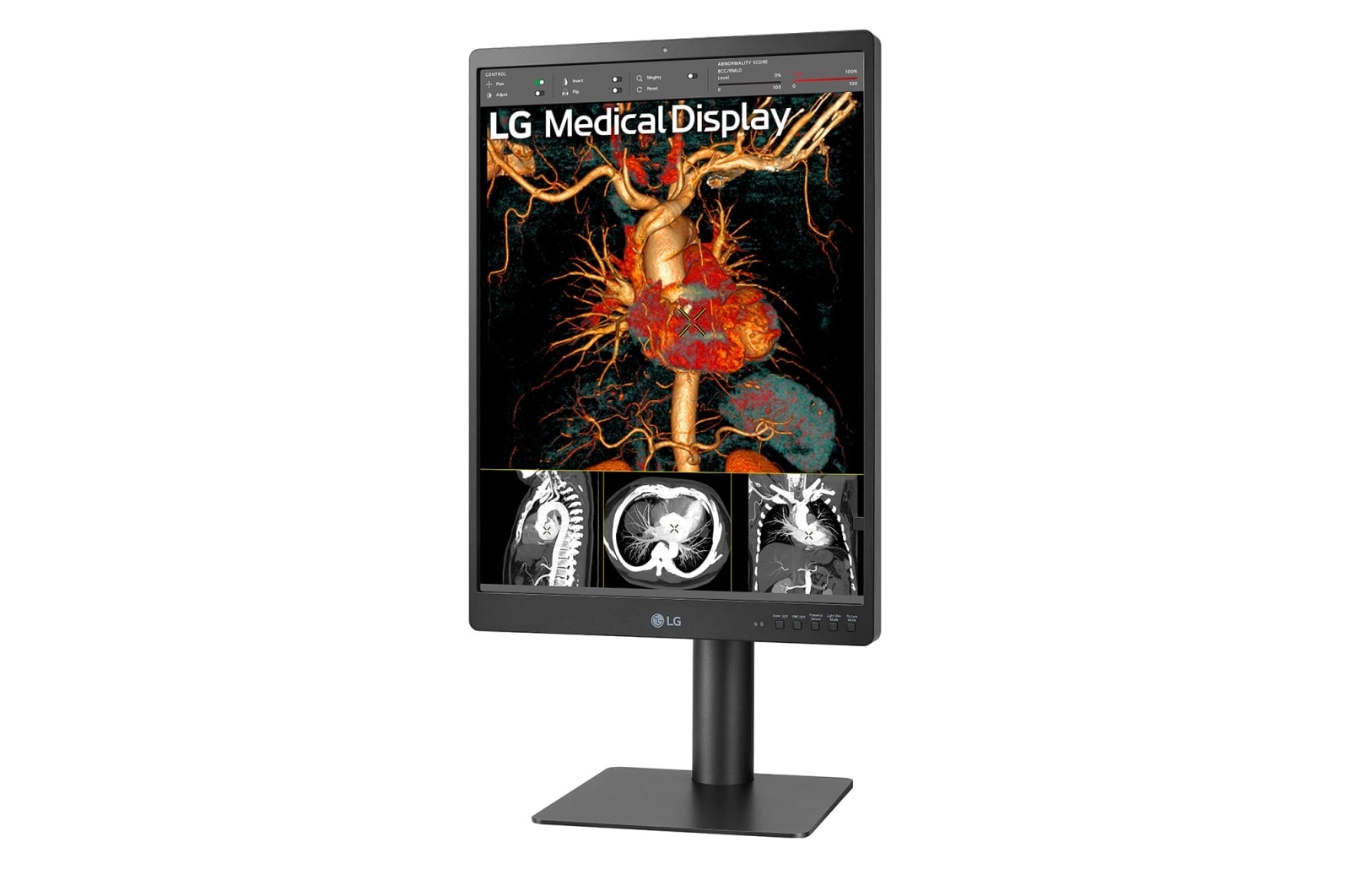

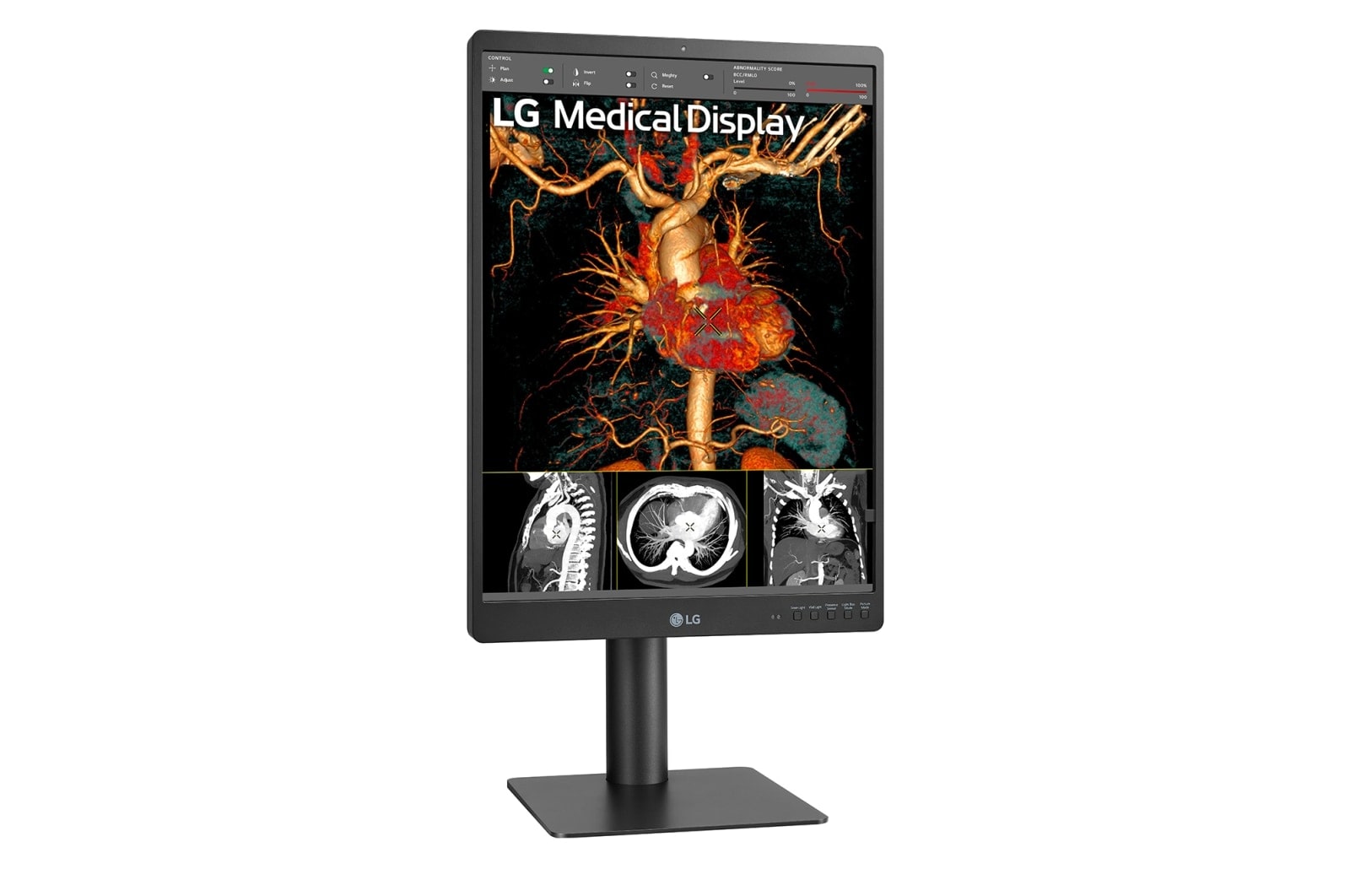

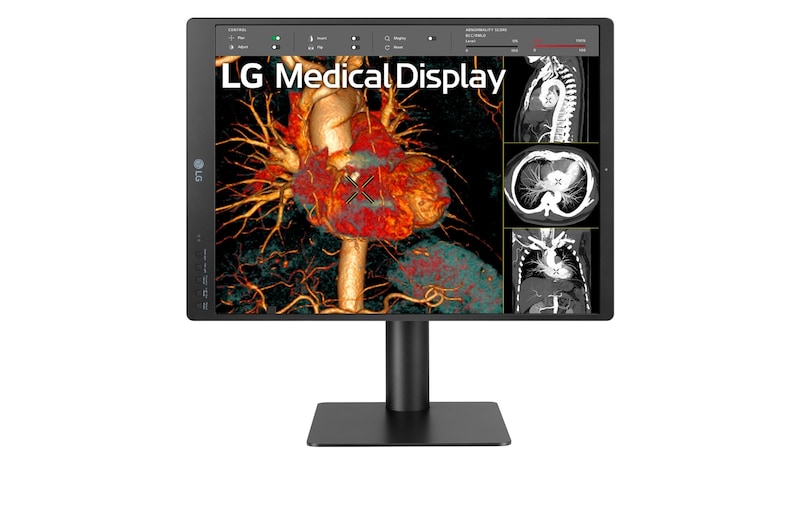

21.3'' 3MP IPS Diagnostic Monitor

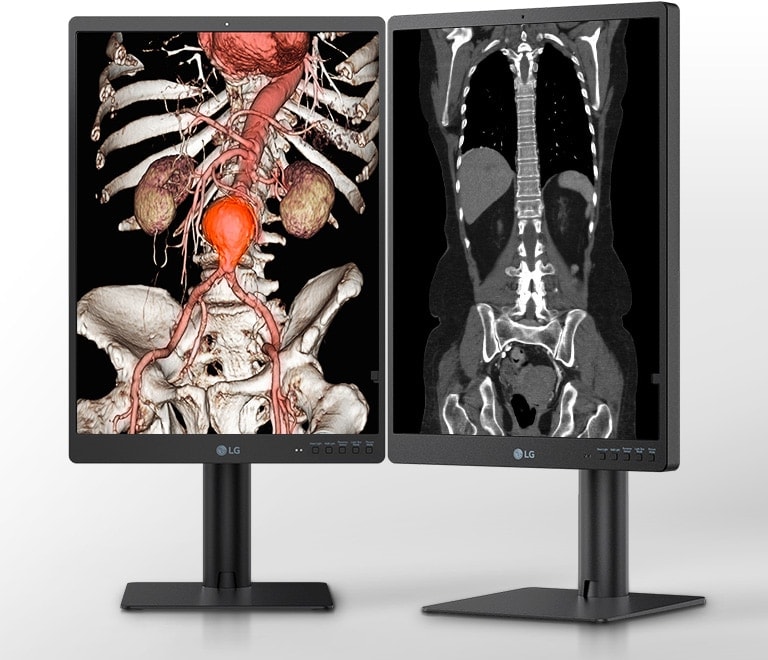

21.3-inch 3MP IPS Display

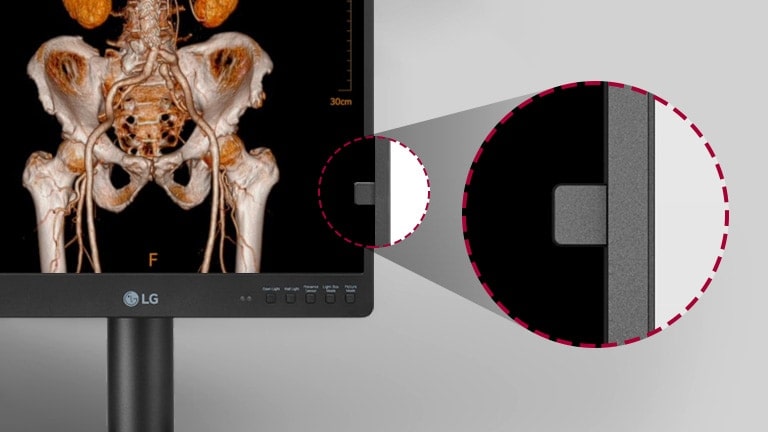

Easy Calibration with Front Sensor
Focus View
5 Hot Keys & Lighting
Daisy Chain
*Images simulated to enhance feature understanding.
*Images simulated to enhance feature understanding.
*Images simulated to enhance feature understanding.

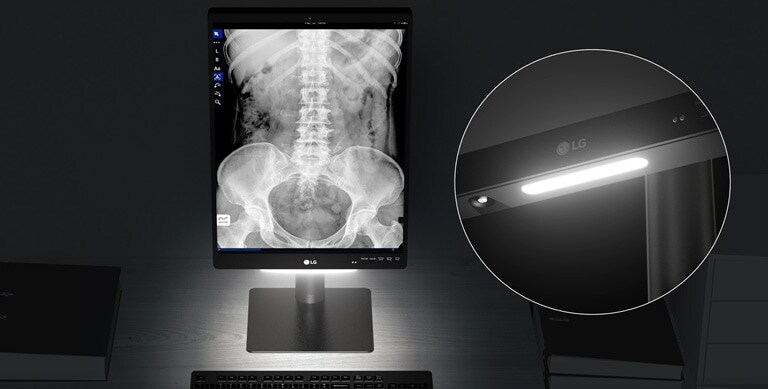

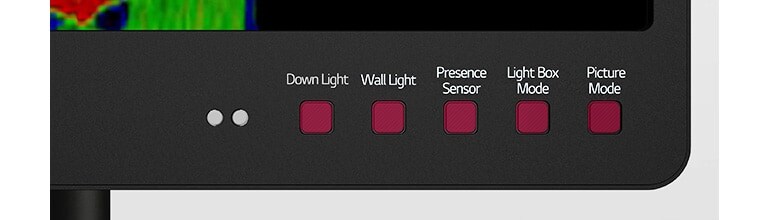

5 hot keys offering user's intuitive control consisting of down light, wall light, presence sensor, light box mode, and picture mode.

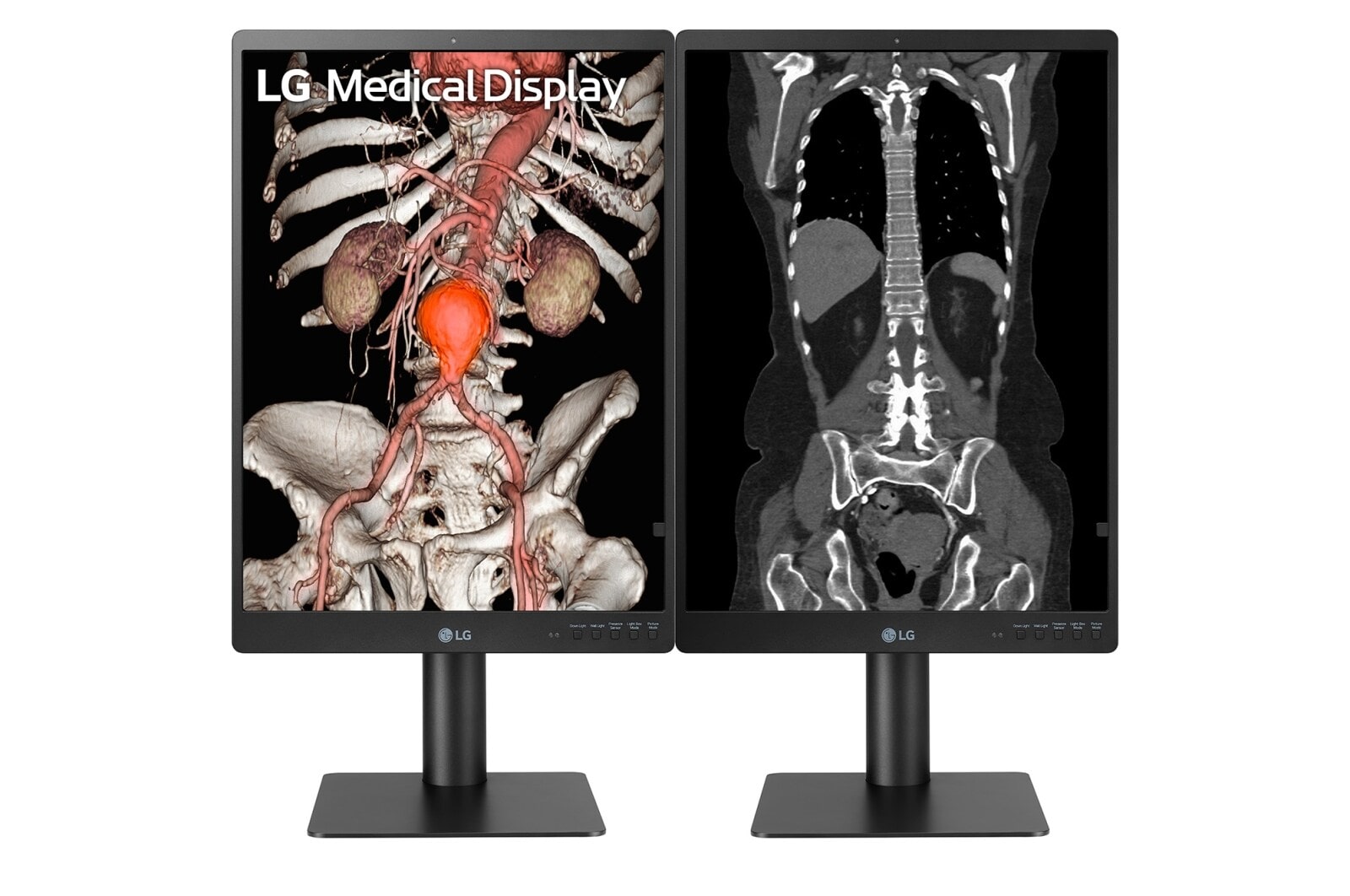

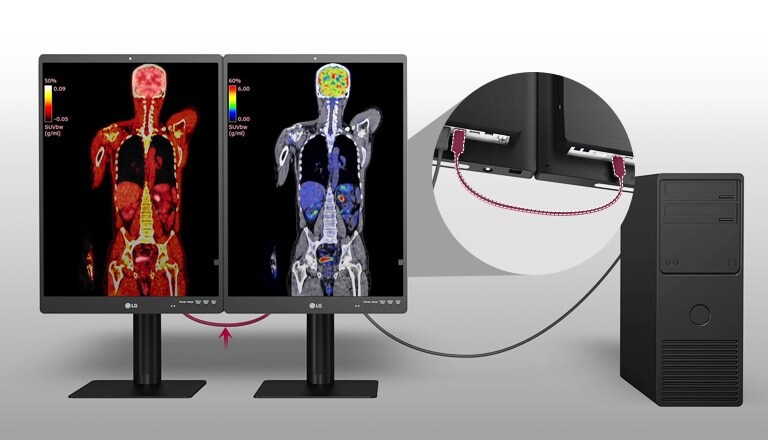

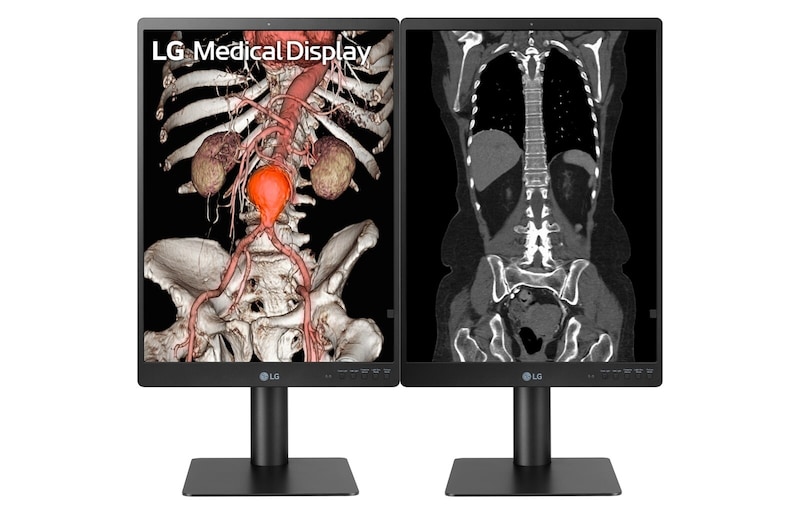

productive workstation by connecting two diagnostic Monitors and a PC.
Size [Inch]
21.3
Aspect Ratio
`3:4
Surface Treatment
Anti-Glare
Response Time
5ms (GtG at Faster)
Resolution
1536 x 2048
Pixel Pitch [mm]
0.2115 x 0.2115
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Brightness (Typ.) [cd/m²]
1100
Contrast Ratio (Typ.)
1800:1
Colour Gamut (Typ.)
NTSC 72% (CIE1931)
Colour Bit
10bit
12G-SDI
NO
3G-SDI
NO
D-Sub
NO
DVI-D
YES(1ea)
Component (Resolution)
NO
Composite (Resolution)
NO
HDMI
NO
Daisy Chain
YES(3MP/60Hz)

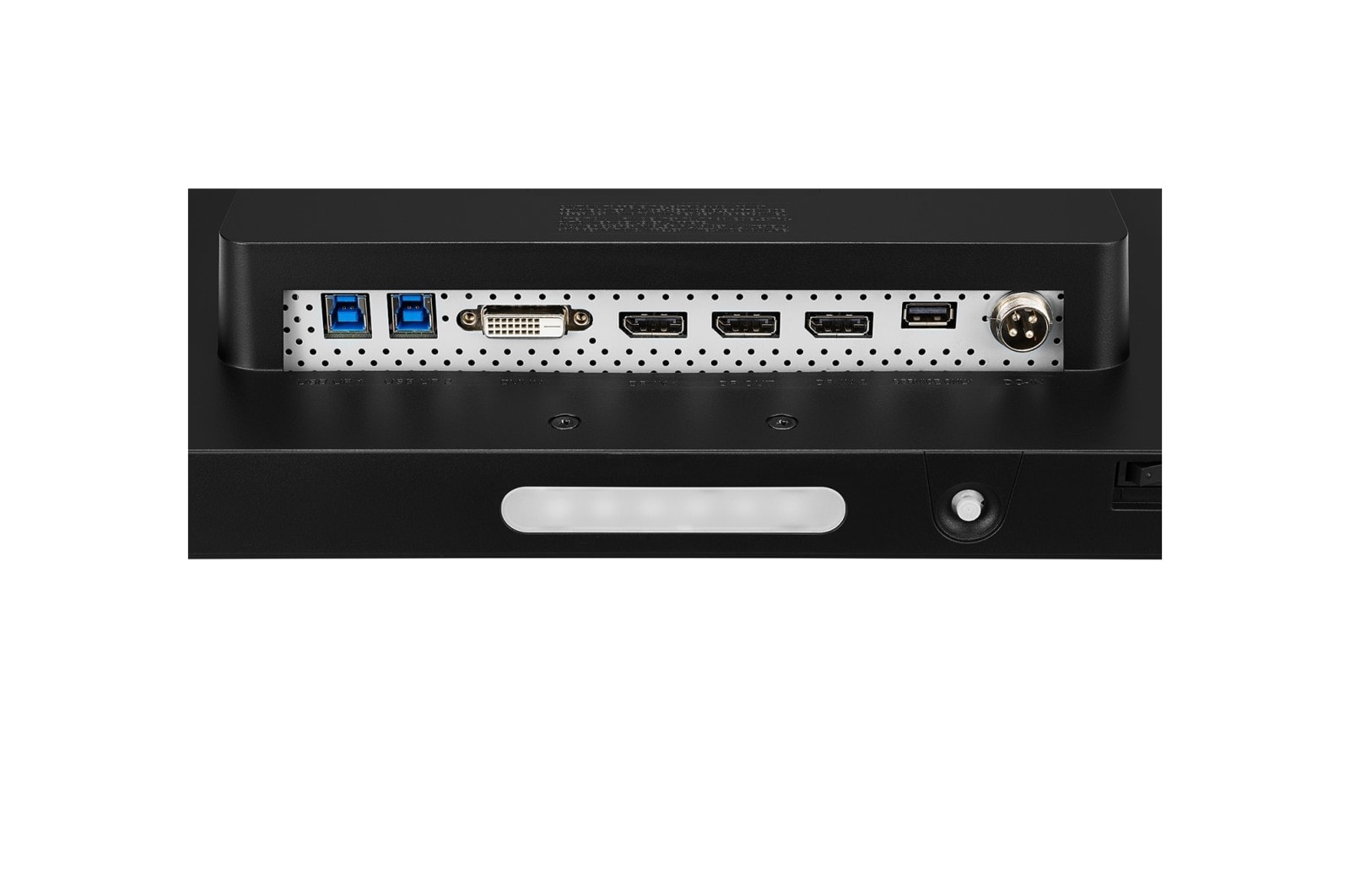

DisplayPort
YES(In 2ea / Out 1ea)
Thunderbolt
NO
Headphone out
NO
RS-232
NO
S-Video
NO
USB Downstream Port
YES(2ea/ver3.0)
USB Upstream Port
YES(2ea/ver3.0)
HDR 10
NO
Auto Luminance Sensor
YES
Smart Energy Saving
YES
PIP
NO
PBP
NO
Flicker Safe
YES
HW Calibration
YES
Black Stabiliser
YES

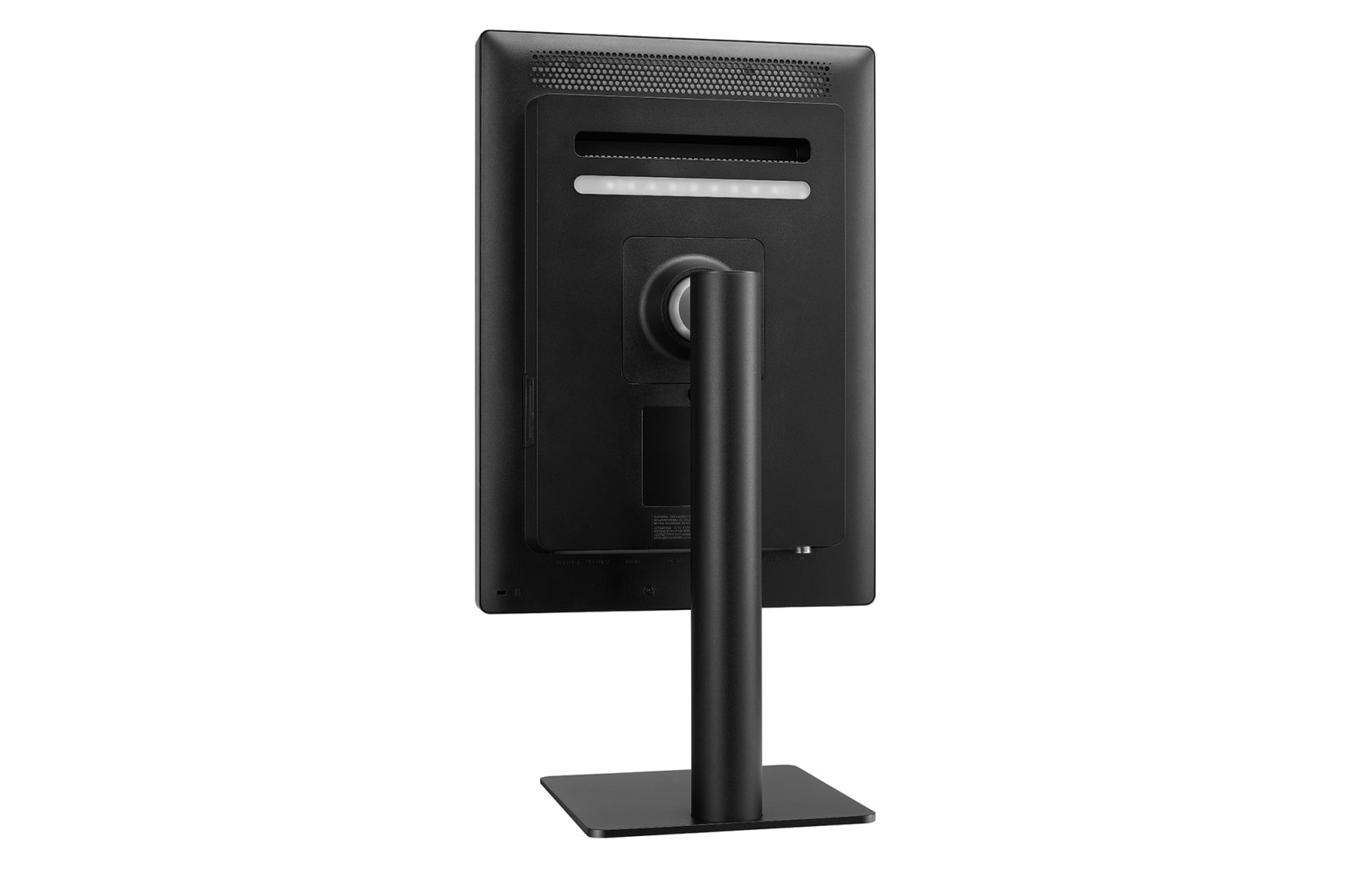

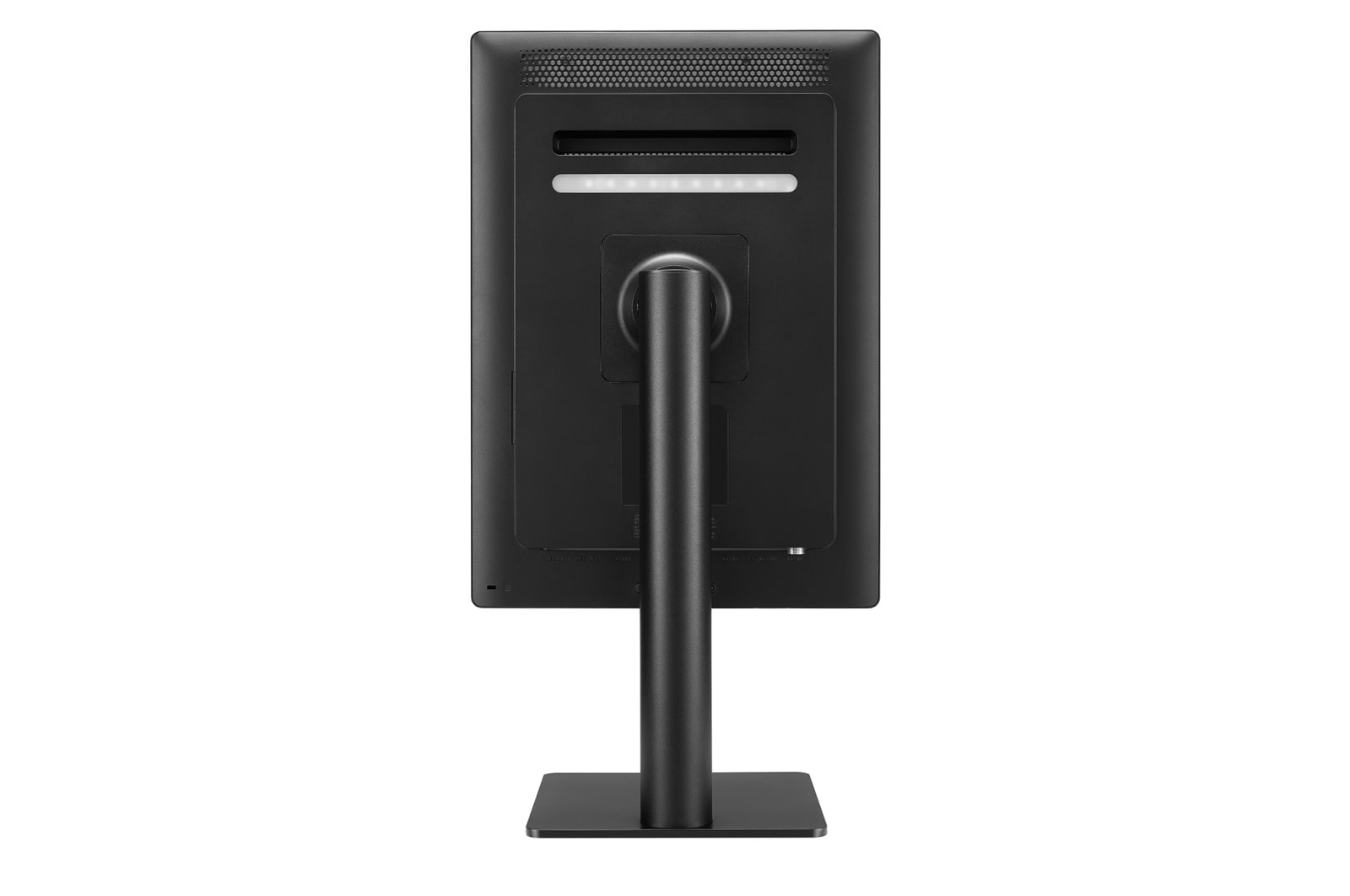

Lighting
YES
Reader Mode
YES
Super Resolution+
YES
Hot Key
YES(6keys)
Presence Sensor
YES
Front Sensor
YES
Colour Temperature
6500K/7500K/9300K/Manual(5000K-10000K)
Rotation & Mirror Mode
NO
Failover Input Switch
NO
Focus View
YES
Light Box Mode
YES
Brightness stabilisation
YES

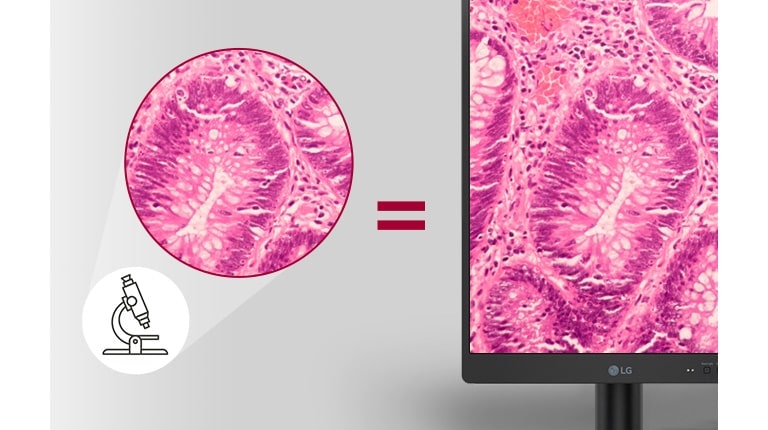

Pathology Mode
YES
DICOM Compliant
YES
HDR Effect
NO

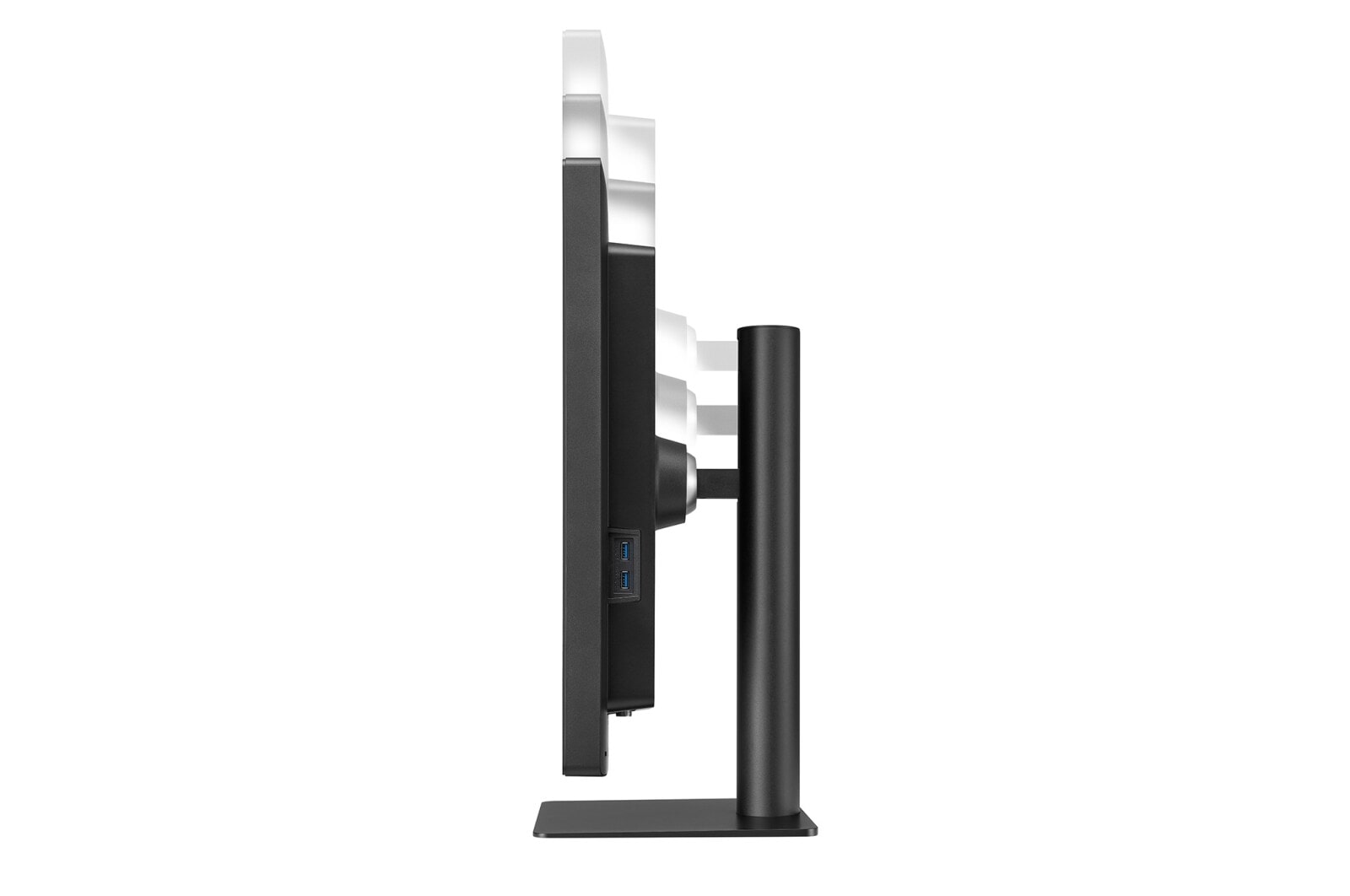

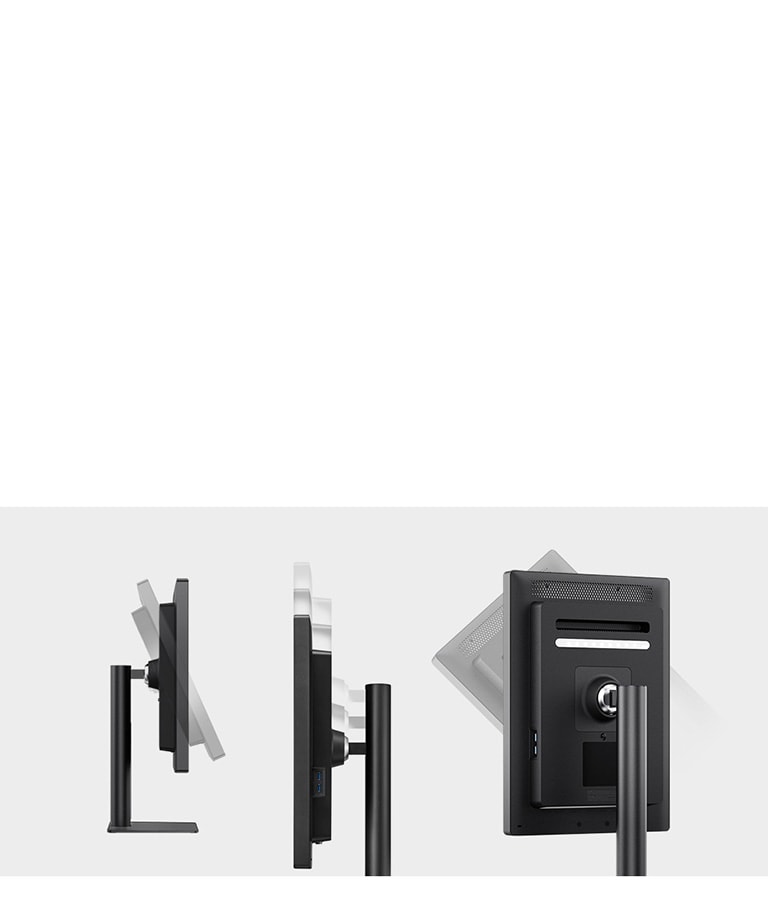

Display Position Adjustments
Tilt/Height/Pivot
Borderless Design
Normal
Wall Mountable [mm]
100 x 100
OneClick Stand
YES
Machanical Power Switch
YES
Weight in Shipping [kg]
10.5
Weight with Stand [kg]
7
Weight without Stand [kg]
5
Power Consumption (Max.)
120W
Power Consumption (DC Off)
Less than 0.3W
AC Input
100-240V (50/60Hz)
Type
External Power(Adapter)
DC Output
19V, 6.32A
Adapter
YES
Calibration Report (Paper)
YES
Display Port
YES
DVI-D (Colour/Length)
YES
D-Sub
NO
HDMI (Colour/Length)
NO
Power Cord
YES
USB3.0 Upstream Cable
YES
Dual Controller
YES
LG Calibration Studio (True Colour Pro)
NO
Qubyx
YES
UL (cUL)
YES
CE
YES
RoHS
YES
IP(Front/Except for front)
NO
Vandal-proof
NO
KGMP
YES
KC (for Rep. of Korea)
NO
IEC (IEC 60601-1 / IEC 60601-1-2)
YES
EN (EN 60601-1 / EN 60601-1-2)
YES
IEC (IEC 60950-1 / IEC 55032, 55024)
YES
EN (EN 60950-1 / EN 55032, 55024)
YES
FDA
Class II
ISO13485
YES
GMP
YES
WEEE
YES
MFDS
YES
REACH
YES
