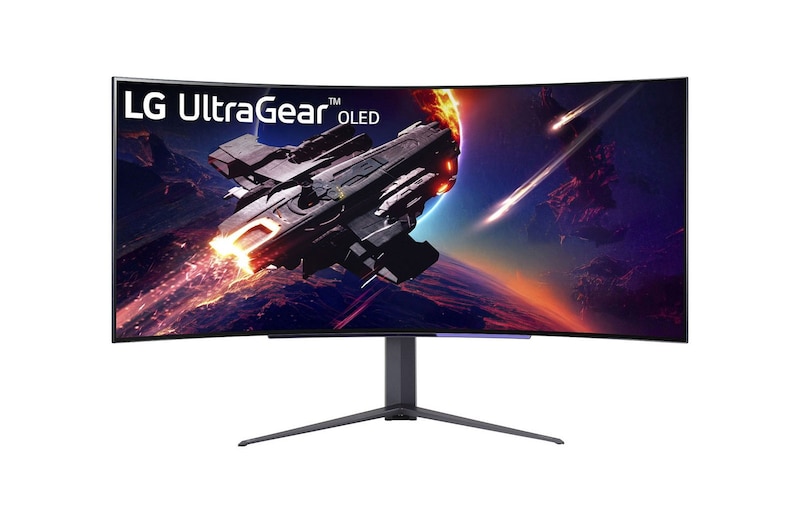

UltraGear™ 45 inch OLED WQHD 240Hz Curved Gaming Monitor with 0.03ms (GtG at Faster)WQHD, G-SYNC® Compatible, FreeSync™ Premium, 800R
The Display
45" WQHD (3440x1440) Curved (800R) OLED
HDR10 / DCI-P3 98.5%**
Anti-Glare / Low Reflection
The Speed
240Hz Refresh Rate
0.03ms (GtG) Response Time
WQHD@240Hz from HDMI 2.1
The Technology
NVIDIA® G-SYNC® CompatibleAMD FreeSync™ Premium**
The images simulated to enhance feature understanding. It may differ from actual use.
*DCI-P3 Typical 98.5%, Minimum 90%. *AMD Freesync™ is only available when connected to a Display Port and used in conjunction with a compatible AMD graphics card.
Images dramatised for illustrative purposes.
**AMD Freesync™ is only available when connected to a Display Port and used in conjunction with a compatible AMD graphics card.
The images simulated to enhance feature understanding. It may differ from actual use.
The images simulated to enhance feature understanding. It may differ from actual use.
-
LED
-
OLED
OLED 1.5 M : 1 Contrast Ratio
The images simulated to enhance feature understanding. It may differ from actual use.
*1.5m:1 is the contrast ratio at 25% APL (Average Picture Level).
The images simulated to enhance feature understanding. It may differ from actual use.
The images simulated to enhance feature understanding. It may differ from actual use.
240Hz Refresh Rate
The 240Hz curved monitor lets gamers see the next frame quickly and helps images appear smoothly. Gamers can response rapidly to opponents and aim at targets easily.
The images simulated to enhance feature understanding. It may differ from actual use.
The images simulated to enhance feature understanding. It may differ from actual use.
*It supports up to 240Hz rapid Refresh Rate. A graphic card that supports HDMI 2.1 and the HDMI 2.1 cable (included in the package) is required to work properly.
*The graphics card is sold separately.
Technology Focused on Fluid Gaming Experience
Technology Focused on Fluid Gaming Experience
*AMD Freesync™ is only available when connected to a Display Port and used in conjunction with a compatible AMD graphics card.
Images dramatised for illustrative purposes.
*The remote control is included in the package.
*Headsets sold separately.
Play Games and Do More
PBP
The images simulated to enhance feature understanding. It may differ from actual use.
*PBP: Picture By Picture / PIP: Picture In Picture.
The actual performance will vary from the PC and running programs.
*To download the latest OnScreen Control, visit LG.COM.
The images simulated to enhance feature understanding. It may differ from actual use.
Dynamic Action Sync
Dynamic Action Sync Mode lets you see the action as it occurs in real time so that you can react immediately rather than respond after the delay of internal frame processing.
The images simulated to enhance feature understanding. It may differ from actual use.
*The Crosshair feature is unavailable while FPS Counter is activated.
*FPS Counter may display the value that exceeds the maximum refresh rate of monitor.

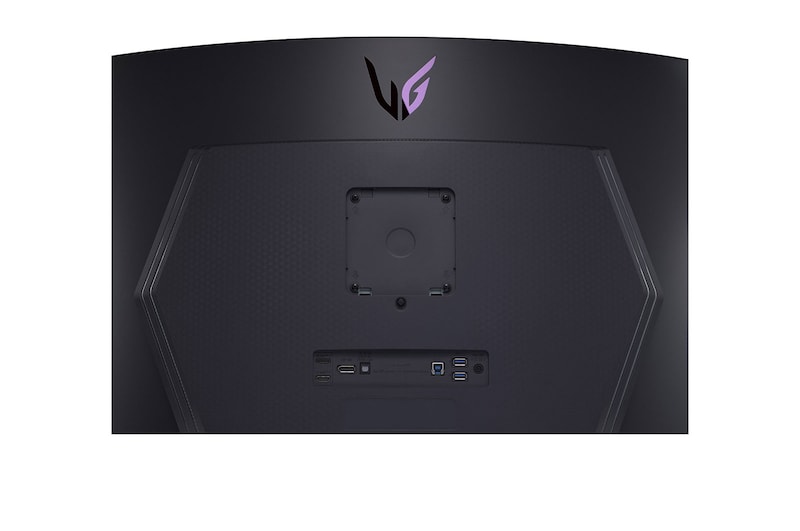

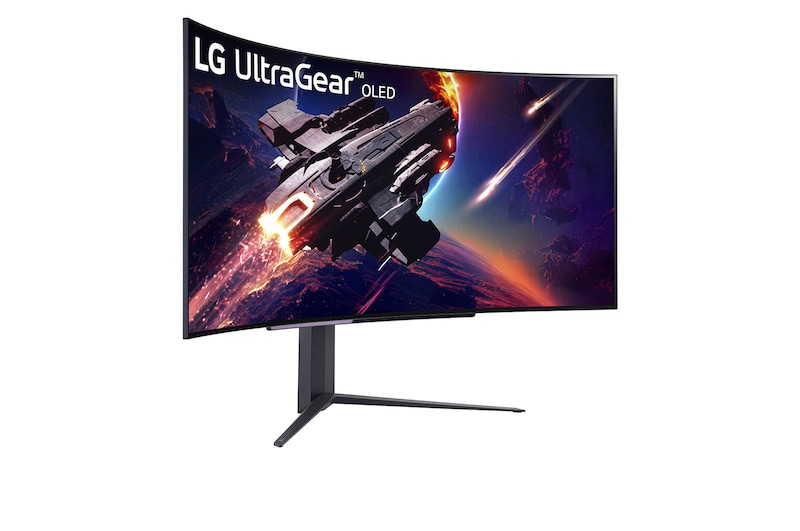

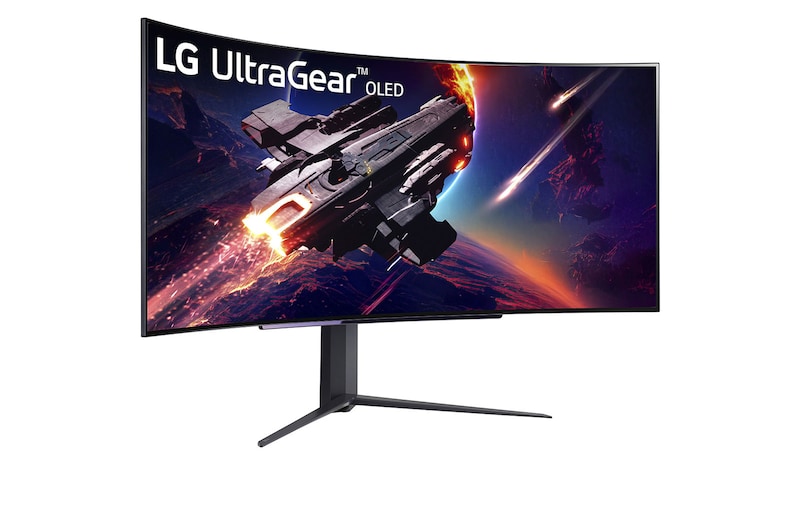

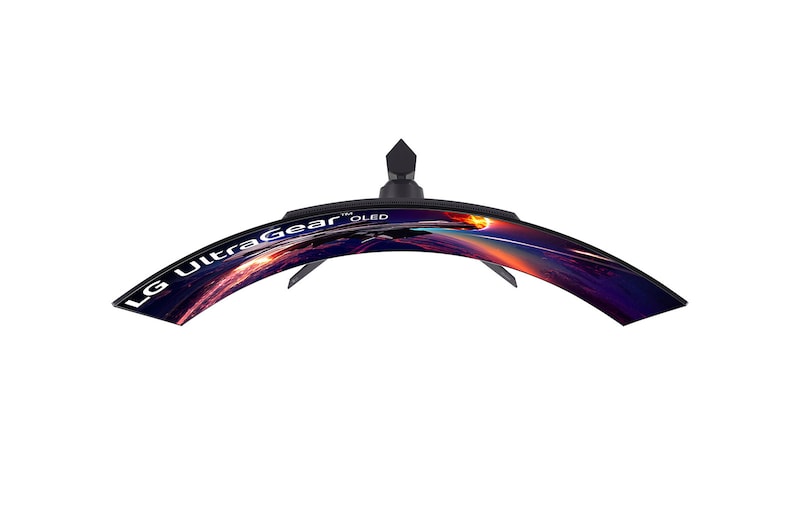

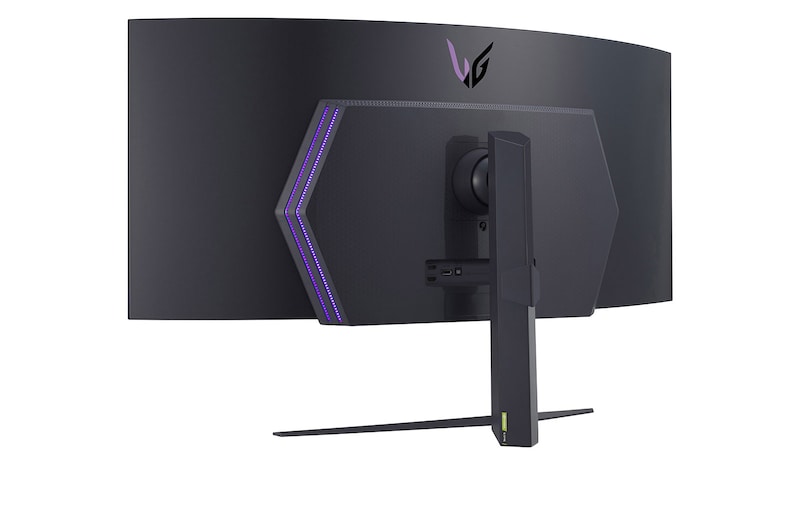

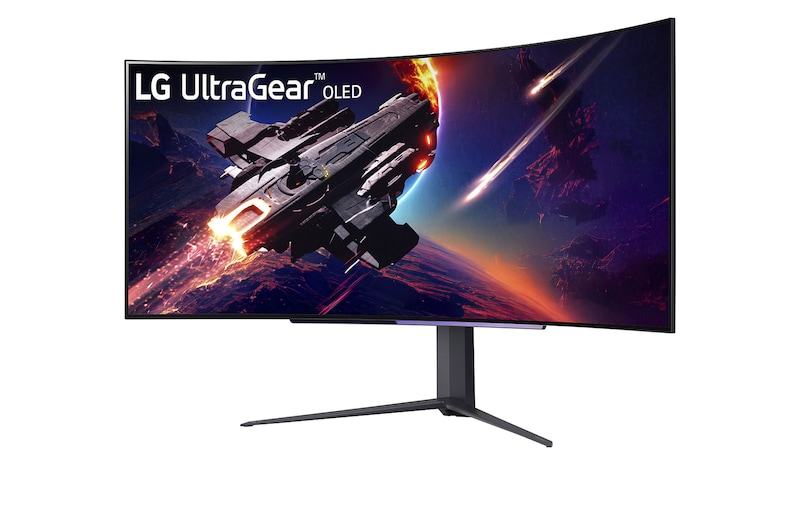

Gallery
Key Specs
-
Size [Inch]
44.5
-
Resolution
3440 x 1440
-
Panel Type
OLED
-
Aspect Ratio
21:9
-
Color Gamut (Typ.)
DCI-P3 98.5% (CIE1976)
-
Brightness (Typ.) [cd/m²]
200
-
Curvature
800R
-
Refresh Rate (Max.) [Hz]
240
-
Response Time
0.03ms (GTG)
-
Display Position Adjustments
Tilt/Height/Swivel
All Spec
DISPLAY
-
Size [Inch]
44.5
-
Aspect Ratio
21:9
-
Panel Type
OLED
-
Response Time
0.03ms (GTG)
-
Resolution
3440 x 1440
-
Pixel Pitch [mm]
0.303 x 0.303
-
Color Depth (Number of Colors)
1.07B
-
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
-
Brightness (Typ.) [cd/m²]
200
-
Contrast Ratio (Typ.)
1500000:1
-
Color Gamut (Typ.)
DCI-P3 98.5% (CIE1976)
-

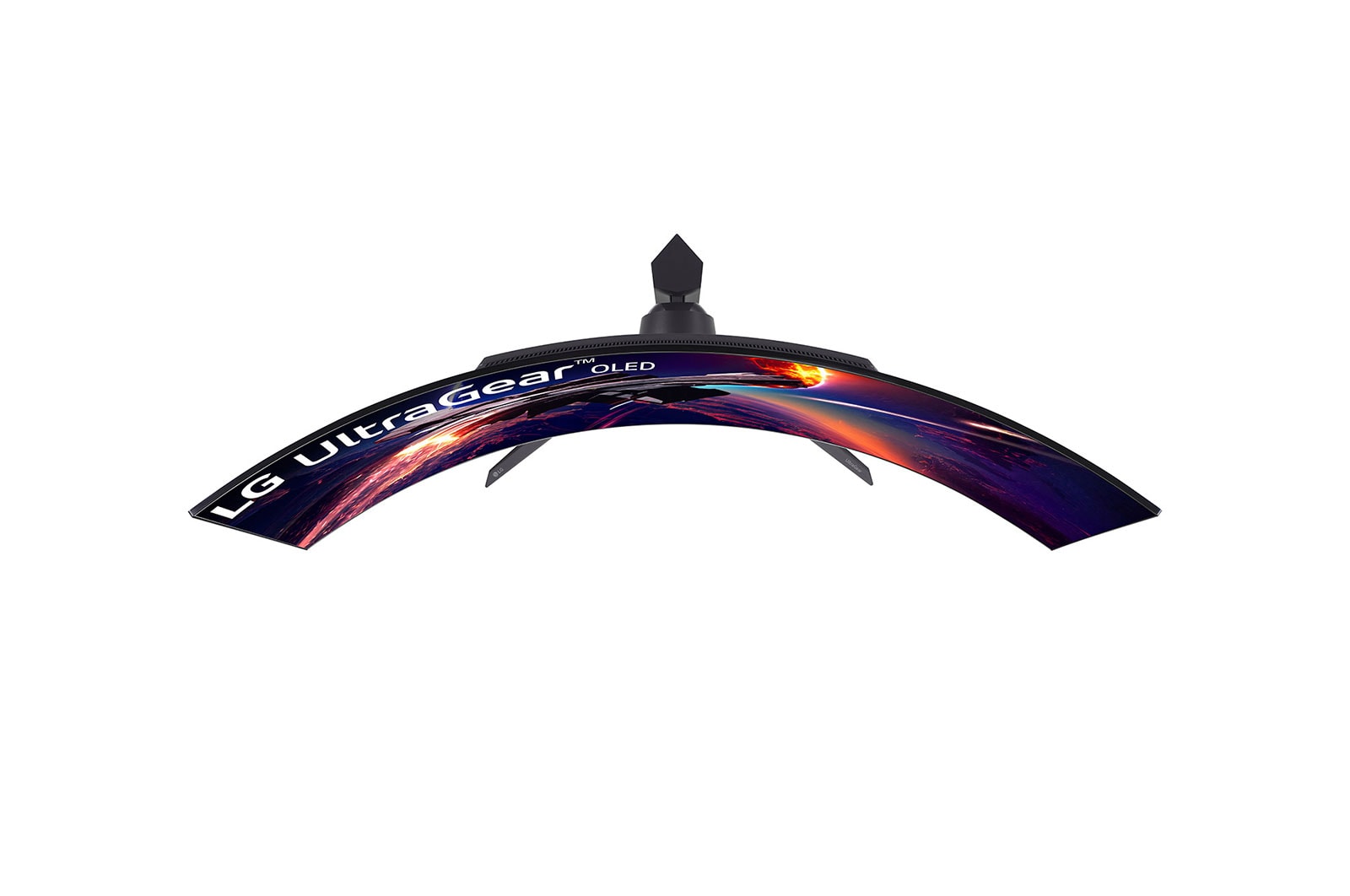

Curvature
800R
-
Color Gamut (Min.)
DCI-P3 90% (CIE1976)
-
Refresh Rate (Max.) [Hz]
240
-
Brightness (Min.) [cd/m²]
160
-
Size [cm]
113

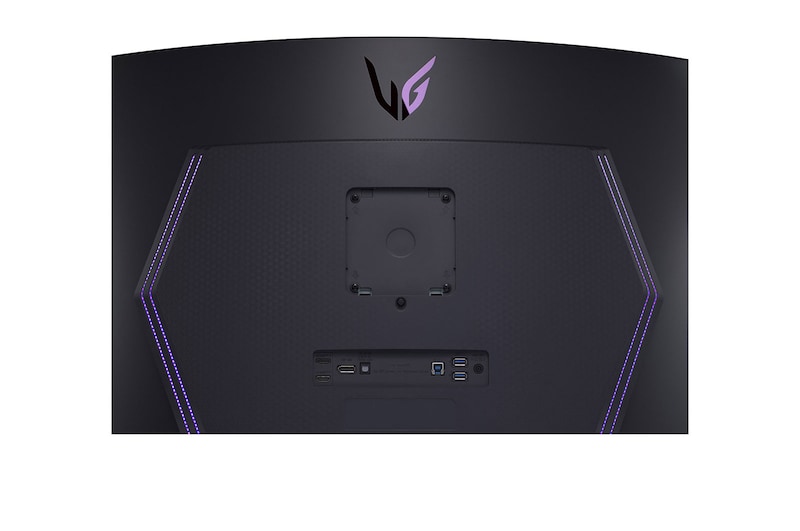

CONNECTIVITY
-
HDMI
YES(2ea)
-
DisplayPort
YES(1ea)
-
DP Version
1.4
-
Headphone out
4-pole (Sound+Mic)
-
SPDIF out (Optical Digital Audio Out)
YES
-
USB Downstream Port
YES(2ea/ver3.0)
-
USB Upstream Port
YES(1ea/ver3.0)
FEATURES
-
HDR 10
YES
-
AMD FreeSync™
FreeSync Premium
-
Color Weakness
YES
-
Smart Energy Saving
YES
-
Color Calibrated in Factory
YES
-
PIP
YES
-
PBP
2PBP
-
NVIDIA G-Sync™
G-SYNC Compatible
-
HW Calibration
HW Calibration Ready
-
Dynamic Action Sync
YES
-
Black Stabilizer
YES
-
Crosshair
YES
-
Others (Features)
Hexagon Lighting, VESA DSC Tech. DTS HP:X (4-pole H/P Out)
-
Reader Mode
YES
-
FPS Counter
YES
-
VRR
YES
-
User Defined Key
YES
-
Auto Input Switch
YES
-

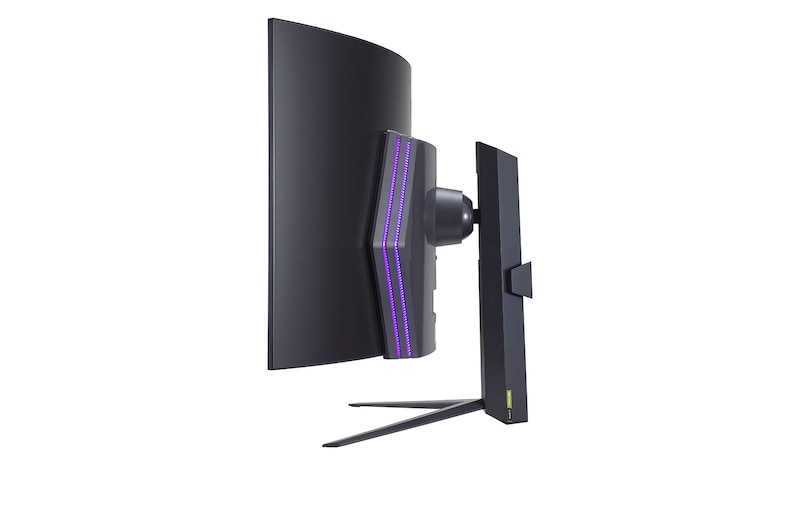

RGB LED Lighting
Hexagon Lighting
-
HDR Effect
YES
MECHANICAL
-

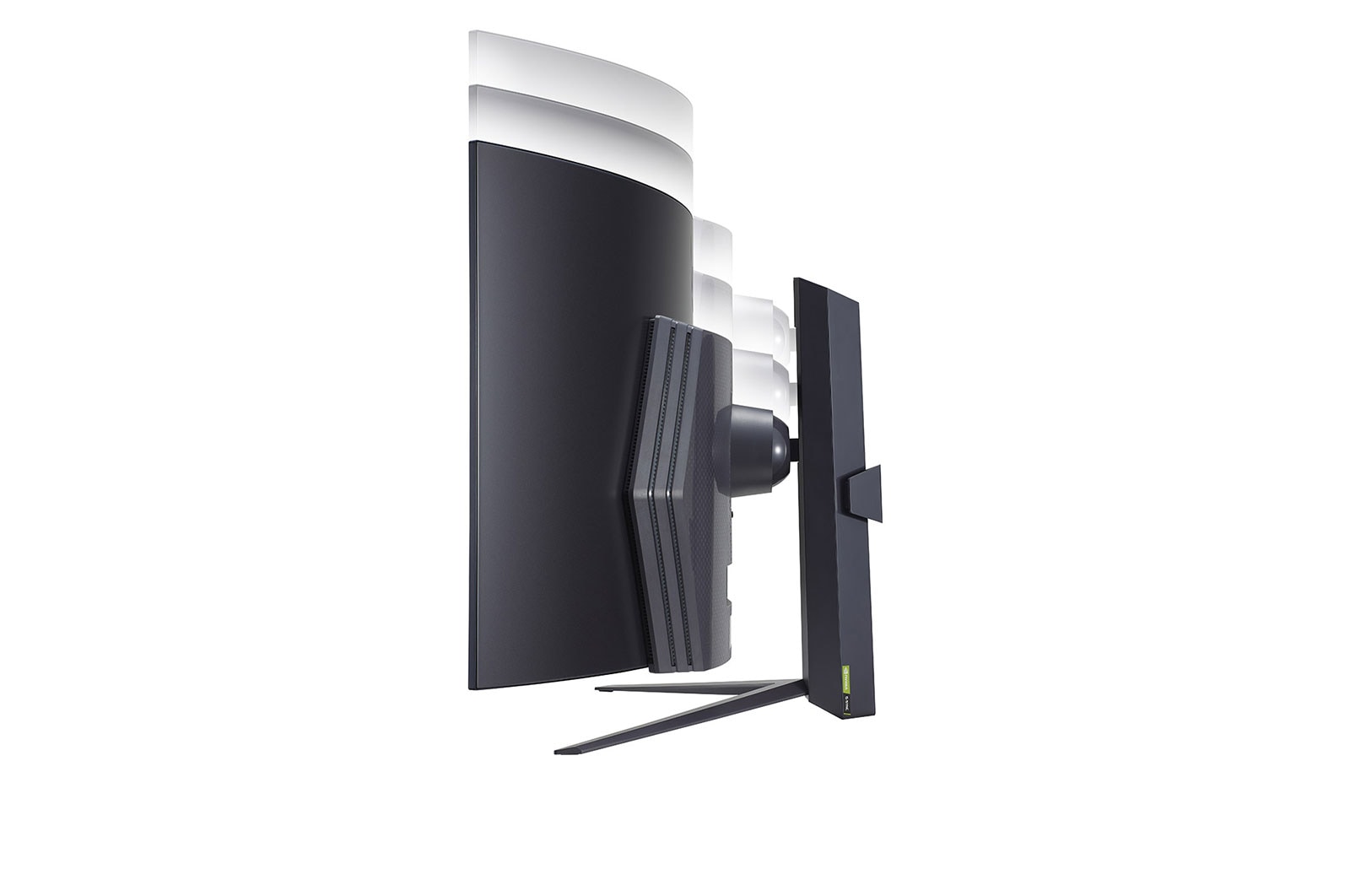

Display Position Adjustments
Tilt/Height/Swivel
-
Wall Mountable [mm]
100 x 100
SOUND
-
DTS Headphone:X
YES
DIMENSIONS/WEIGHTS
-
Dimension in Shiping (W x H x D) [mm]
1100 x 550 x 317
-
Dimension with Stand (W x H x D) [mm]
992.7 x 647.7 x 362.5(↑) 992.7 x 537.7 x 362.5(↓)
-
Dimension without Stand (W x H x D) [mm]
992.7 x 457 x 218
-
Weight in Shipping [kg]
16
-
Weight with Stand [kg]
10.9
-
Weight without Stand [kg]
8.6
INFO
-
Product name
UltraGear
-
Year
2023
POWER
-
Power Consumption (Max.)
160W
-
Power Consumption (Sleep Mode)
Less than 0.5W
-
Power Consumption (Typ.)
129W
-
AC Input
100-240V (50/60Hz)
-
Type
External Power(Adapter)
ACCESSORY
-
Display Port
YES
-
HDMI
YES (ver 2.1)
-
Others (Accessory)
Stand Cable holder , Screw Driver
-
Remote Controller
YES
-
USB A to B
YES
SW APPLICATION
-
Dual Controller
YES
-
LG Calibration Studio (True Color Pro)
YES
-
OnScreen Control (LG Screen Manager)
YES
STANDARD
-
RoHS
YES
